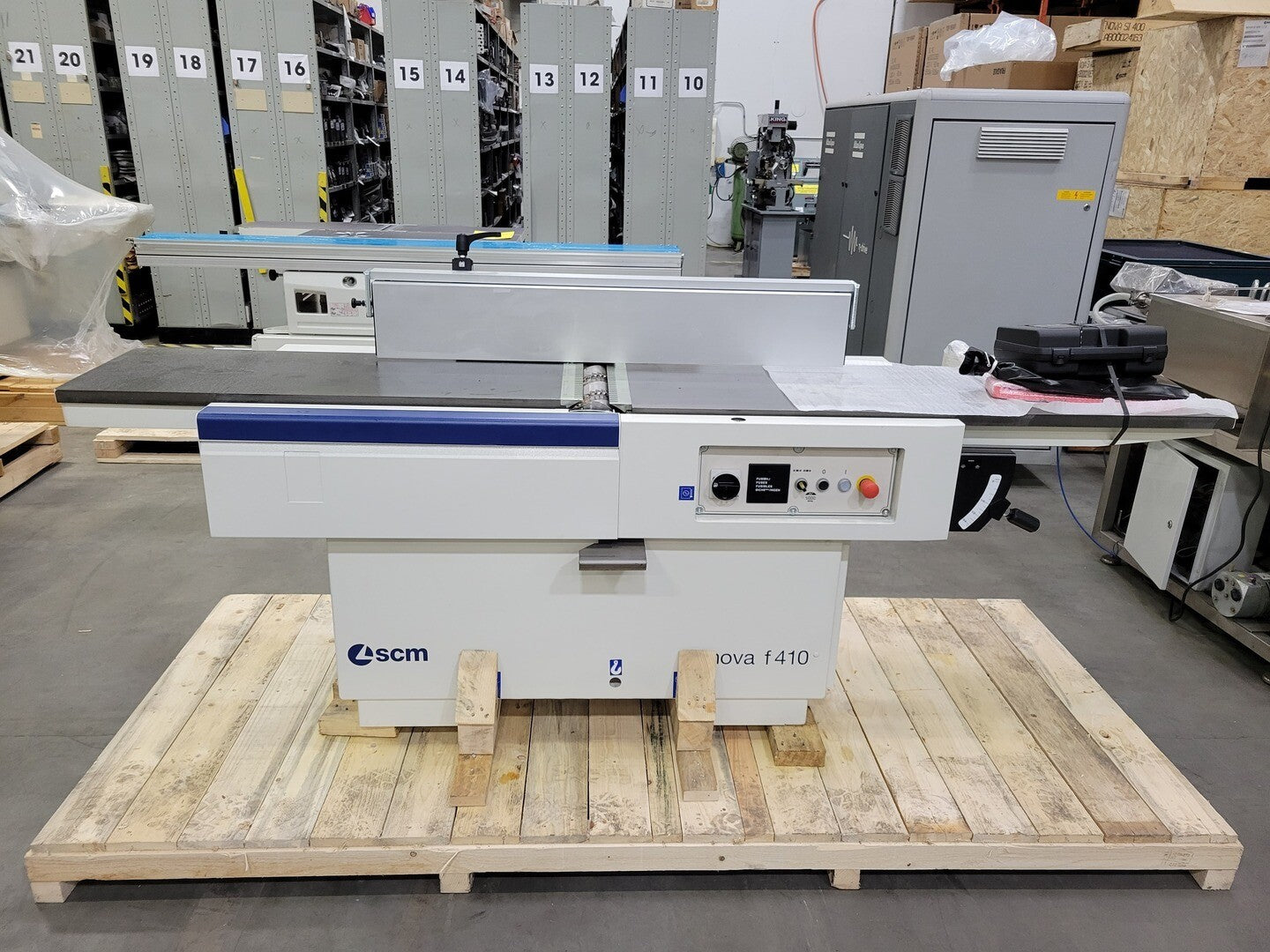

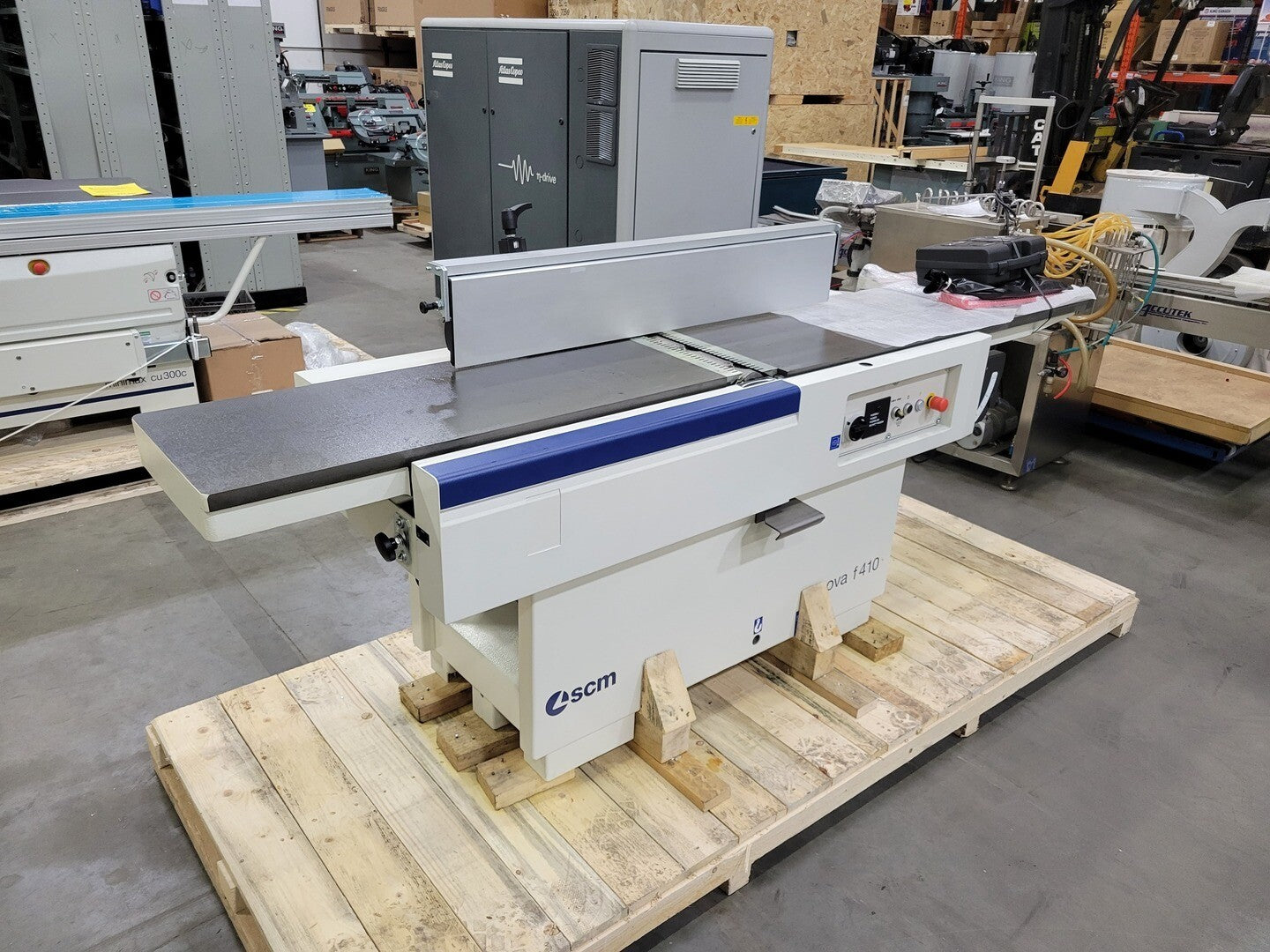

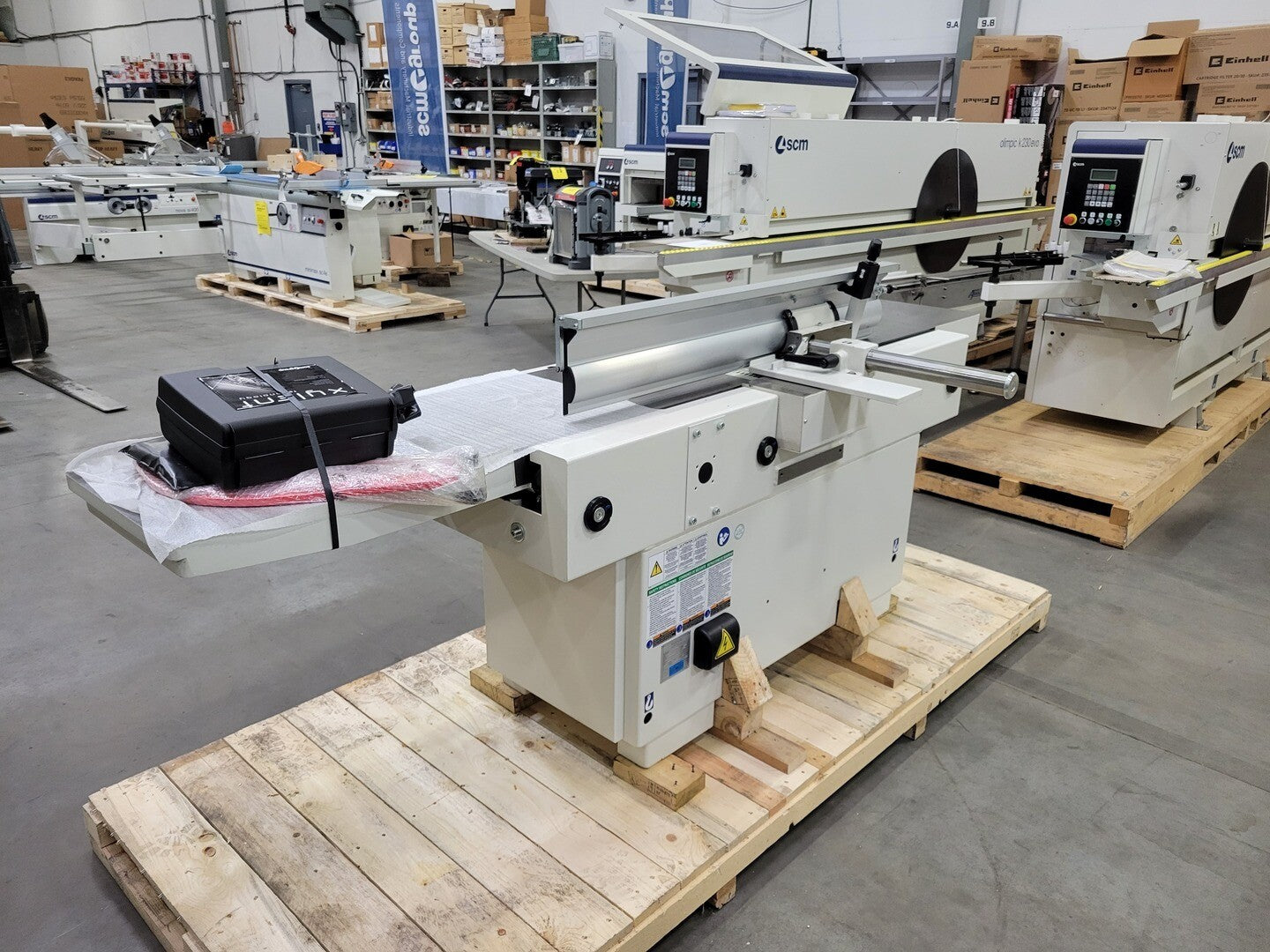

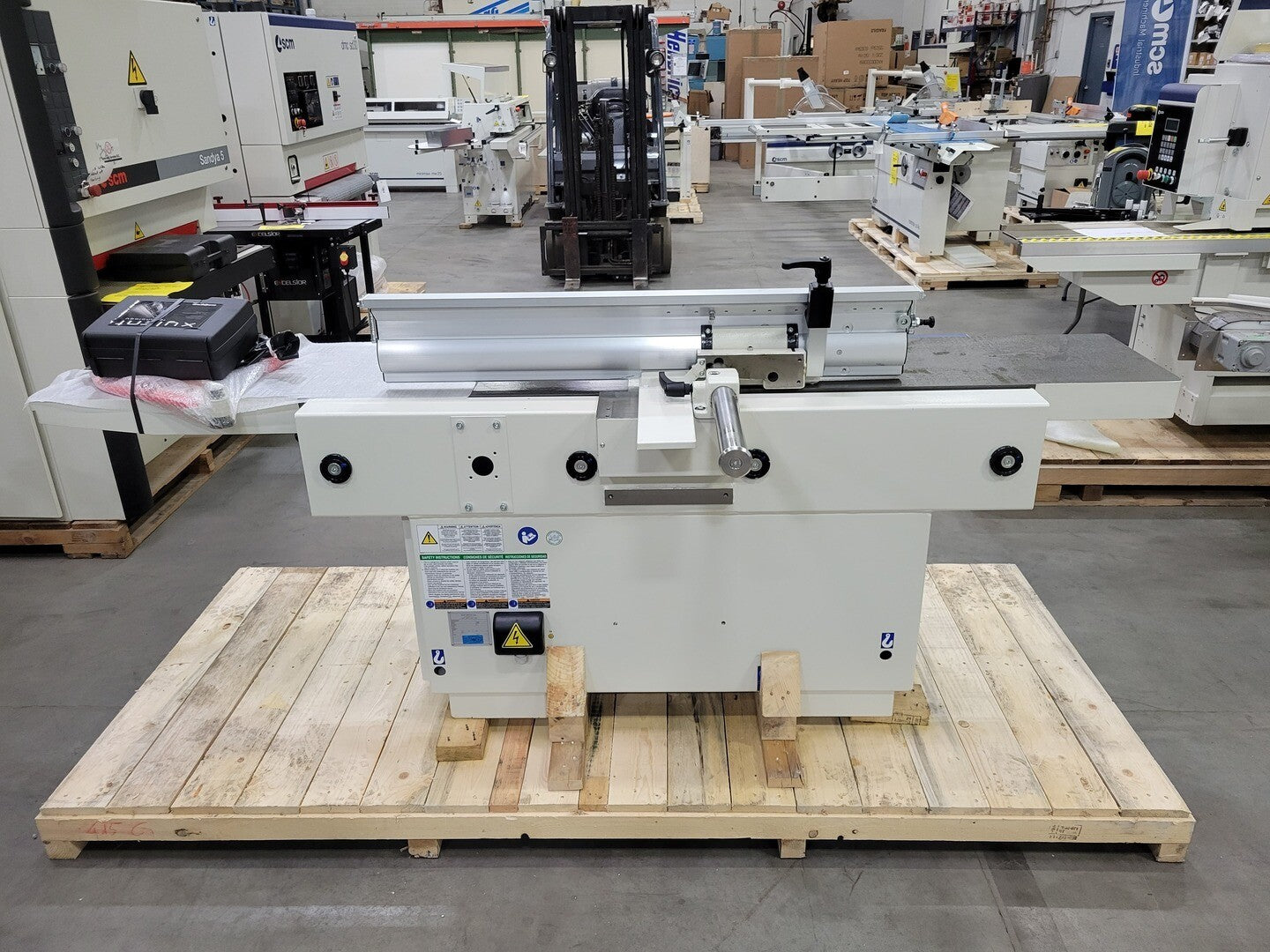

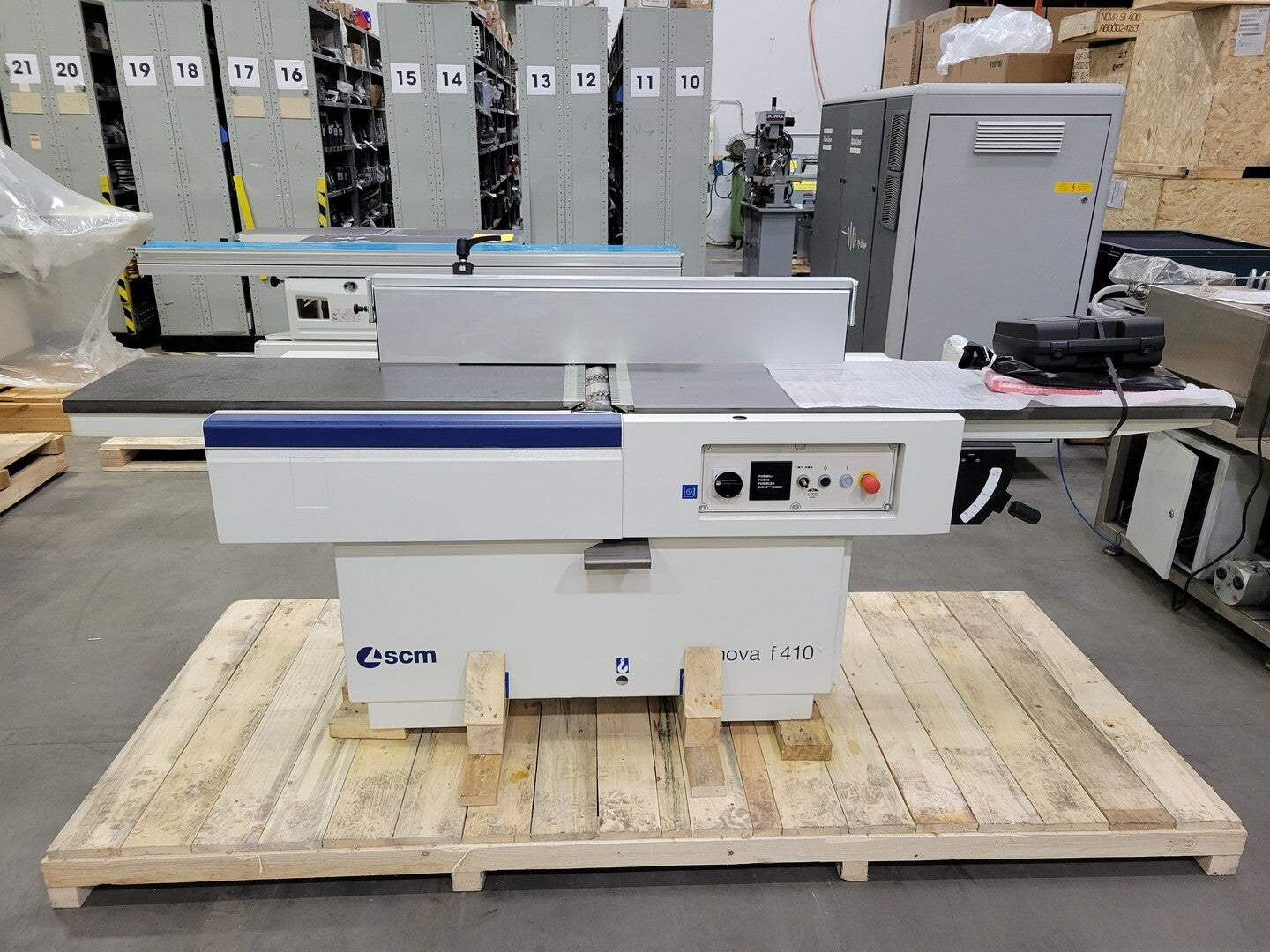

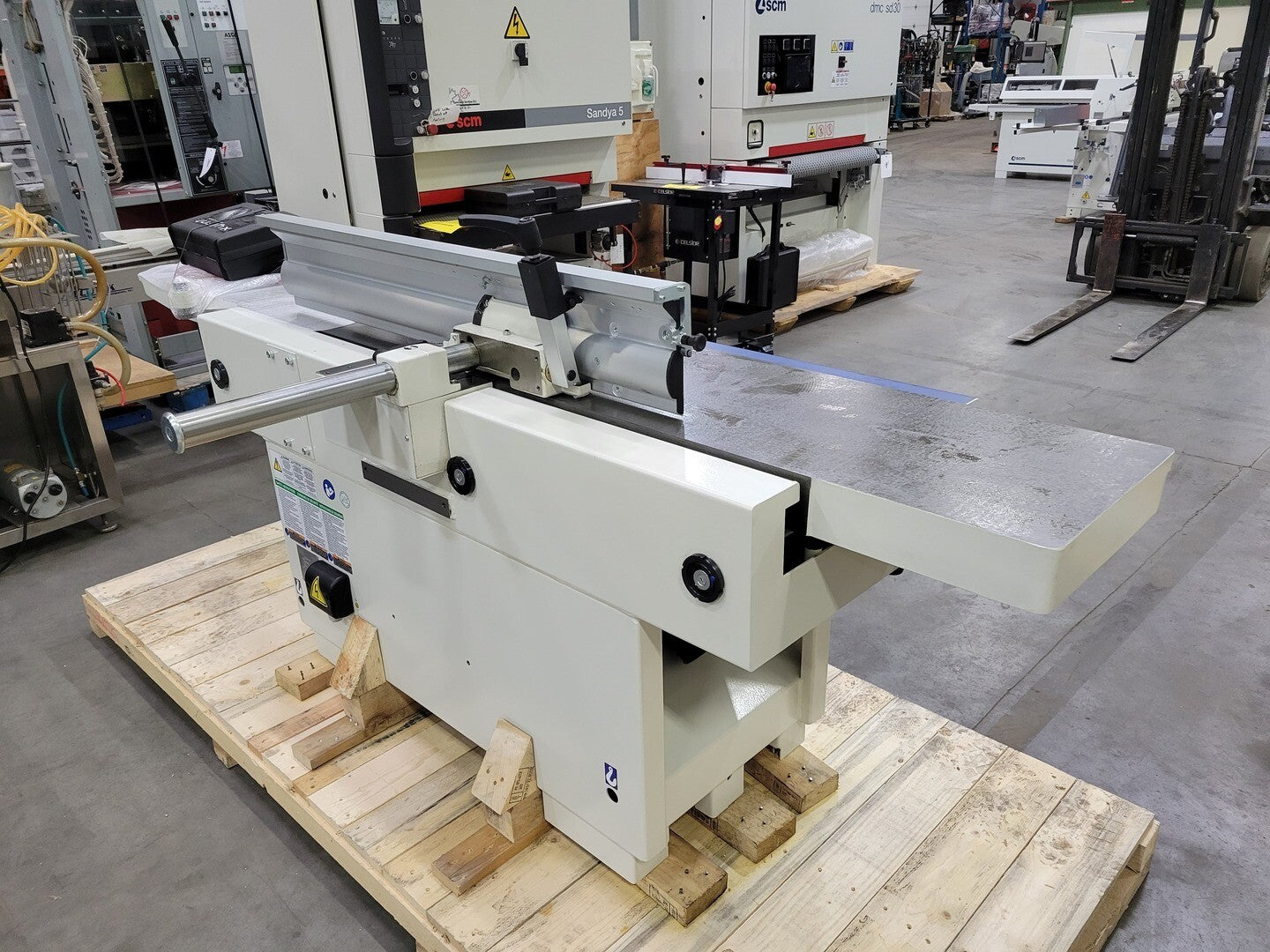

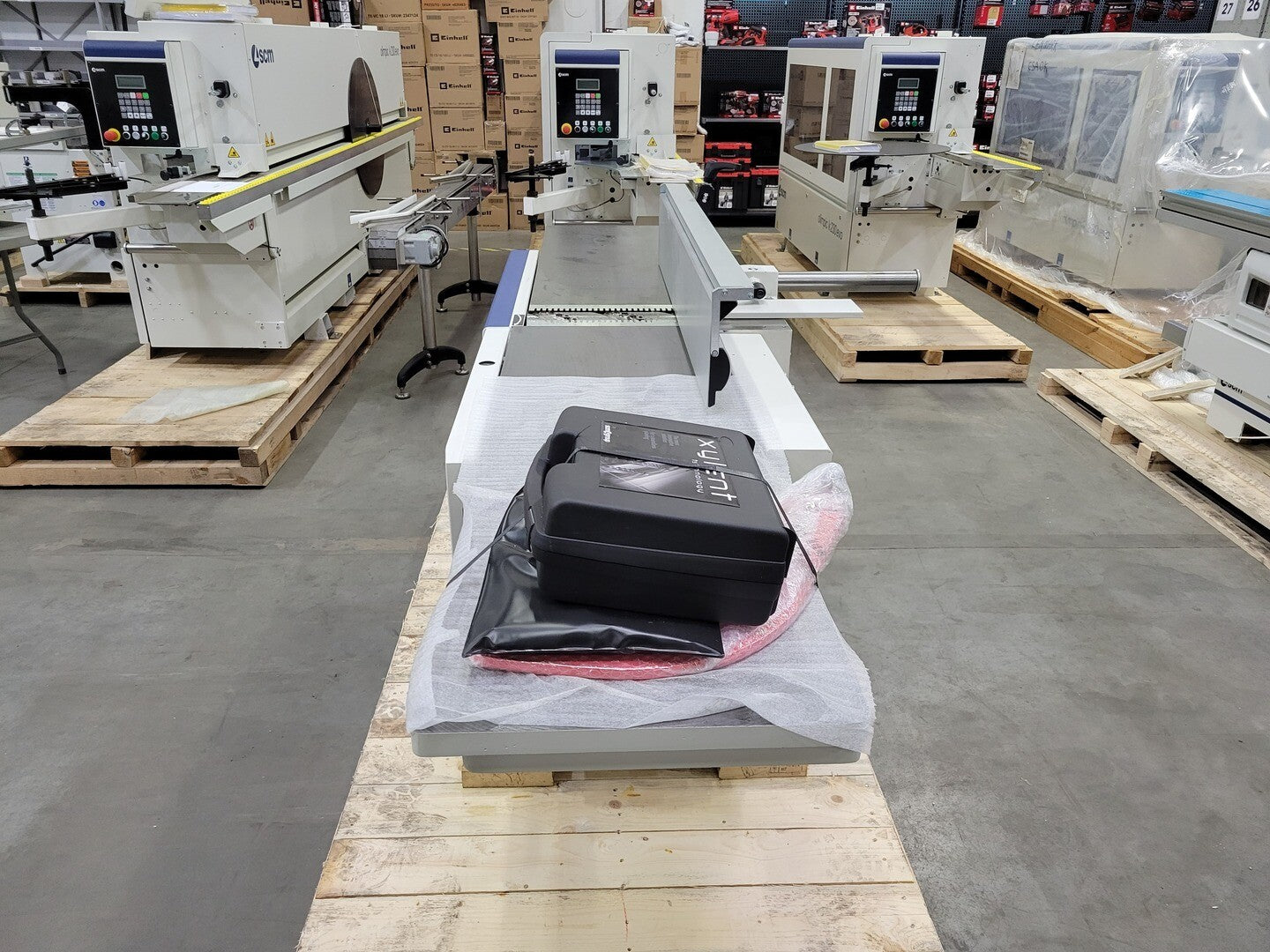

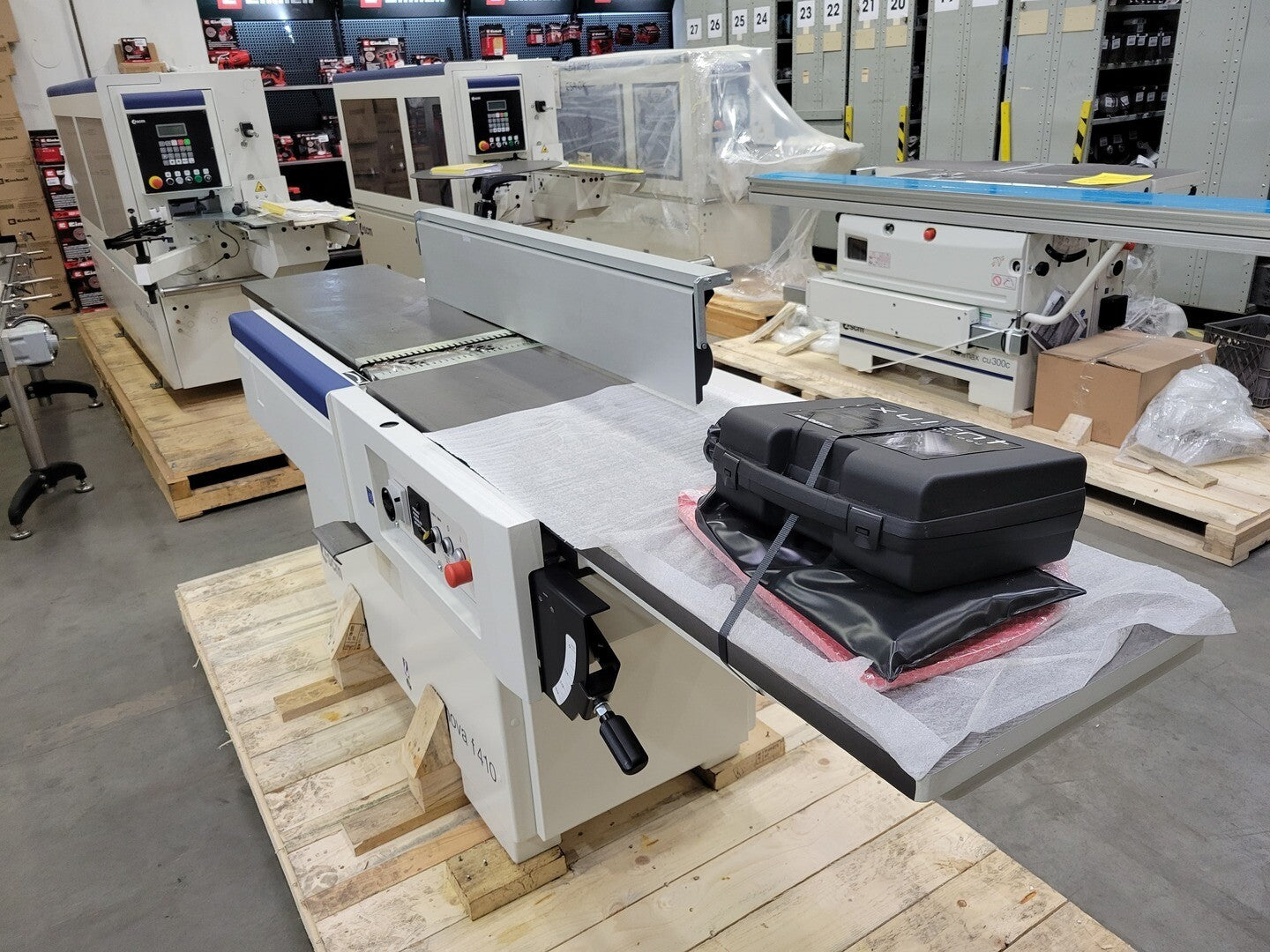

nova f410 Jointer w/ "Xylent" Spiral cutterblock

SKU: 90110
Save $1,415 CAD
Price:
$14,785 CAD $16,200 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Description

Specifications

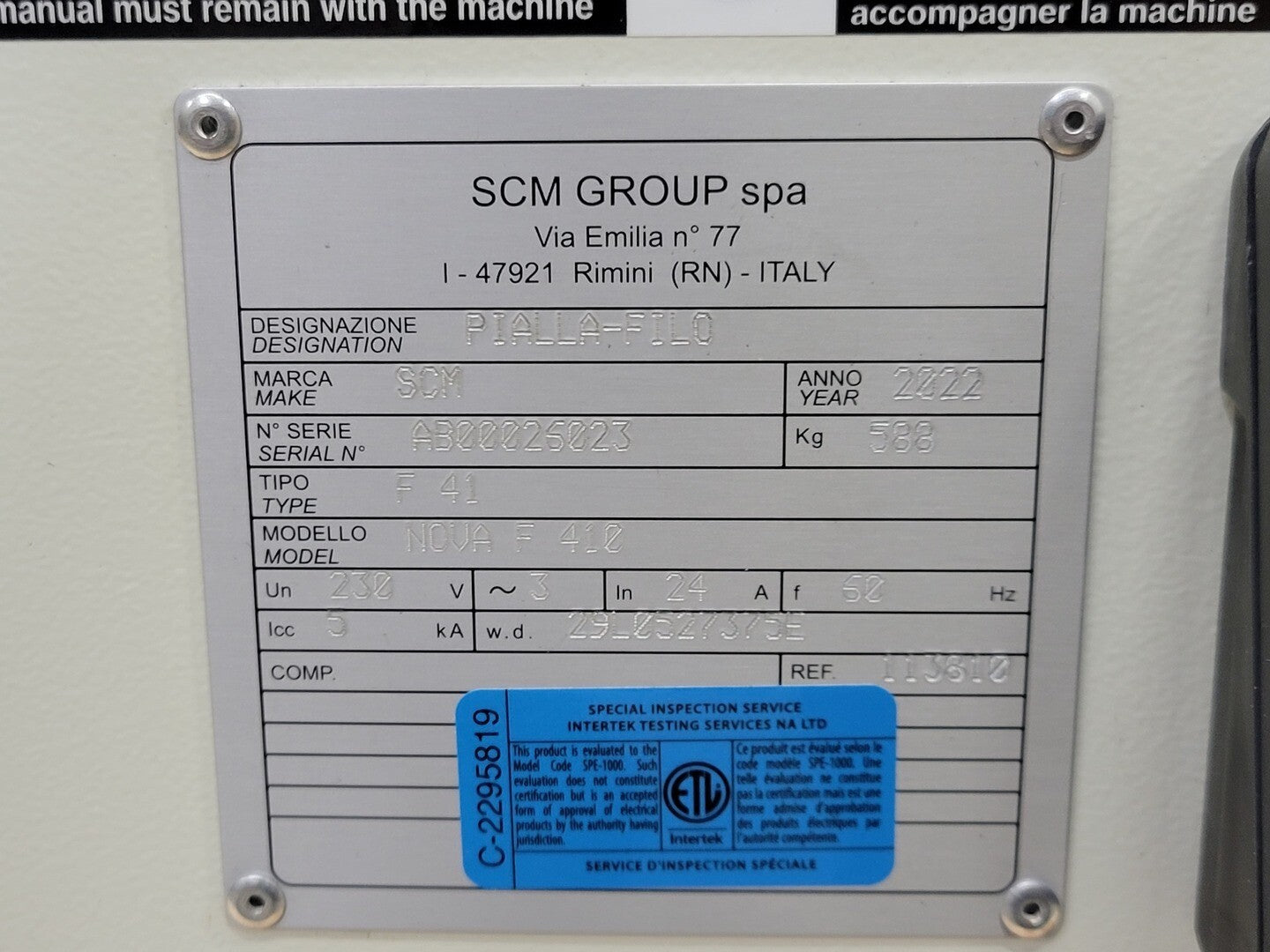

Model nova f 410
Made In ITALY
Condition New
General
Horsepower 8 hp
Max. Workpiece Width 410 mm / 16.14 "
Electrical
Voltage 230 volts
Phase 3-phase
Other Specifications

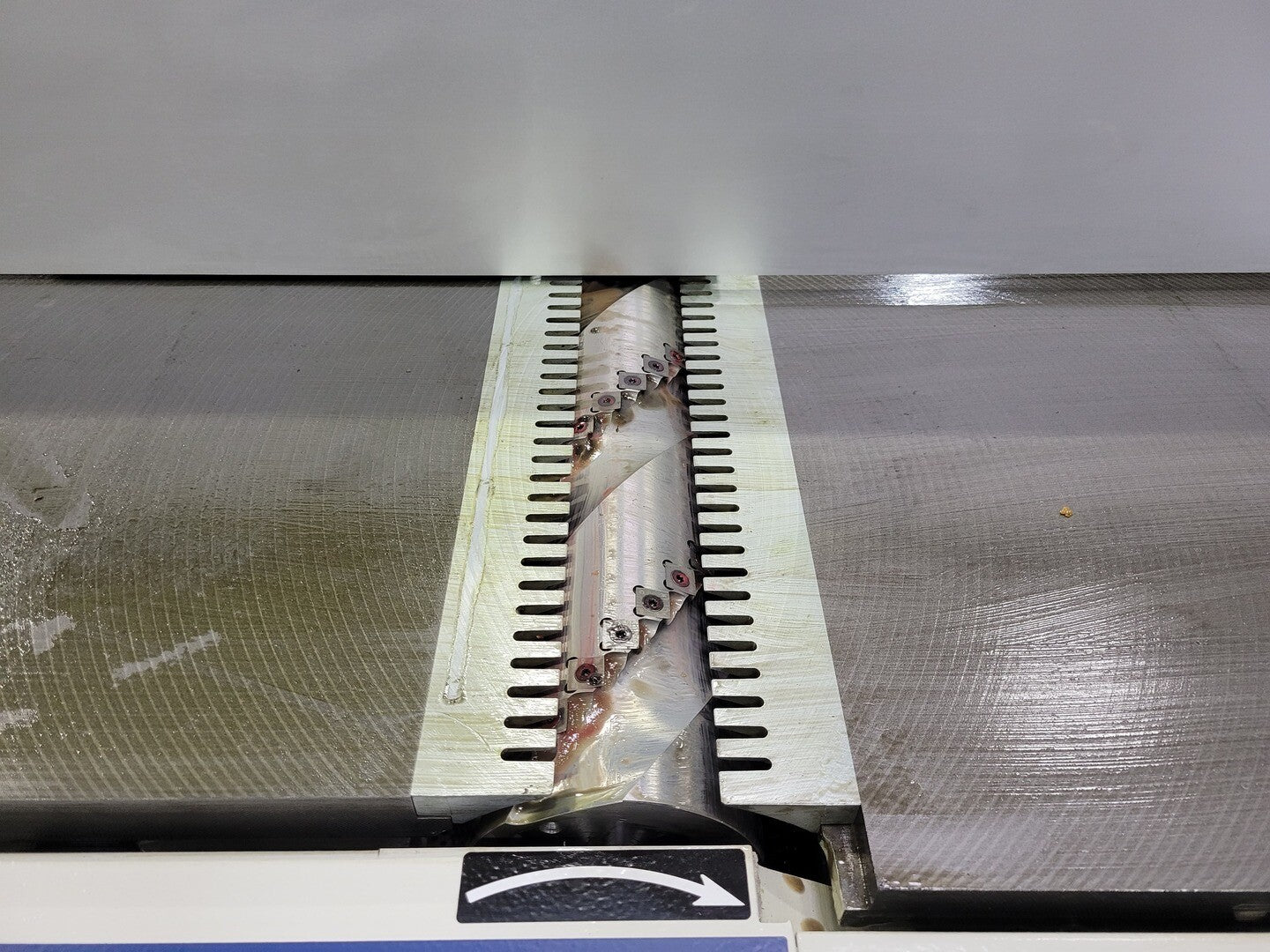

"Xylent" Spiralknife Cutterblock with 3 Series of Knife

Complete with:

  • No. 66 plates 15x15x2.5 mm with 4 self-locking and self-centering screw knives
  • No. 1 dynamometric key for the correct and safe use of the locking
  • No. 2 inserts for the dynamometric key

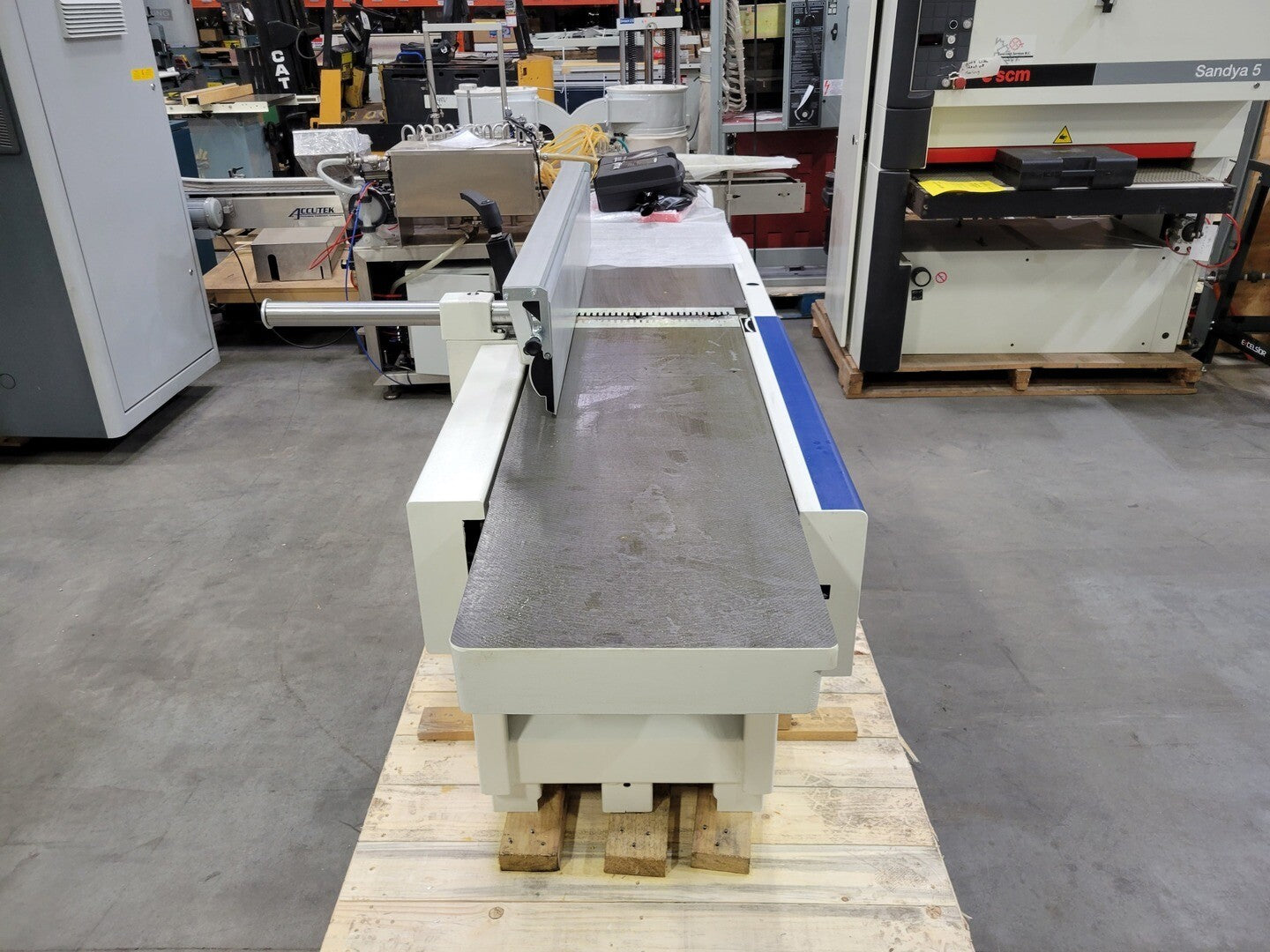

Total length of worktables: 2610 mm

Infeed table length: 1450 mm

Outfeed table length: 1160 mm

Cutterblock diameter: 120 mm

Cutterblock speed: 5000 rpm

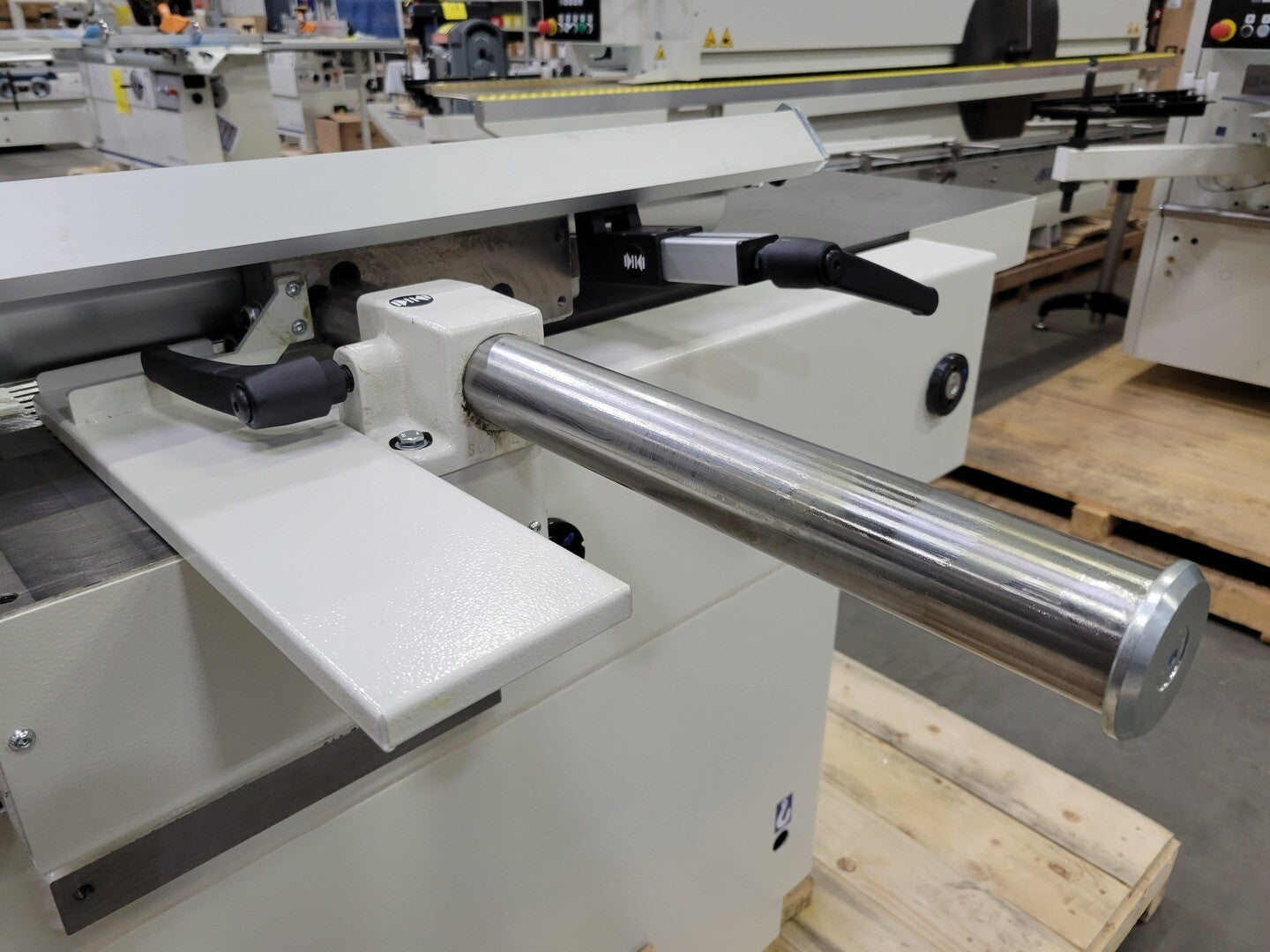

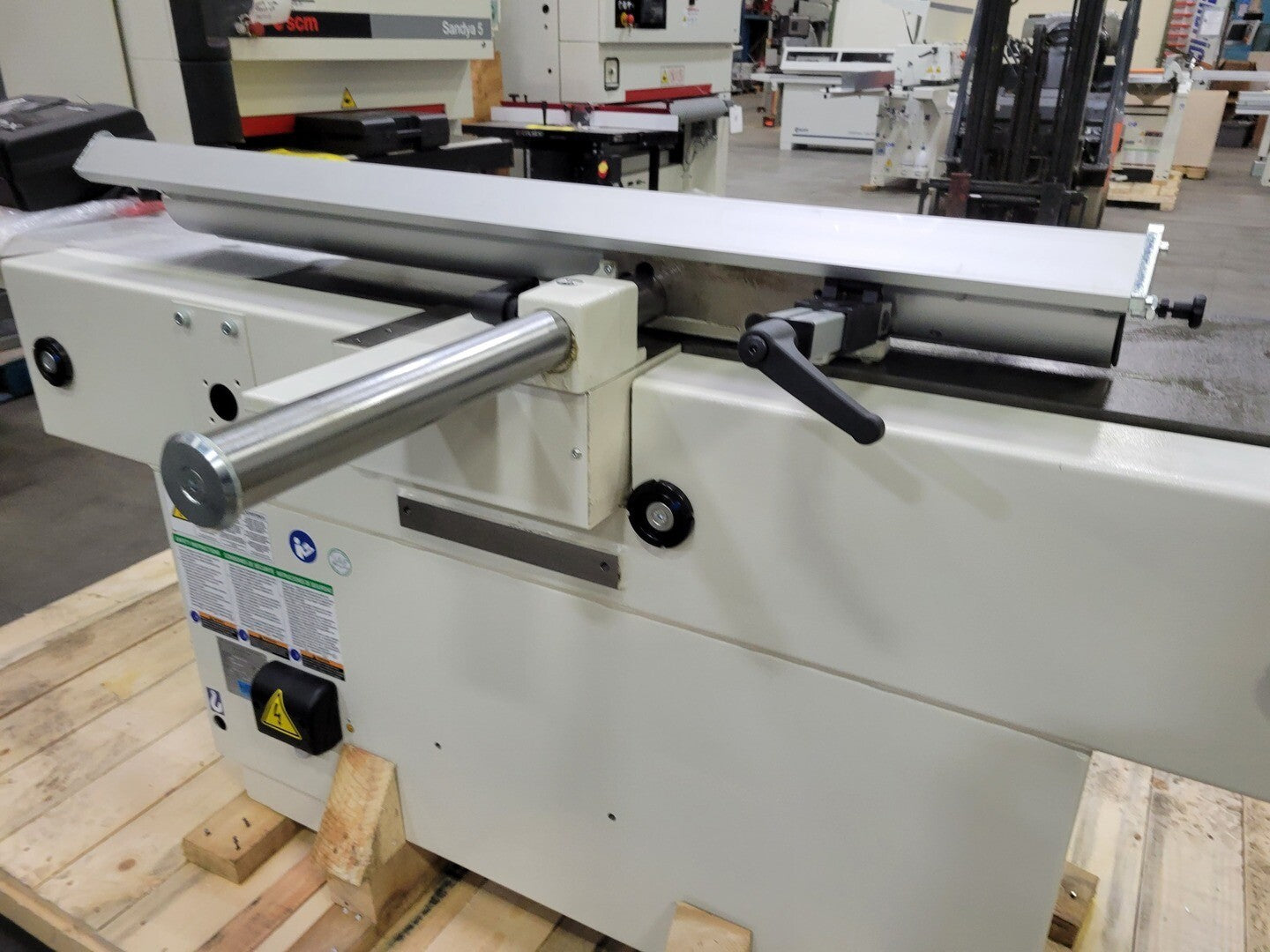

Aluminium surface fence: 1200x190 mm

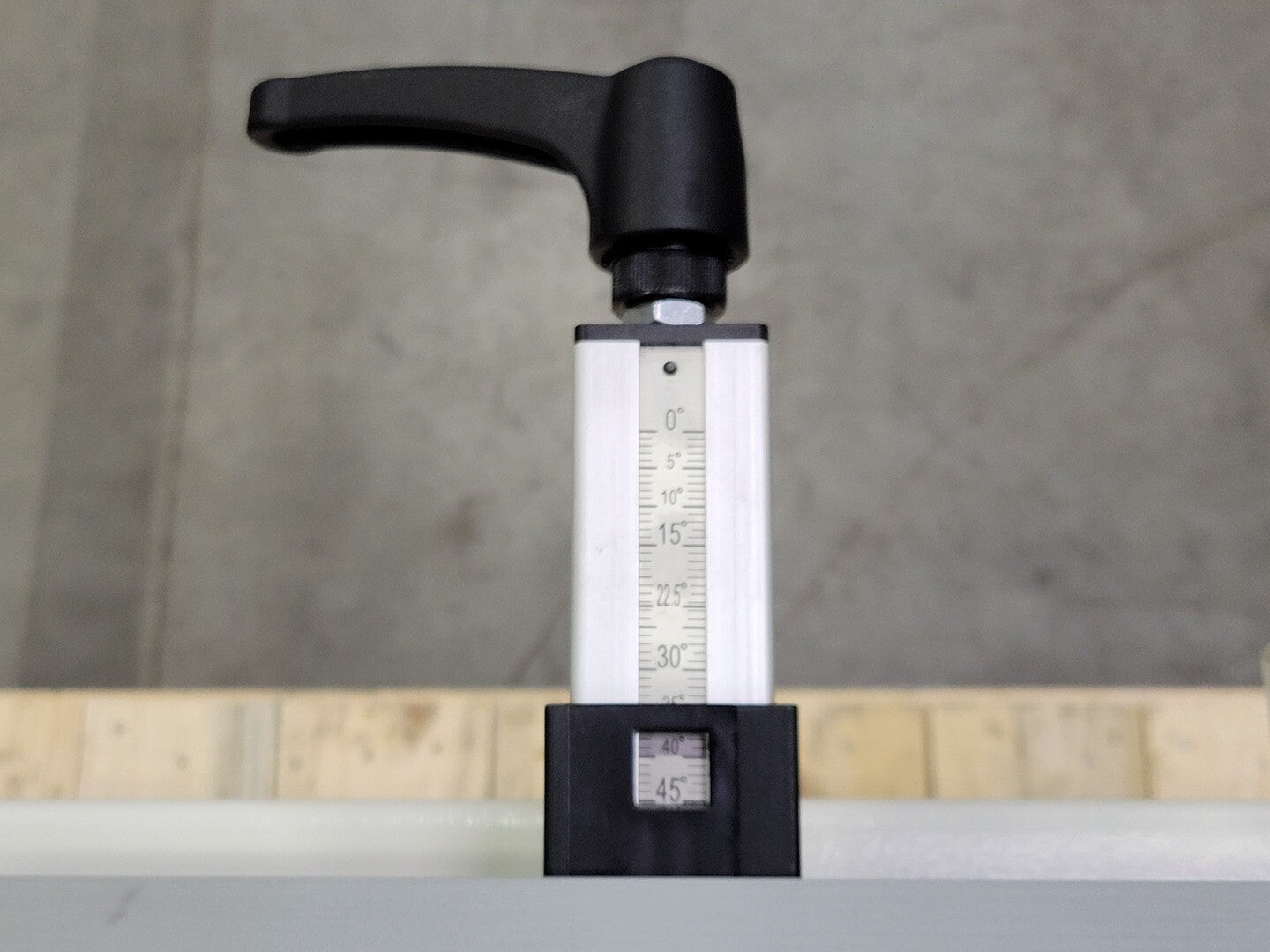

Surface fence tilt: From 90° to -45°

Worktables height from floor: 845 mm

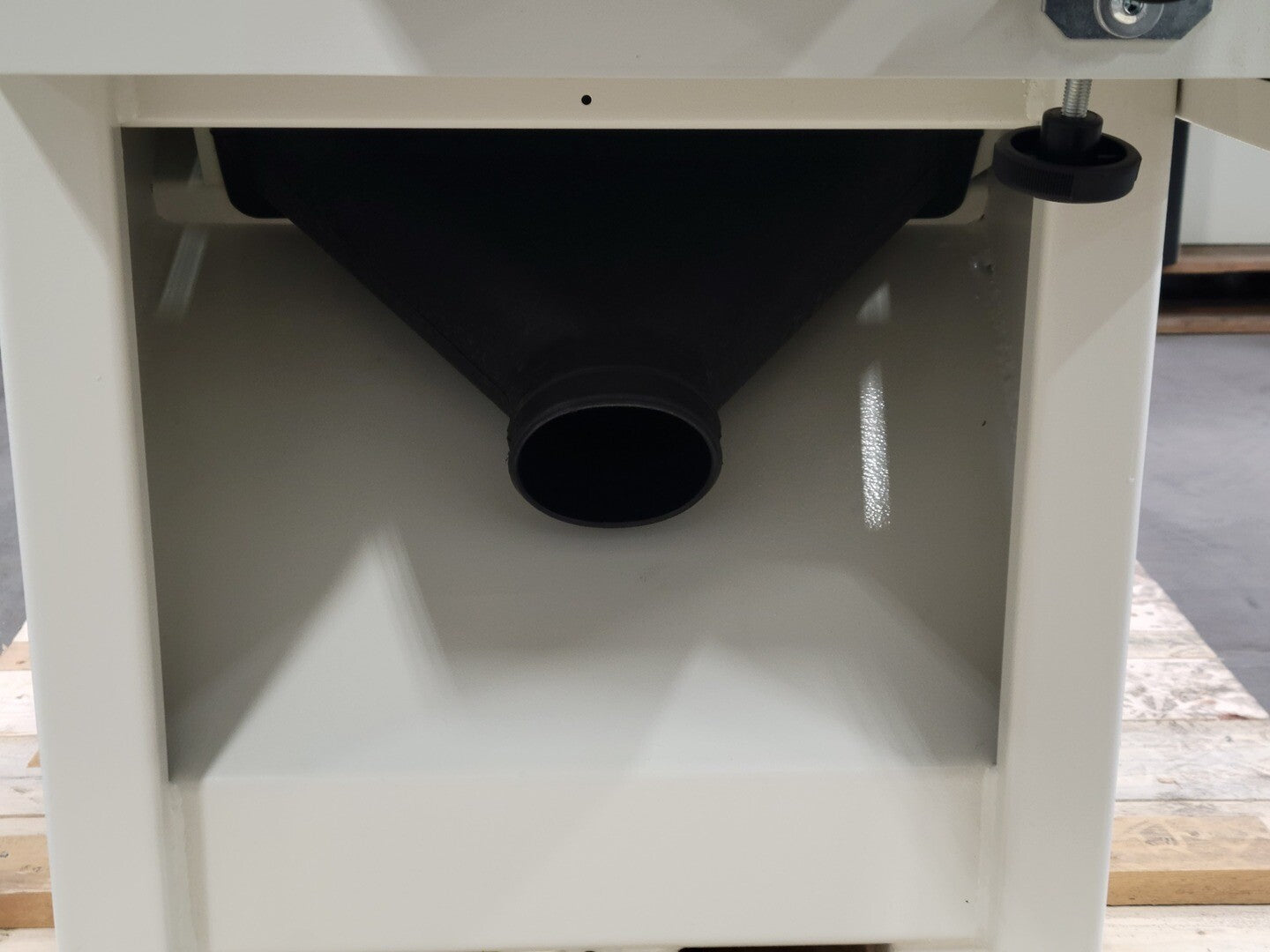

Exhaust outlet diameter: 120 mm

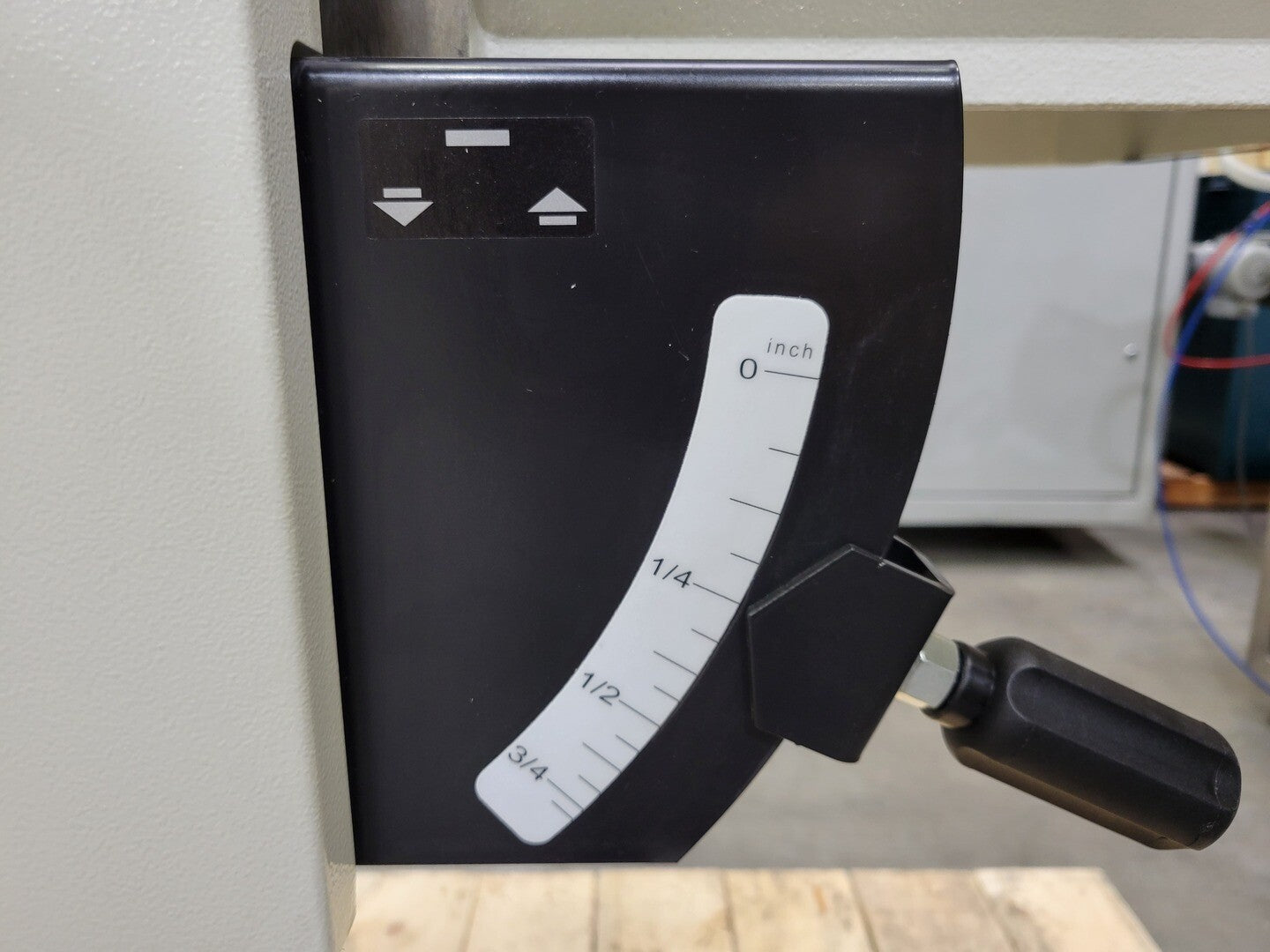

Max. stock removal: 8 mm

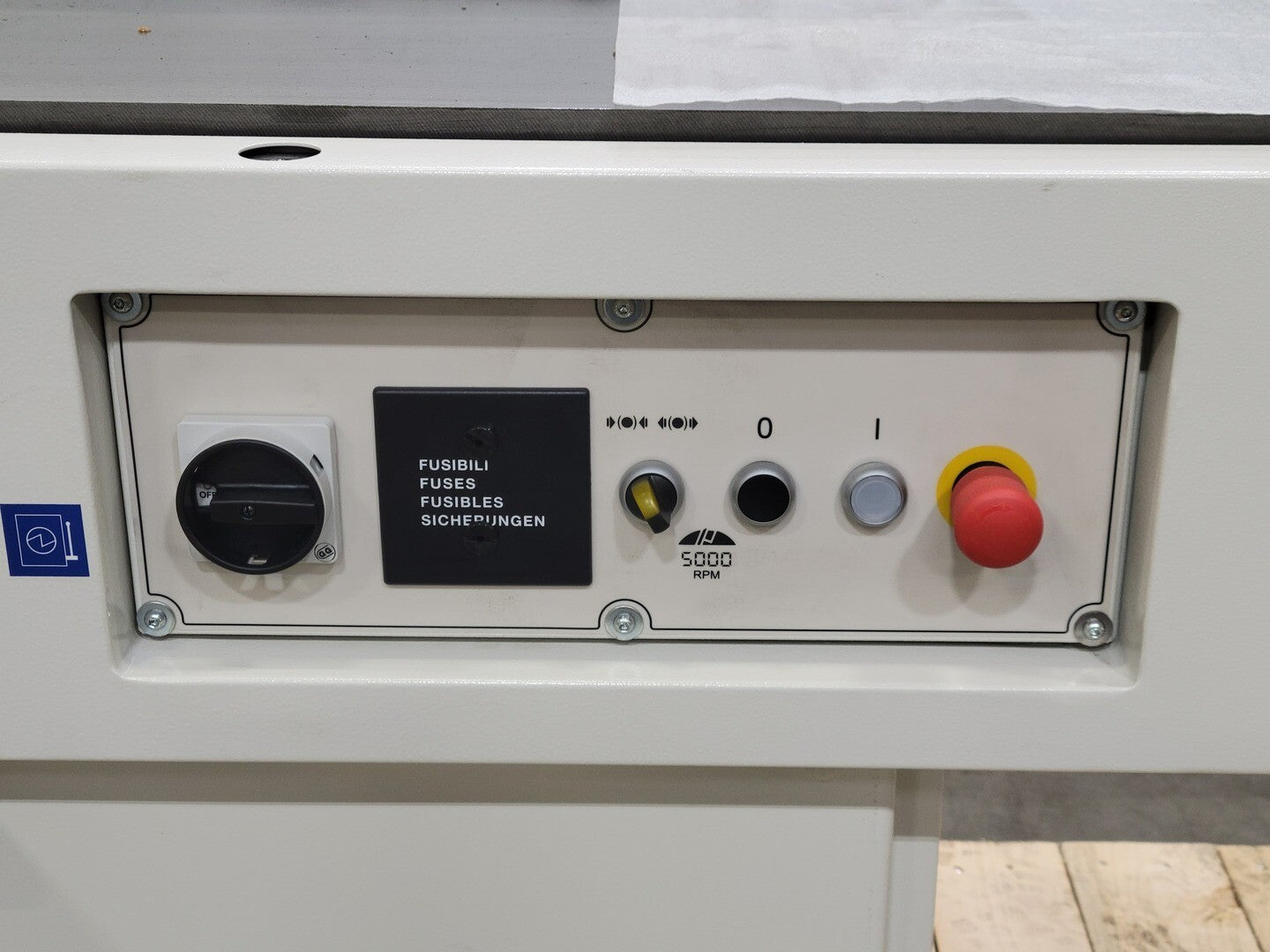

Motor power with direct motor start:

  • (S1): 4kW 5.5hp 50 Hz (4.8kW 6.6hp 60hz)
  • (S6 -40%): 5kW 7hp 50hz (6kW 8hp 60hz)

Additional Features

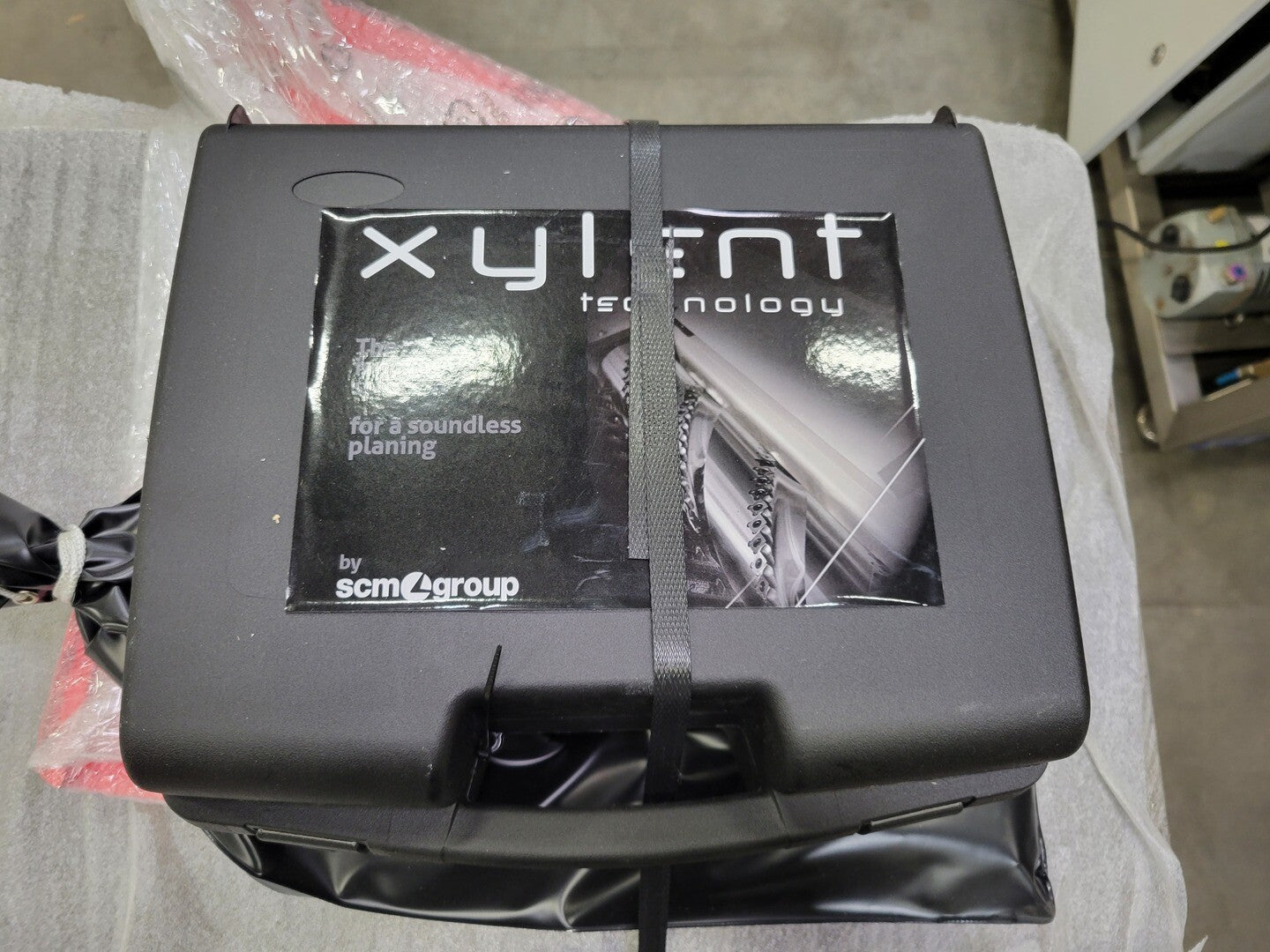

  • Xylent maintenace kit
  • 10 spare inserts kit (15x15x2.5) for Xylent spindle
  • Seaworthy packing

PDF Brochure

PDF Footprints
