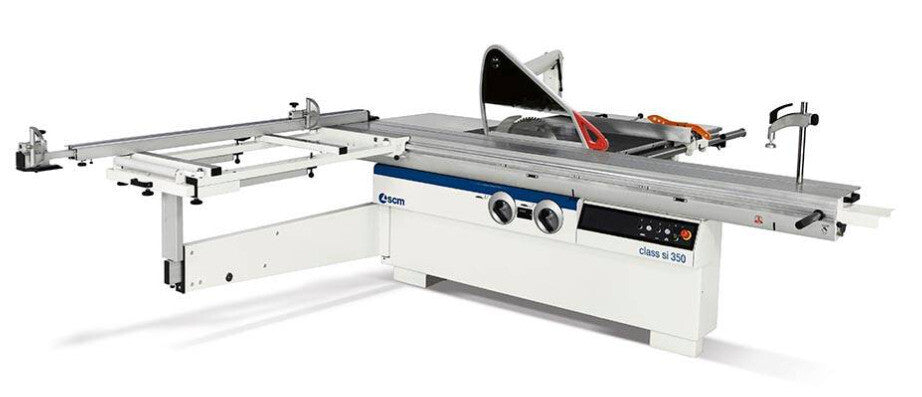

class si 350 Circular Saw w/ Tilting Blade

Max Cutting Height at 90^o: 118 mm

Max Cutting Height at 45^o: 81 mm

Blade Tilt: 45 degrees

Blades Lifting and Tilt: Manual

Main Blade Rotating Speed: 4000 rpm

Scoring Unit Rotating Speed: 8500 rpm

Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp)

Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm

Cutting Width on Parallel Fence: 1500 mm

Exhaust Outlet Diameter:

• At the Base: 120 mm
• On Overhead Protection: 100 mm
• On Riving Knife: 60 mm

Basic Machine Net Weight: 1050 kg

Standard Equipment and Options

• Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
• Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system
• Eccentric clamp
• Squaring frame the fast fence positioning of angular cuttings
• Outfeed table extensions
• Sliding carriage length 3200 mm
• Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment
• Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade

Additional Features

• Motor Start/Stop Pushbuttons (integrated in the sliding carriage for saw and scoring blade)
• Fence for angular cutting
• Seaworthy packing
