WLDH-5000 Horizontal spiral ribbon mixing system

SKU: 136933
Price:
$139,900 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model WLDH-5000L
Condition Used
Other Specifications

(please see attached Word file for all components and description. Tried to copy and paste here but format does not work)

Main Machine (Mixer):

  • Motor: 30 kw, 3-phase, 480V, 60Hz
  • Gear Reducer: K127, hardened gear surface
  • Output Speed: 27 rpm, direct drive from reducer
  • Max Mixing Capacity: 3000 kg/batch, based on material density = 1
  • Equipment Weight: 4.5 tons
  • Bearing: WLDH-5000L
  • Shaft seal: WLDH-5000L
  • Feed Port / Manhole: DN500, quick-open
  • Discharge Port: 300 x 200 mm, pneumatic flap valve

Mixing Tank:

  • Main Shaft: Dia. 168 x 20 mm, 304 Stainless Steel
  • Secondary Shafts: Dia. 45 mm, 304 Polished Stainless Steel
  • Mixing Tank: 6 mm thickness, 304 Stainless Steel
  • Mixing Ribbon: 12 mm thickness, 304 Stainless Steel
  • Inner Liners (sides): 3 mm thickness, 304 Stainless Steel

Steel Plates:

  • End Plates: 16 mm, Carbon Steel with Paint
  • Motor Plate: 35 mm, Carbon Steel with Paint
  • Reinforcement Ribs: 16 mm, Carbon Steel with Paint

Control System:

  • Relays, Air Switches, Contactors, Timers, Buttons, etc.
  • Electrical Cabinet

Auxiliary Equipment:

  • Steel Platform: Made from 20# square steel, 5 mm wall; 3 mm checker plate; 32 mm guardrails; detachable

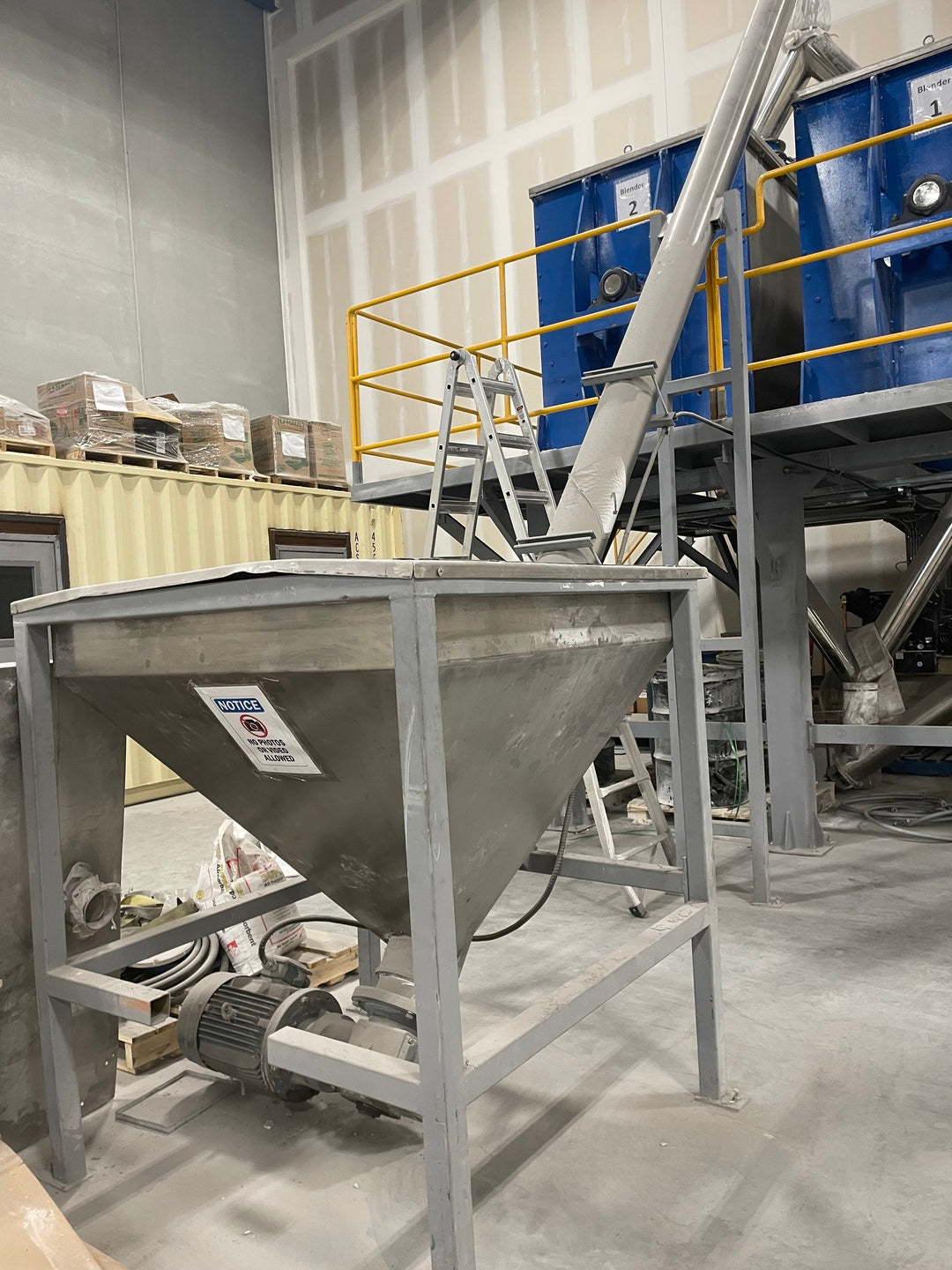

  • Feed Screw Conveyor: LSJ-219, motor 7.5kW; Dia. 219 mm pipe, 4 mm thick; all contact 304SS
  • Discharge Conveyor: LSJ-219, motor 7.5kW; Dia. 219mm pipe, 4 mm thick; 304 Stainless Steel
  • Vibrating Screen: Dia. 800 mm; mesh 20 mesh; 304 Stainless Steel
  • Ton Bag Stand: With bag clamping device; 304 Stainless Steel
  • Pulse Dust Collector: Model: MC-16; Fan: 7.5 kW; Airflow: 7500 m3/h; Filter Area: 40 m2; 4 pulse sets; folded filter bucket
  • Feed Diverter: Pneumatic butterfly valve DN200 x 2; Dia. 219 pipe; 304 Stainless Steel
  • Discharge Diverter: Dia. 219 mm piping; 304 Stainless Steel

Feeder Specifications:

  • JL-T46, for powder material, bulk density 0.5 g/cm3, flowability: average, feed rate: 200-1000 kg/h
  • Dual screw with self-cleaning, spherical hopper with horizontal mixer to prevent bridging
  • Contact parts: SS316; easy to disassemble, clean, replace
  • Spherical hopper (no dead corners), 150L symmetrical hopper
  • 1.5kW 380V AC feeding motor with frequency converter speed control
