Description

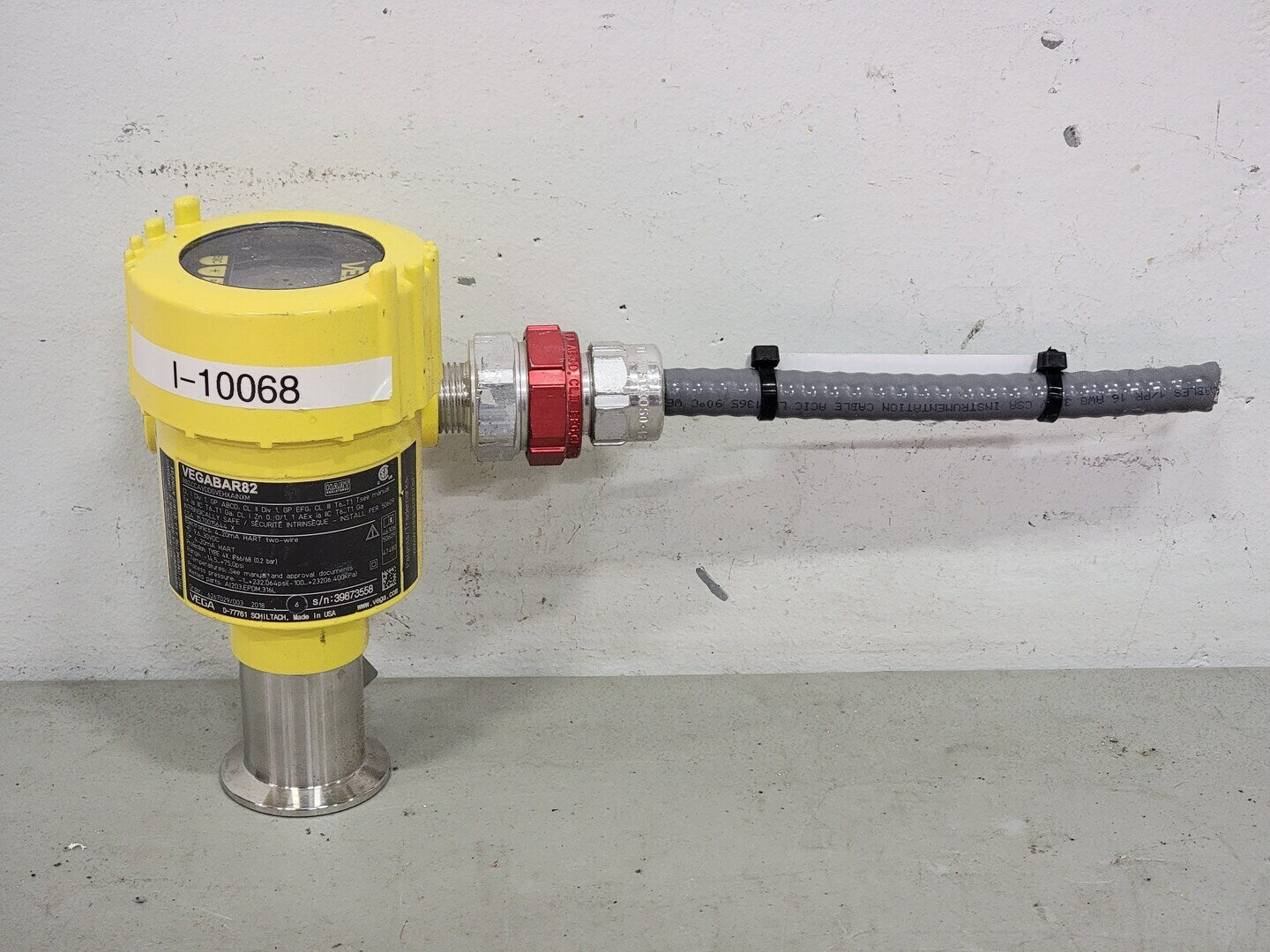

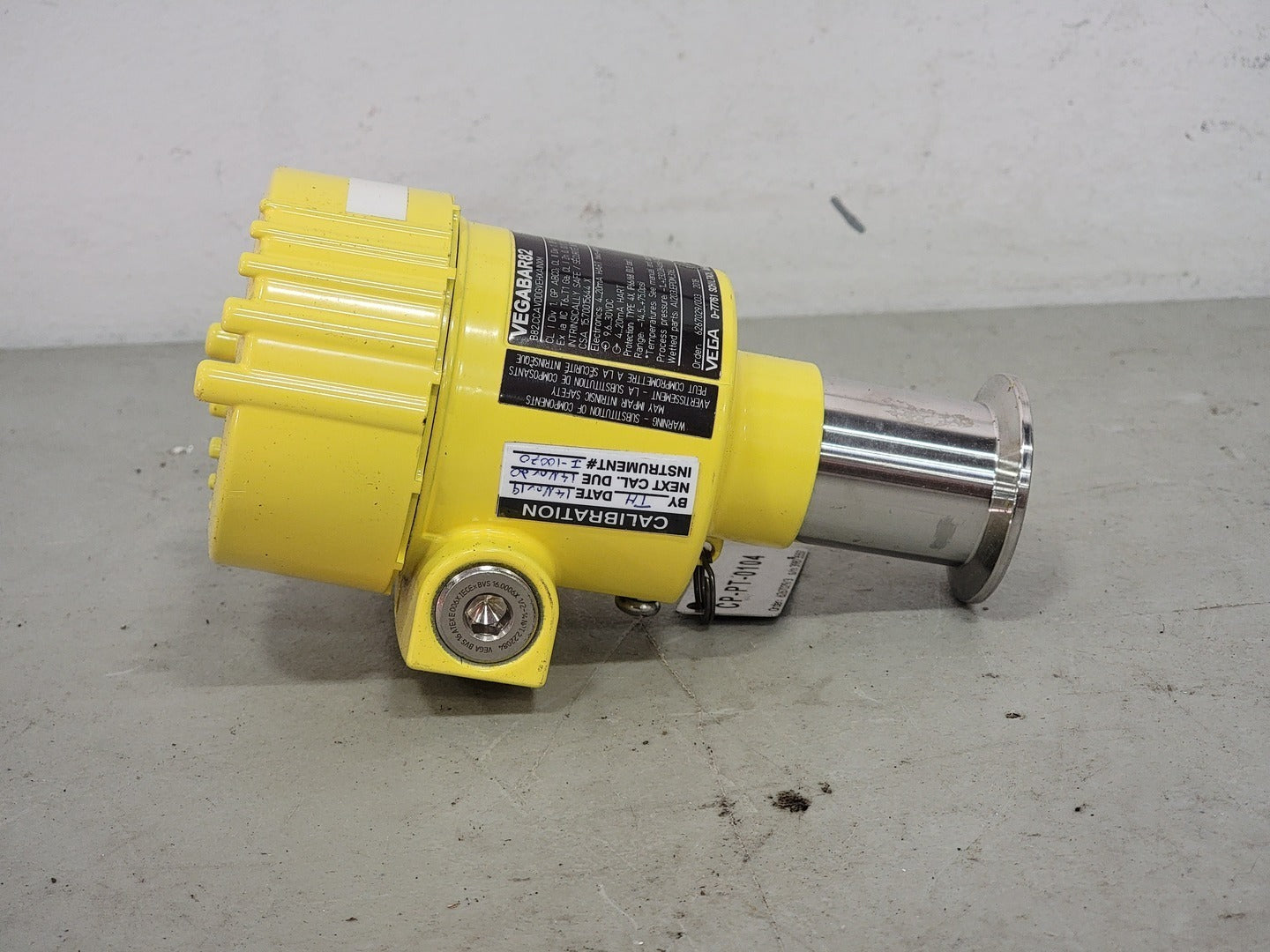

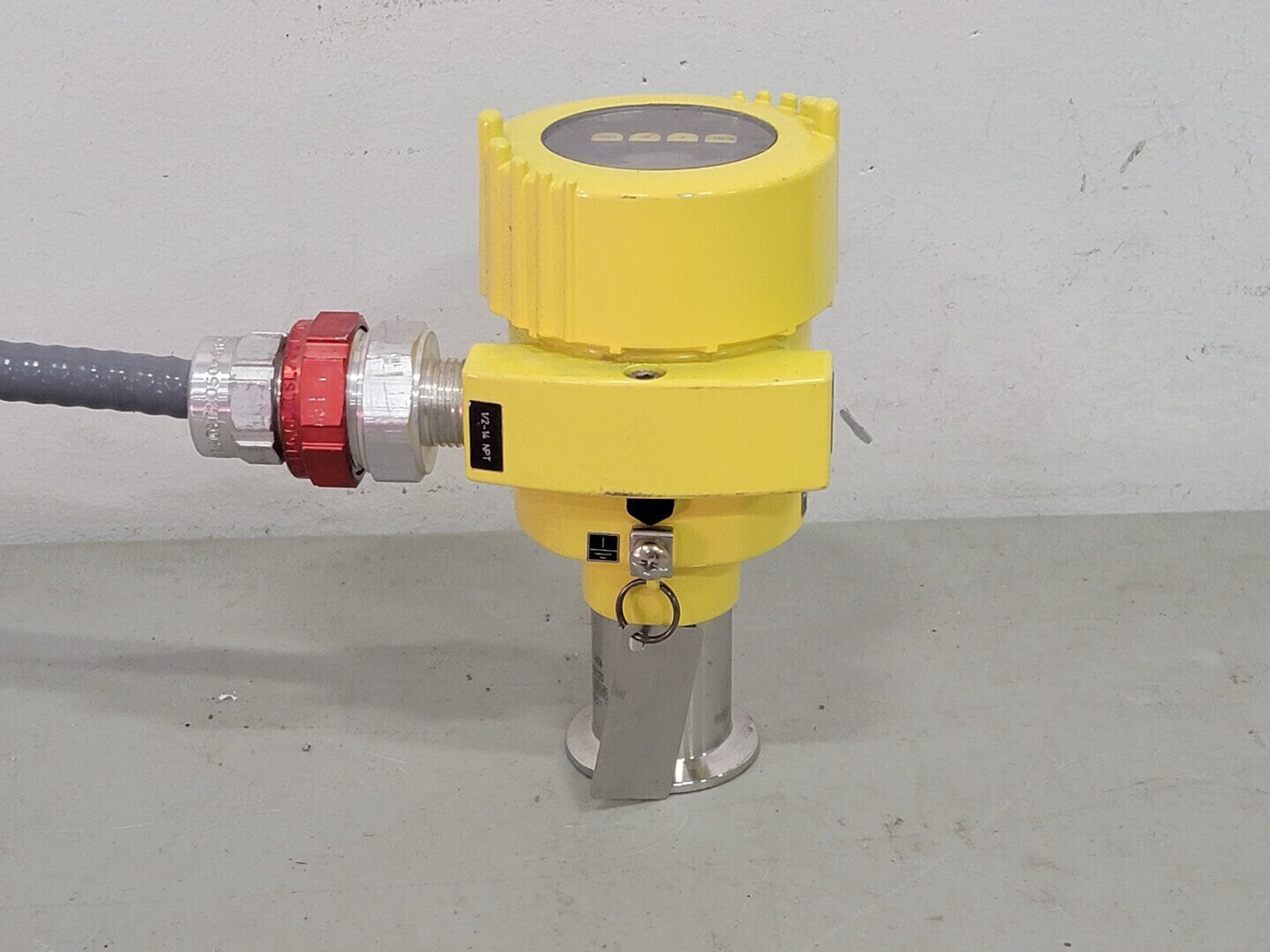

The Vegabar82 Pressure Transmitter features a ceramic measuring cell and a high-quality design by VEGA. This model is equipped with 4 - 20 mA HART electronics, operating on a 9.6 - 30 VDC input power range. It delivers an output range of 4 - 20 mA HART, supported by Type 4X, IP66/68 protection (up to 0.2 bar). The pressure range for this transmitter is -14.5 to +75.0 psi, with a process pressure capability of -1 to +232.064 psi. The wetted parts of this device consist of AI203, EPDM, and 316L materials, making it suitable for various industrial applications.
| Specifications | |
|---|---|
| Model | B82.CCAVDDGVEHXAINXM |
| Year: | 2018 |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
|

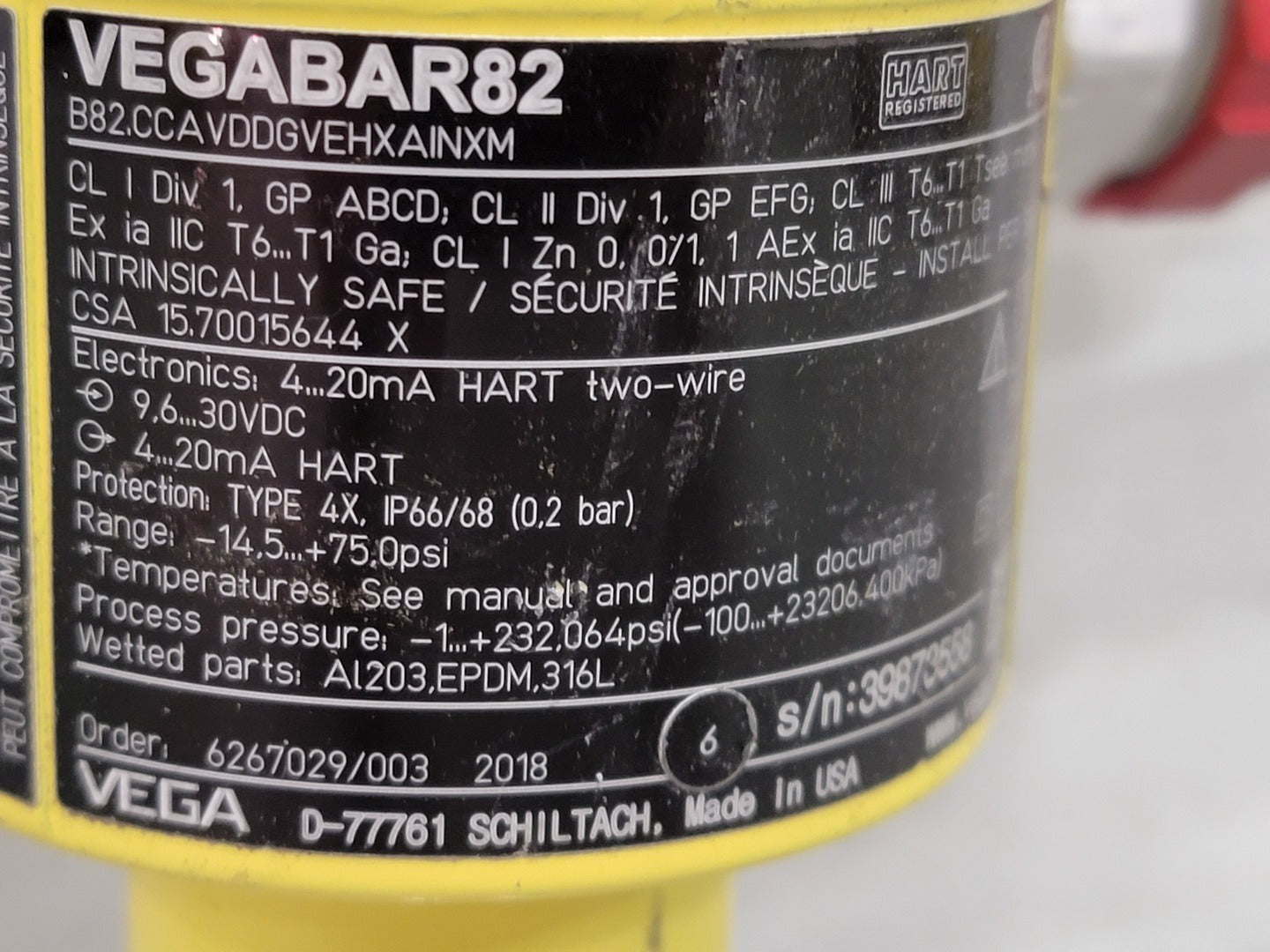

Electronics: 4 - 20 mA HART two-wire Input: 9.6 - 30 VDC Output: 4 - 20 mA HART Protection: Type 4X, IP66/68 (0.2 bar) Range: -14.5 to +75.0 psi Process Pressure: -1 to +232.064 psi Wetted Parts: AI203.EPDM.316L |
