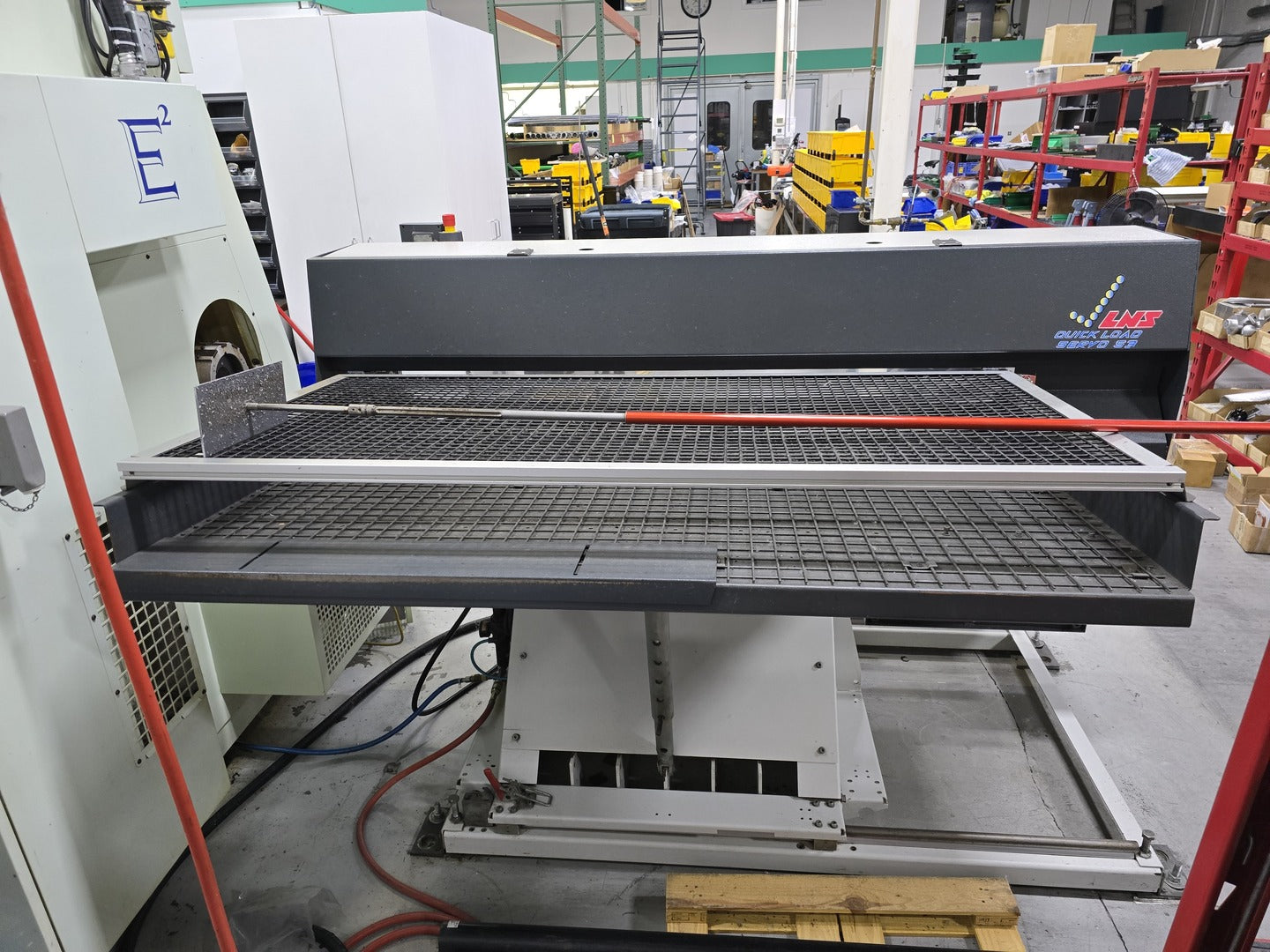

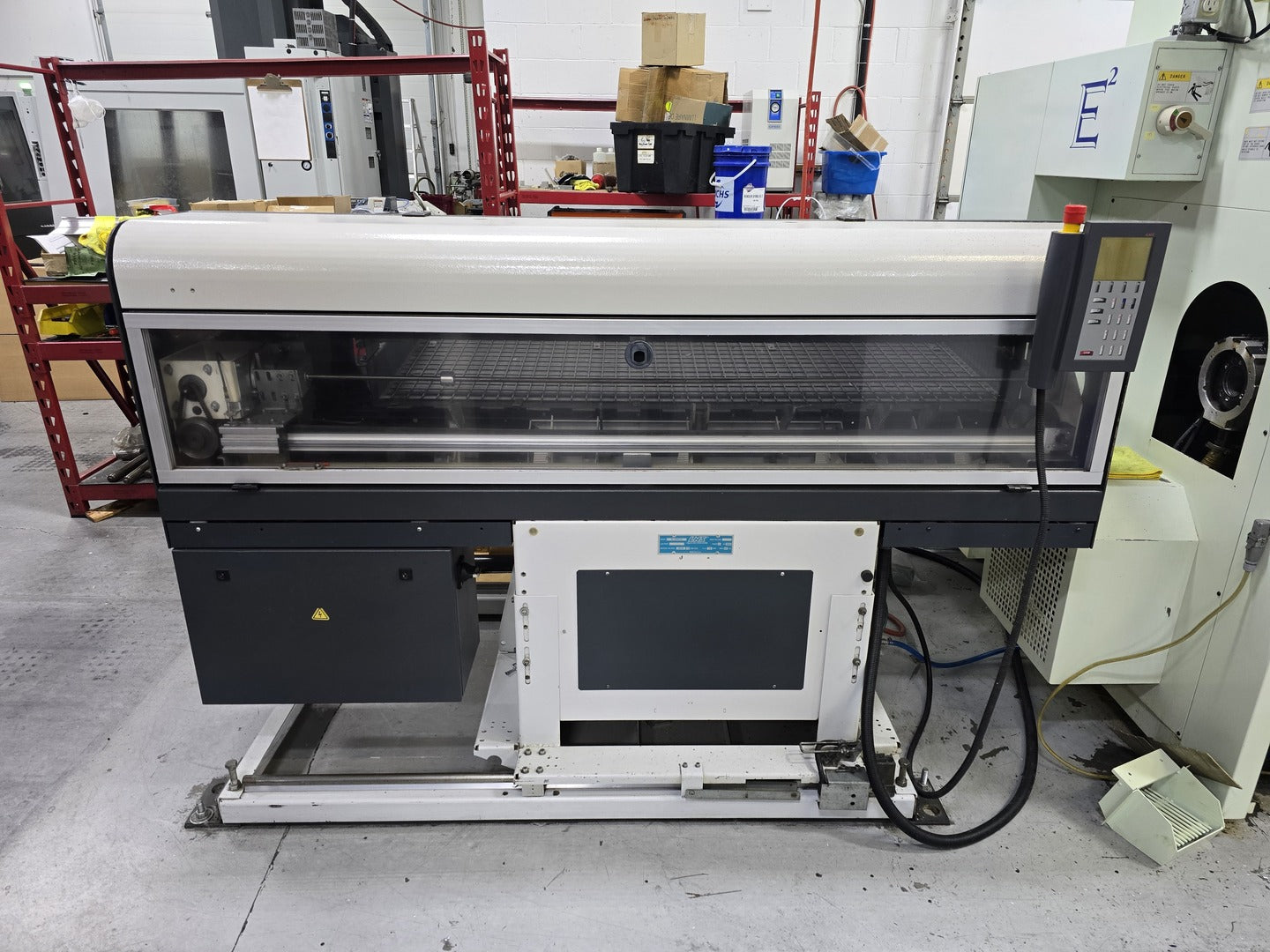

Quick Load Servo S3 Automatic Bar Feeder

SKU: 127501
Price:
$8,970 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model Quick Load Servo S3
Year: 2003
S/N: 302035
Condition Used
Other Specifications

Compatible w/ EUROTECH 730SL-Y CNC Lathe

Hours: 7,798 total hours indicated (2946 cycle hours/ 2,851 cutting hours)

Loading cycle for shaft loading (one shot): 4 - 7 seconds

Loading cycle for bar stock: 8 - 12 seconds

Max feed rate: > 100 m/min. (>3937 I/min.)

Pushing force/torque: 167 Nm (167 N/3ft.)

Max current rate: 1 A

Voltage: 480 volts

Max bar stock weight: 67 kg // 147.6 lbs

Max bar stock length: 1600 mm // 63"

Min. bar stock length: 130 mm // 5.1"

Max diameter (round): 120 mm // 4.7"

Min. diameter (round): 6 mm // 0.23"/1/4"

X and Z axis retraction travel: 600 mm // 23.6"

Centerline range: 900 - 1149 mm (35.4" - 45.2") // 1150 - 1400 mm (45.3" - 58.14") centerline range

Dimensions: 1248 x 1486 x 2048 mm HxWxL

Weight: 600 kg // 1360 lbs
