Description
| Specifications | |
|---|---|

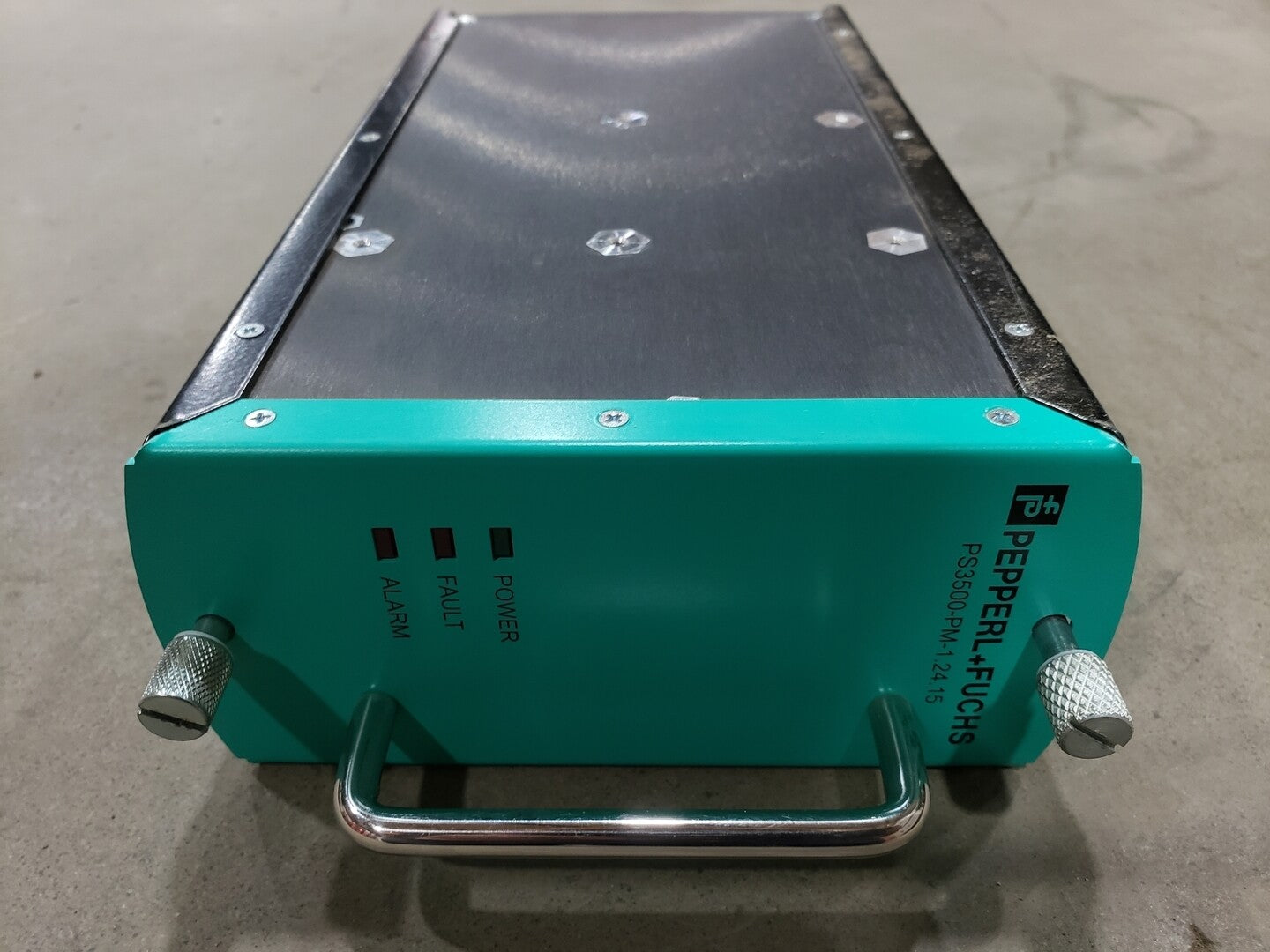

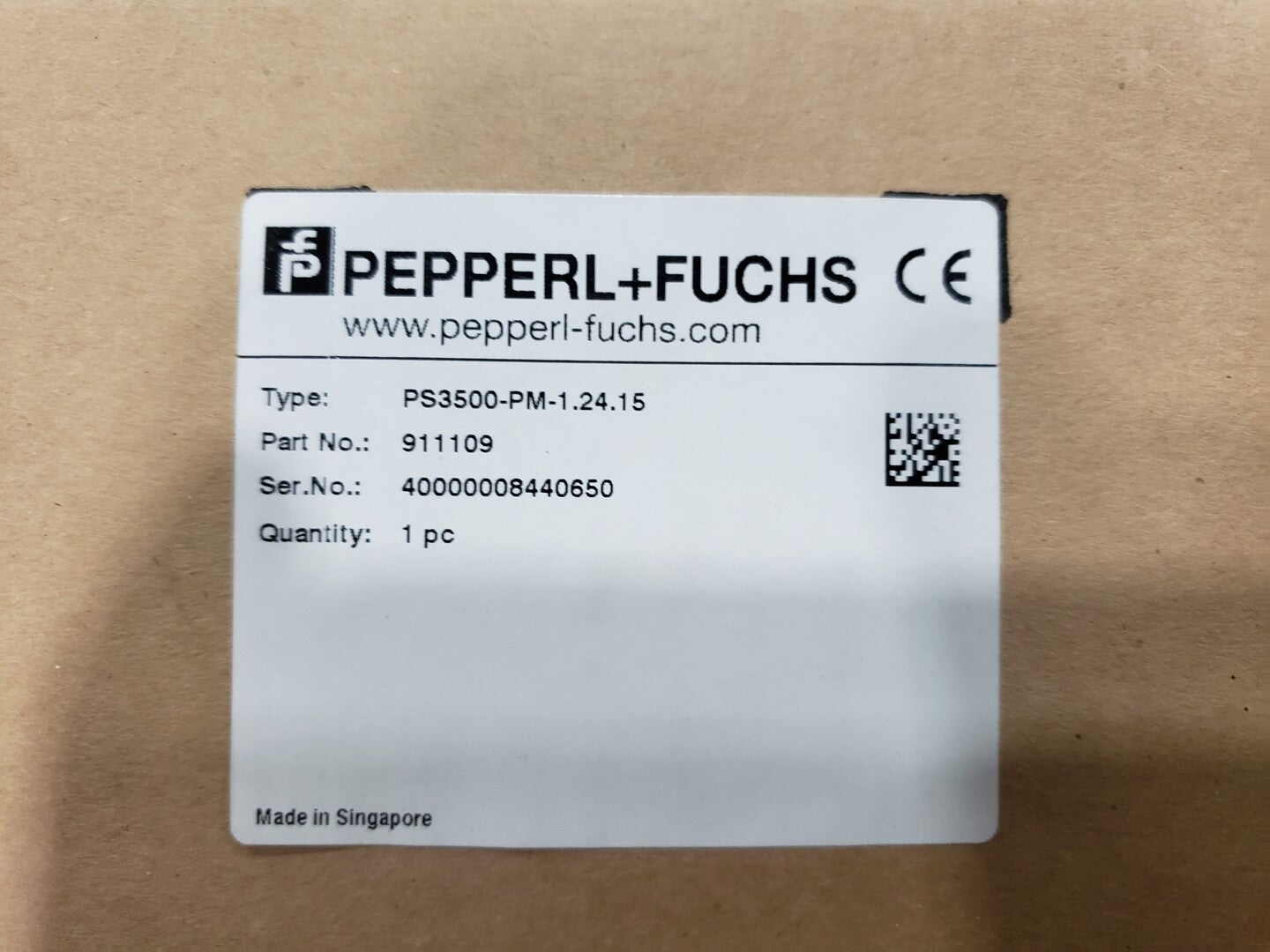

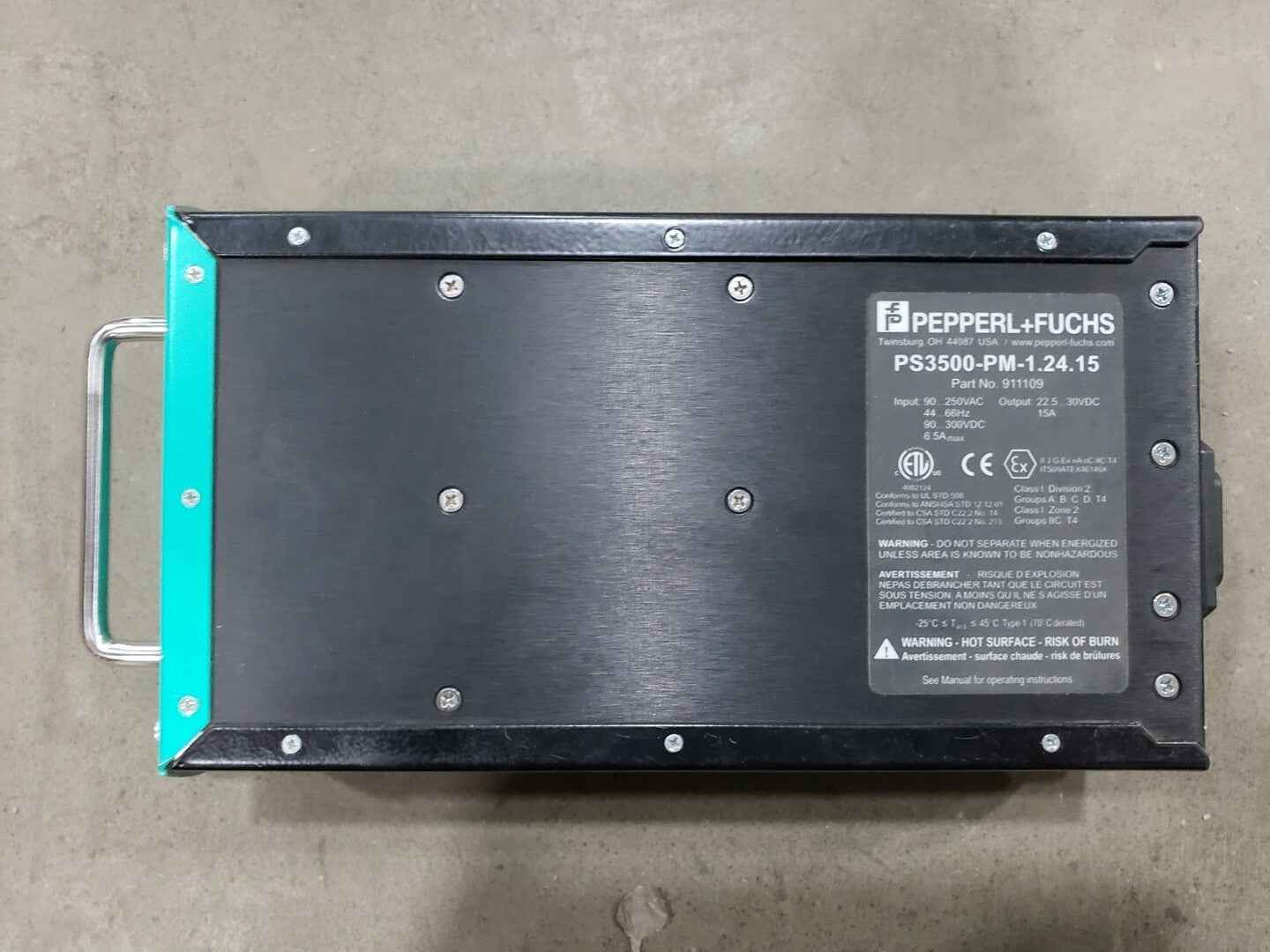

| Model | PS3500-PM-1.24.15 |
| S/N: | 40000008440650 |
| Made In | SINGAPORE |
| Condition | Used | Electrical |
| Output Capacity | 30 Volts |
| Voltage | 240 volts |
| Frequency | 44-66 Hz |
| Other Specifications |
|---|
|
Interface: Diagnostic Bus: RS 485 Housing Material: Power Coated, 1010 Cold Rolled Steel Degree of Protection: IP20 Input:- Input Current: Max 6.5 A Voltage Range: 90-250 VAC, 44-66 Hz; 90-300 VDC Inrush Current: <50A peak Output:- Voltage: 24 VDC +/- 1% (22.5-30 VDC adjustable) Current: 15 A Technical:- Ripple: 35 mV ms (< 100 mV pp) Fault Signal: relay 50 VDC @ 0.6A, 30 VDC @ 2A Response Time: min. hold-up time:>/- 25 ms at nominal input voltage and output load Short-circuit current: max. 20 A Efficiency: up to 91% Galvanic Isolation:- Input/Output: 4.25 kV DC Ambient Conditions:- Ambient Temperature: -25 to 45 deg. C (-13 to 113 deg. F), derated: 0,4 A/deg. C, (from 45 to 70 deg. C(113 to 158 deg. F)) Storage Temperature: -40 to 85 deg. C (-40 to 185 deg. F) Relative Humidity: < 95 % noncondensing Shock Resistance: 15 g, 11 ms Vibration Resistance: 1 g, 58 to 150 Hz |
