Description
| Specifications | |
|---|---|

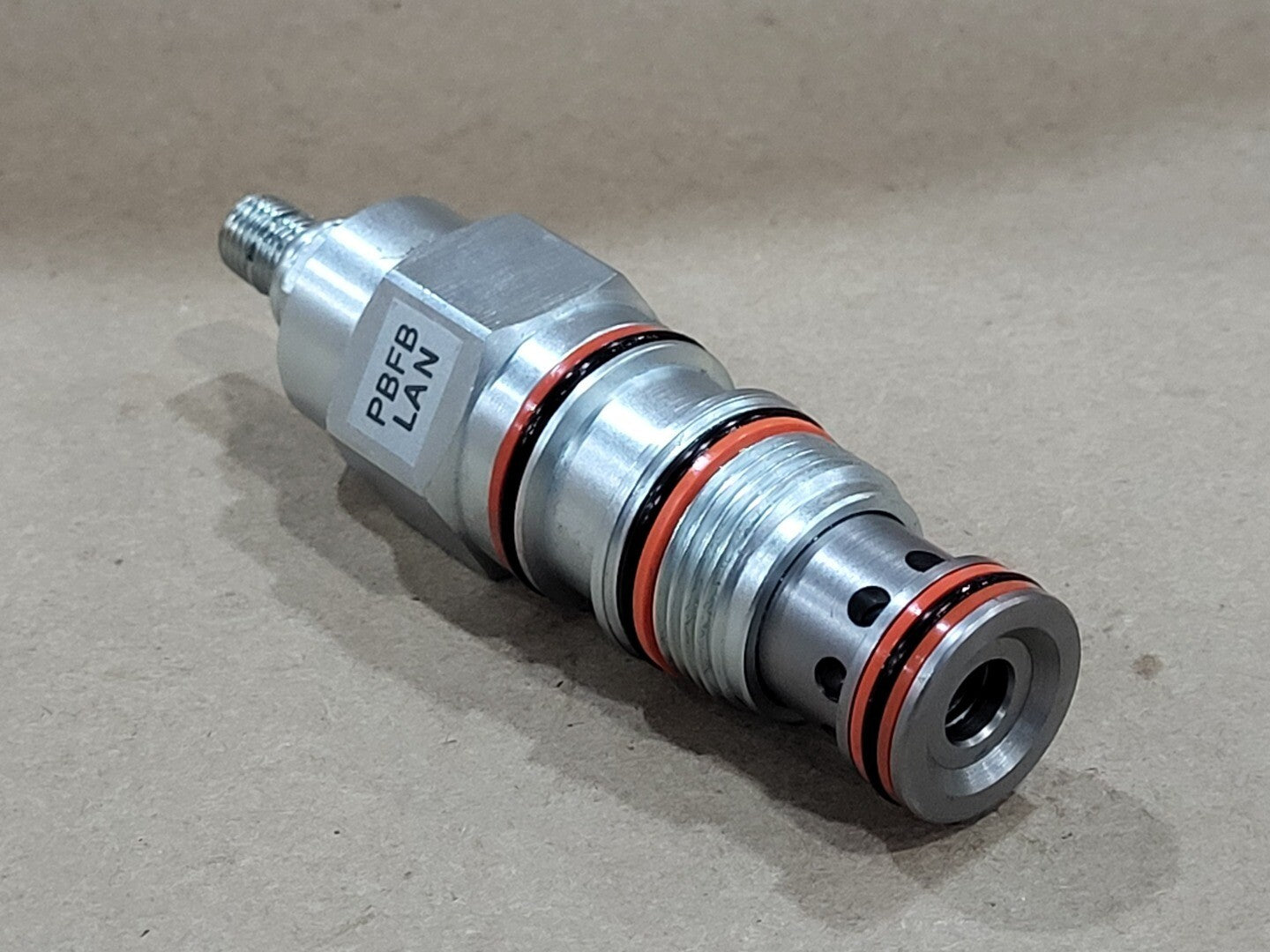

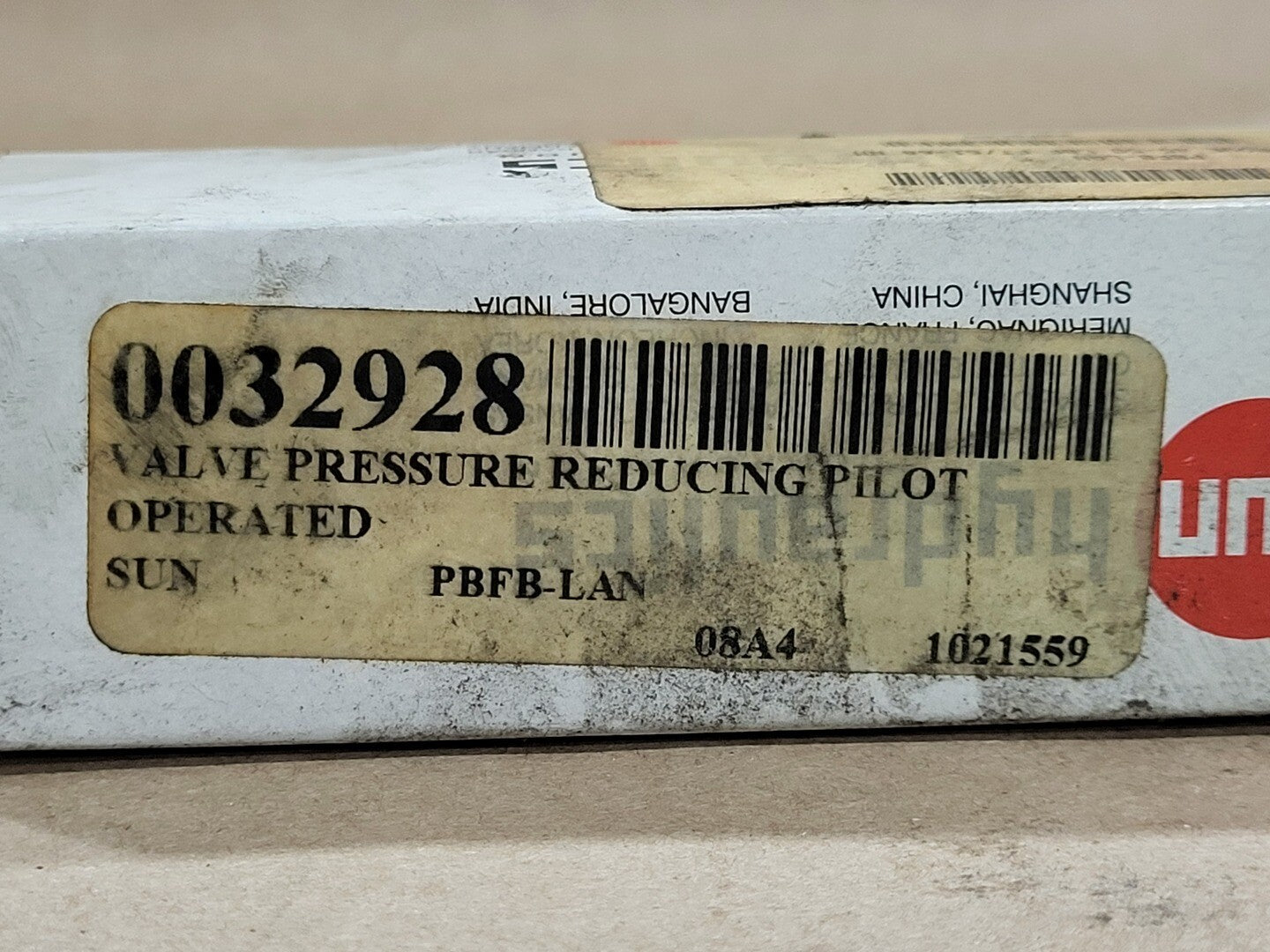

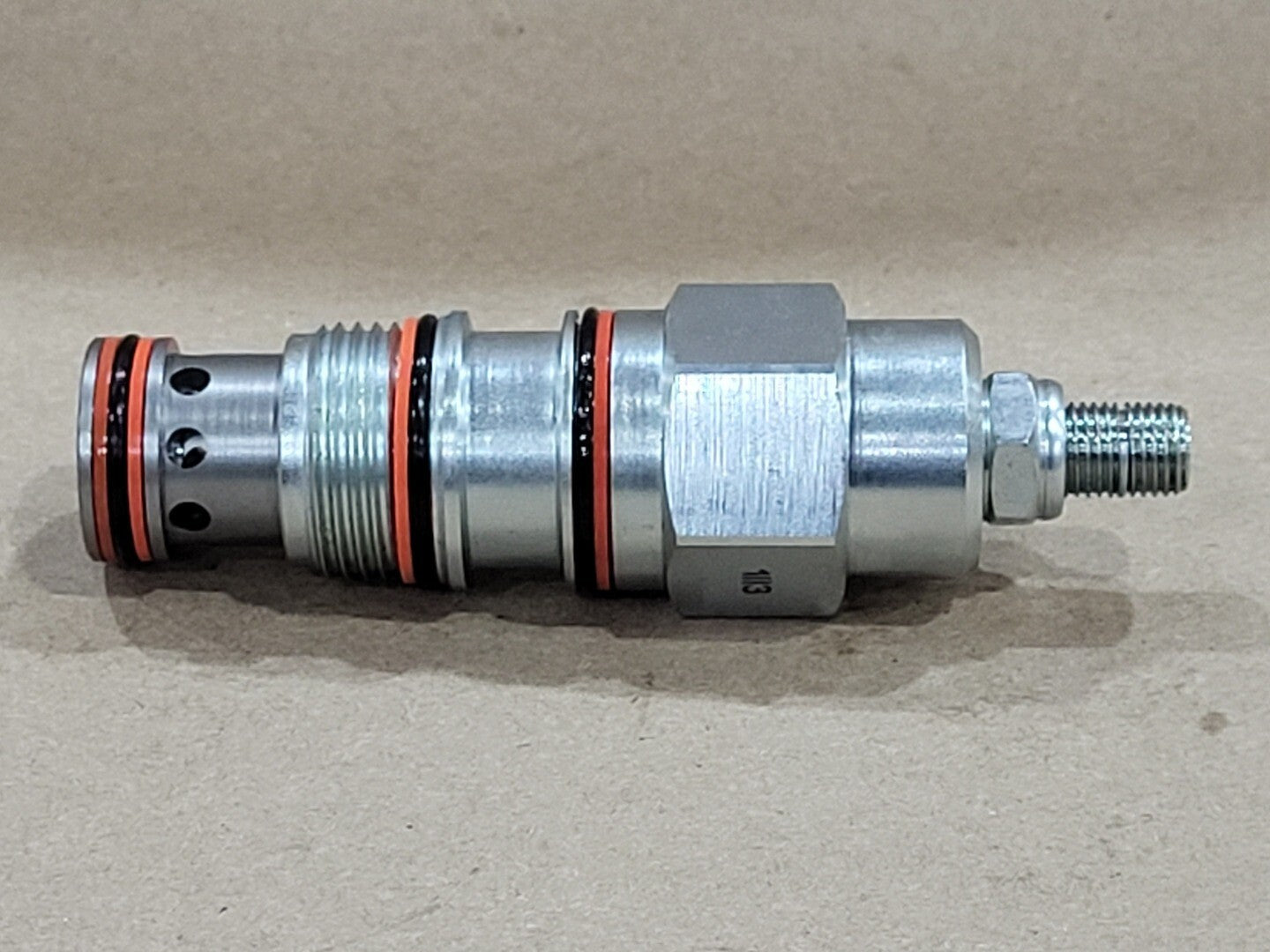

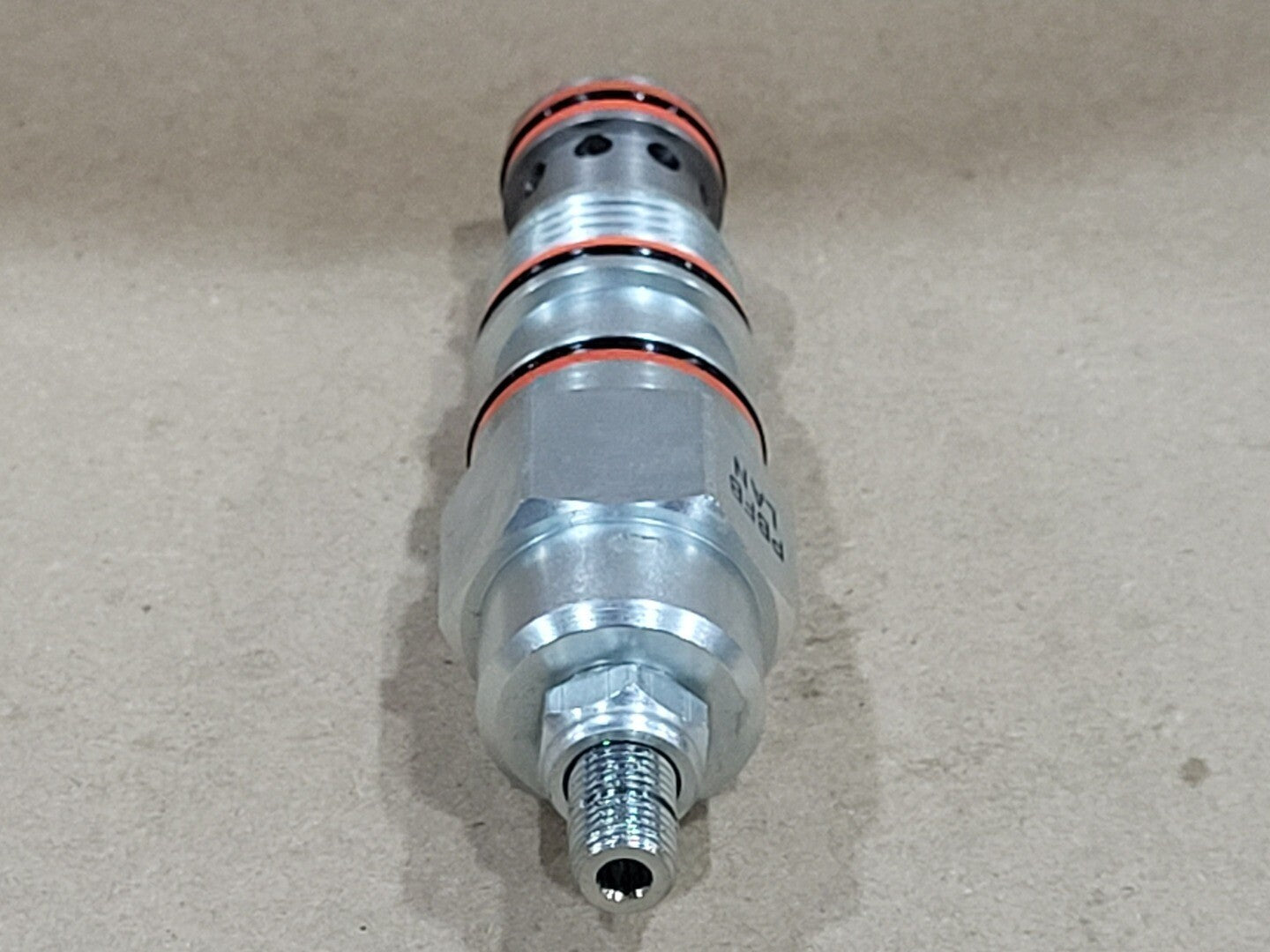

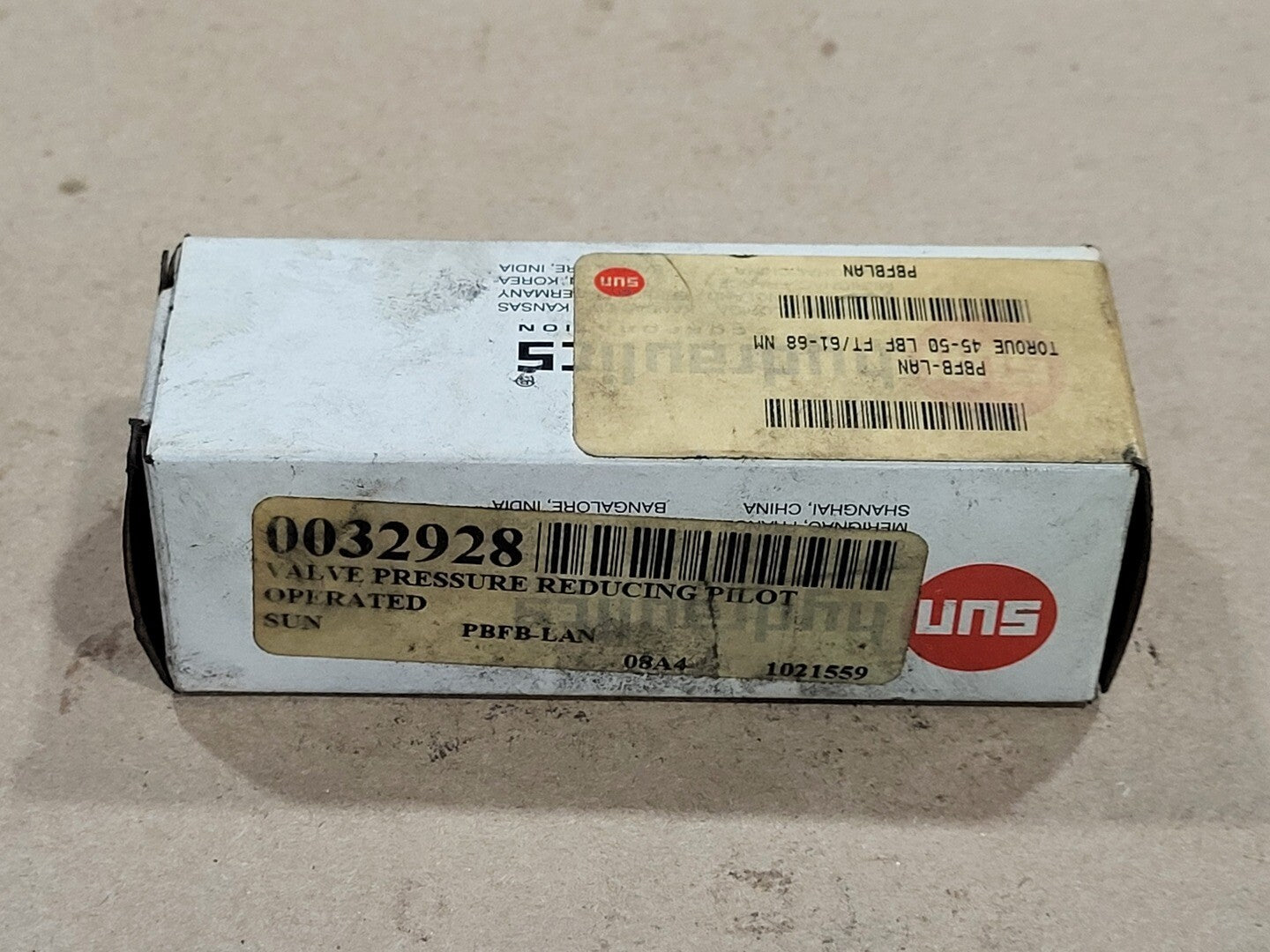

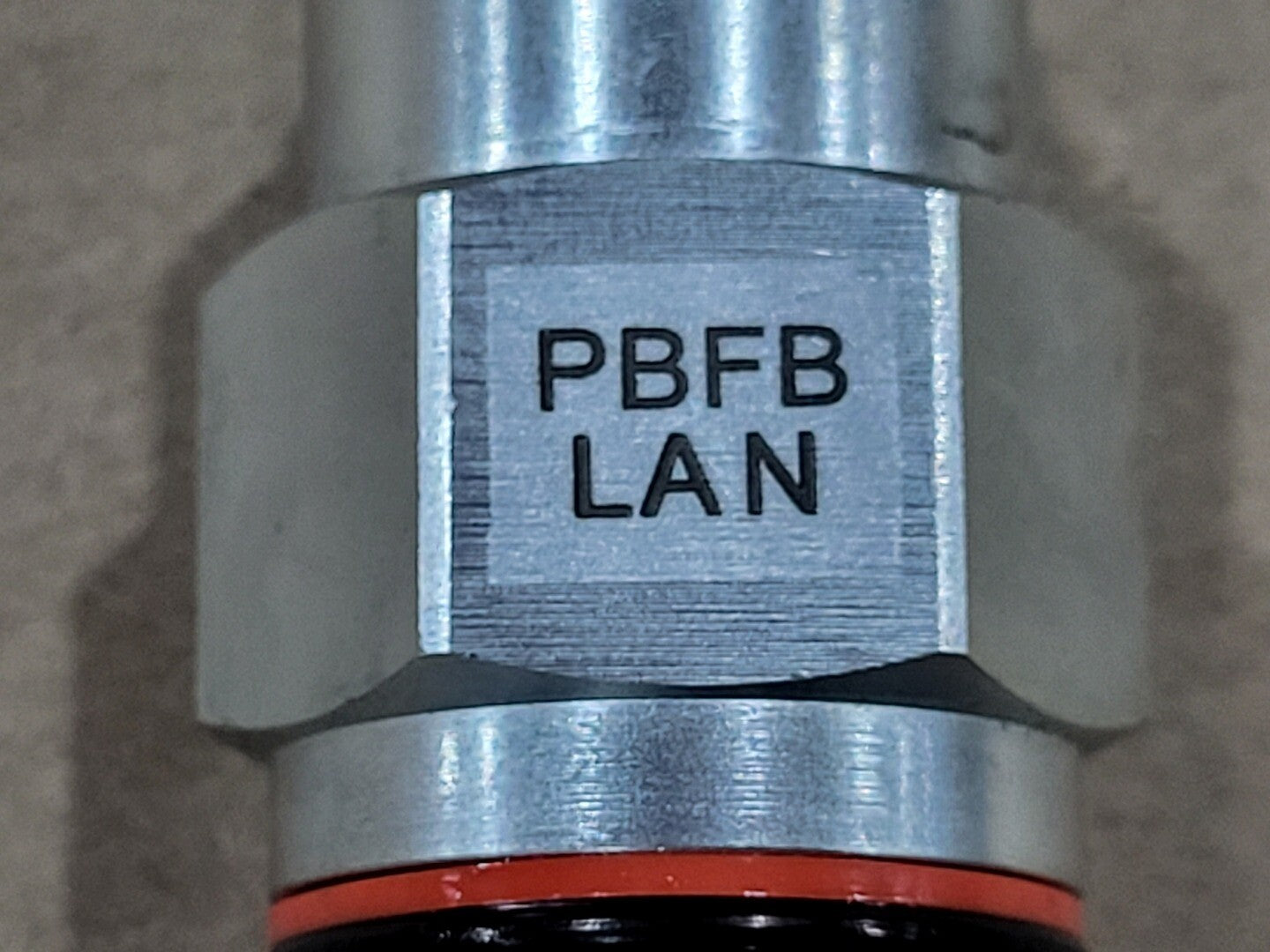

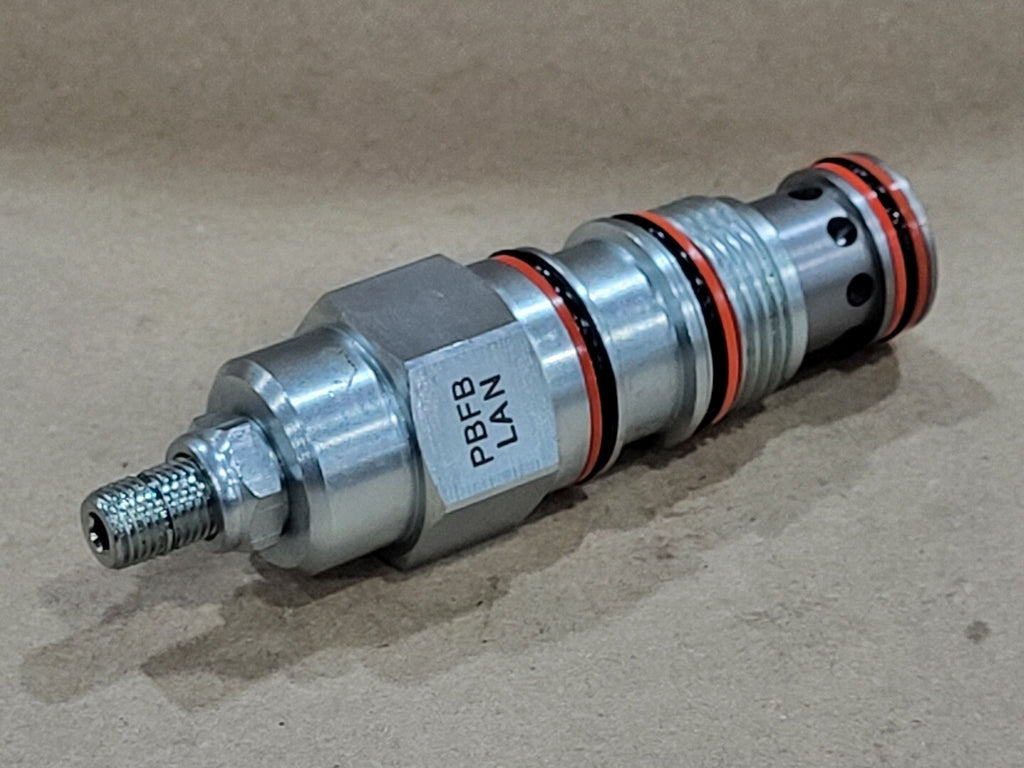

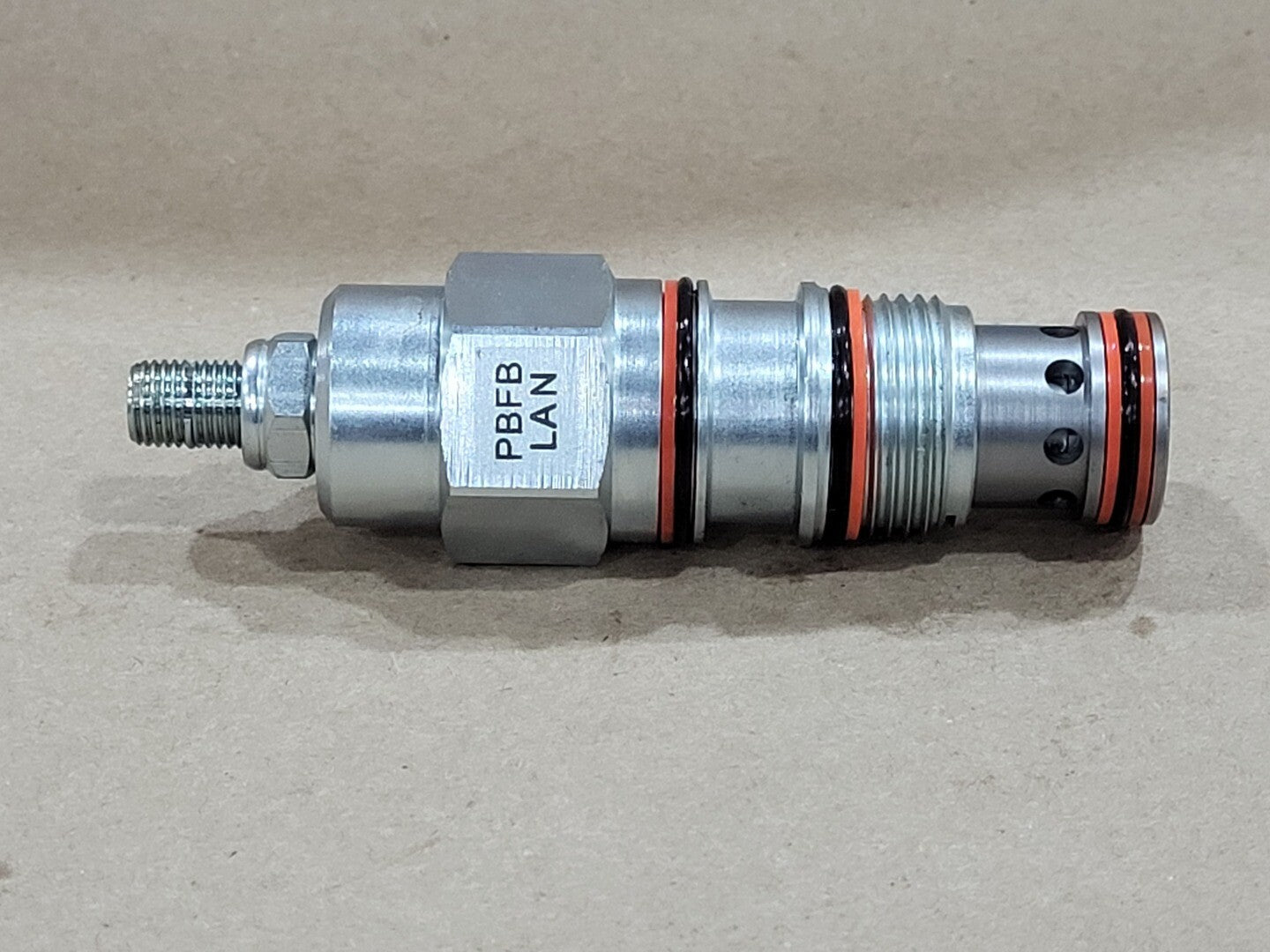

| Model | PBFB-LAN |
| Condition | Surplus New |
| Other Specifications |
|---|
|

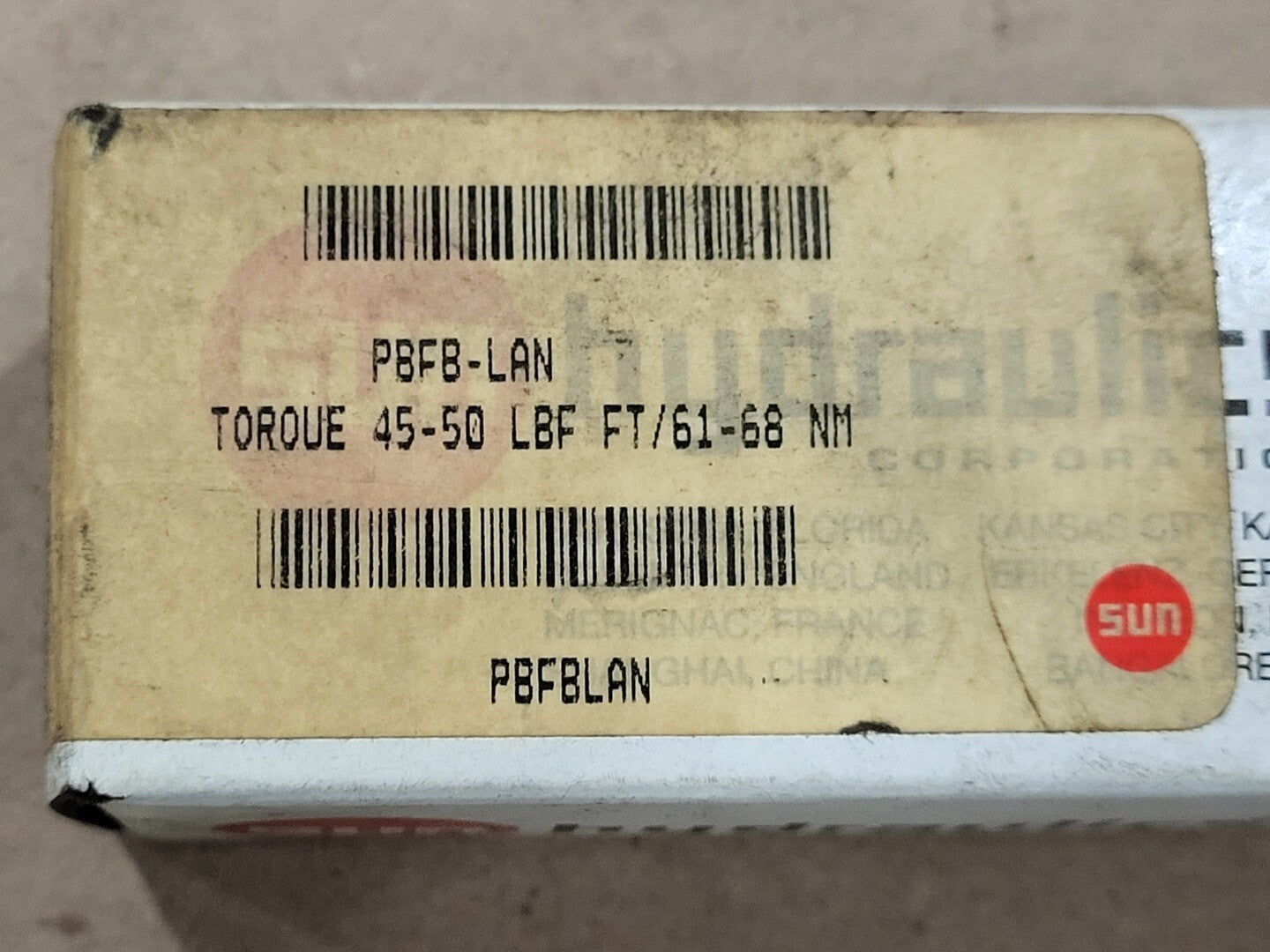

Cavity: T-2A Series: 2 Capacity: 20 gpm Factory Pressure Settings Established at: Blocked Control Port (dead headed) Maximum Operating Pressure: 5000 psi Control Pilot Flow: 0.16-0.25 L/min Adjustment- No. of CW Turns from Min. to Max. Setting: 5 Valve Hex Size: 1-1/8 in. Valve Installation Torque: 45-50 lbf ft. Adjustment Screw Internal Hex Size: 5/32 in. Locknut Hex Size: 9/16 in. Locknut Torque: 80-90 lbf in. Adjustment Range: 100-3000 psi Control: Standard Screw Adjustment Seal Material: Buna-N |
