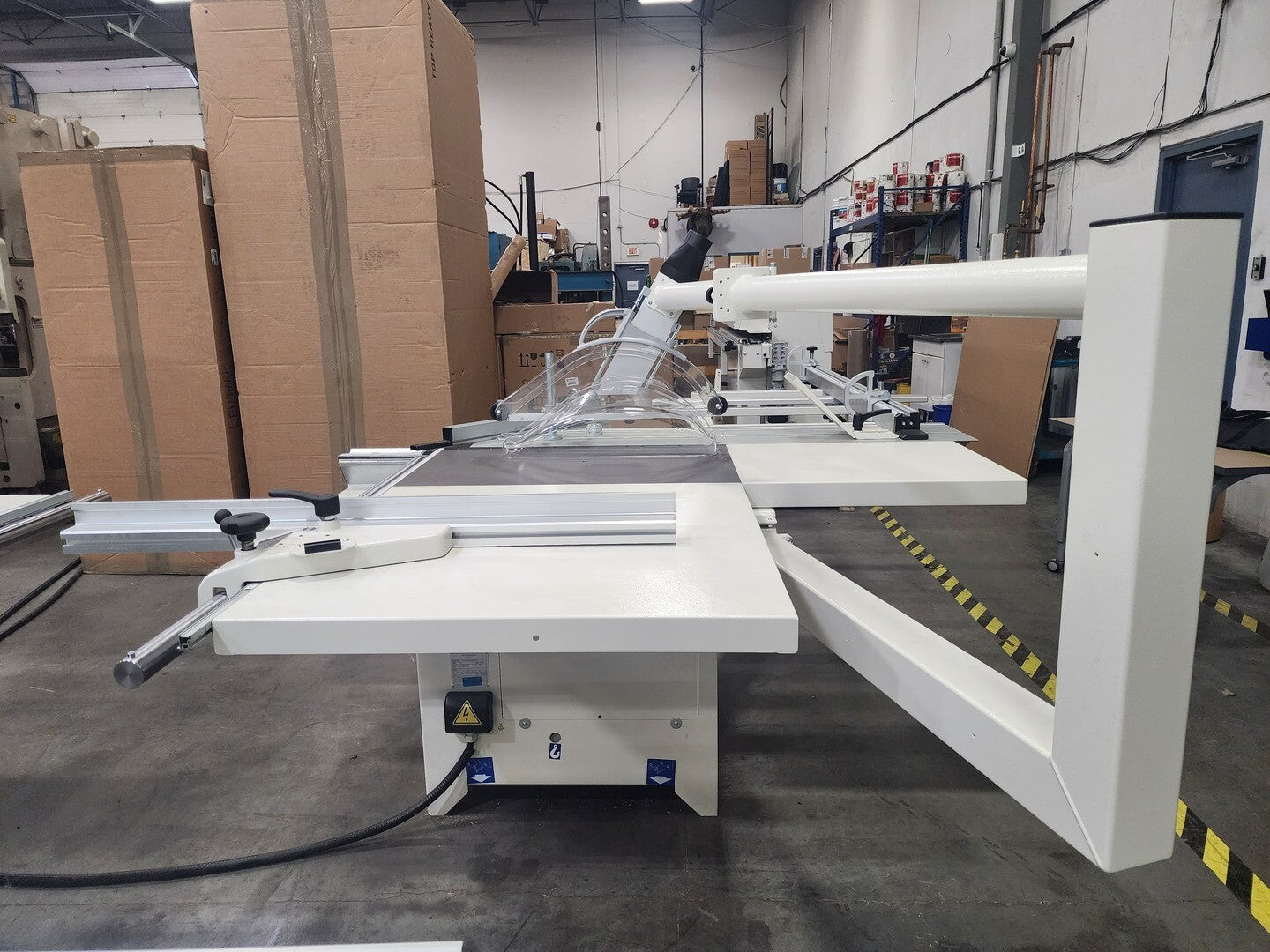

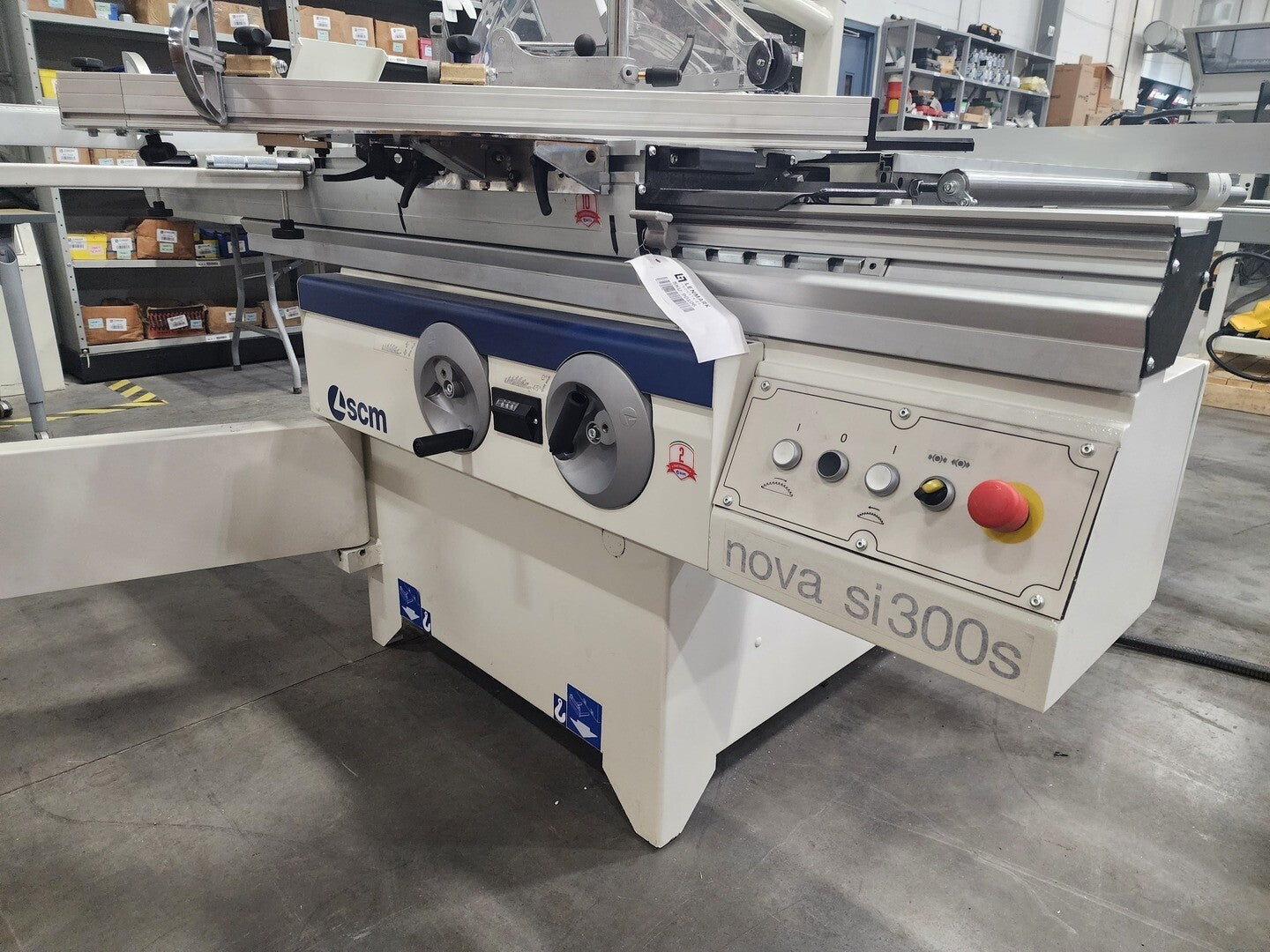

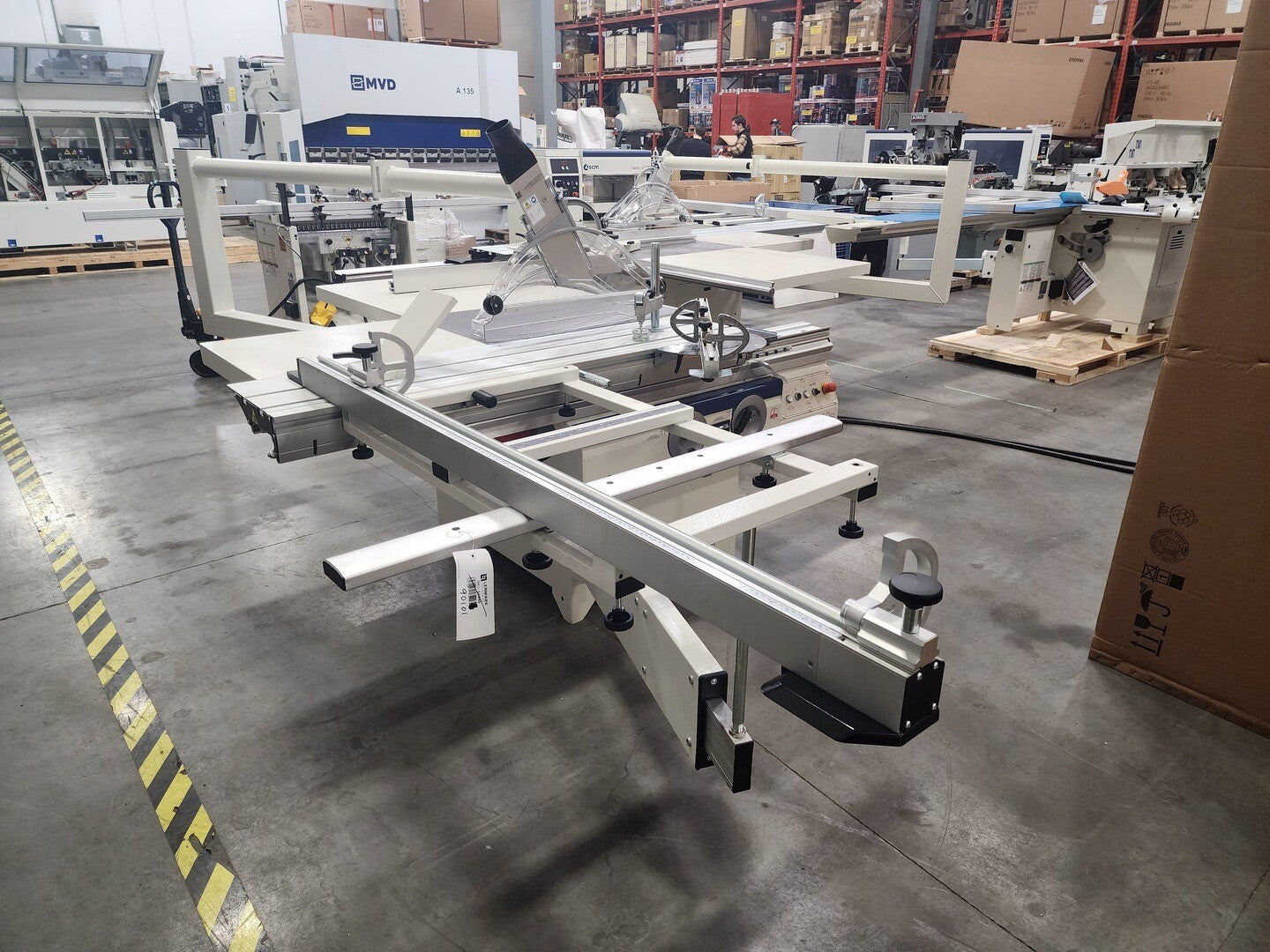

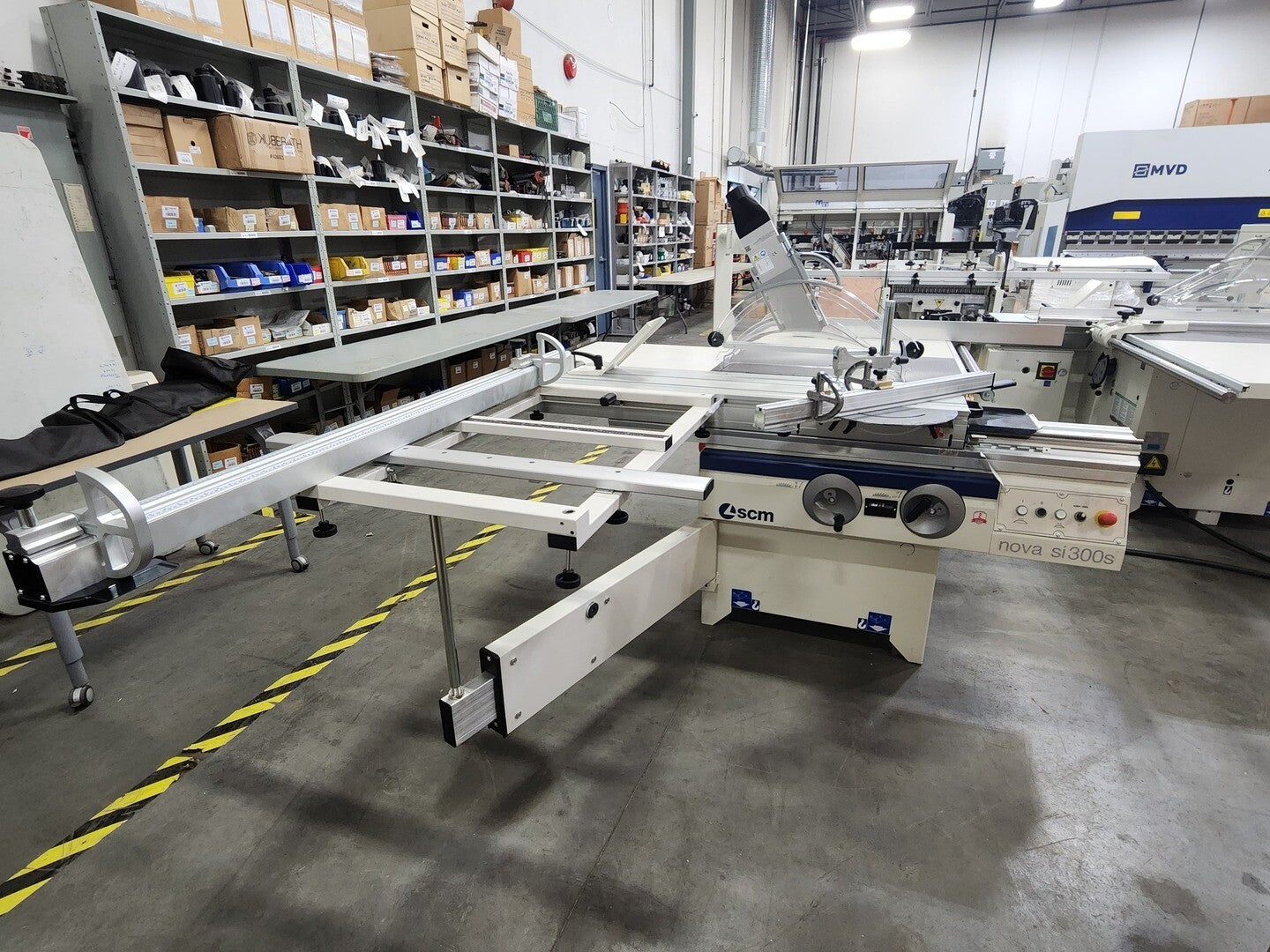

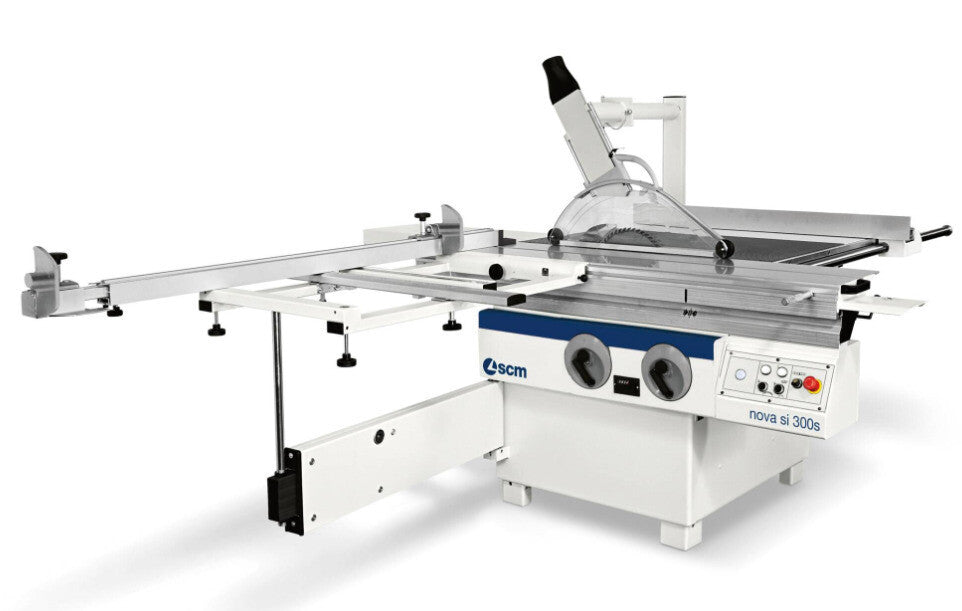

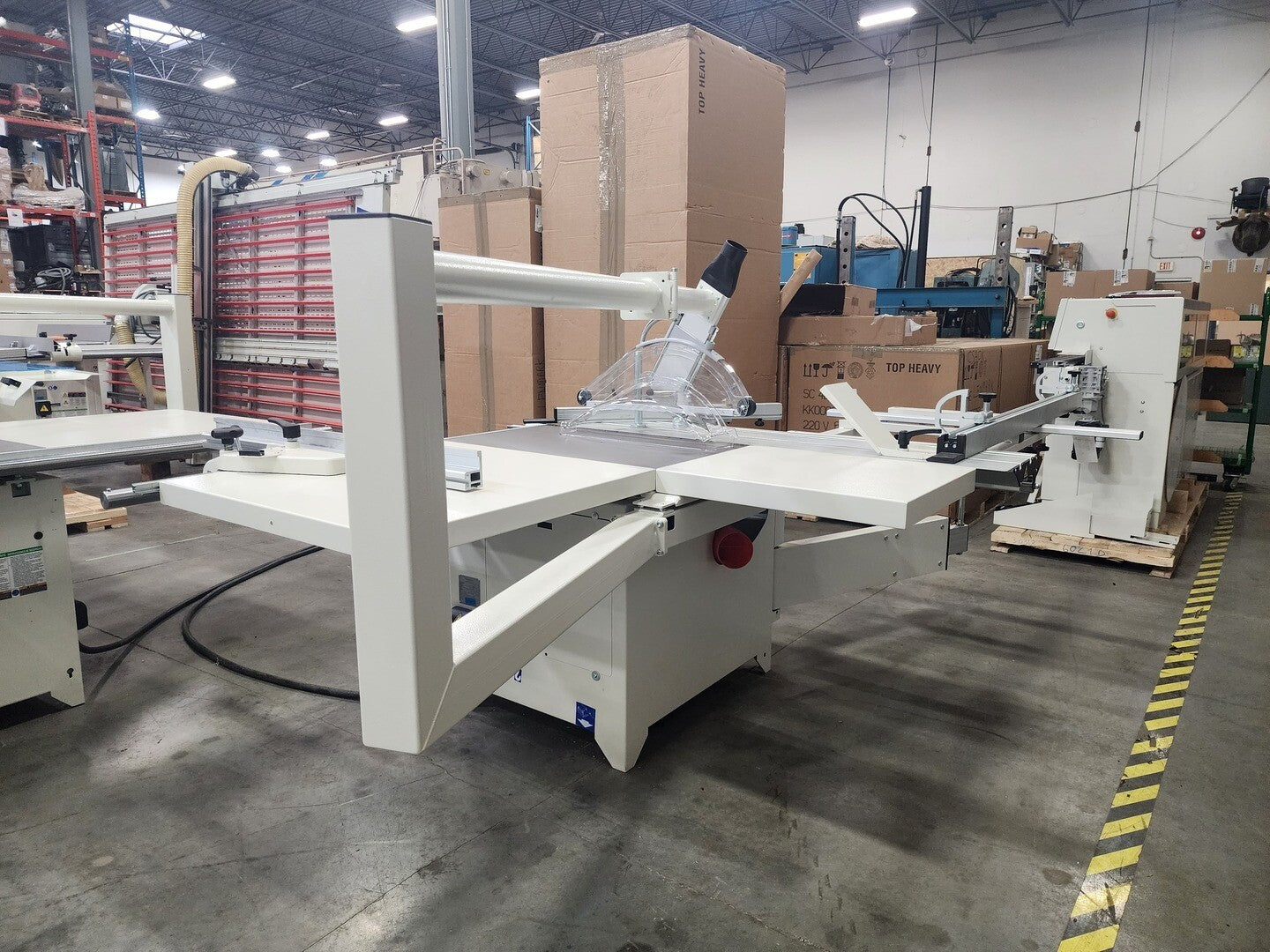

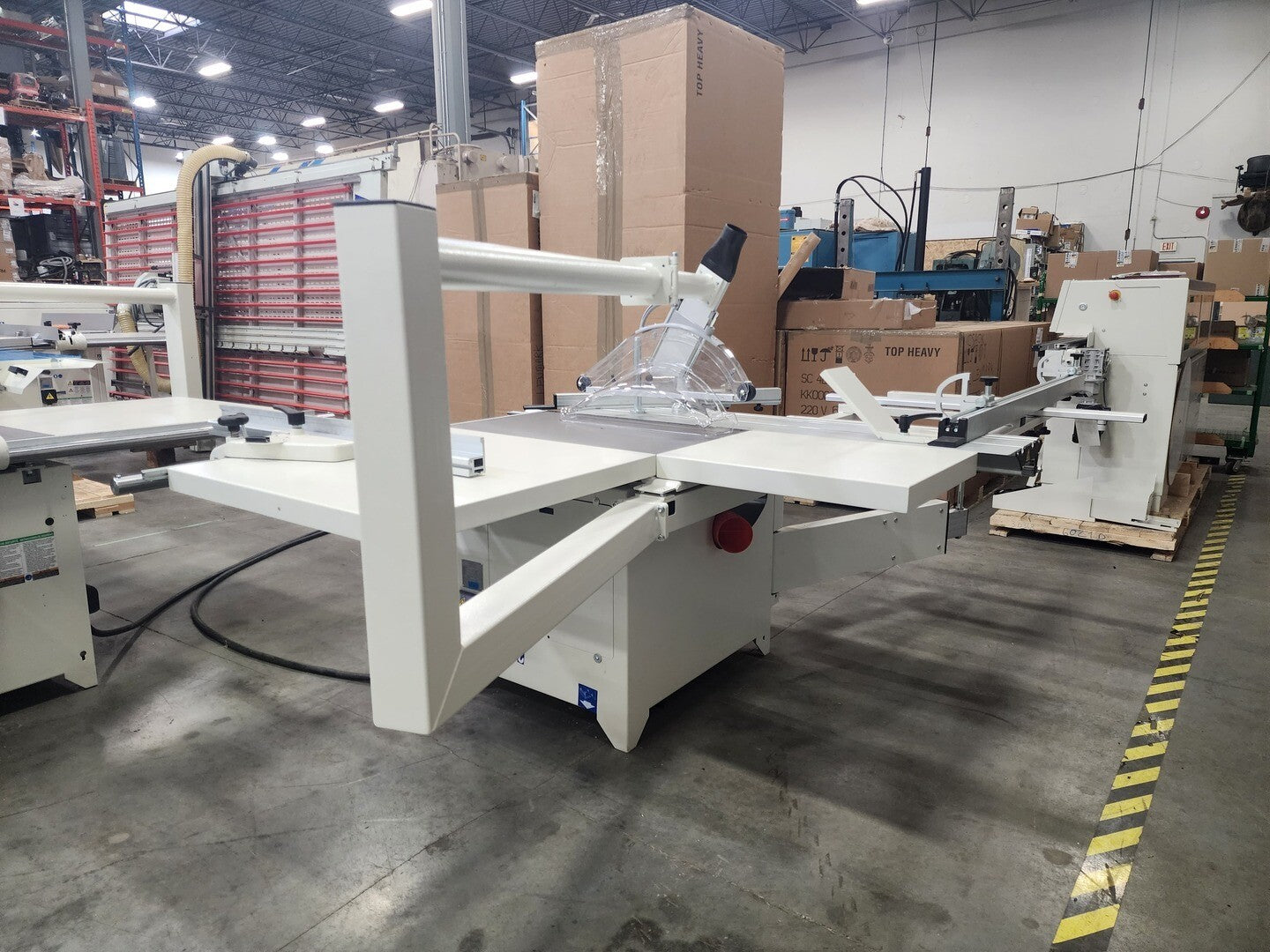

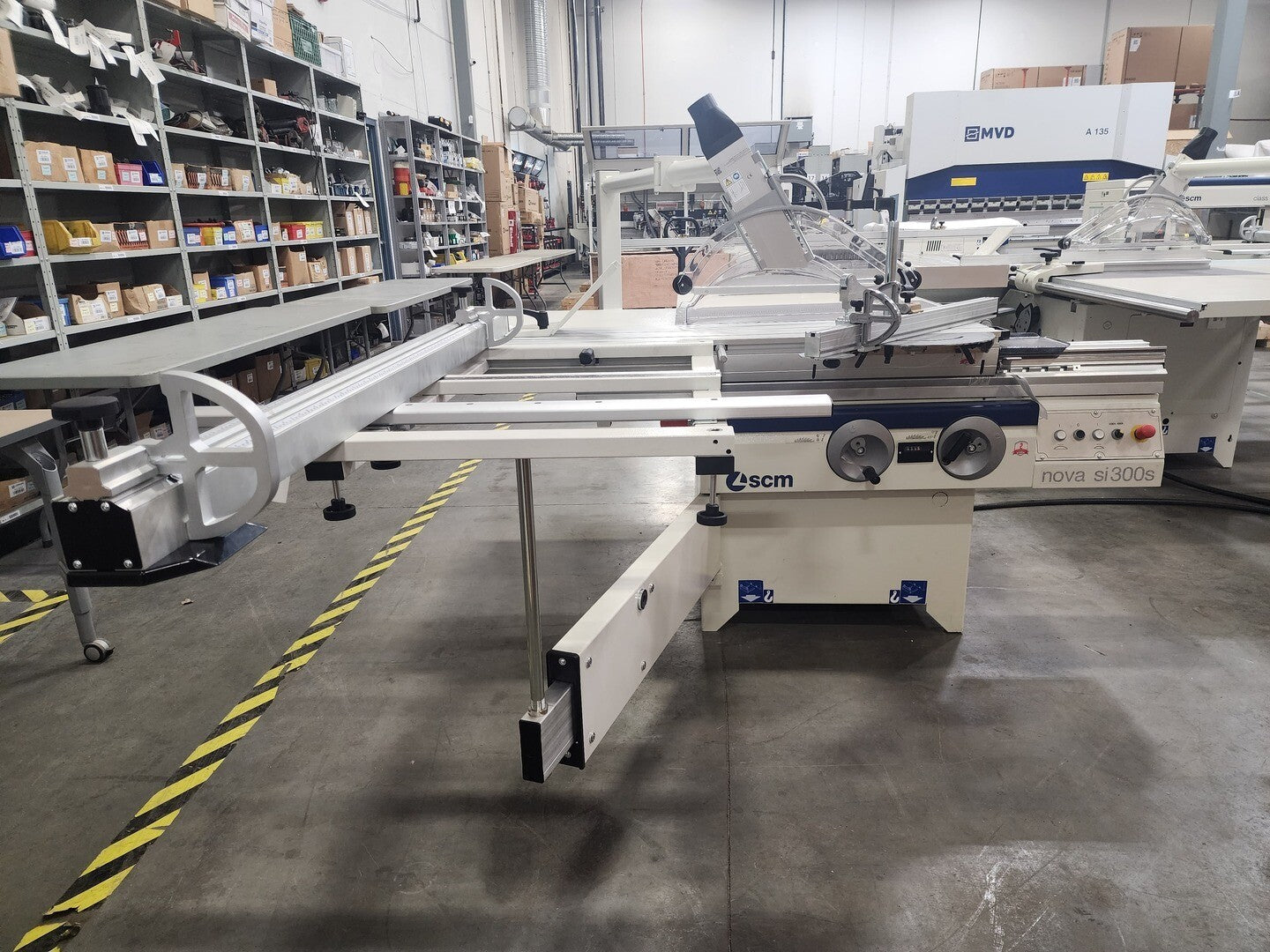

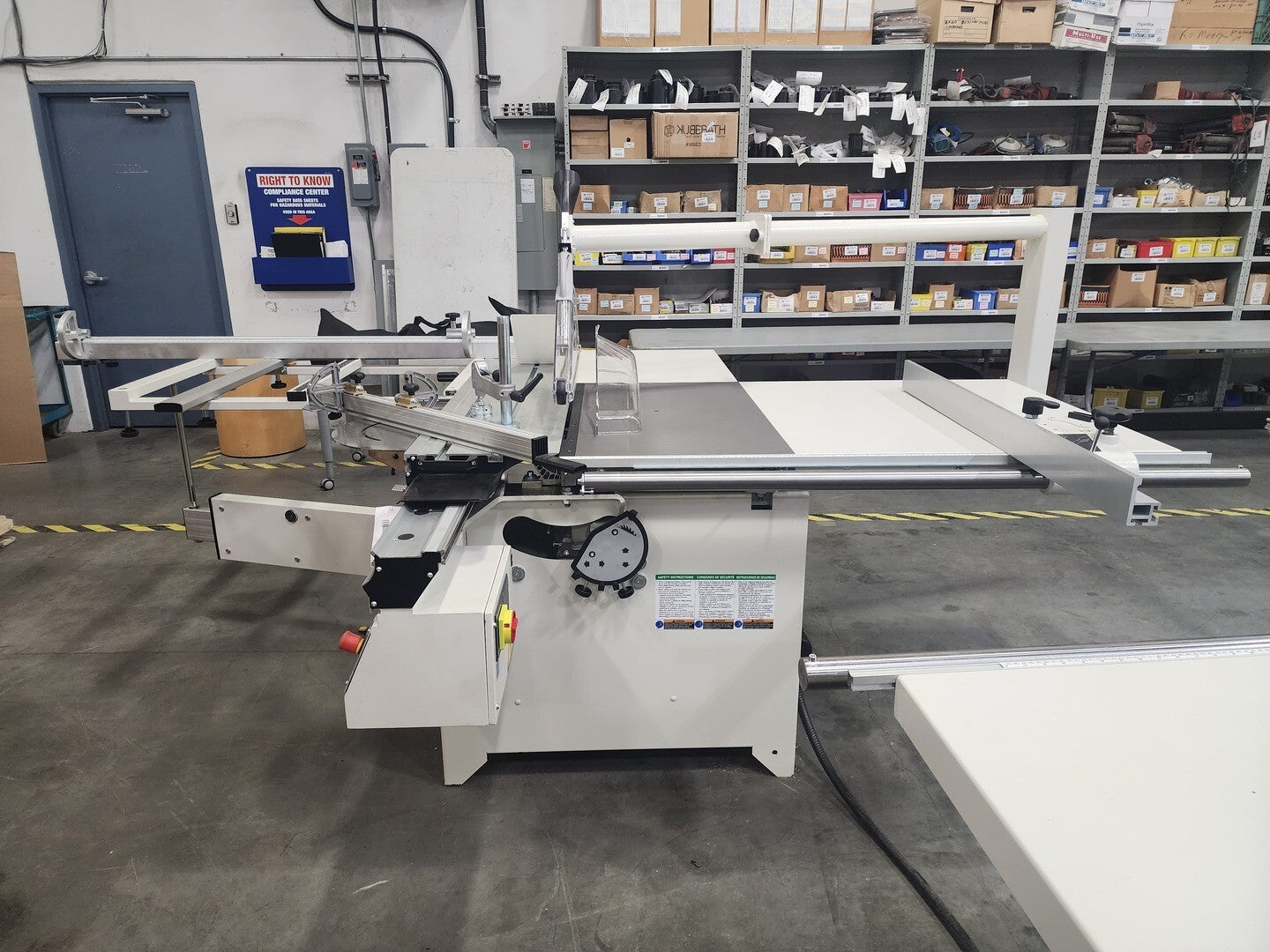

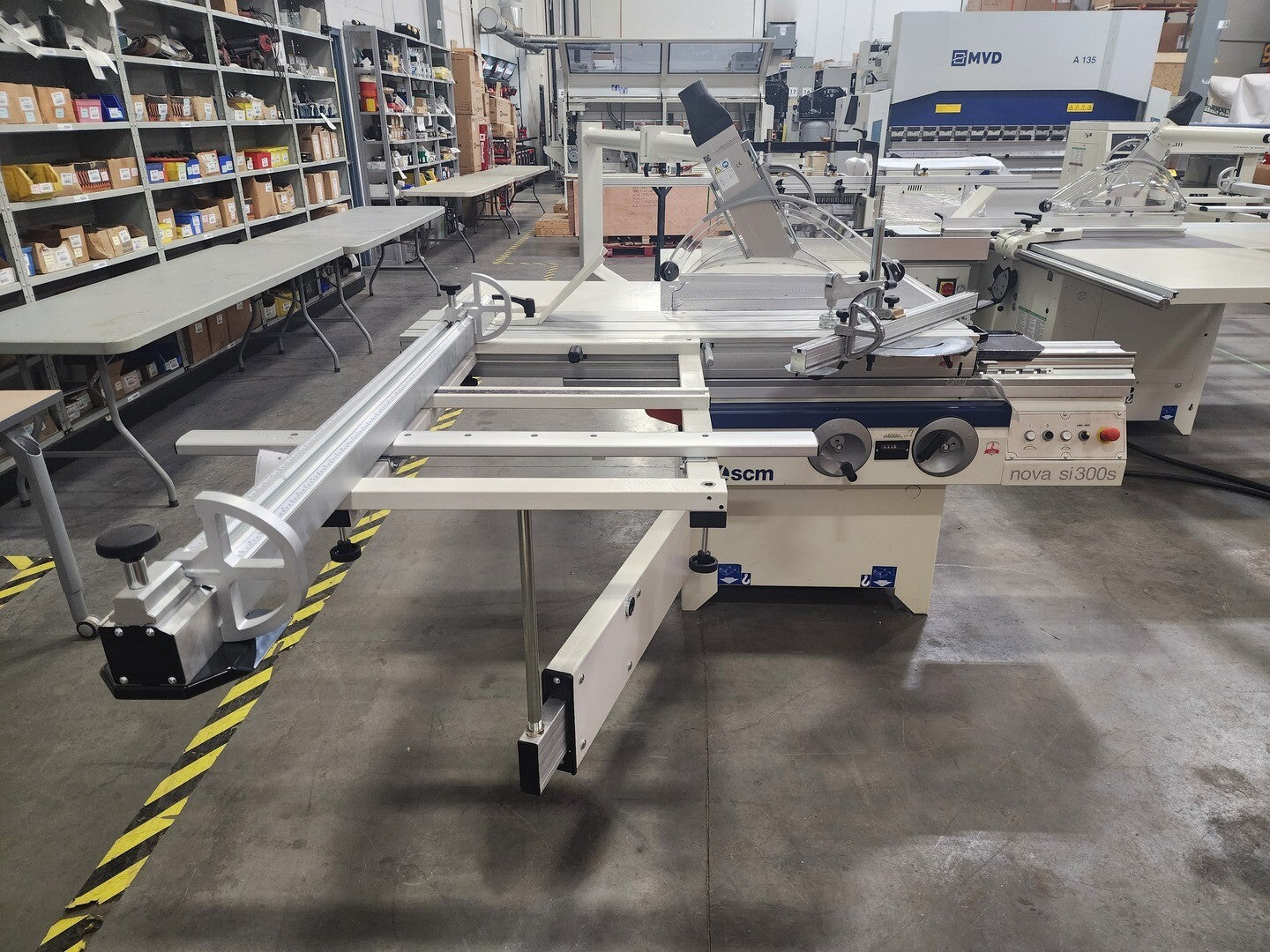

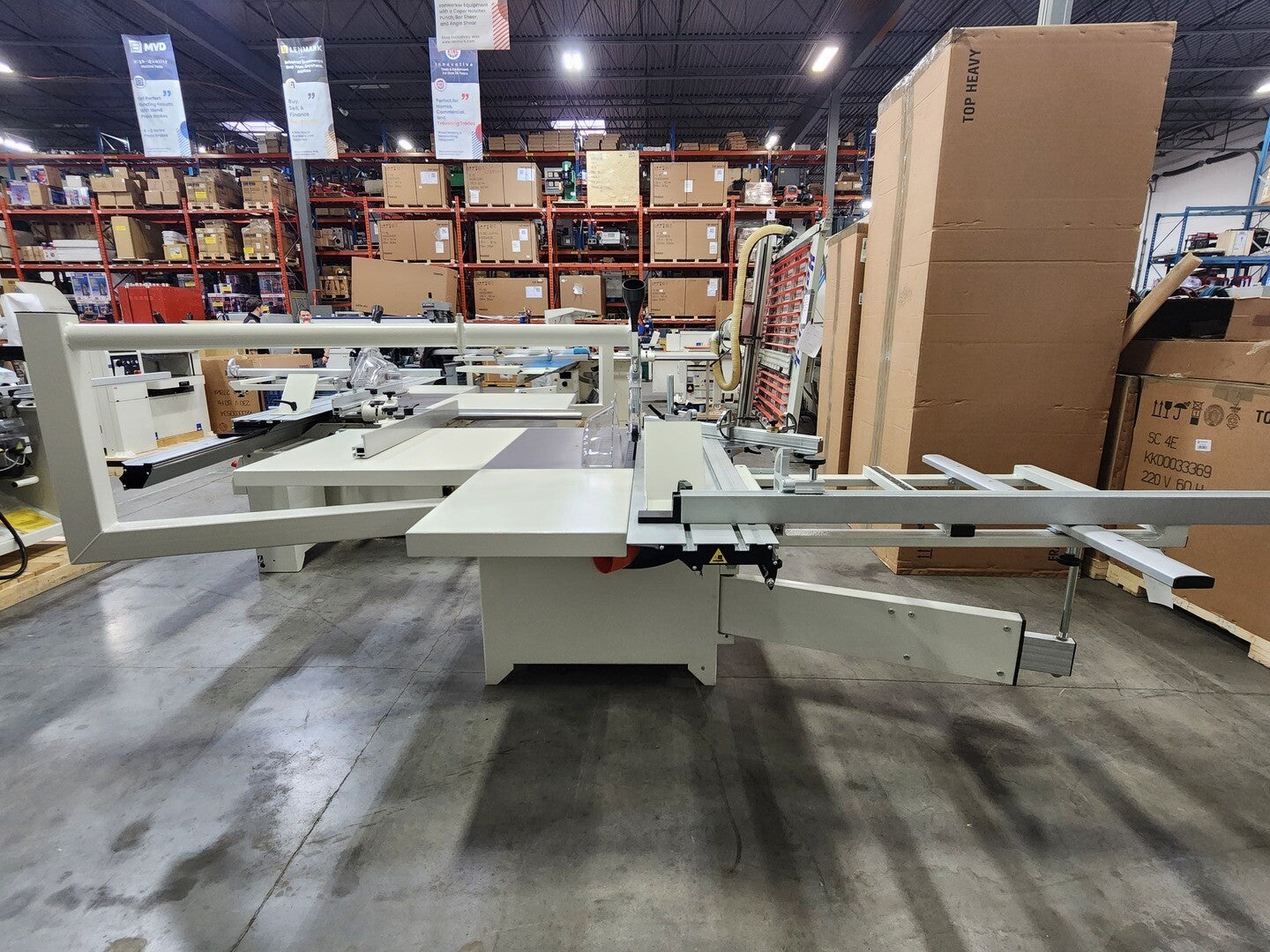

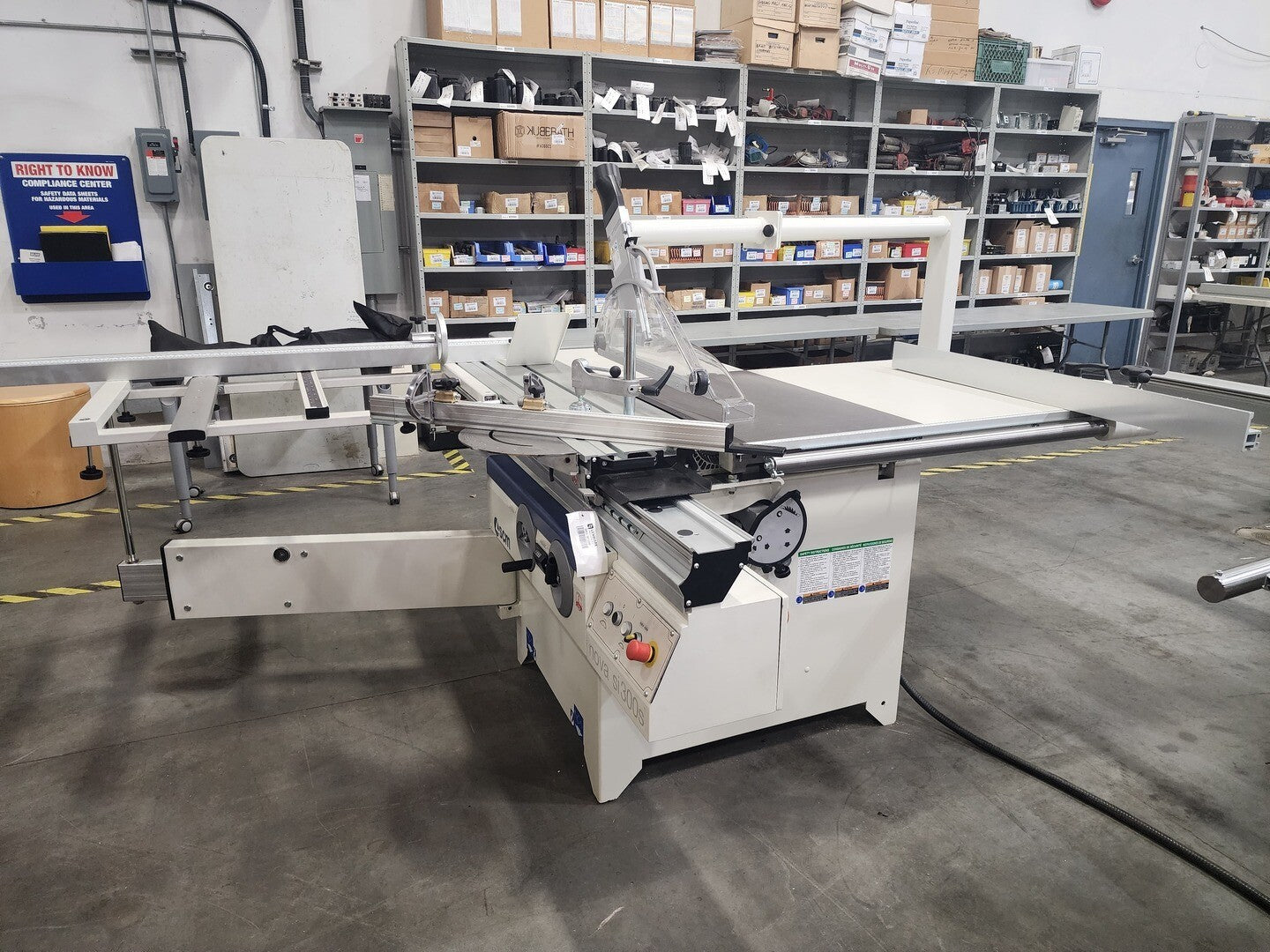

SCM nova si 300s Circular Saw w/ Tilting Blade and DADO Machining
SCM

nova si 300s Circular Saw w/ Tilting Blade and DADO Machining

SKU: 90106
Save $2,625 CAD
Price:
$16,875 CAD $19,500 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications

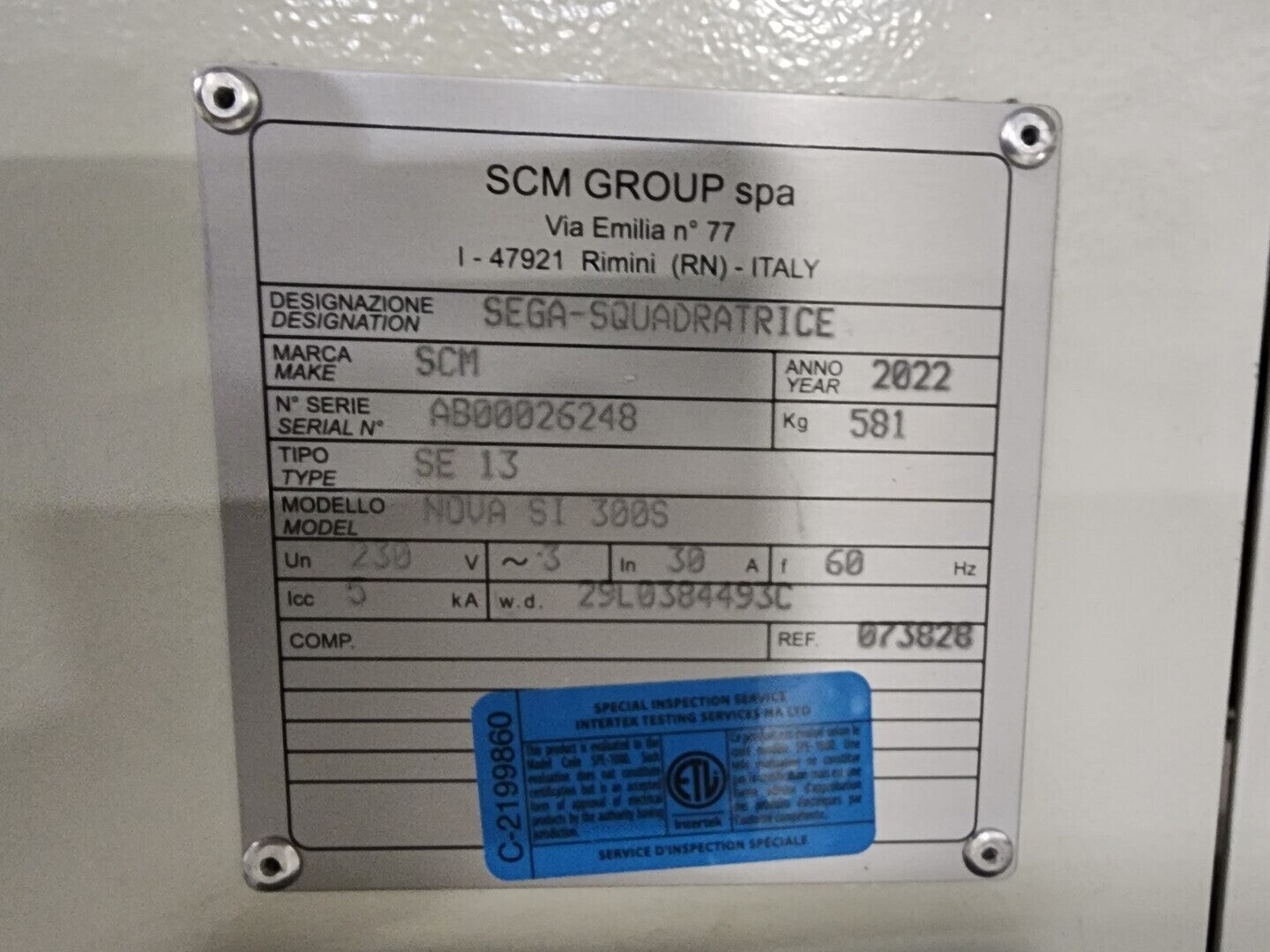

Model nova si 300s
Made In ITALY
Condition New
General
Horsepower 11 hp
Table Size 900 x 550 mm
Blade Diameter 315 mm
Voltage 600 volts
Phase 3-phase
Saw Type Sliding Saw
CNC No
Other Specifications

Max Cutting Height at 90o: 100 mm

Max Cutting Height at 45o: 70 mm

Blade Tilt: 45 degrees

Blades Lifting and Tilt: Manual

Main Blade Rotating Speed: 4000 rpm

Scoring Unit Rotating Speed: 8500 rpm

Scoring Unit Motor Power (S6 - 40%) @ 50 Hz: 1.3 kw (1.7 hp)

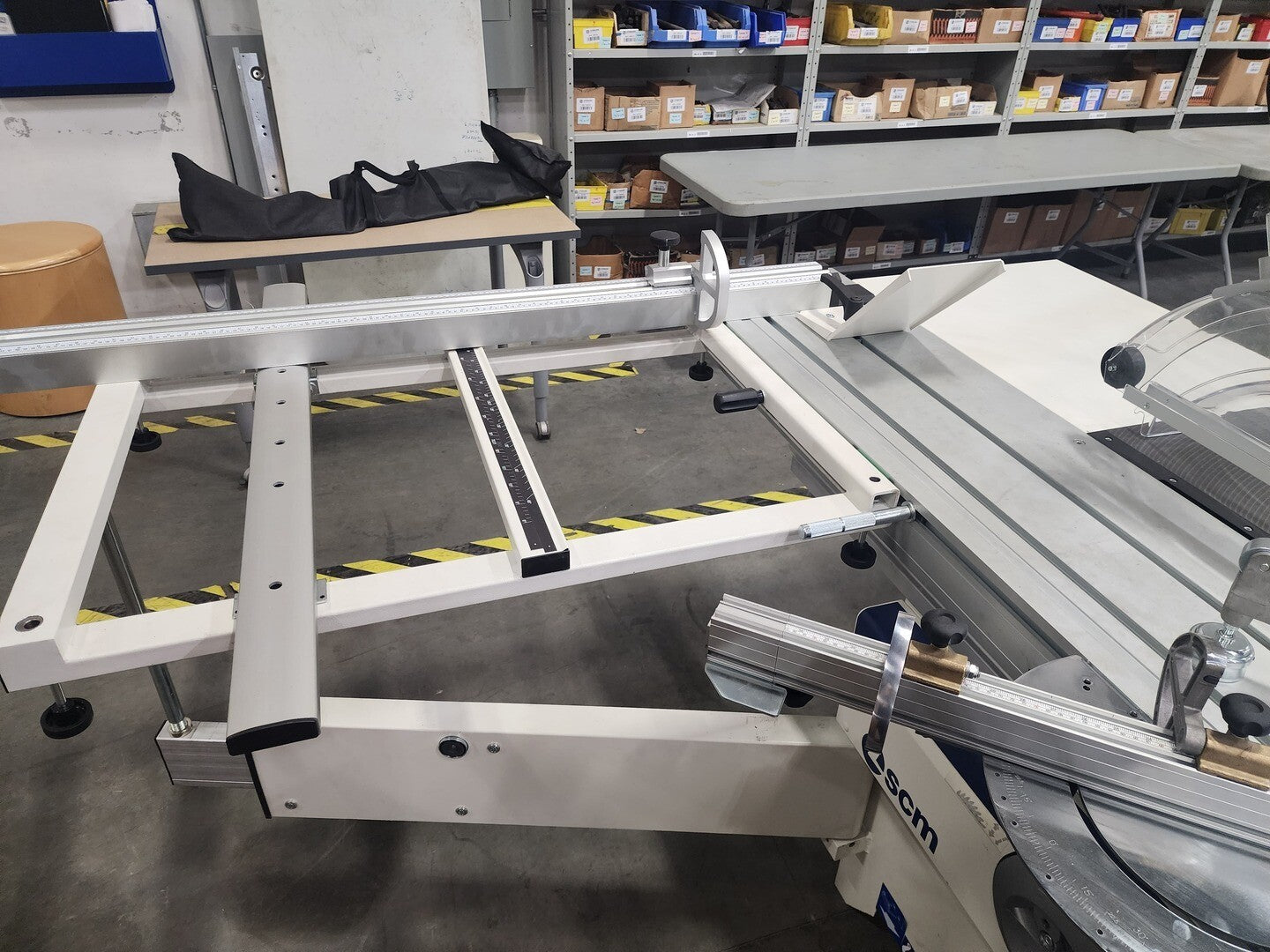

Squaring Capacity w/ 1600 mm Carriage: 1600 x 2600

Ripping Capacity on Parallel Fence: 1270 mm

Exhaust Outlet Diameter:

  • At the Base: 120 mm
  • On Overhead Protection: 80 mm
  • On Riving Knife: 60 mm

"DADO" Machining

Mechanical presetting to use a tool (not included) in place of the main blade:

  • 203 mm / 8" max. diameter
  • 30 mm internal diameter
  • 20 mm max. thickness
  • 40 mm max. working depth

Additional Features

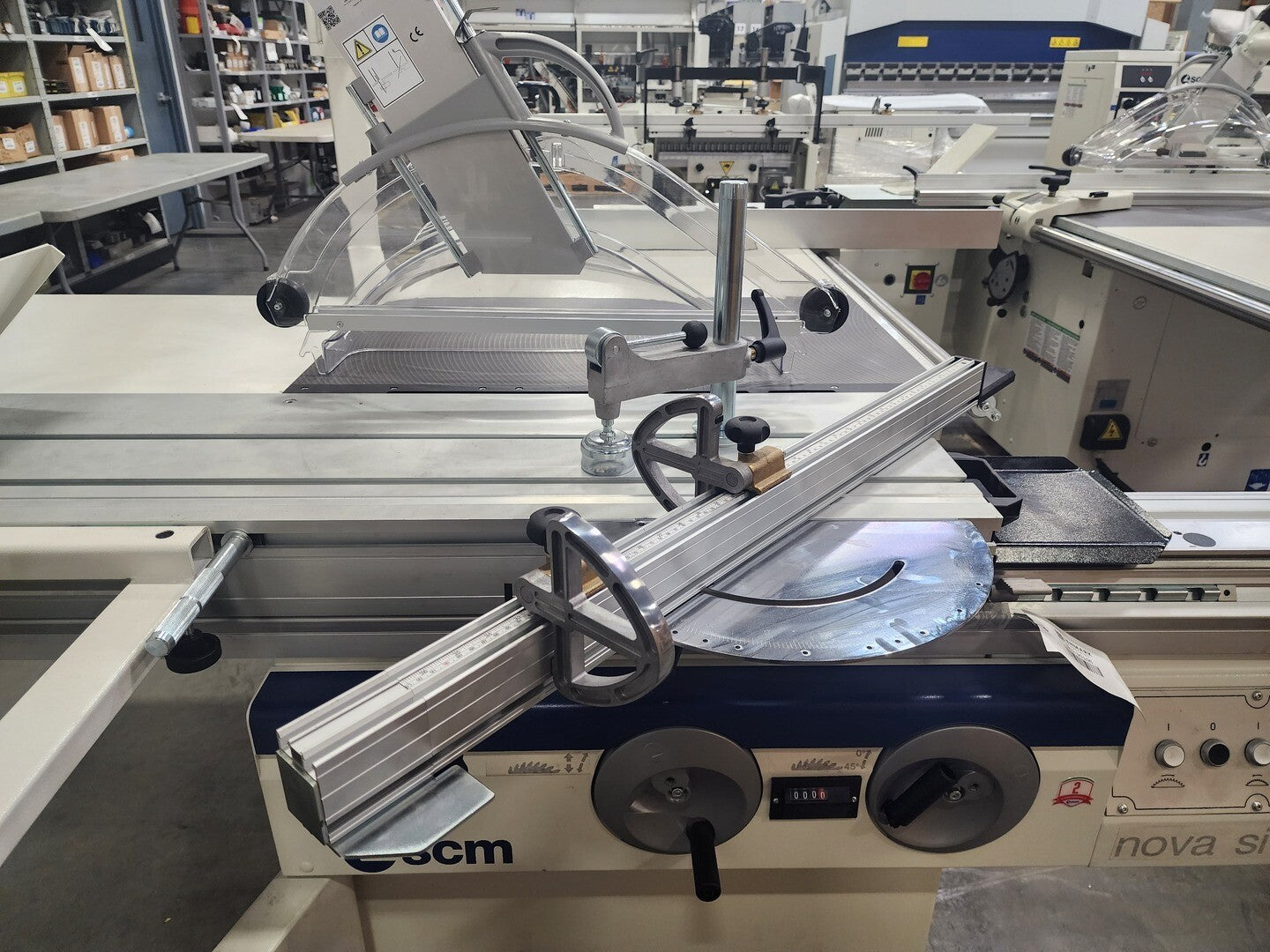

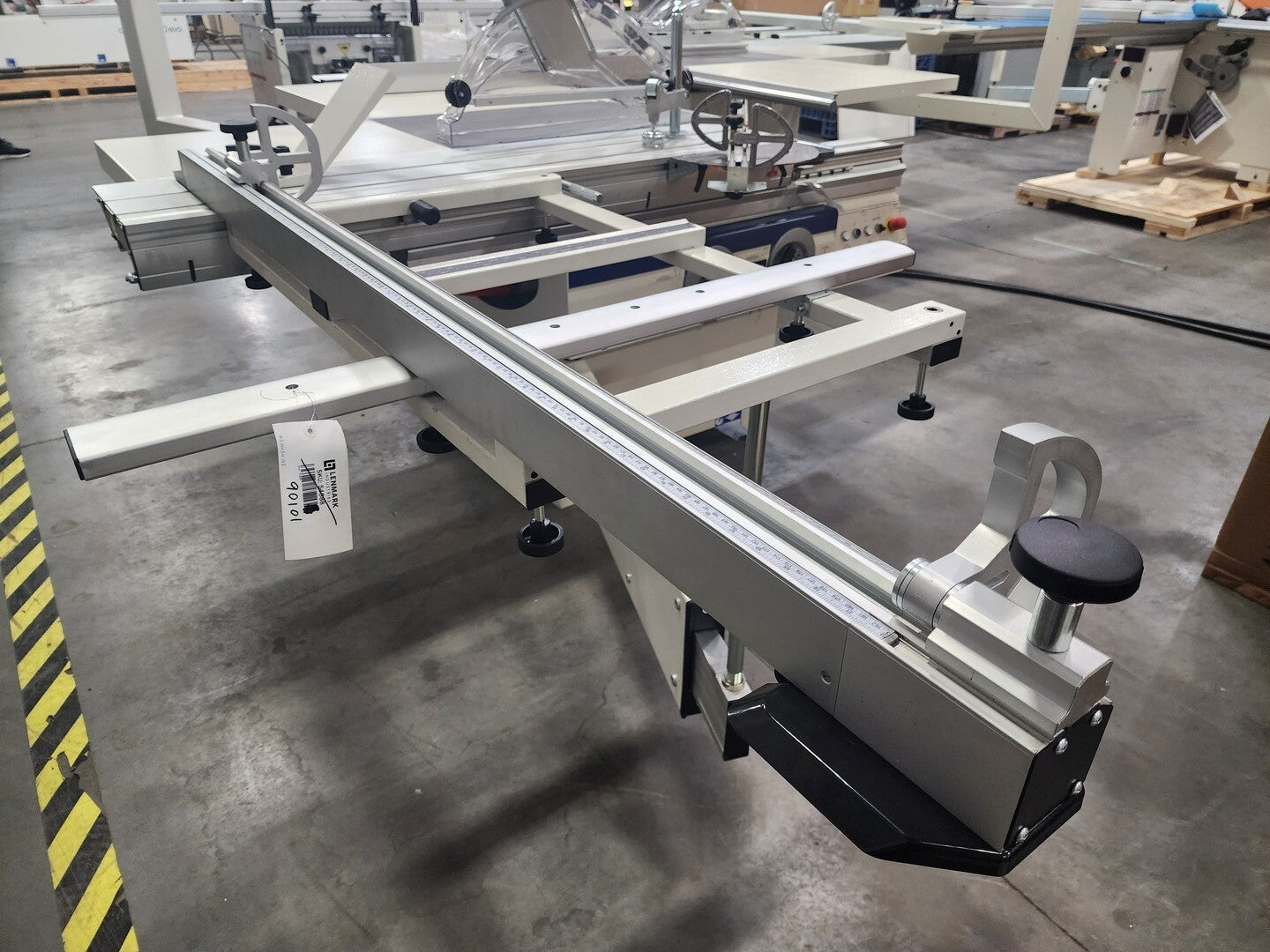

  • Angular cutting device with flip-over stops, equipped with:
  • Telescopic fence with two flip-over stops
  • Pre-set for angle rapid selection
  • Eccentric Clamp

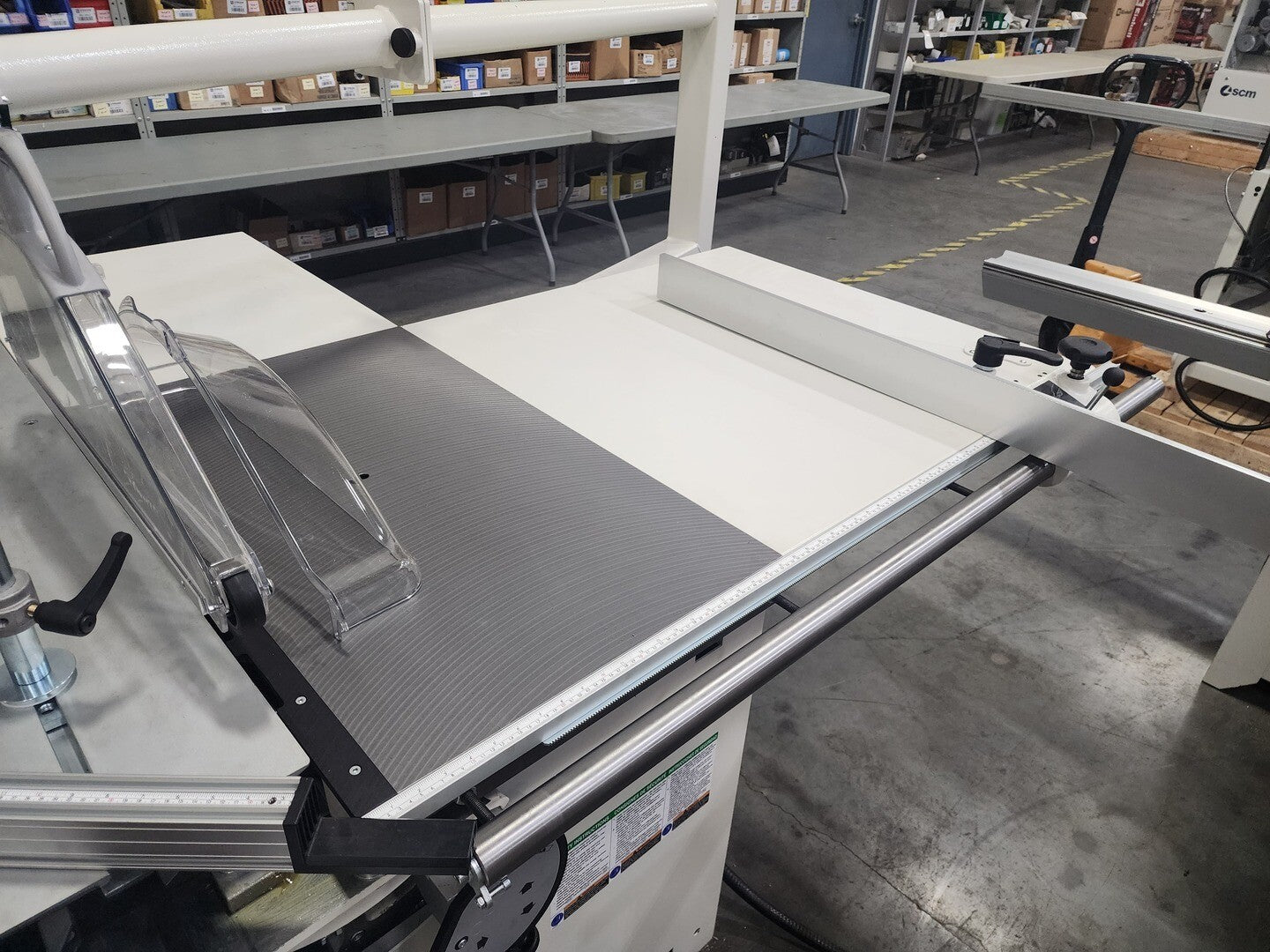

  • Overhead saw guard with incorporated dust extraction
  • Seaworthy packing
