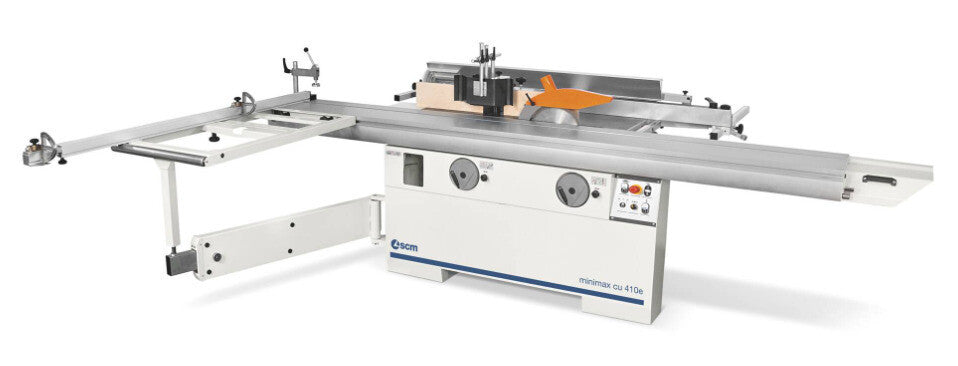

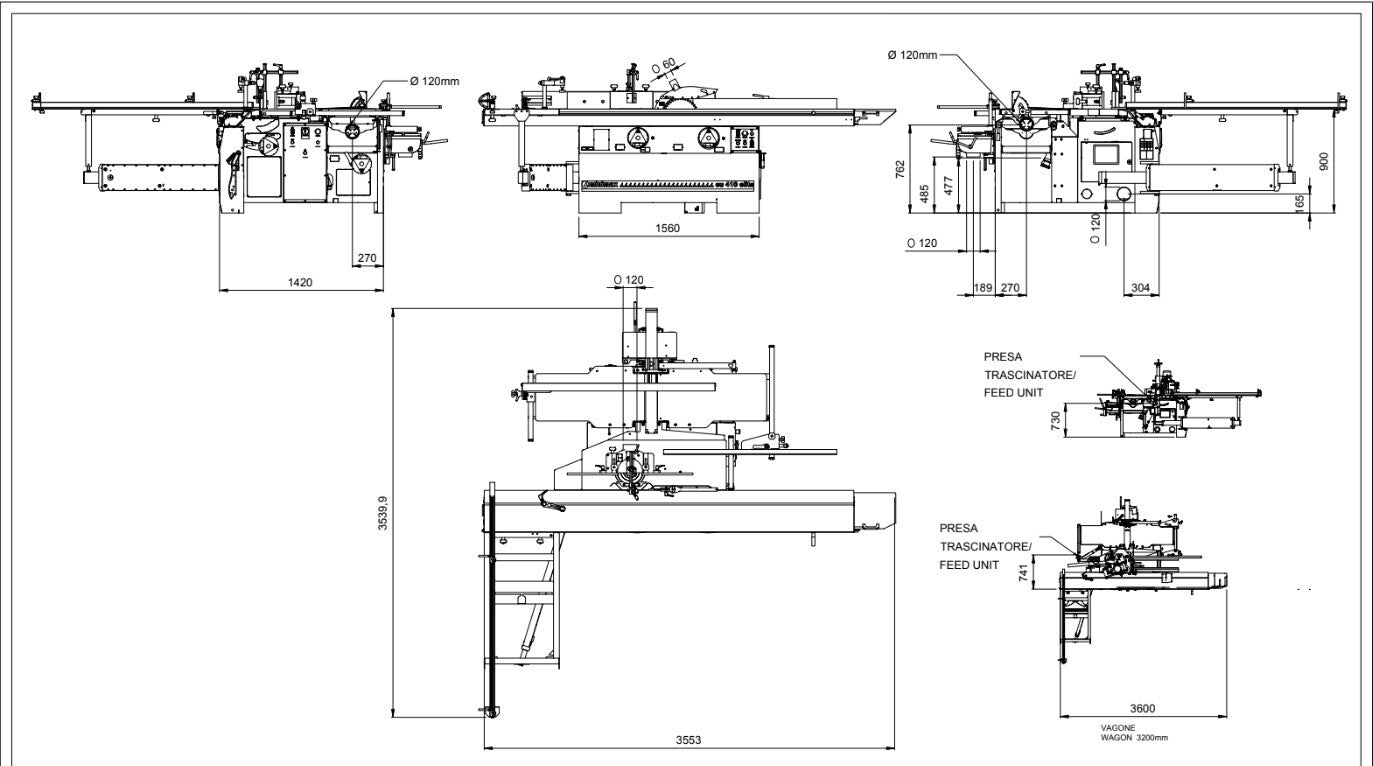

minimax cu 410e Universal Combo Machine

** Combination machine of Planer, Jointer, Saw, Router

Planer

"Xylent" spiralknife cutterblock with 3 series of knives:

• No. 66 plates 15x15x2.5 mm with 4 selflocking and selfcentering screw knives
• No. 1 dynamometric key for the correct and safe use of the locking
• No. 2 inserts for the dynamometric key

Max. Stock Removal: 5 mm

Surfacing Tables Total Length: 2000 mm

Thicknessing Table Dimensions: 423 x 775 mm

Feed Speeds on Thicknesser (m/min): Two speeds, 6 - 12

Min./Max. Working Height on Thicknesser: 3/230 mm

Min. Working Length on Thicknesser: 160 mm

Circular Saw

Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1250 x 430 mm

Blades Tilting: 90^o / 45^o

Max. Saw Blade Projection from Table at 90^o / 45^o: 100 / 71 mm

Max. Squaring Stroke: 2600 mm

"DADO SET" capability

Mechanical presetting to use a tool (not included) in place of the main blade.

• Max. diameter: 200mm / 8"
• Max. thickness: 19 mm / 0.75"

This machine is suppled with saw spindle, 5/8" diameter

Spindle Moulder

Available with the Following Spindle Diameters: 30, 32, 35, 40, 50 mm, 3/4", 1", 1-1/4"

Max. Useful Spindle Length: 125 mm (70 mm with 3/4" spindle)

Spindle Moulder Speeds @ 50 Hz: 3500 / 6000 / 8000 / 10,000 rpm

Max. Tool Diameter when Profiling: 210 mm

Max. Diameter of Tool Lowered Under the Table at 90^o: 240 mm

Belt driven scoring unit complete with blade with external setting up

Blade: 100 mm diameter, Z 20

Angular cutting device with flip-over stops equipped with:

Telescopic fence with two flip-over stops

Pre-set for angle rapid selection

Round sliding bars on parallel fence and on surface fence for parallel cutting

Saw Fence (900 mm max. cutting width)

• Micrometric adjustment and cam-locking system
• "high rigidity" cast iron fence support

Surface Fence (Extruded aluminum, L = 1667 x 150 mm)

• "high rigidity" cast iron fence support

Cast Iron Mortiser

Complete with 120 mm diam. exhaust hood and 16 mm chuck

• Table Dimensions: 470 x 230 mm
• Strokes: X = 160 mm, Y = 120 mm, Z = 110 mm

Spindle moulder fence with 3 controlled adjustments

Max. tool diameter: 240 x 85 mm

Additional Features

• Xylent maintenance kit
• Tiltable spindle moulder 90^o / 45^o with handwheel on front machine
• Interchangeable spindle: 100 mm max. height (70 mm if 3/4" spindle)
• Spare spindle for interchangeable spindle (1-1/4" diameter)
• Spare spindle for router bits each complete with 1/2" clamp
• Reverse spindle rotation (non CE)
• Spindle moulder shaft of 1-1/4"
• Wheels for machine movement
• Numerical readouts for the units positioning
• Locking by countersunk socket screw
• Triple wall for 2600 mm
• Machine language: English
