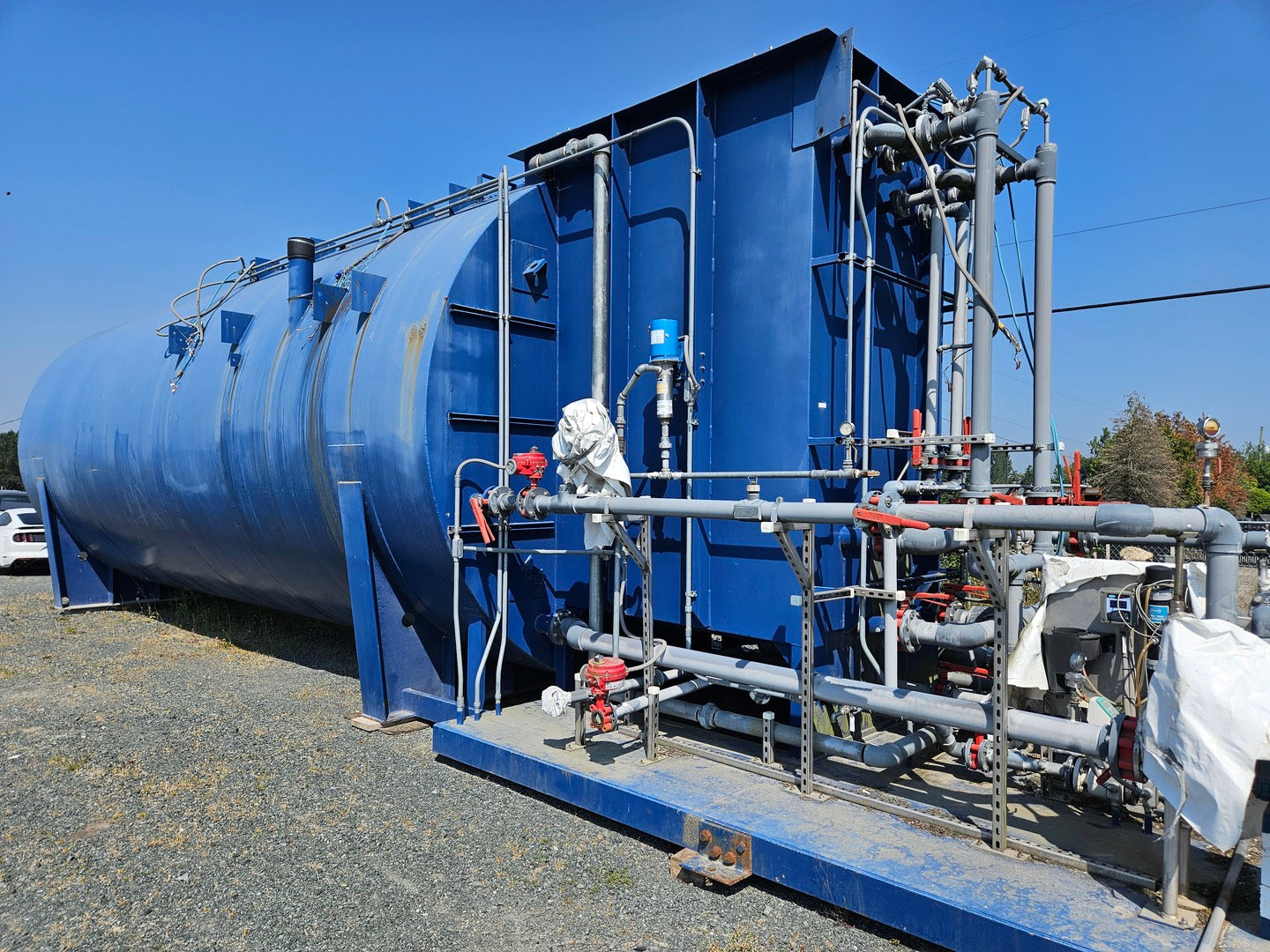

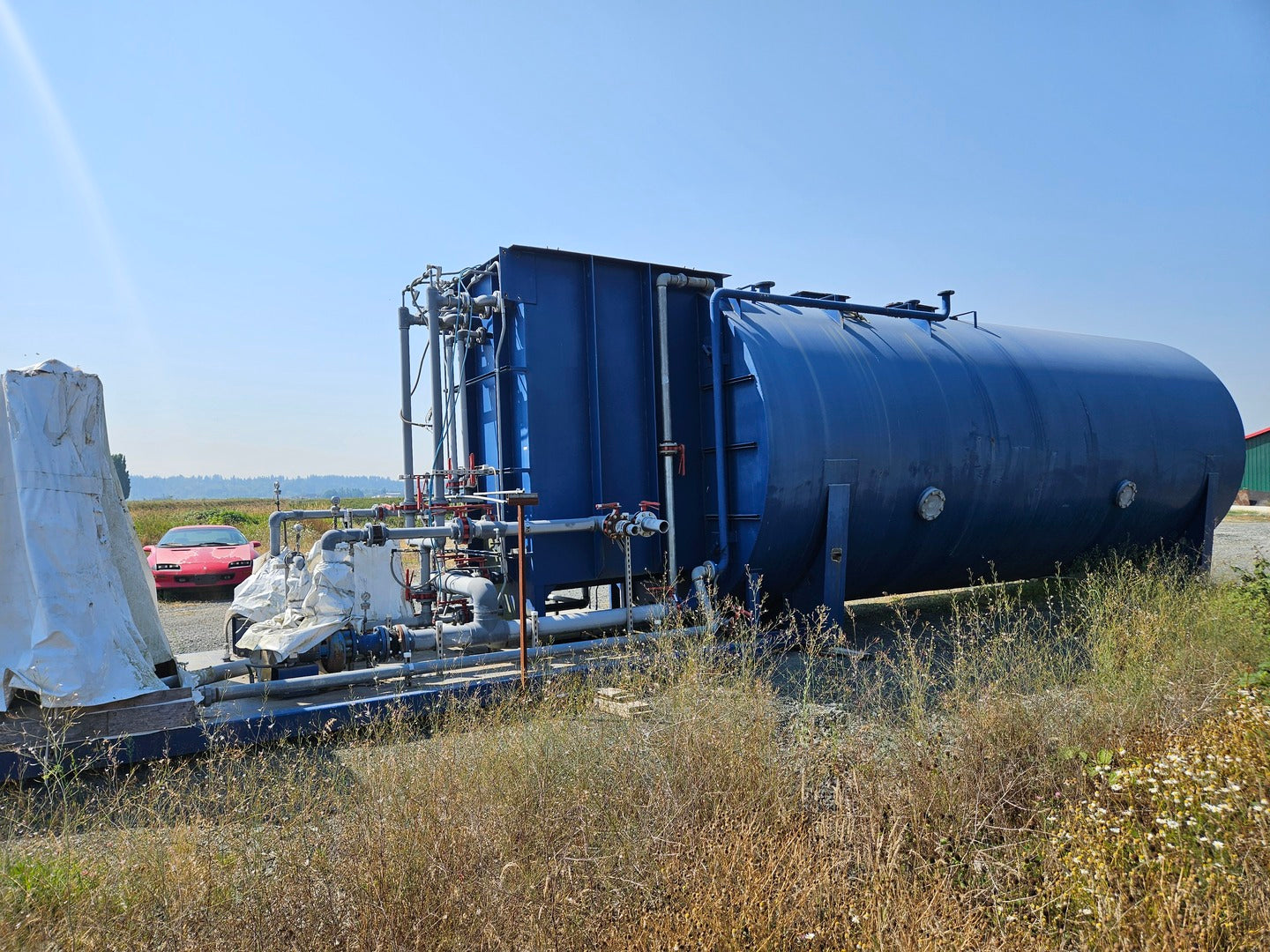

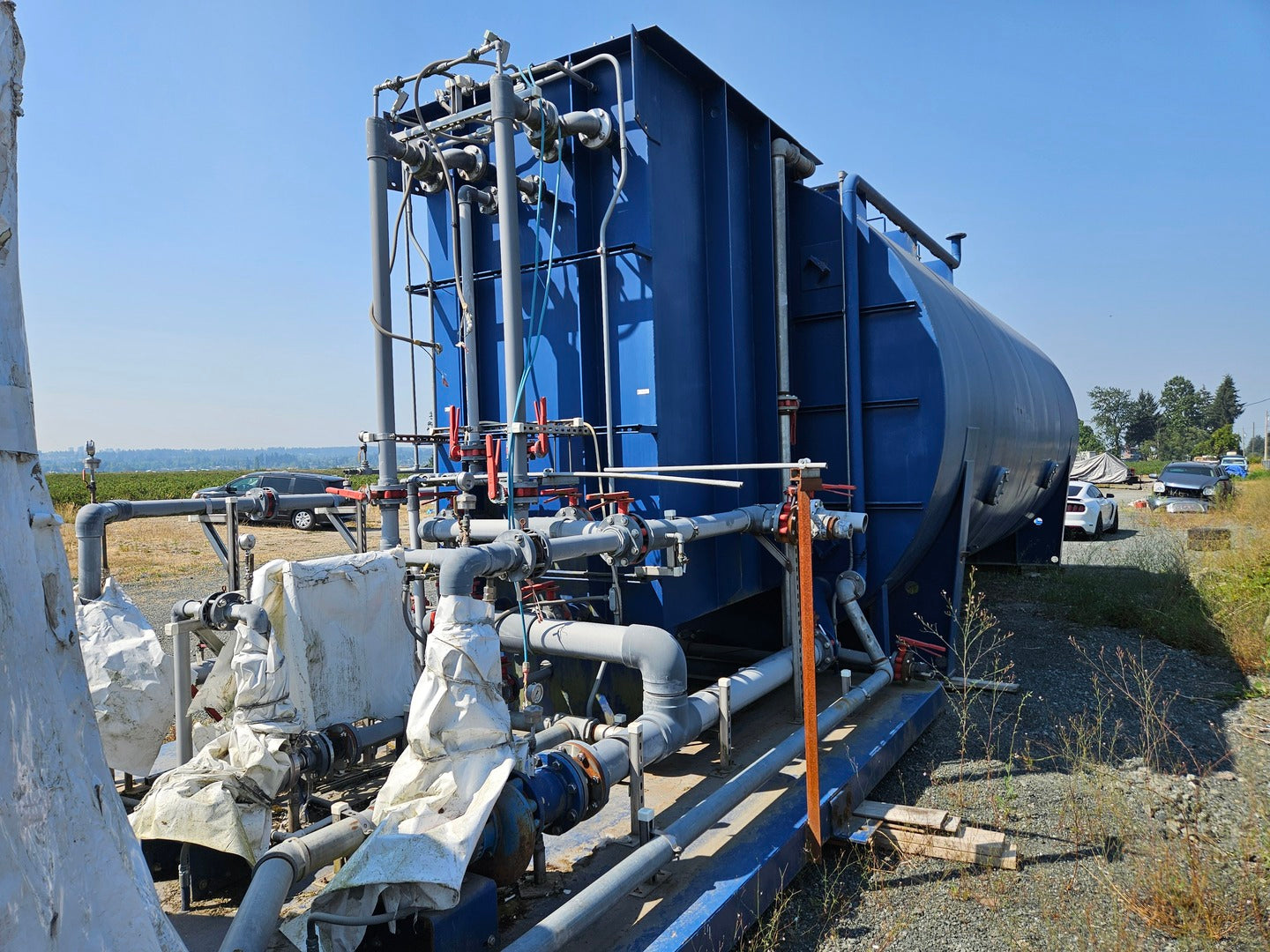

SIEMENS MemJet Xpress Membrane Bioreactor Plant
SIEMENS

MemJet Xpress Membrane Bioreactor Plant

SKU: 157088
Condition: Refurbished/Rebuilt
Price:
$358,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Year: 2009
Condition Refurbished/Rebuilt
Other Specifications

PDF Resources

Brochure

Process Description

Plan View

Anchor & Lifting Detail

Skid Assembly

Master Assembly

Overview

The MBR processes used in sequence are as follows:

  1. primary treatment using fine screening (2mm perforated plate drum screen)
  2. biological nutrient removal including anoxic (denitrification) zone and aerobic (nitrification) zone with dissolved oxygen control
  3. membrane operating system (MOS) for filtration

Key advantages of an MBR wastewater treatment package plant are:

  1. High-quality effluent, with very low suspended solids and strong removal of bacteria and pathogens.
  2. Small footprint, because the membrane unit replaces a large secondary clarifier, making it suitable for tight sites and modular package plants.
  3. Better reuse potential, since the treated water can often be used for irrigation, toilet flushing, or industrial applications.
  4. Strong and stable treatment performance, because the membranes retain biomass and allow high mixed liquor concentrations.
  5. Easier expansion and packaging, since decentralized MBR systems are often built in modular, pre-engineered units that deploy quickly.
  6. Lower sludge production than many conventional systems, which can reduce sludge handling costs.
  7. For a package plant specifically, the biggest practical benefits are compactness, fast deployment, and consistently high effluent quality

Specifications

Year: Originally commissioned in 2009

Operation: Operated for approximately 6 years

Average Daily Capacity: 50,000 Gallons per day

Peak Capacity: 100,000 Gallons per day

Membrane Filtration Rating: > 0.1 micron

Membrane Type: Hollow-fiber membranes

Hollow Fiber Material: Chlorine-resistant PVDF

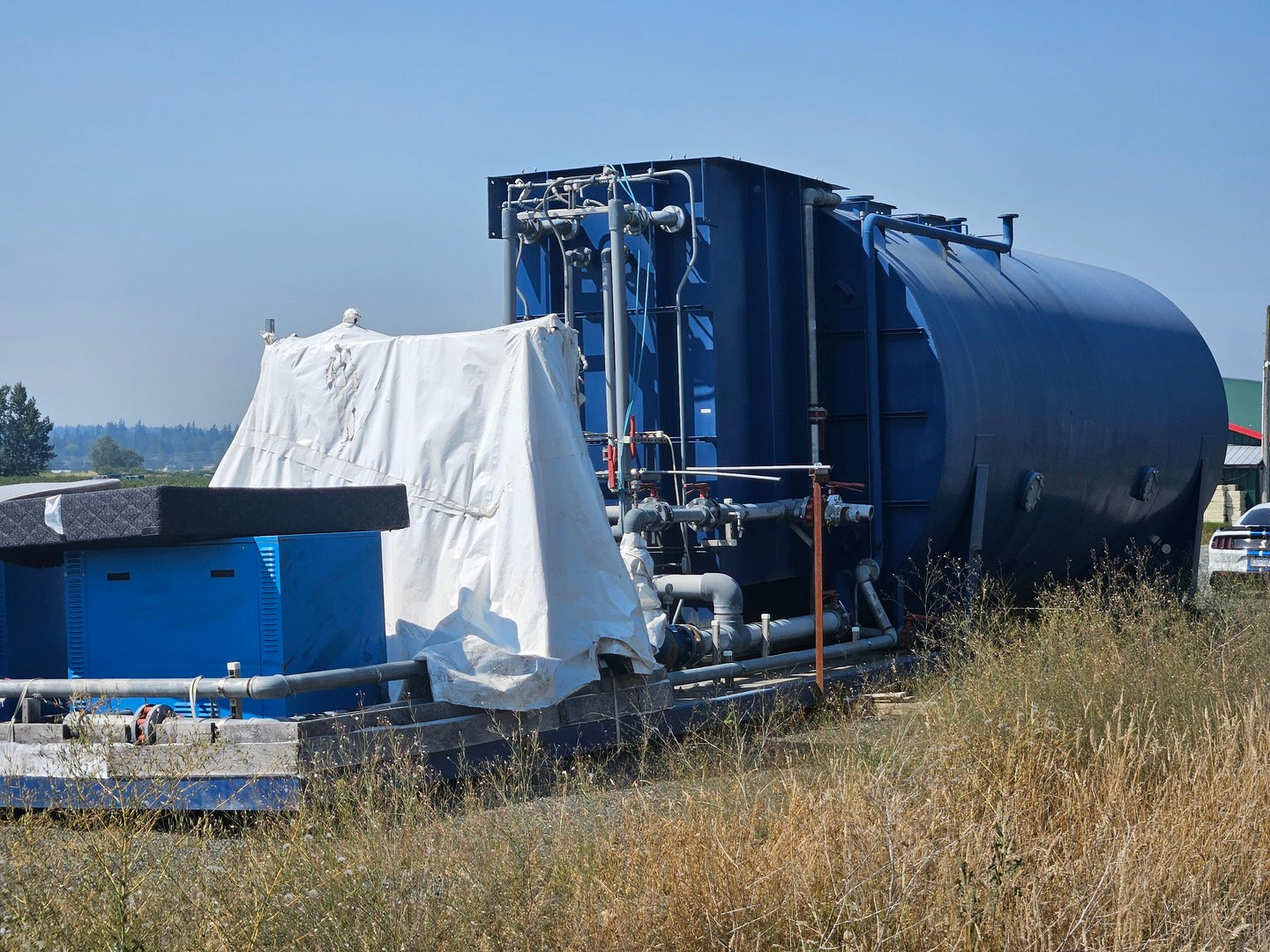

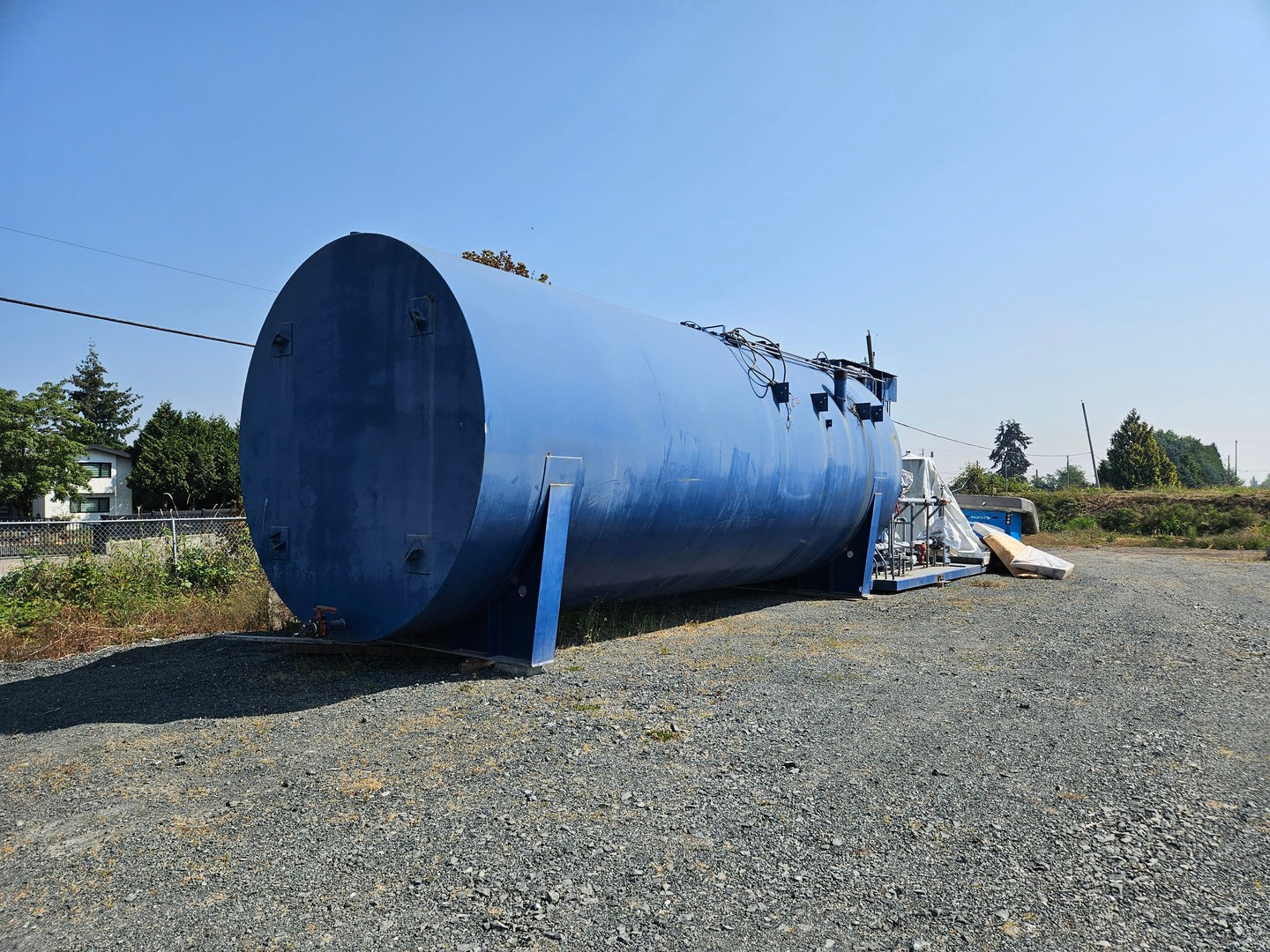

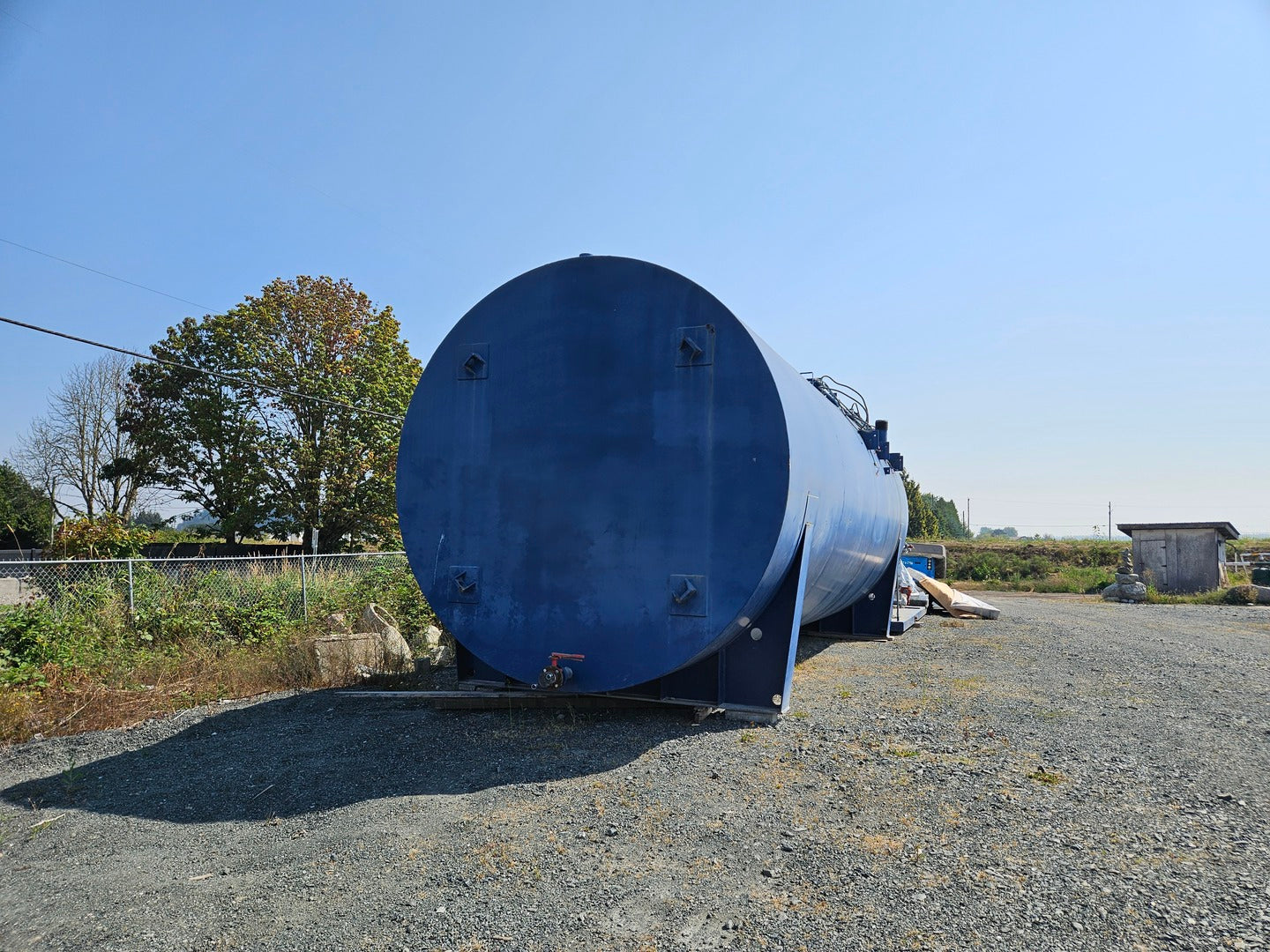

Biological Tank: 12 ft. diameter (painted carbon steel) divided into two separate internal zones.

Tank Anoxic Zone Volume: 28,224 L

Tank Aerobic Zone Volume: 51,273 L

Design MLSS (in aerobic zone): 10,000 mg/L

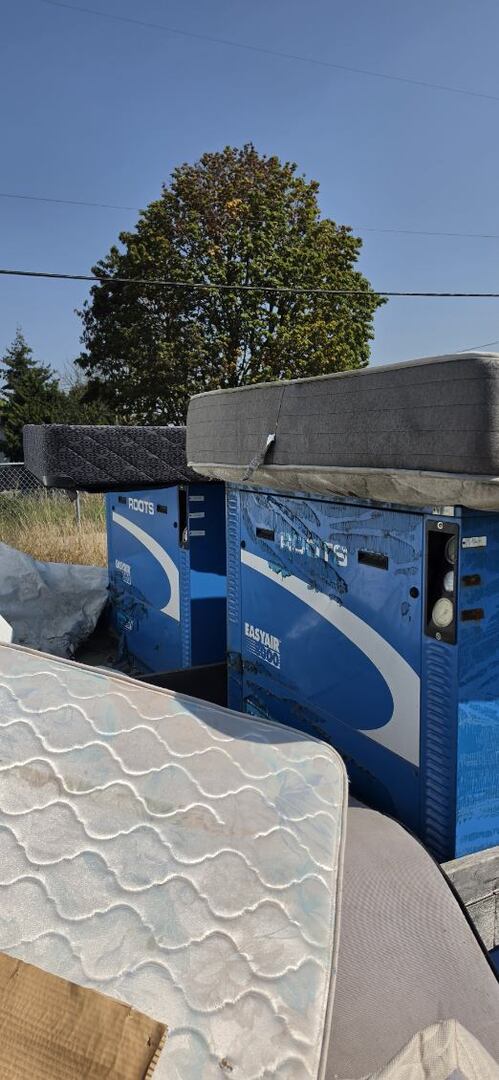

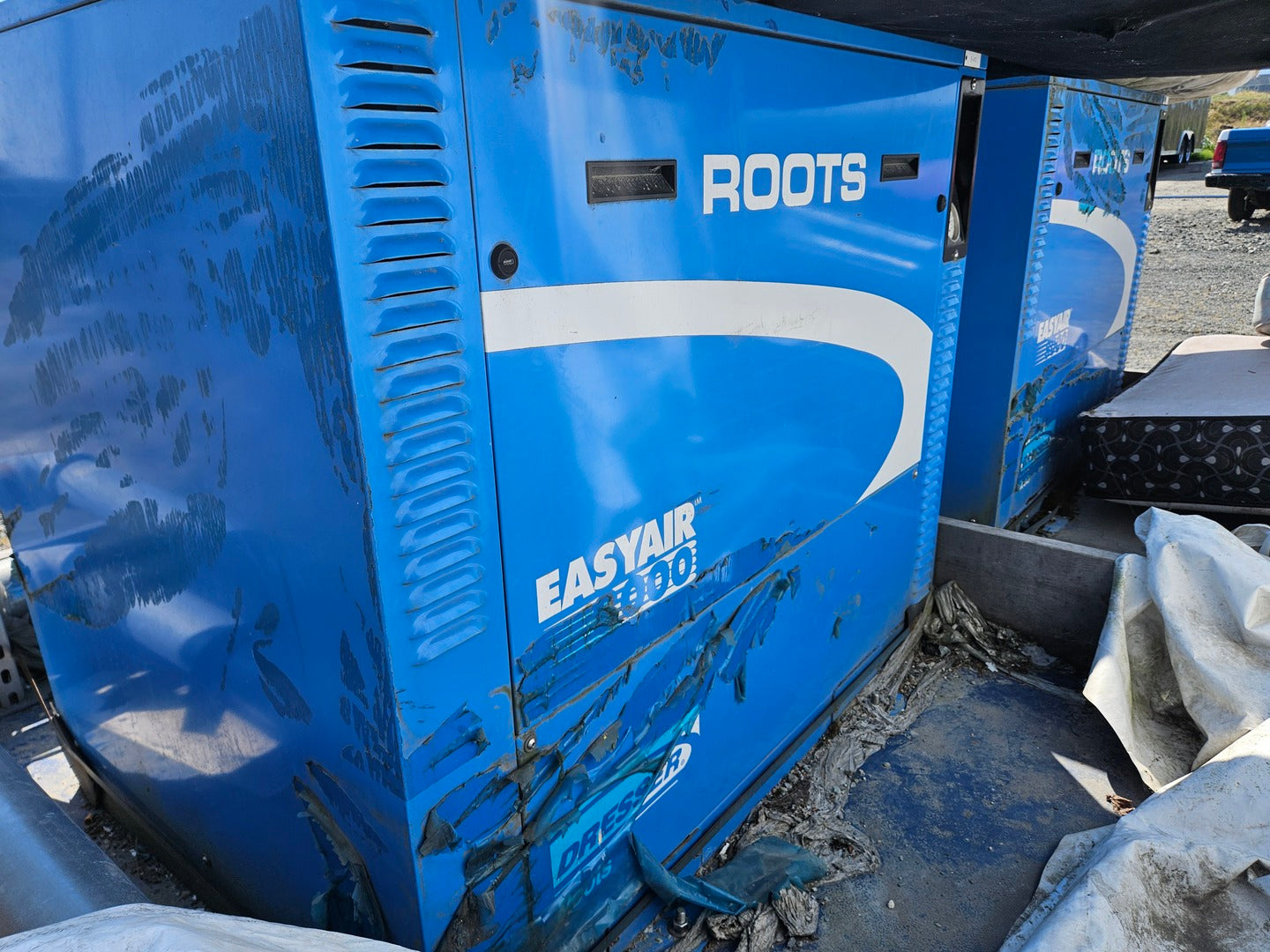

Blower System: (2) ROOTS EasyAir 8000 Blower packages

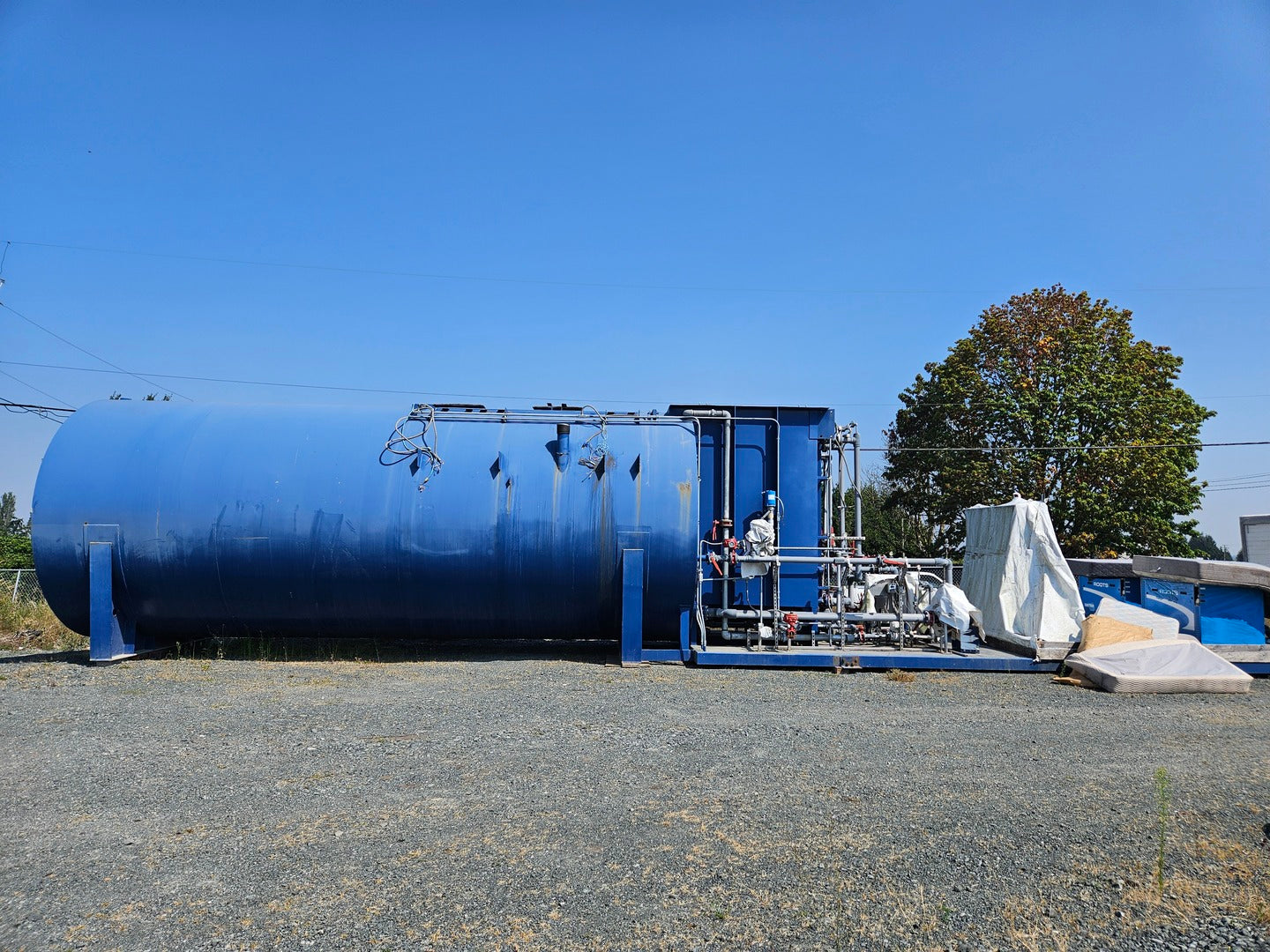

Overall Length: 53 ft. (skid and tank are welded together)
