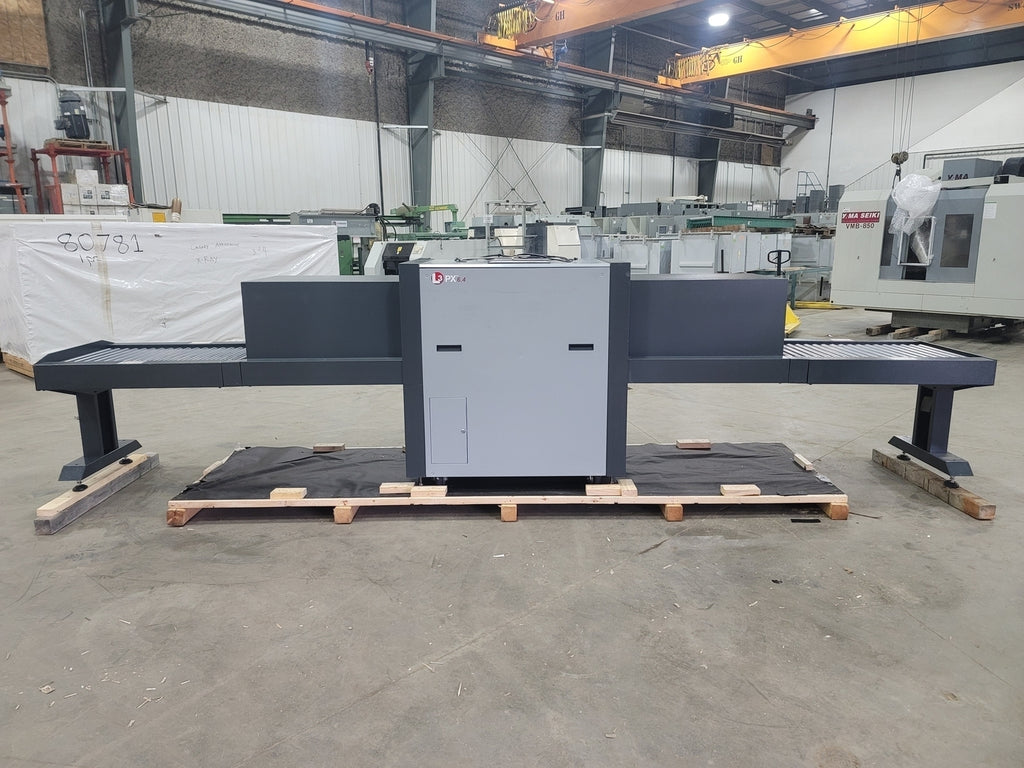

L3 COMMUNICATIONS Checkpoint X-Ray System PX 6.4
L3 COMMUNICATIONS

Checkpoint X-Ray System PX 6.4

SKU: 80784
Price:
$15,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

TSA-qualified solution for aviation, critical infrastructure and mass transit, border crossings and break bulk screening. The PX 6.4 screens small and medium-sized objects such as infant/child safety seats, parcels and packages, mail bins, carry-on luggage and other hand-carried items such as briefcases and backpacks. Provides optional high-powered X-ray solution offering a high level of penetration and resolution to see through denser items.
Specifications
Model PX 6.4
Year: 2015
S/N: PX641766
Made In UNITED STATES
Condition Used
Other Specifications

Manufacturer PDF

Applications:-

  • Threat Detection
  • Manifest & Declaration Verification
  • Contraband Detection
  • Theft Prevention
  • Regulatory Compliance/Inspection

General:-

Height: 1312 mm (51.7")

Width: 862 mm (34")

Length:-

  • Short Conveyor: 1700 mm (67")
  • Medium Conveyor: 2236 mm (88")
  • Long Conveyor: 3030 mm (119.3")

Tunnel Opening: 640 mm (25.2") W x 430 mm (16.9") H

Conveyor Height: 775 to 835 mm (30.5" to 32.9")

Power Requirements: 100-240 VAC, 1-Ph, +/-10%, 50/60 Hz, 1.0 kVA max

Conveyor Speed: 0.25 m per second +1/-2% @ 50/60 Hz

Conveyor Capacity: 100 kg (220 lb)

Scan Rate: >750 bags/hour (continuous mode), 400 bags/hour (2 level screening)

X-Ray:-

Voltage: 150 kV

Duty Cycle: 100%

Cooling: Sealed Oil Bath

Beam Orientation: Vertically Upward

Detector Configuration: 1152 photodiodes in L-shaped folded array configuration

Imaging and Performance:-

Resolution: 38 AWG standard, 40 AWG typical

Penetration: 38 mm of steel standard, 40 mm typical

Contrast Sensitivity: 4096 gray level stored

Display Monitor: 19" LCD Monitor

Penetration: 38 mm of steel standard, 42 mm typical

Environmental:-

Operating Temperature: 0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)

Storage Temperature: -20 deg. C to 50 deg. C (-4 deg. F to 122 deg. F)

Humidity: 95% non-condensing

Airborne Noise Level: <70dB(A)
