Description
| Specifications | |
|---|---|

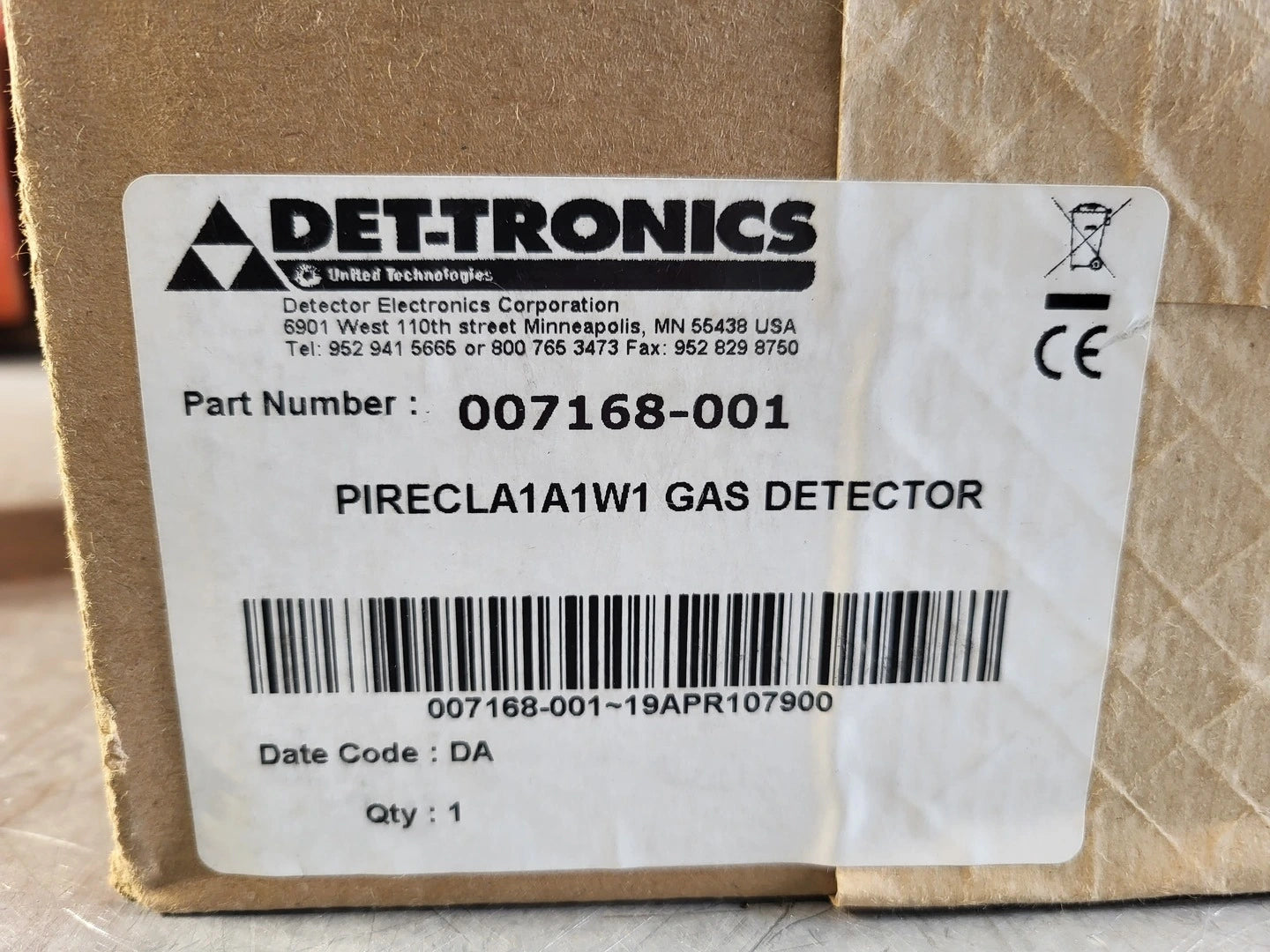

| Model | PIRECLA1A1W1 |
| Condition | Surplus New |
| Other Specifications |
|---|
|

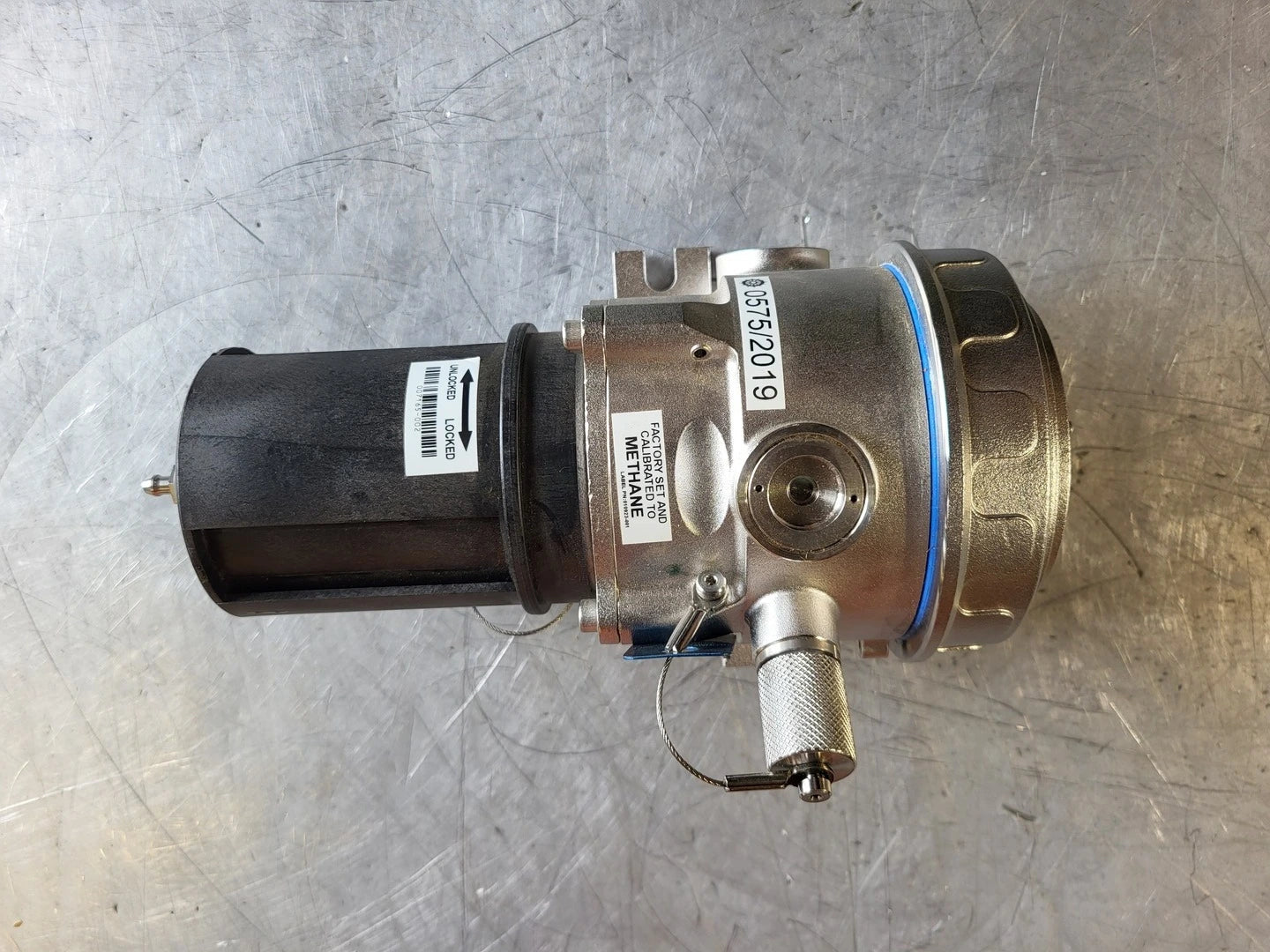

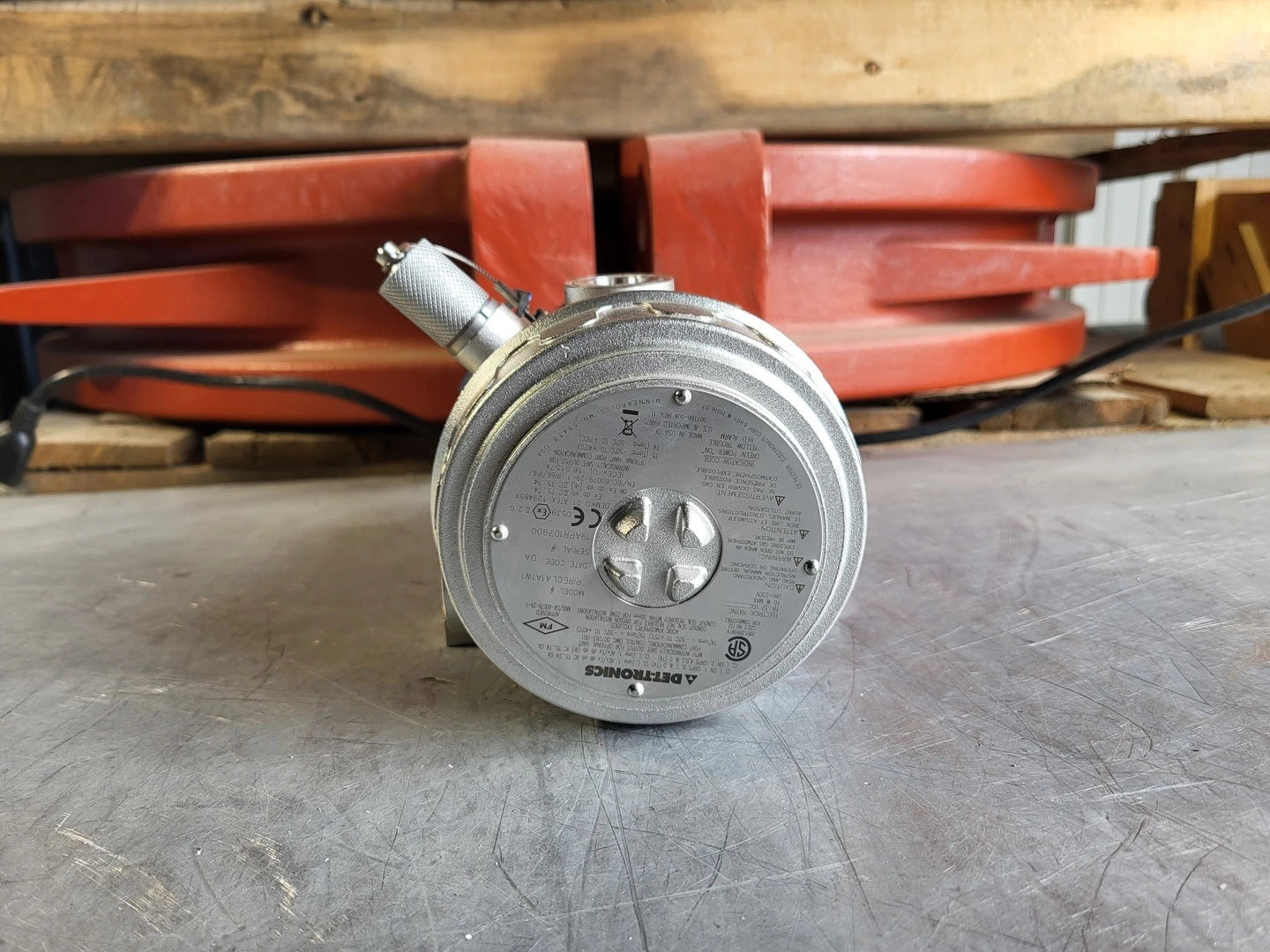

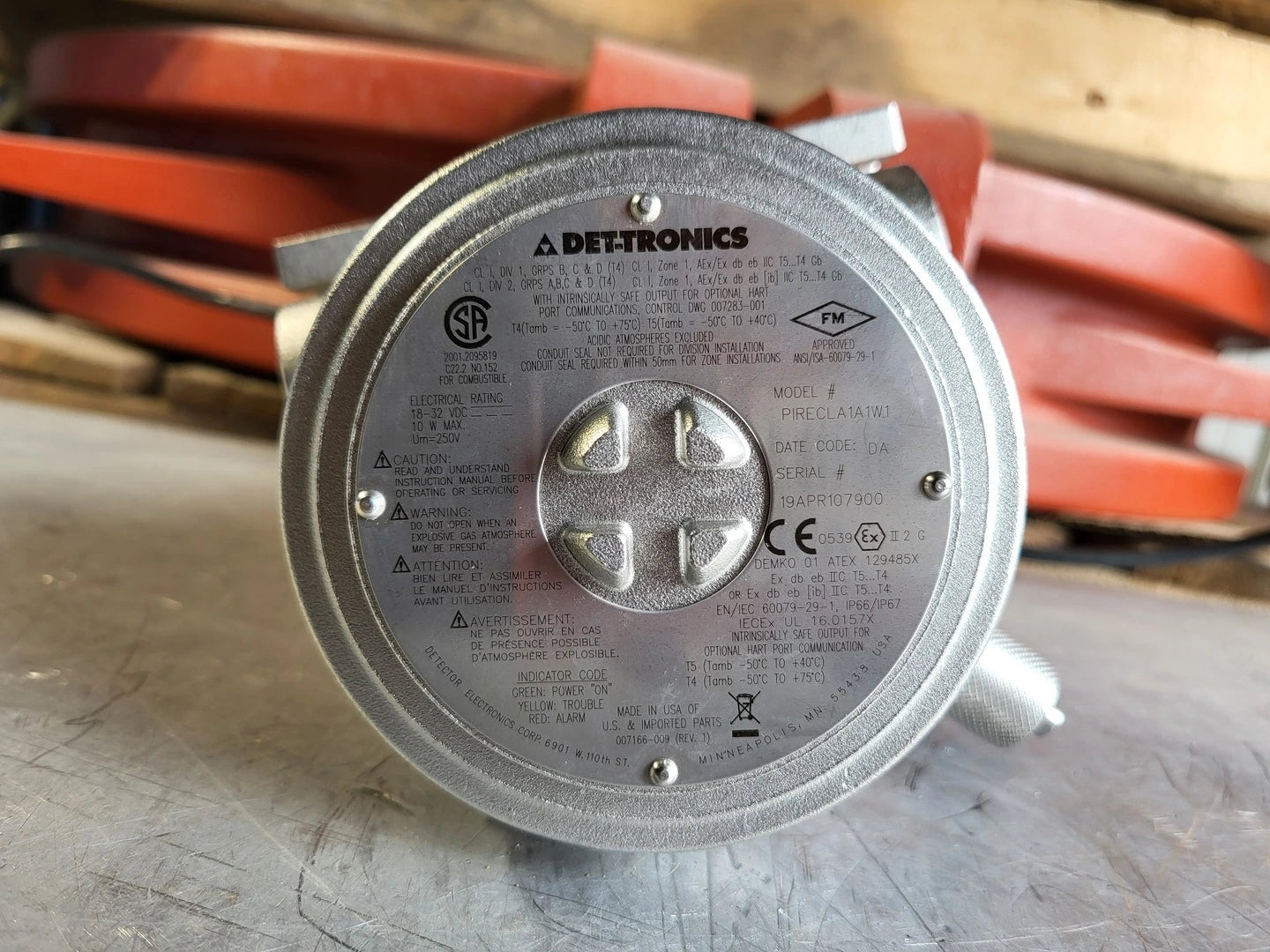

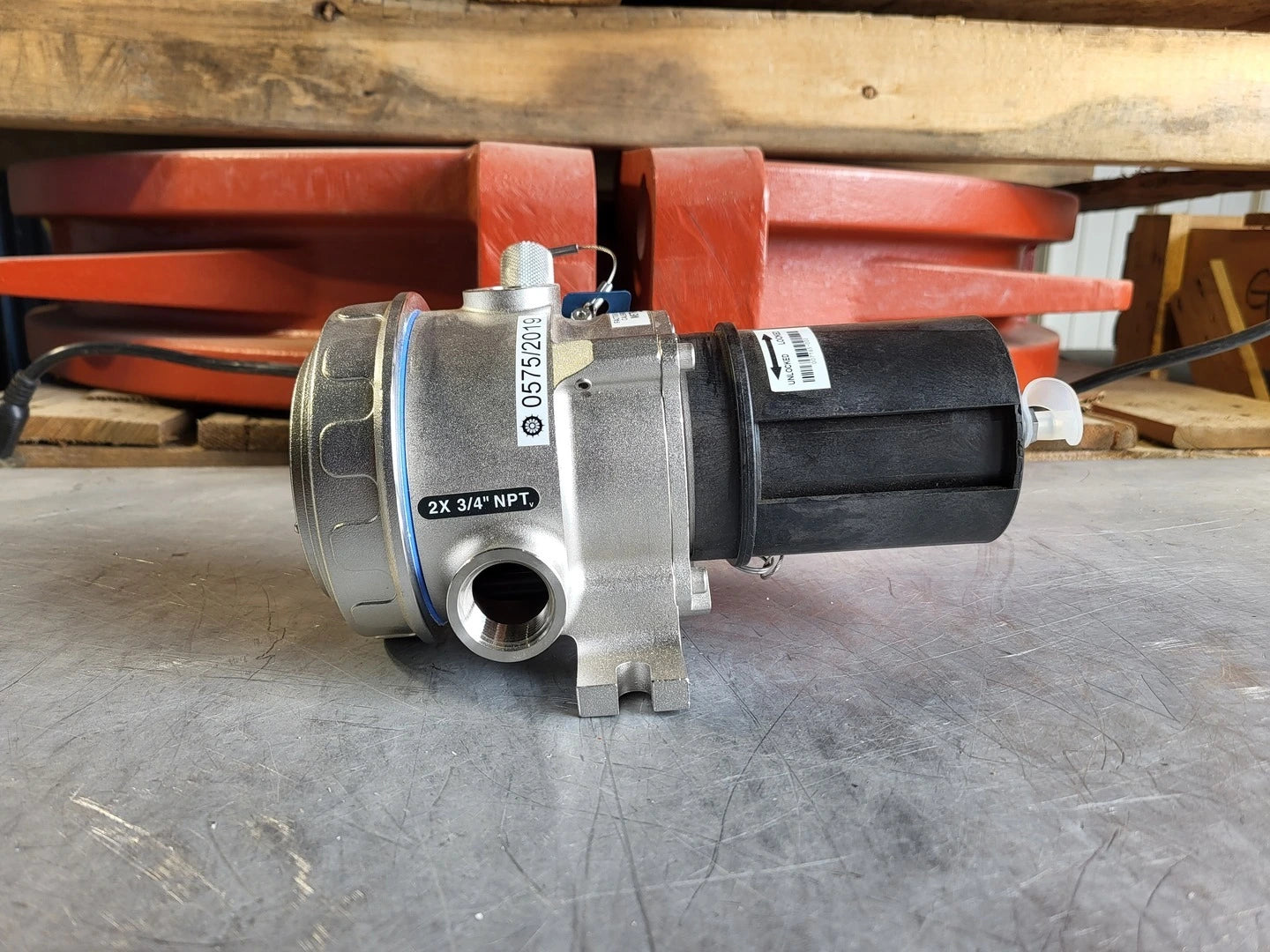

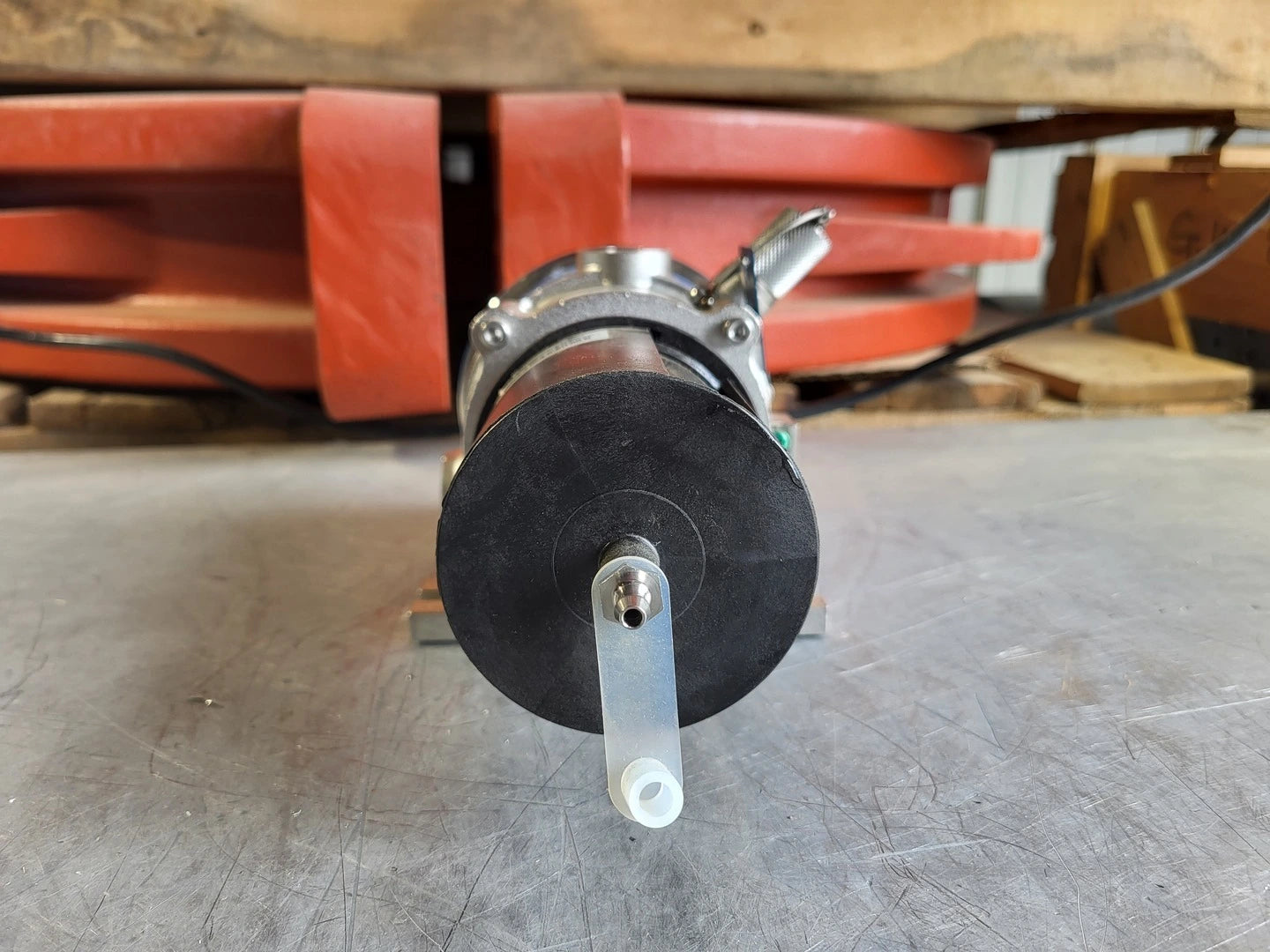

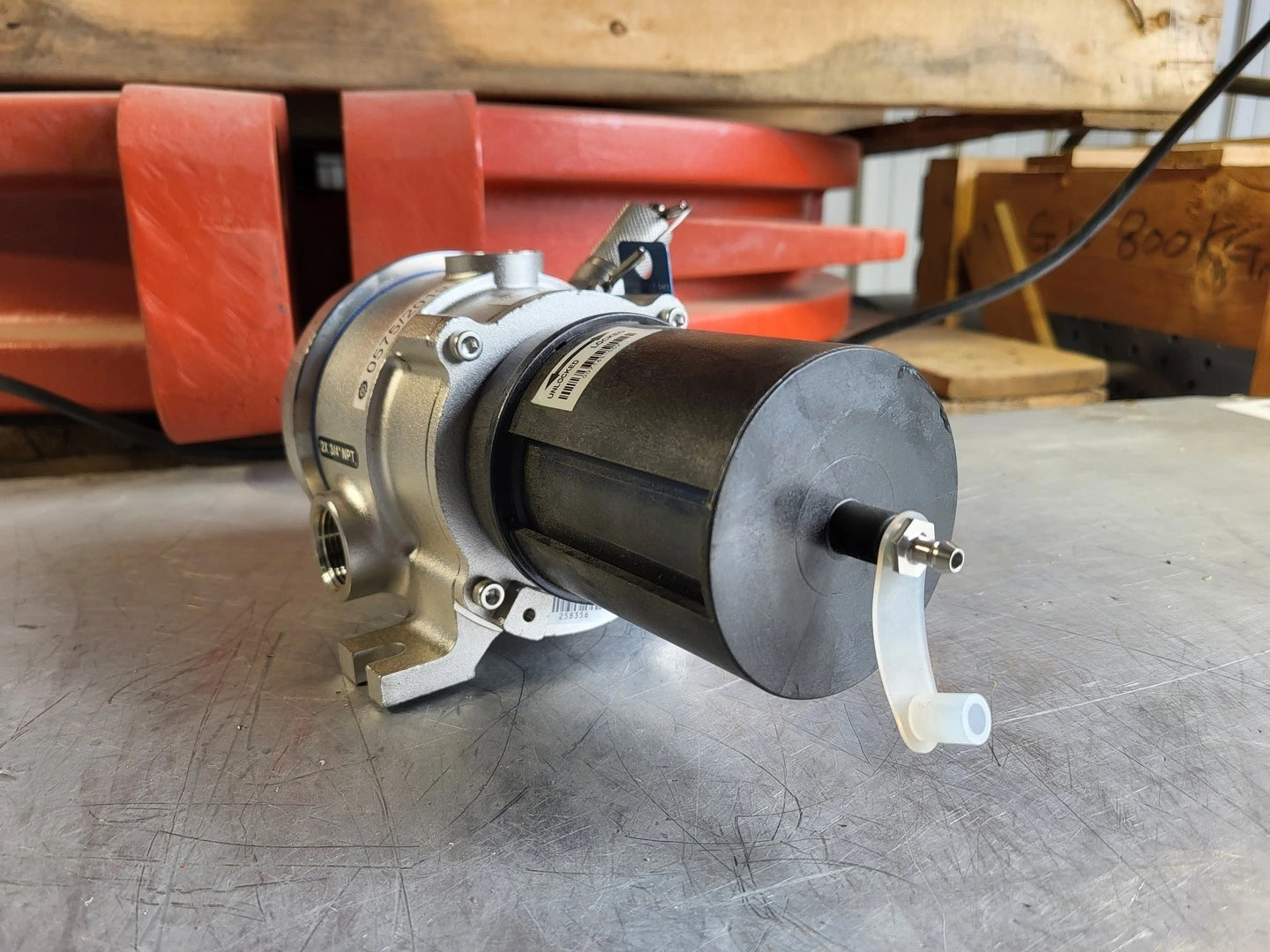

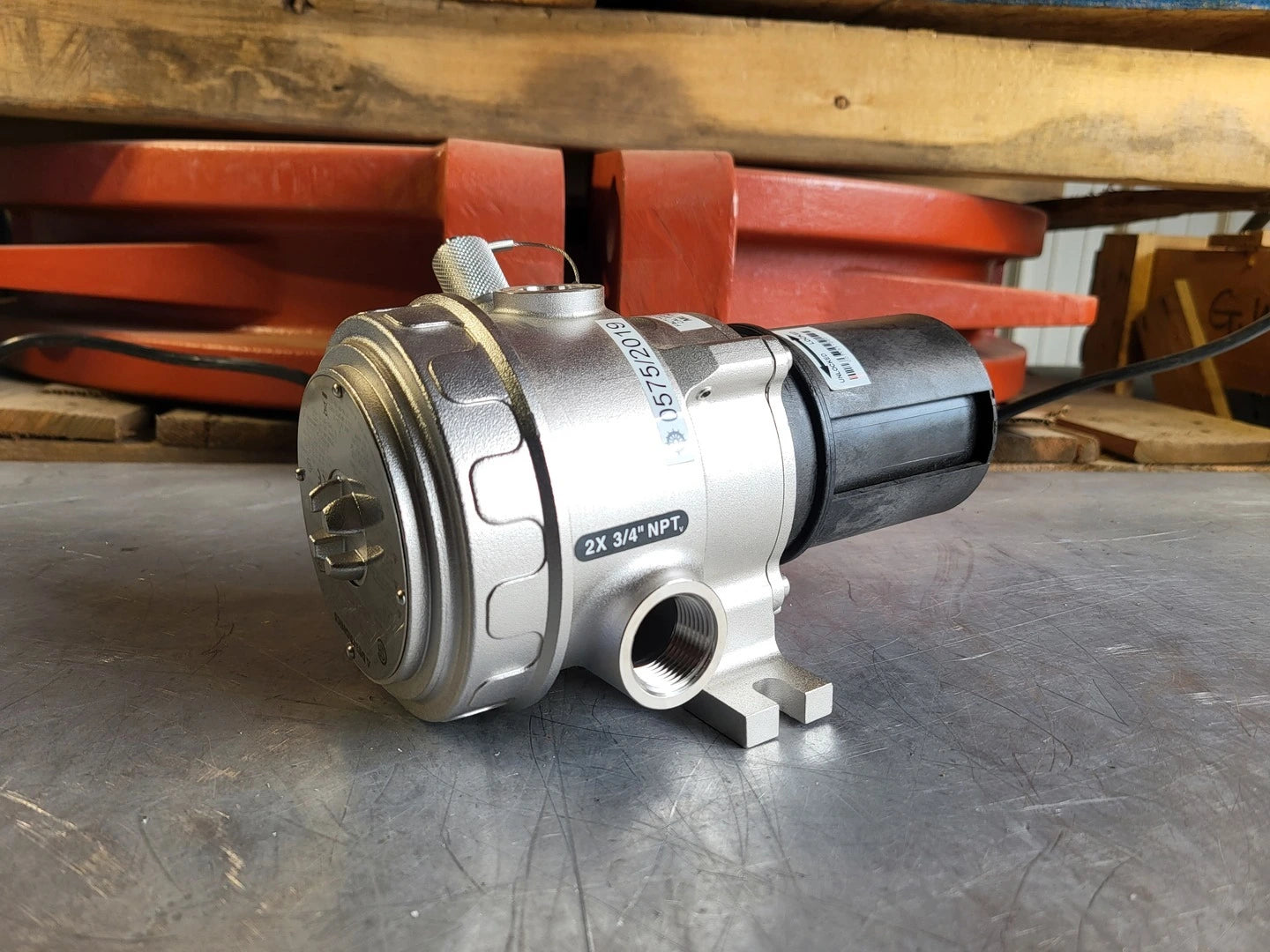

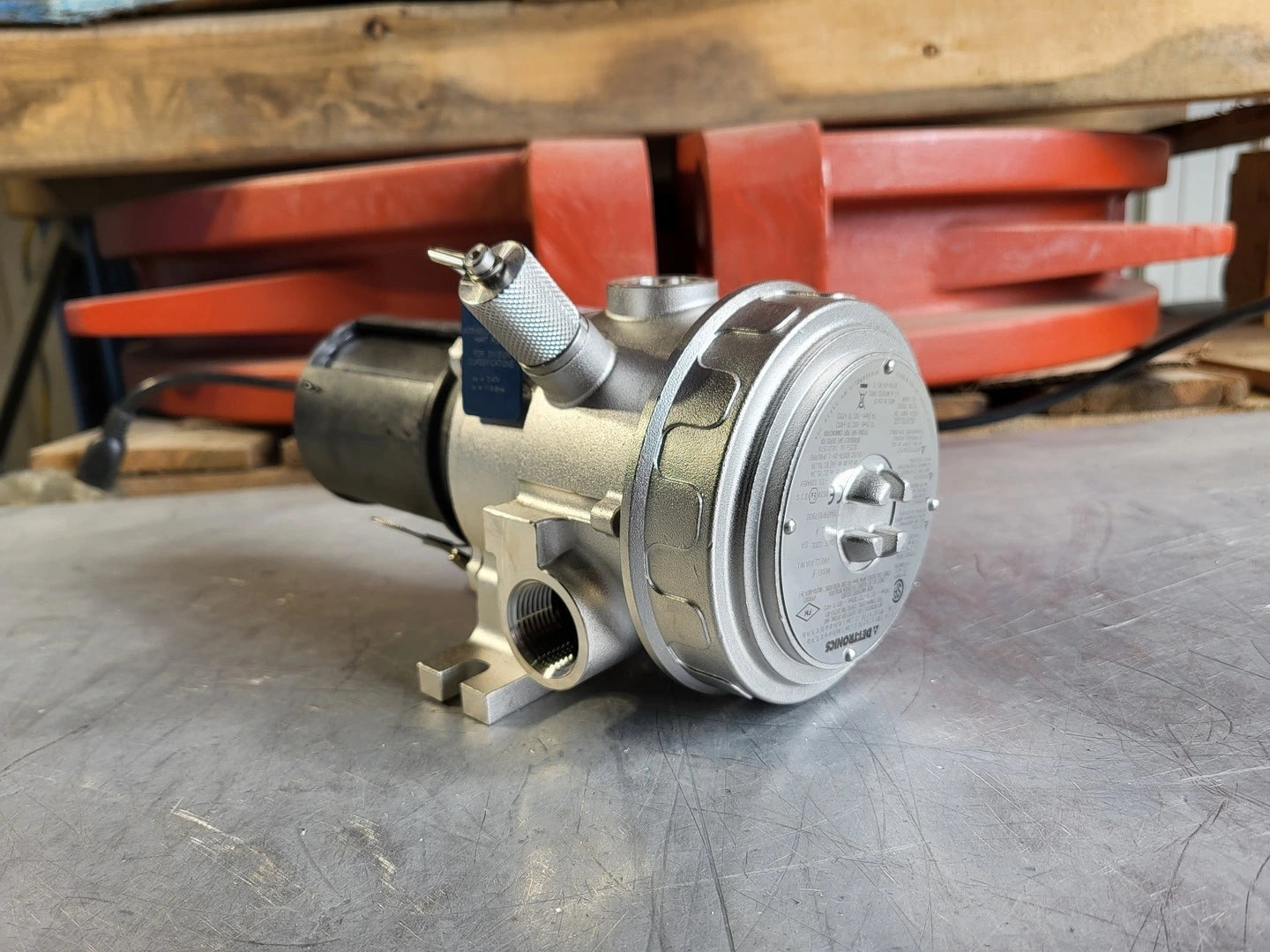

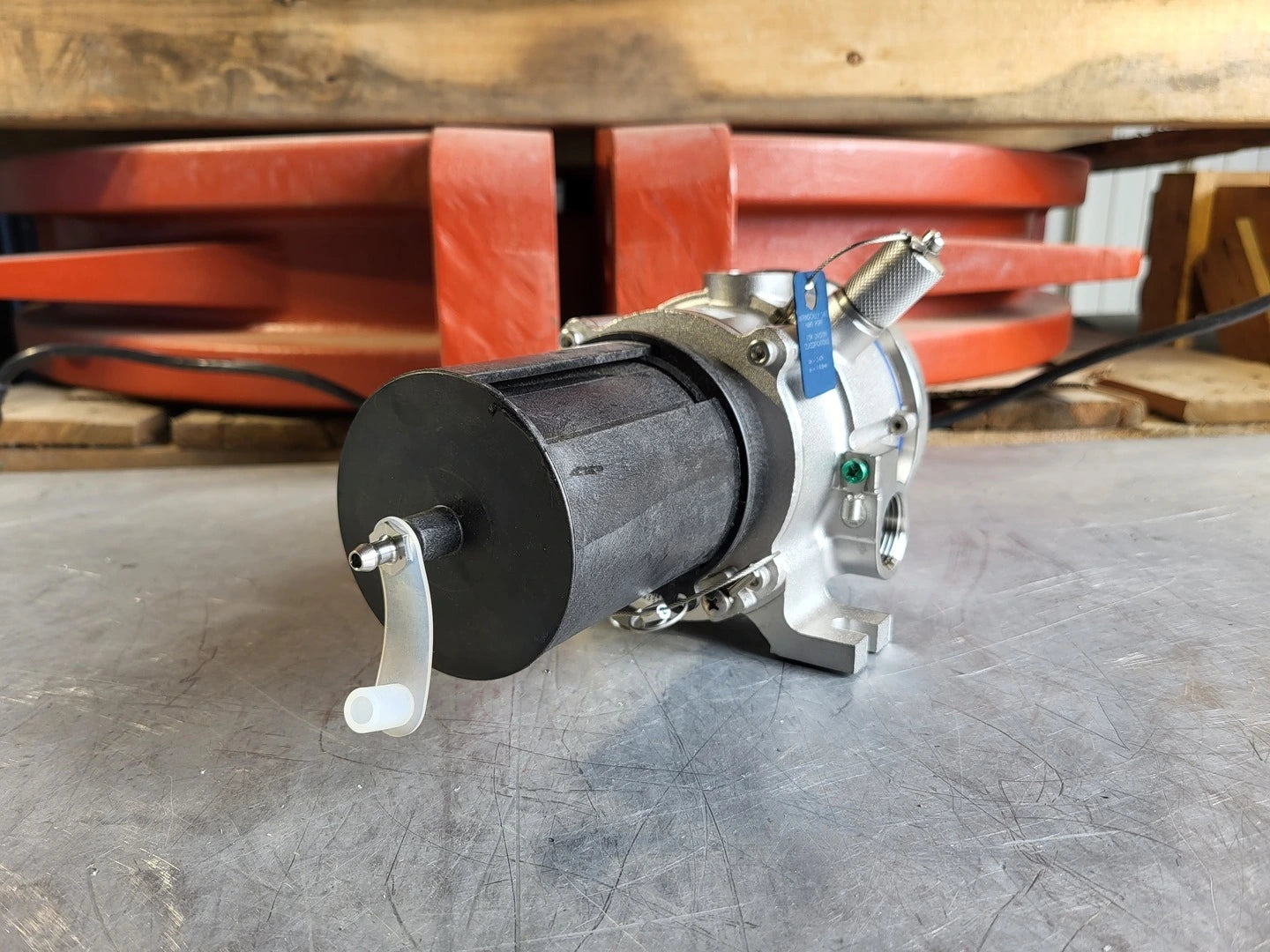

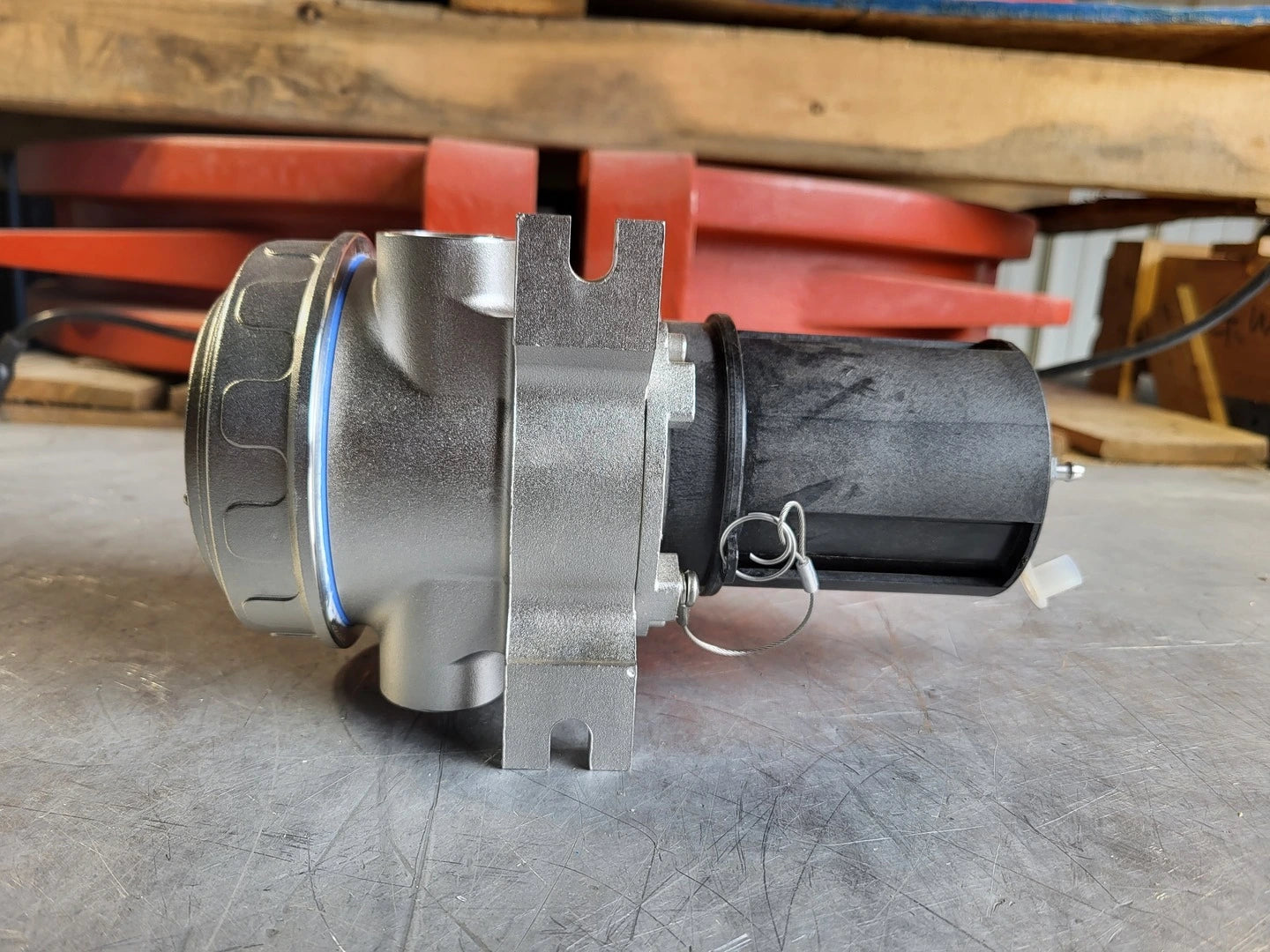

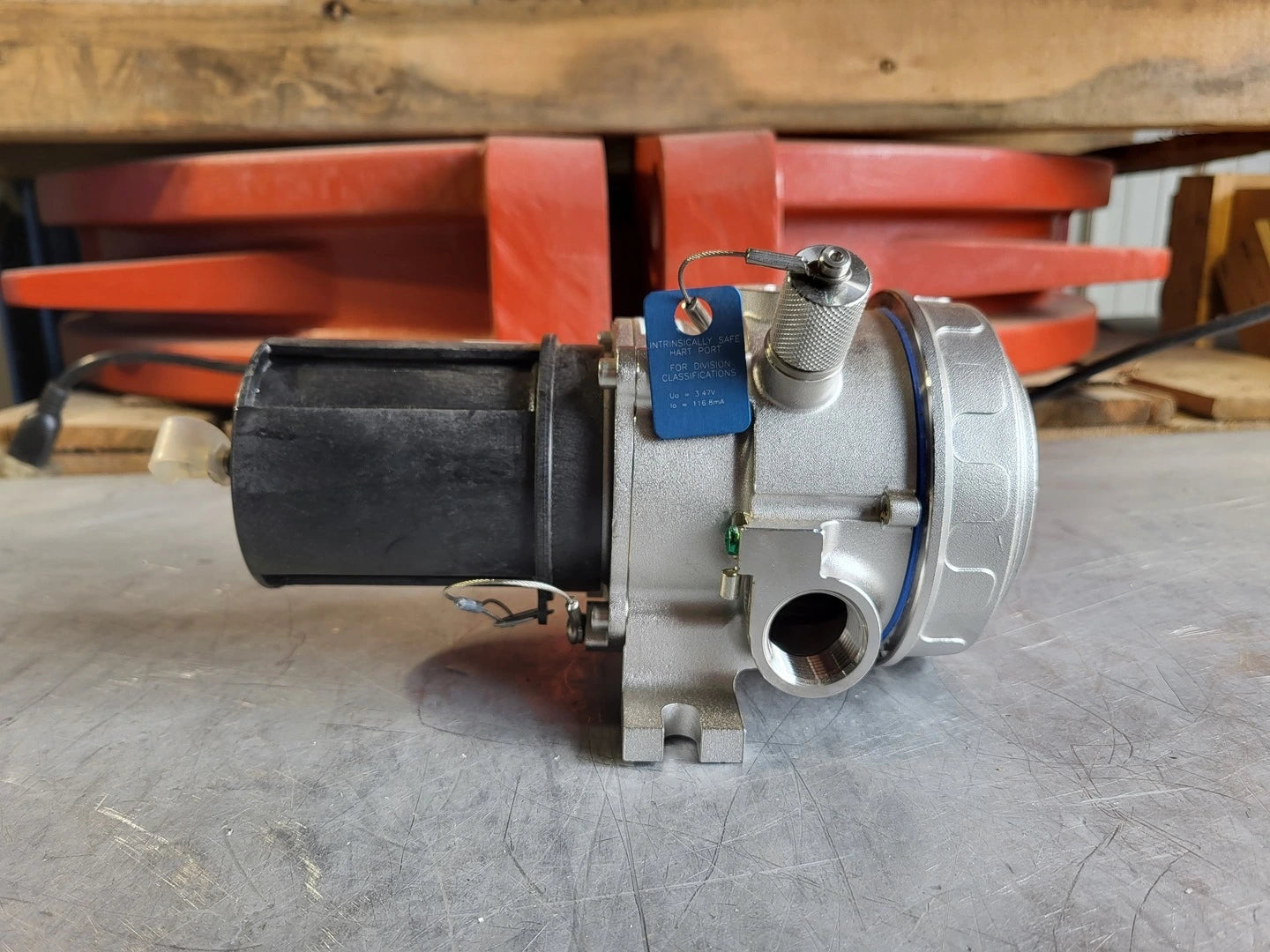

Product type: PIRECLA1A1W1 Infrared Hydrocarbon Gas Detector PointWatch Eclipse Model PIRECL Input Voltage: 24 Vdc nominal. Operating range is 18 to 32 Vdc Ripple cannot exceed 0.5 volt P-P Power Consumption: 4.0 watts nominal 24 Vdc, 7.5 watts maximum 24 Vdc, 10 watts maximum 32 Vdc Warmup Time: Two minutes from cold power-up to normal mode; 1 hour minimum recommended. Current Output Relays (Opt.): Linear 4-20 mA (current source/sink, isolated/non-isolated rated at 600 ohms maximum loop resistance 24 Vdc operating voltage Temperature Range: Operating: 55 C to + 75 C (67 F to +167 F), Storage: 55 C to + 85 C (67 F to + 185 F ) Humidity: 0 to 99% R.H. (Det-Tronics verified), 5 to 95% R.H. (FM/CSA/DEMKO verifieed) Detection Range: 0 to 100% LFL standard (other ranges are configurable) |
