Description
| Specifications | |
|---|---|

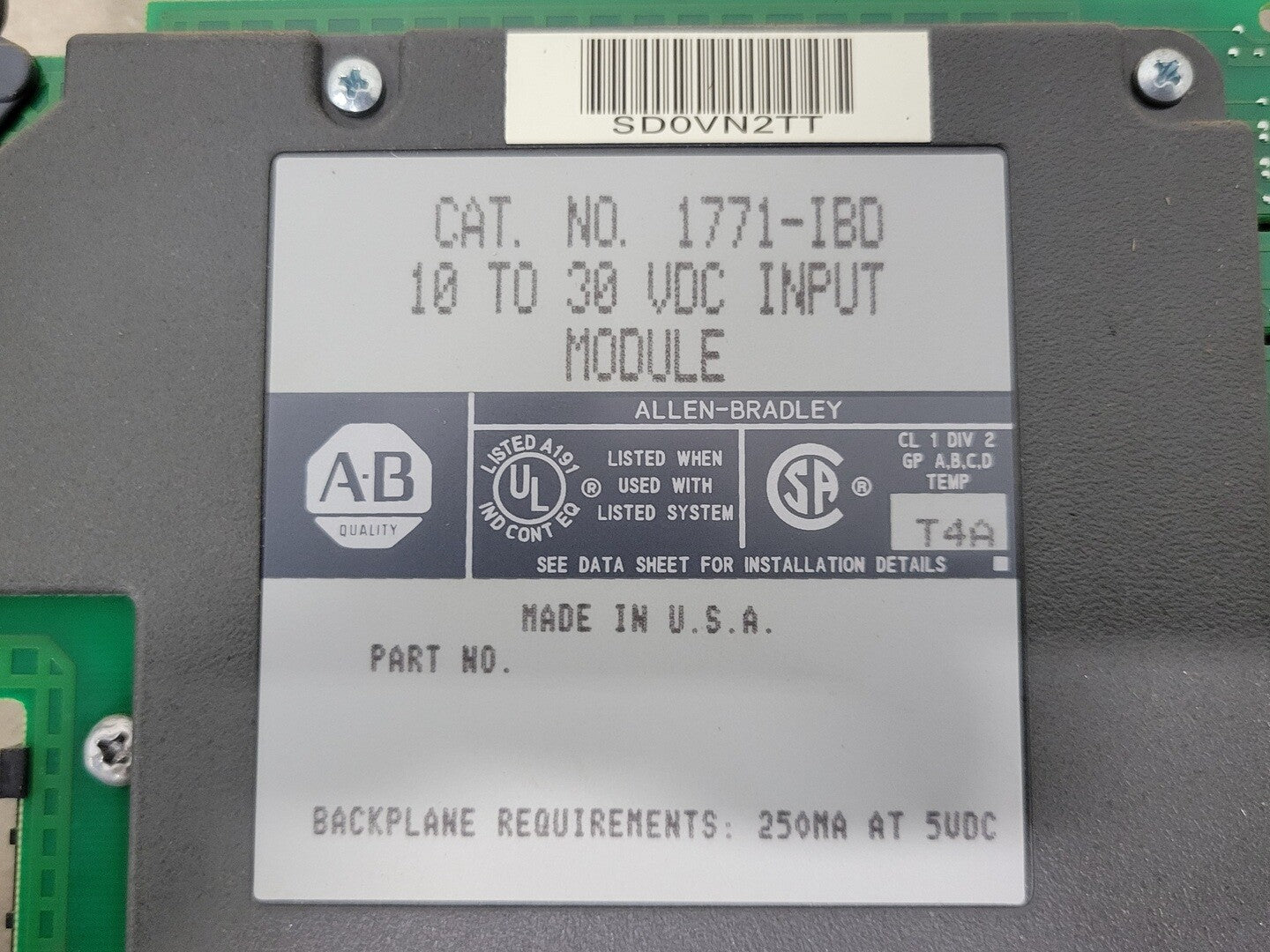

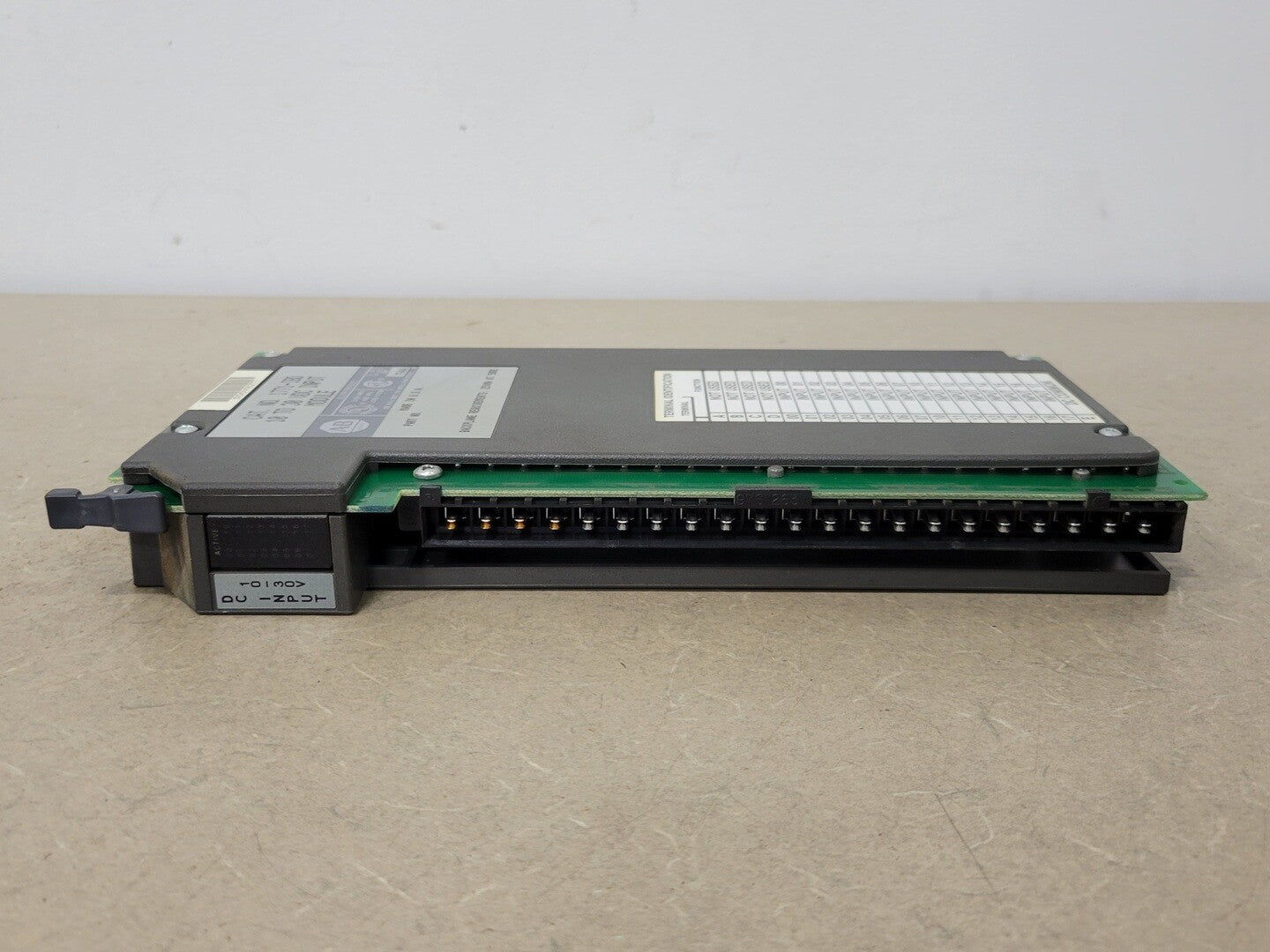

| Model | 1771-IBD |
| Made In | UNITED STATES |
| Condition | Surplus New |
| Other Specifications |
|---|
|

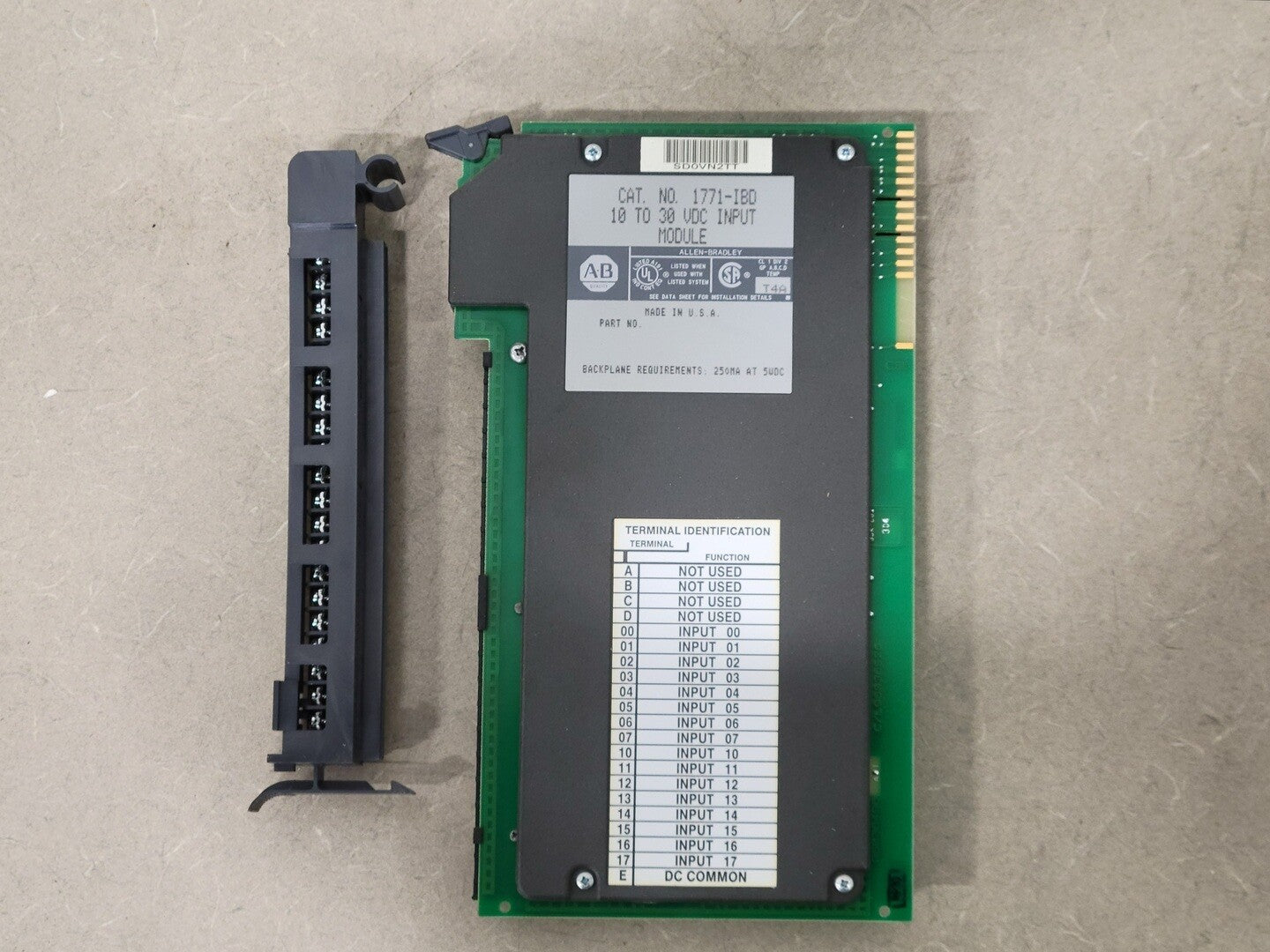

Series: B Wiring Arm Screw Torque: 7-9 inch-pounds Compatible Chassis: All 1771 I/O Chassis except 1771-A1, -A2, and -A4 Backplane Current at 24 VDC: 130 mA @ 5 VDC +5% Thermal Dissipation: 24.7 BTU/hr (max.)., 3.4 BTU/hr (min.) Power Dissipation: 7.3 Watts (max.), 1.0 Watts (min.) Input Delay Time, ON to OFF: 1 ms or 6 ms Input Delay Time, OFF to ON: 1 ms Number of Inputs: 16 Module Type: Digital DC Input Module Circuit Logic: Sinking Mounting: Rack Mount Voltage Category: 10 to 60 DC, Sink DC Operating Voltage: 10 to 30 Volts Backplane Current: 130 Milliamperes Max DC Off-State Current: 2.0 Milliamperes Typical DC Signal Delay (On): 1.3 (+/- 0.1) Milliseconds Typical DC Signal Delay (Off): 1.3 (+/- 0.1) Milliseconds Wiring Arm: 1771-WH Typical AC Signal Delay (Off): 20 (+/- 15) Milliseconds |
