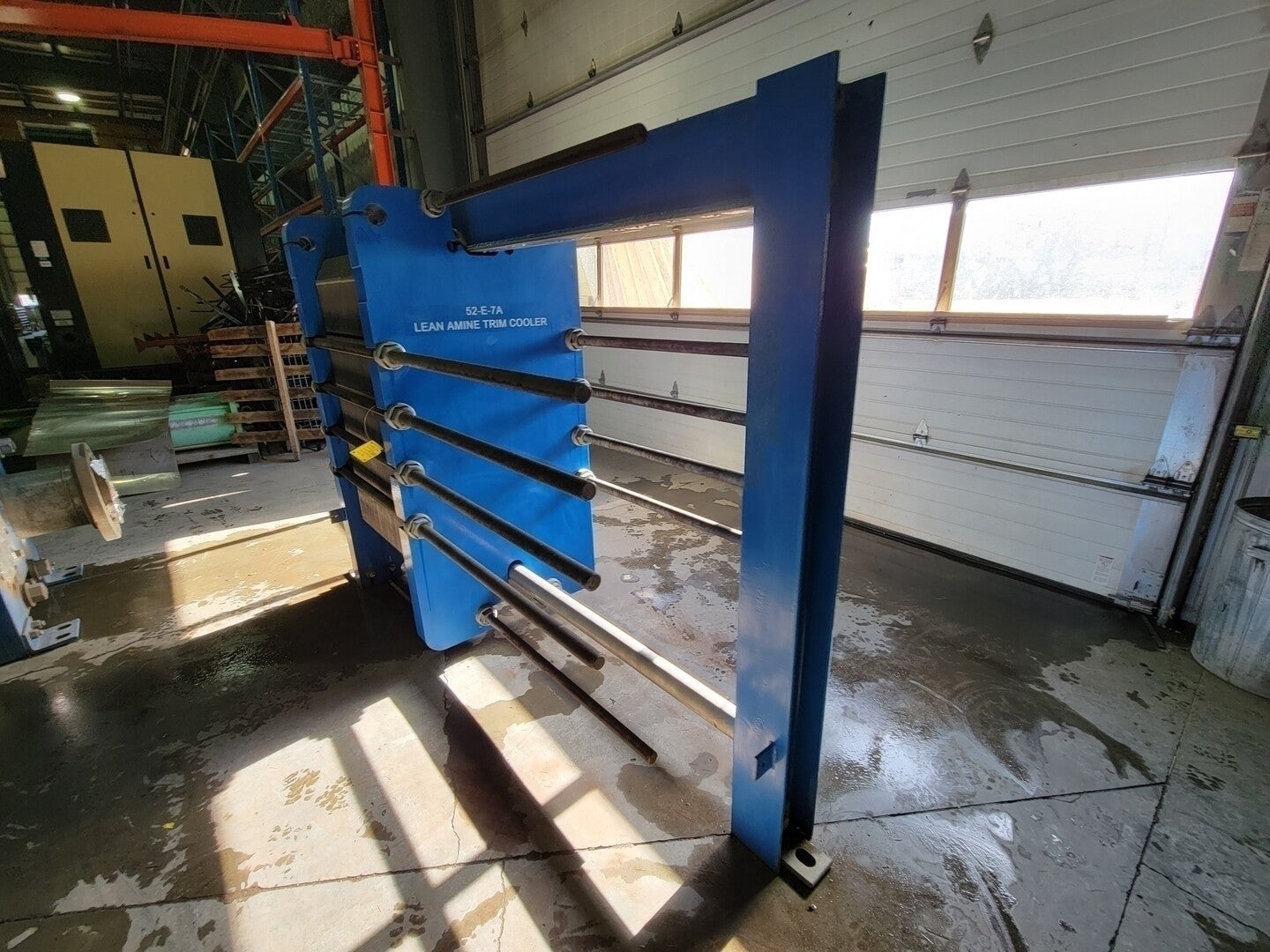

Description
| Specifications | |
|---|---|

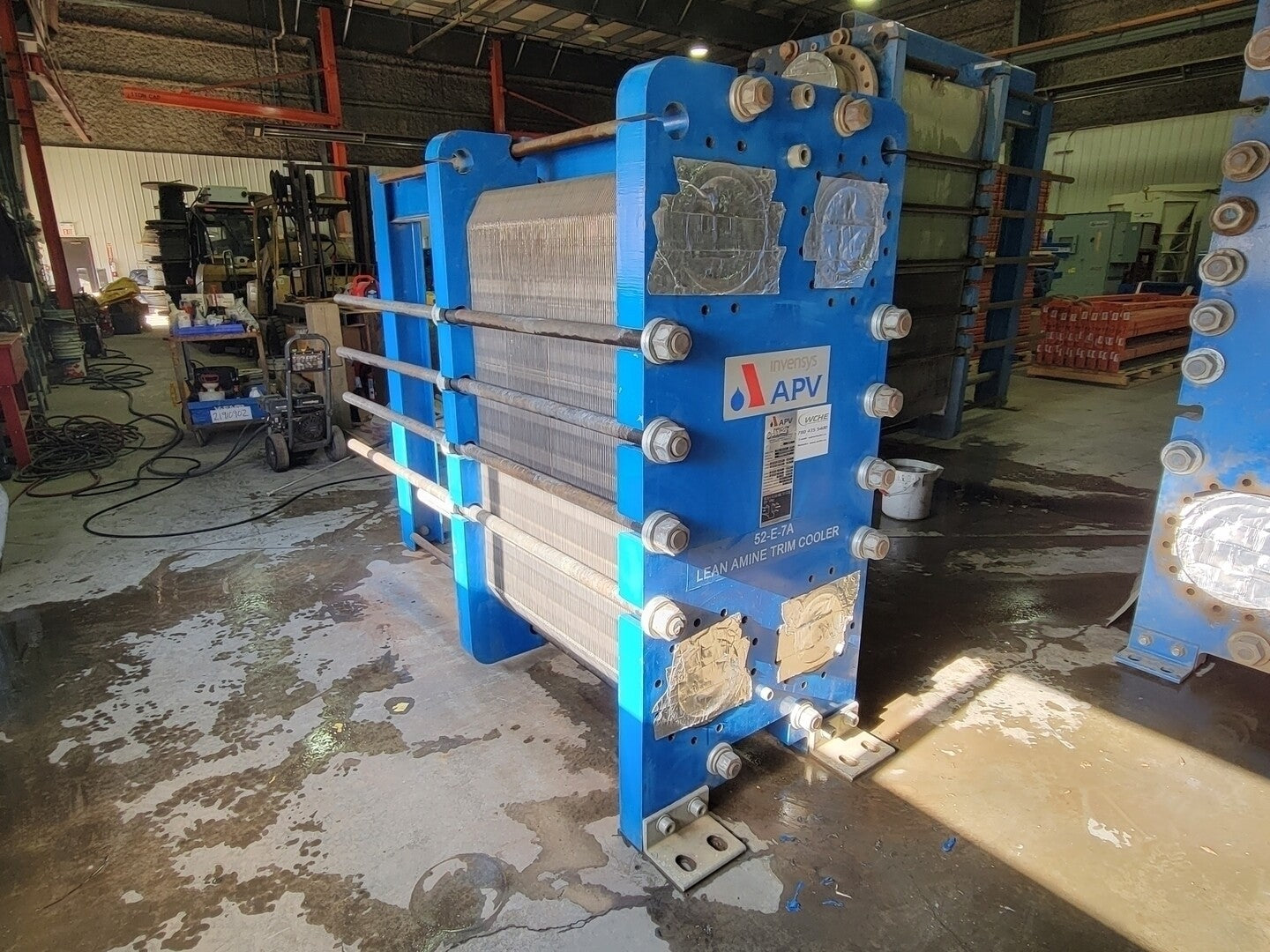

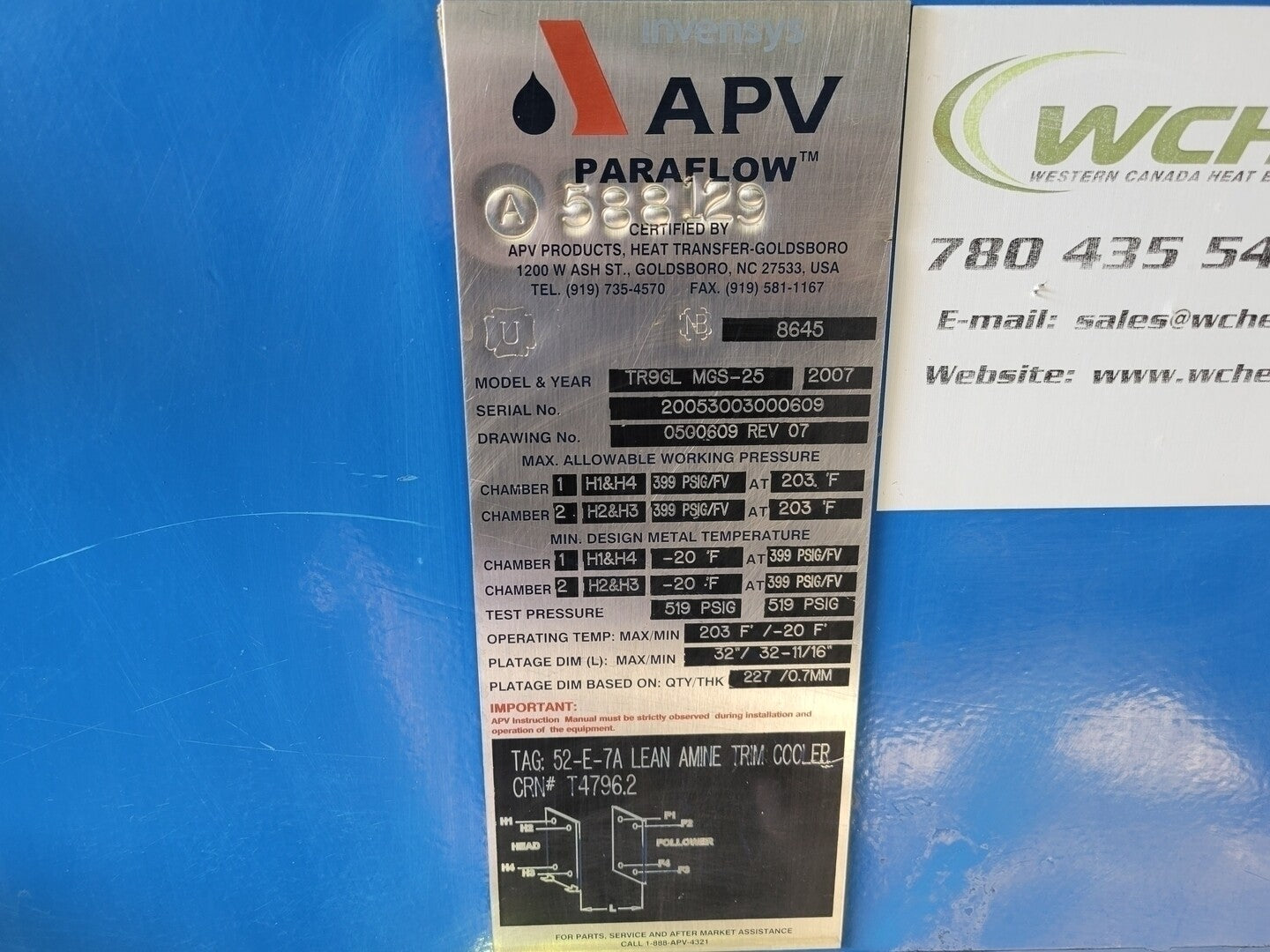

| Model | TR9GL MGS-25 |
| Year: | 2007 |
| S/N: | 20053003000609 |
| Made In | UNITED STATES |
| Condition | Used |

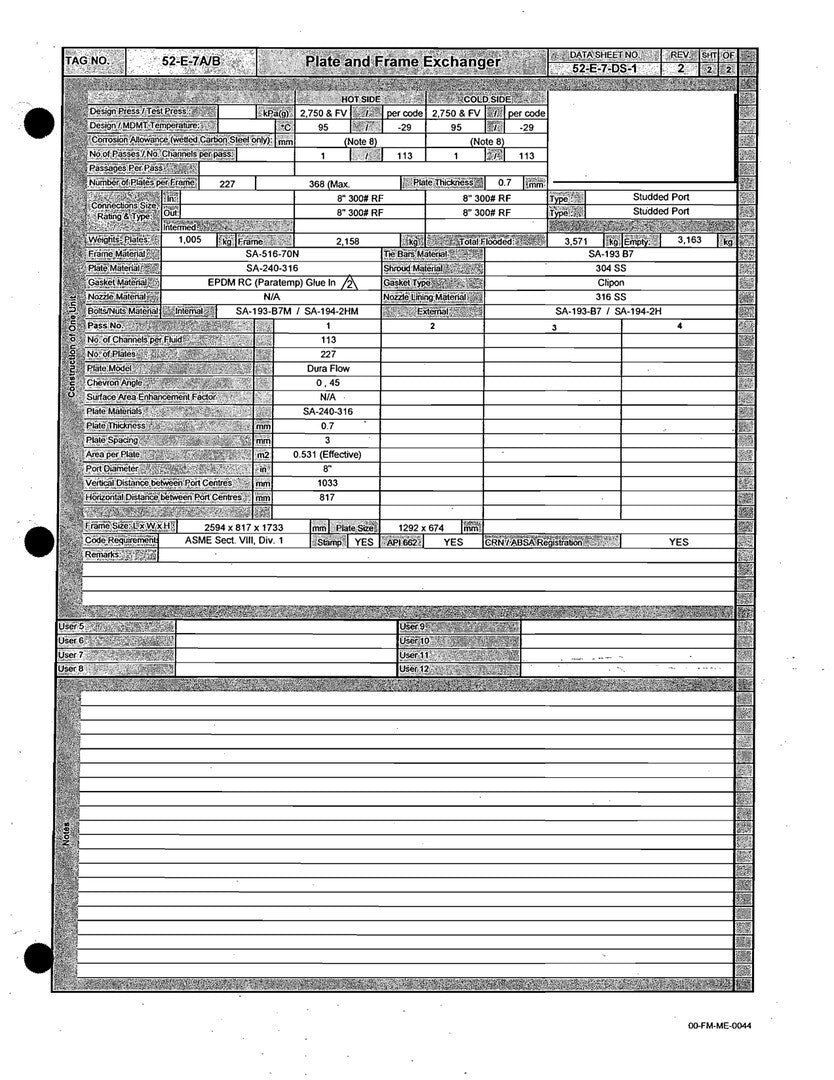

| Other Specifications |
|---|
|
Max. Allowable Working Pressure: 399 PSIG/FV @ 203 oF
Min. Design Metal Temperature: -20 oF @ 399 PSIG/FV
Operating Temp.: Max. 203 oF / Min. -20 oF
Heat Transfer Area: 1298 sq. ft.

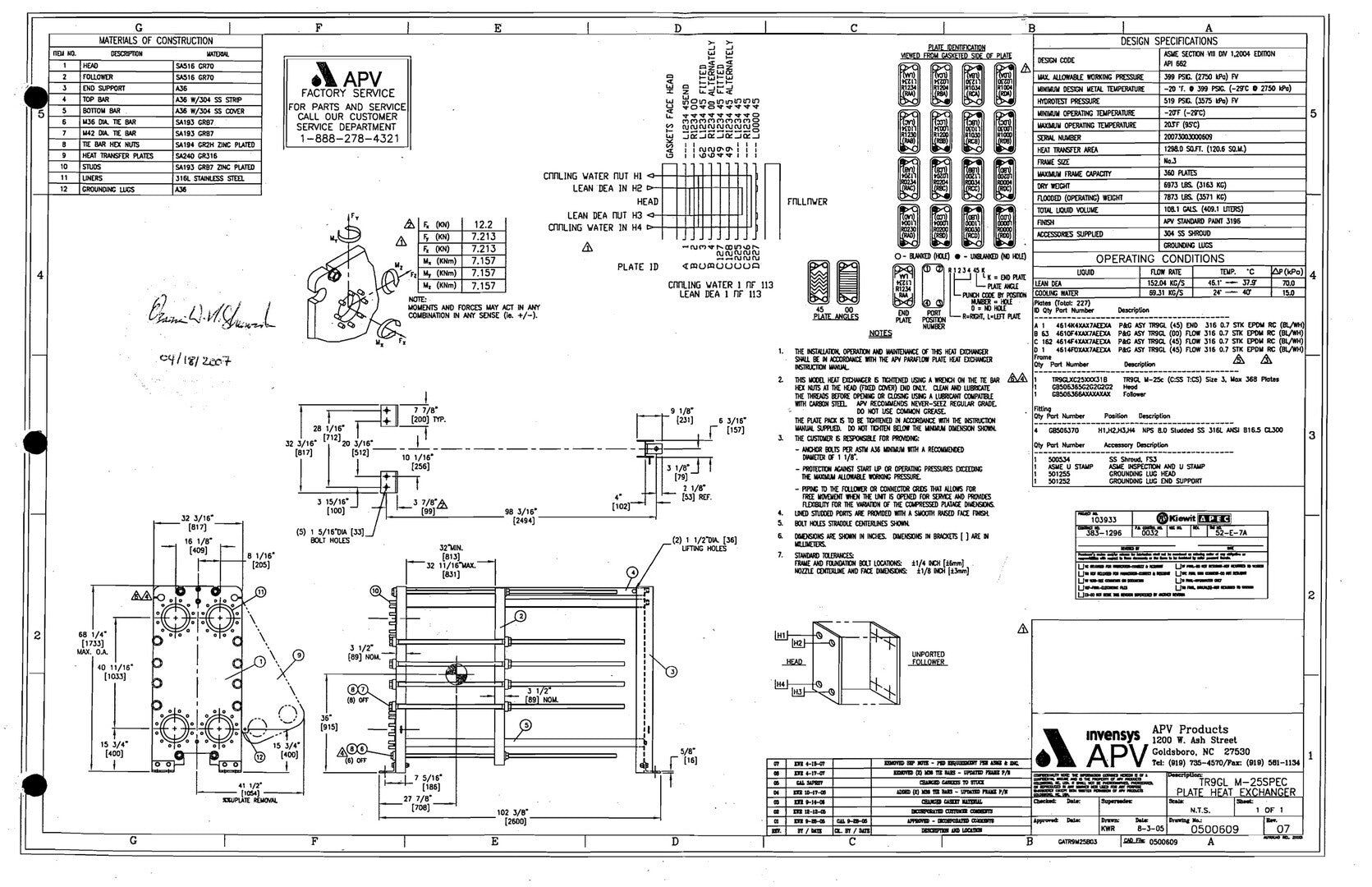

Frame Size: No. 3
Max. Frame Capacity: 360 Plates
Dry Weight: 6973 lbs.
Flooded Weight: 7873 lbs.
Total Liquid Volume: 108.1 US Gal. (409.1 L)

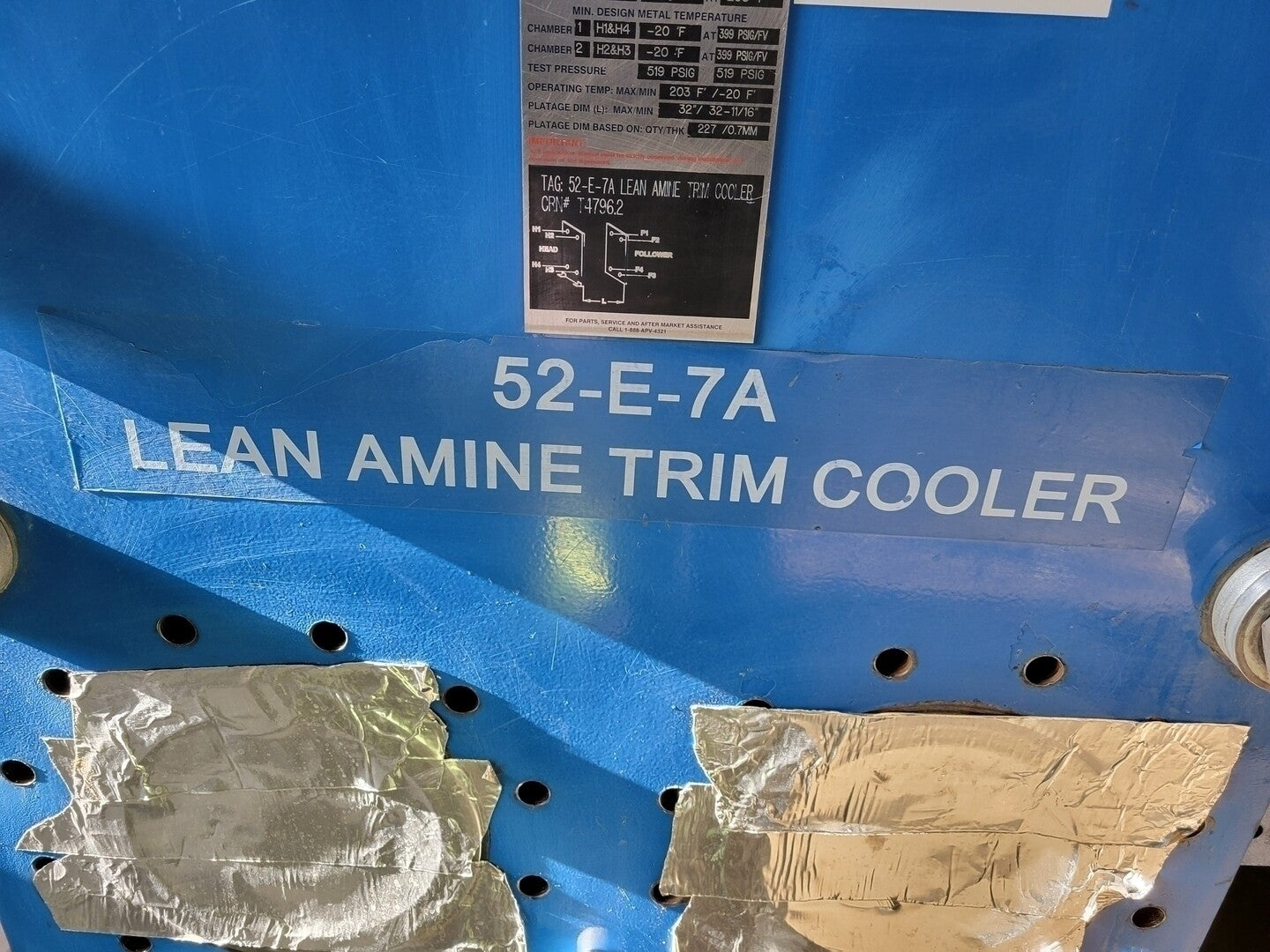

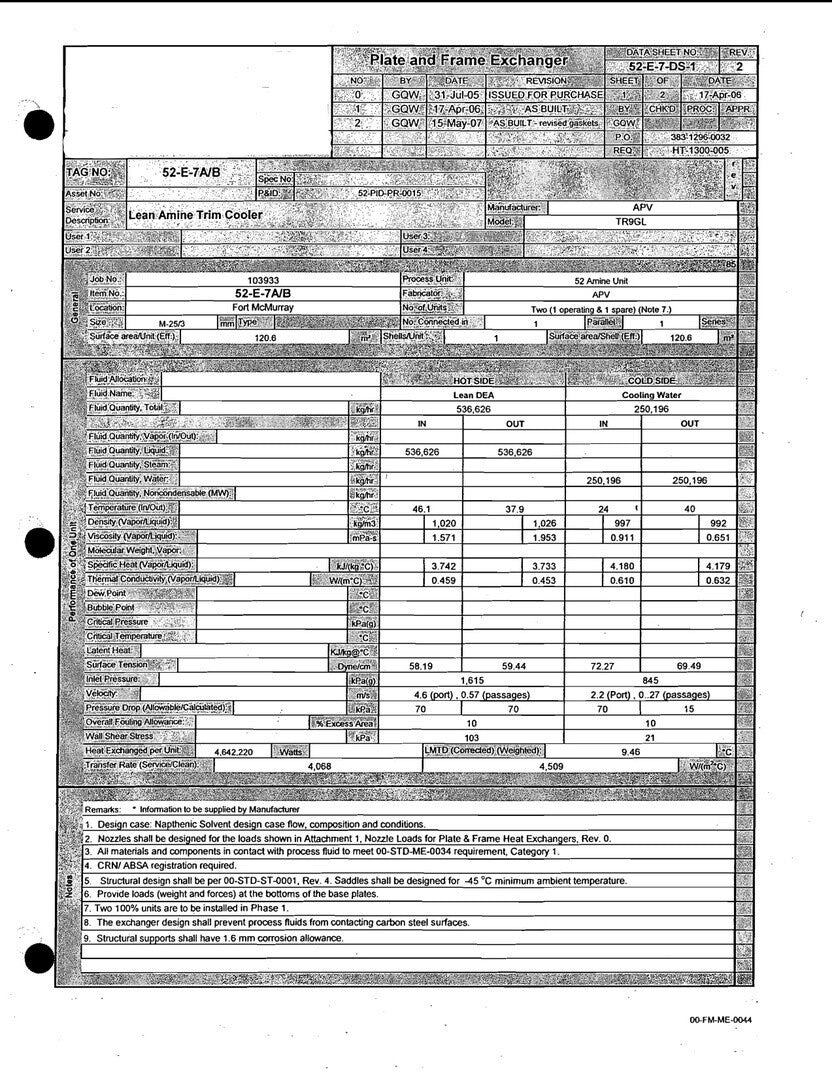

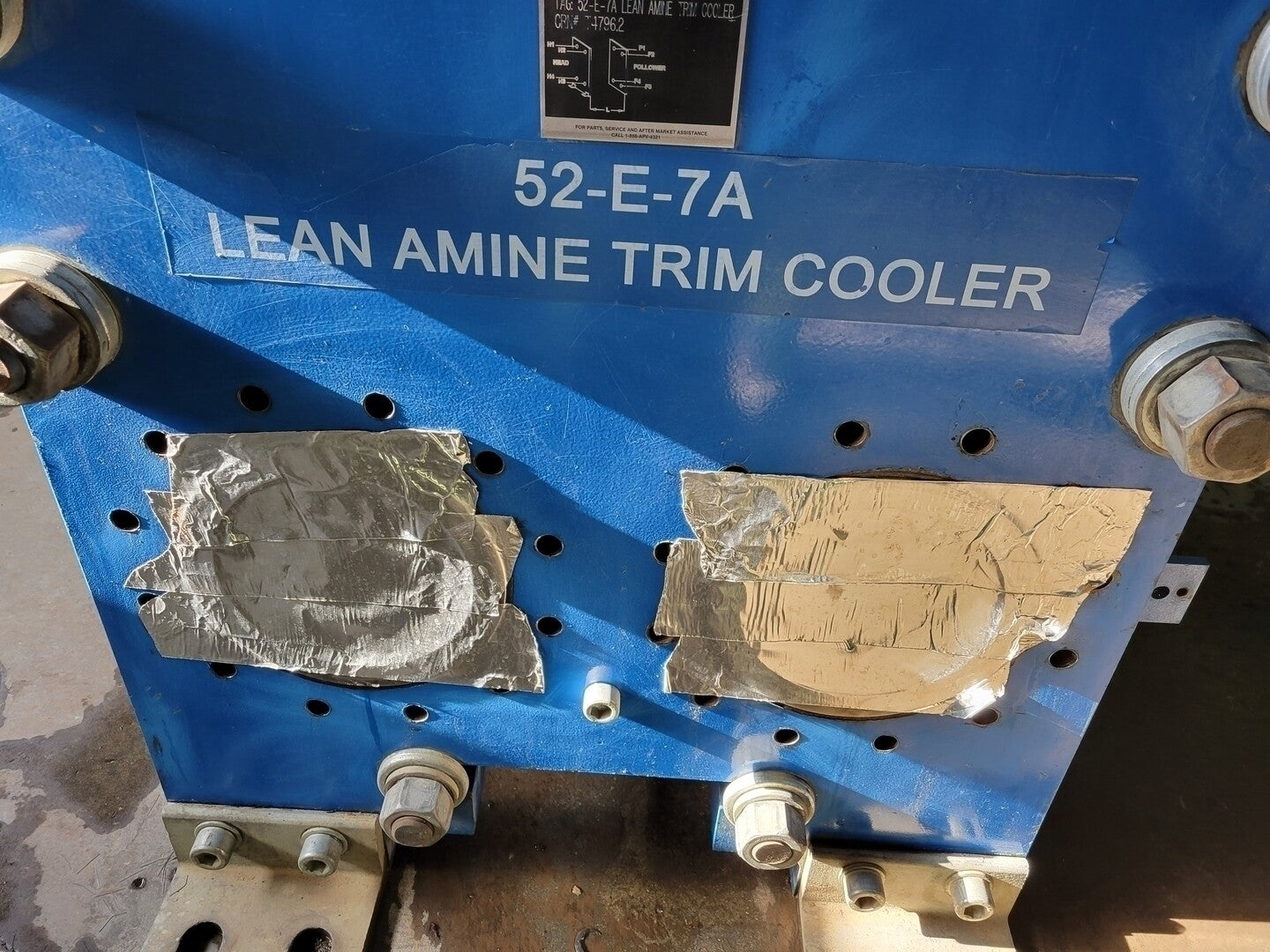

Operation Liquids: Lean diethanolamine, cooling water
Materials
Frame: SA-516-70N

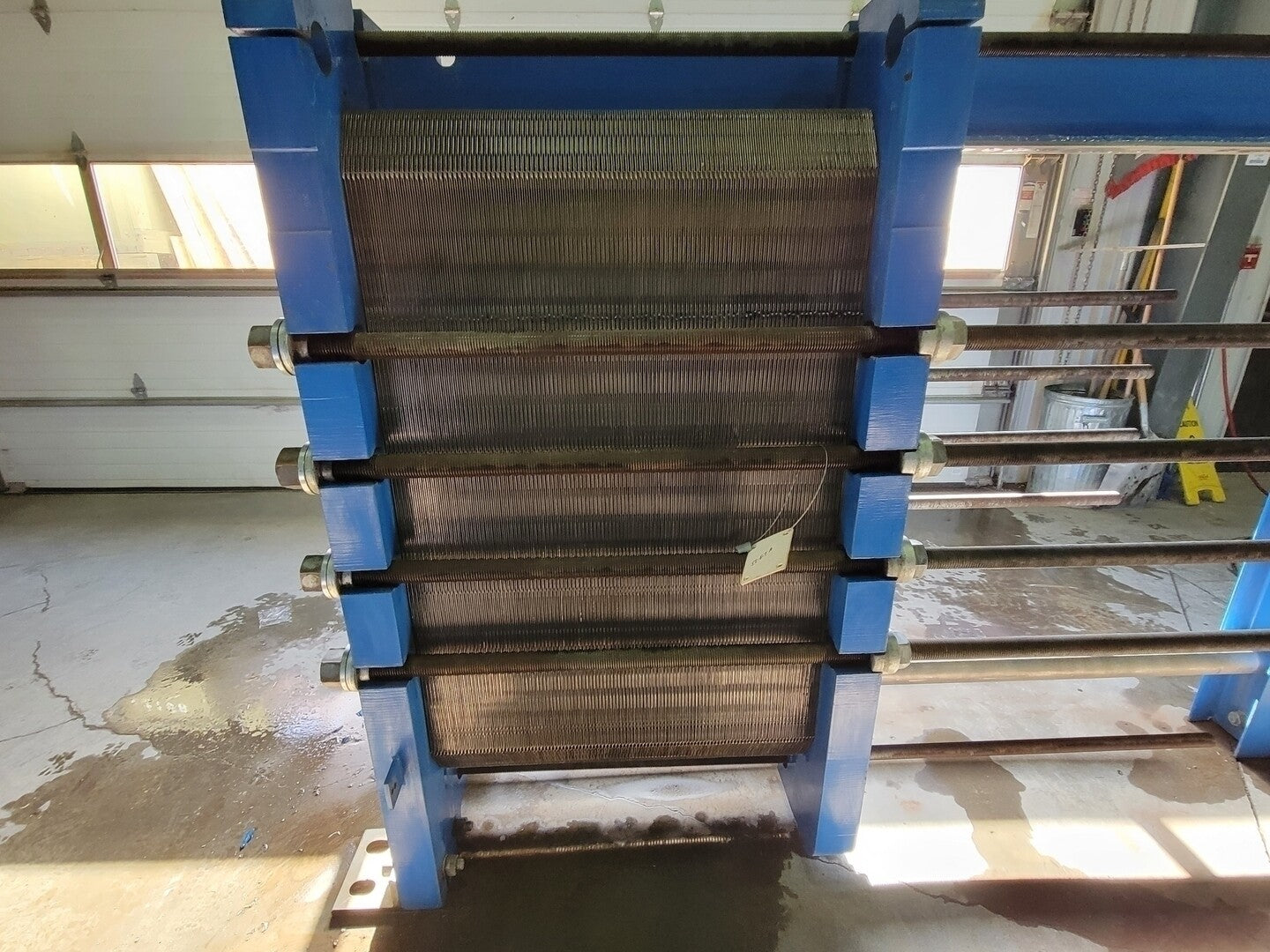

Plates: SA-240-316
Gasket: EPDM RC (Paratemp)
Tie Bars: SA-193 B7
Shroud: 304 SS
Nozzle Lining: 316 SS
Bolts/Nuts (Internal): SA-193-B7M / SA-194-2HM
Bolts/Nuts (External): SA-193-B7 / SA-194-2H
|
