TRIO ENGINEERED PRODUCTS 30" x 42" TAC CT Series Jaw Crusher CT3042
TRIO ENGINEERED PRODUCTS

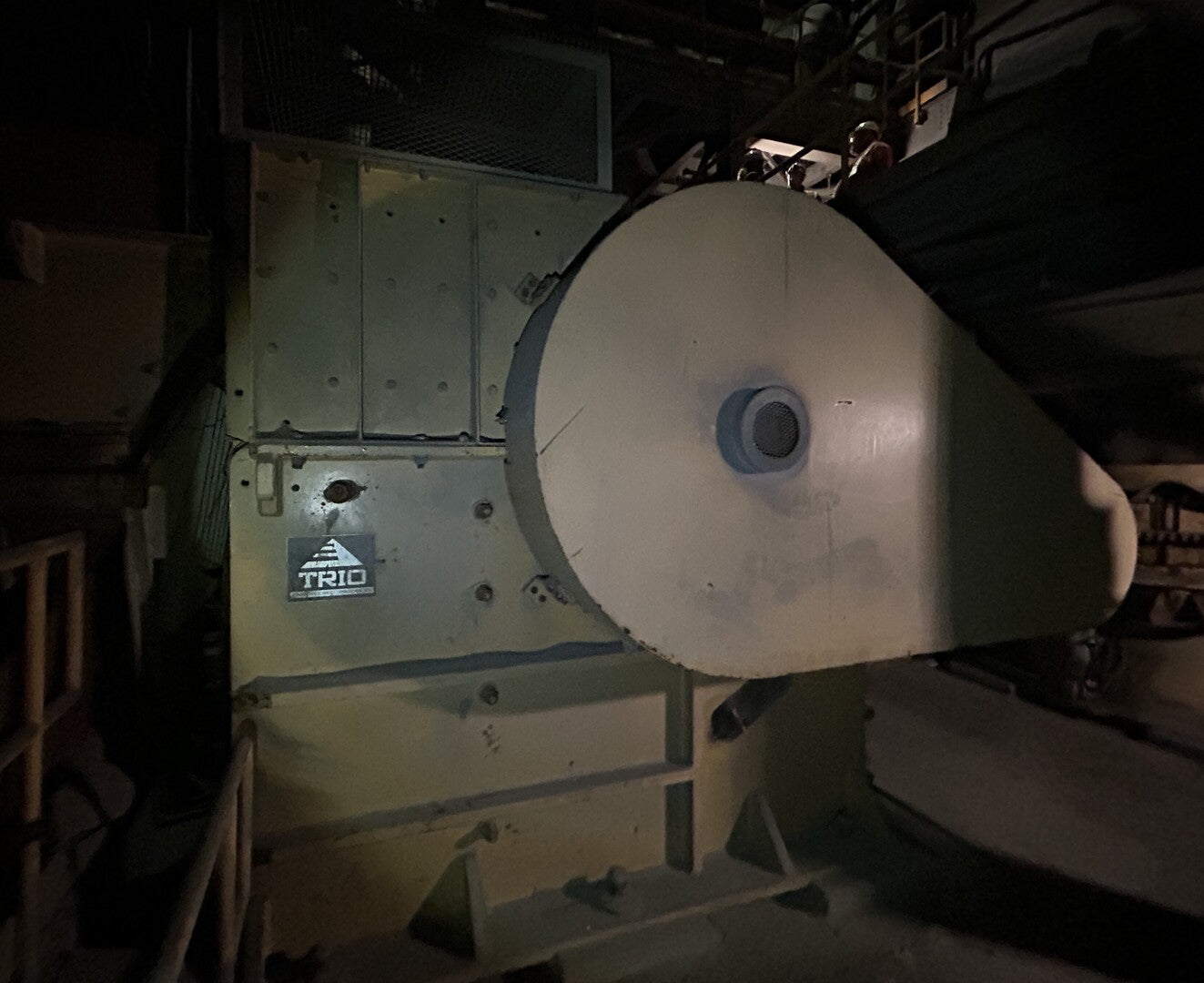

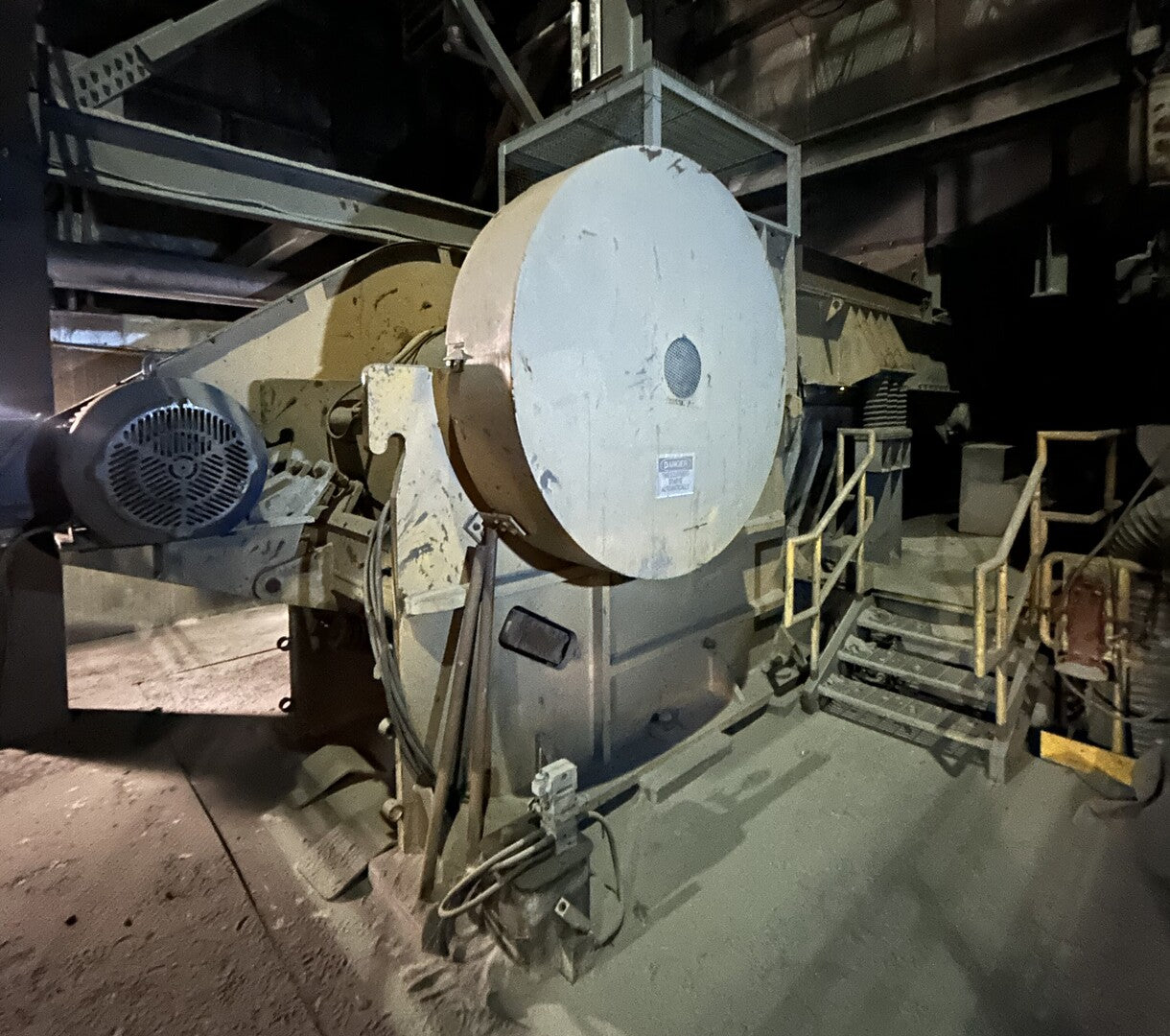

30" x 42" TAC CT Series Jaw Crusher CT3042

SKU: 123706
Precio:
$73,568

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

The CT Series Jaw Crushers are a combination of quality, reliability, and performance, providing an extra long service life while operating in the most demanding applications and extreme conditions. TRIO Jaw Crushers provide outstanding performance in primary crushing applications and can be widely applied in the mining, concrete and asphalt recycling, and aggregate industry settings. TRIO Jaws can be installed as single machines, or combined with a full product line of TRIO crushers and screens to provide total solutions for portable and modular plants.
Specifications
Model CT3042
Year: 2009

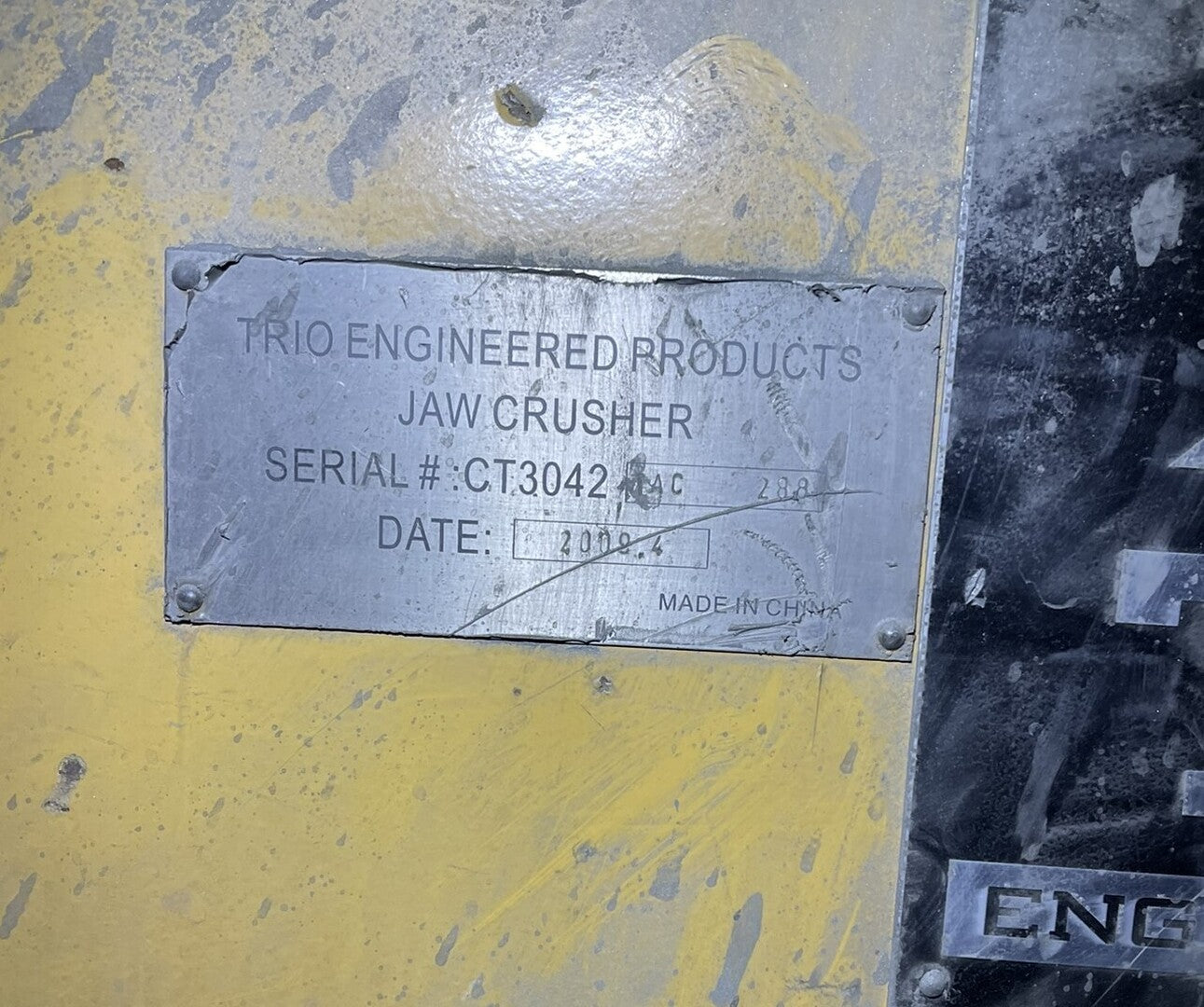

S/N: AC288
Made In CHINA
Condition Used
Other Specifications

Product PDF

The CT series uses high strength, low carbon alloy steel cast front and rear frames, with doweled and bolted side frames to ensure the rigidity of the machine.

The bolted main frame significantly increases the machine's loading capability. The non-welded design eliminates residual strains providing longer service life.

The modular design provides extra value by reducing transportation and installation cost for underground mining applications.

Feed opening size: 30" x 42"

Max. Capacity: 150-550 MTPH

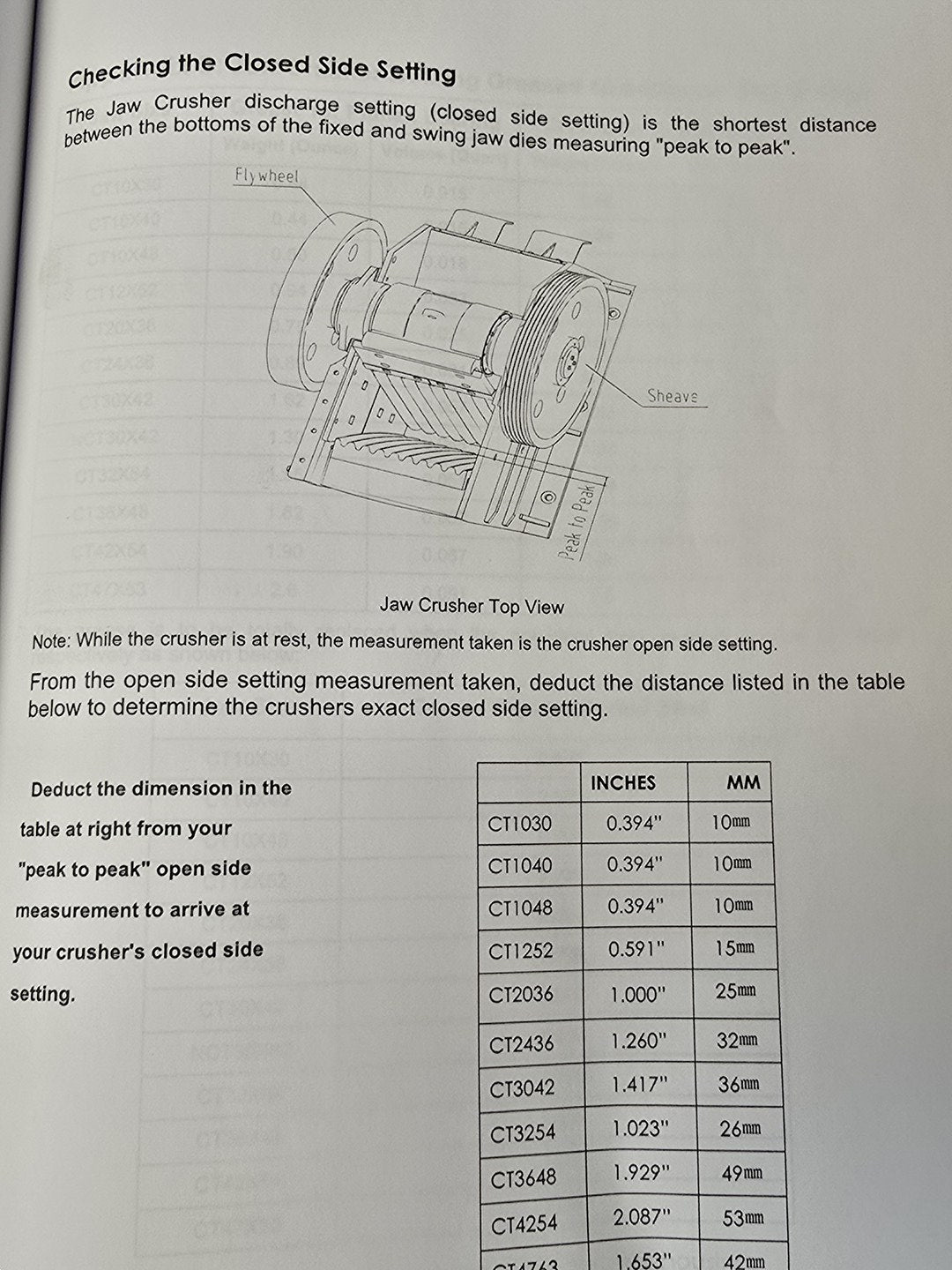

Closed side setting: 3" - 8"

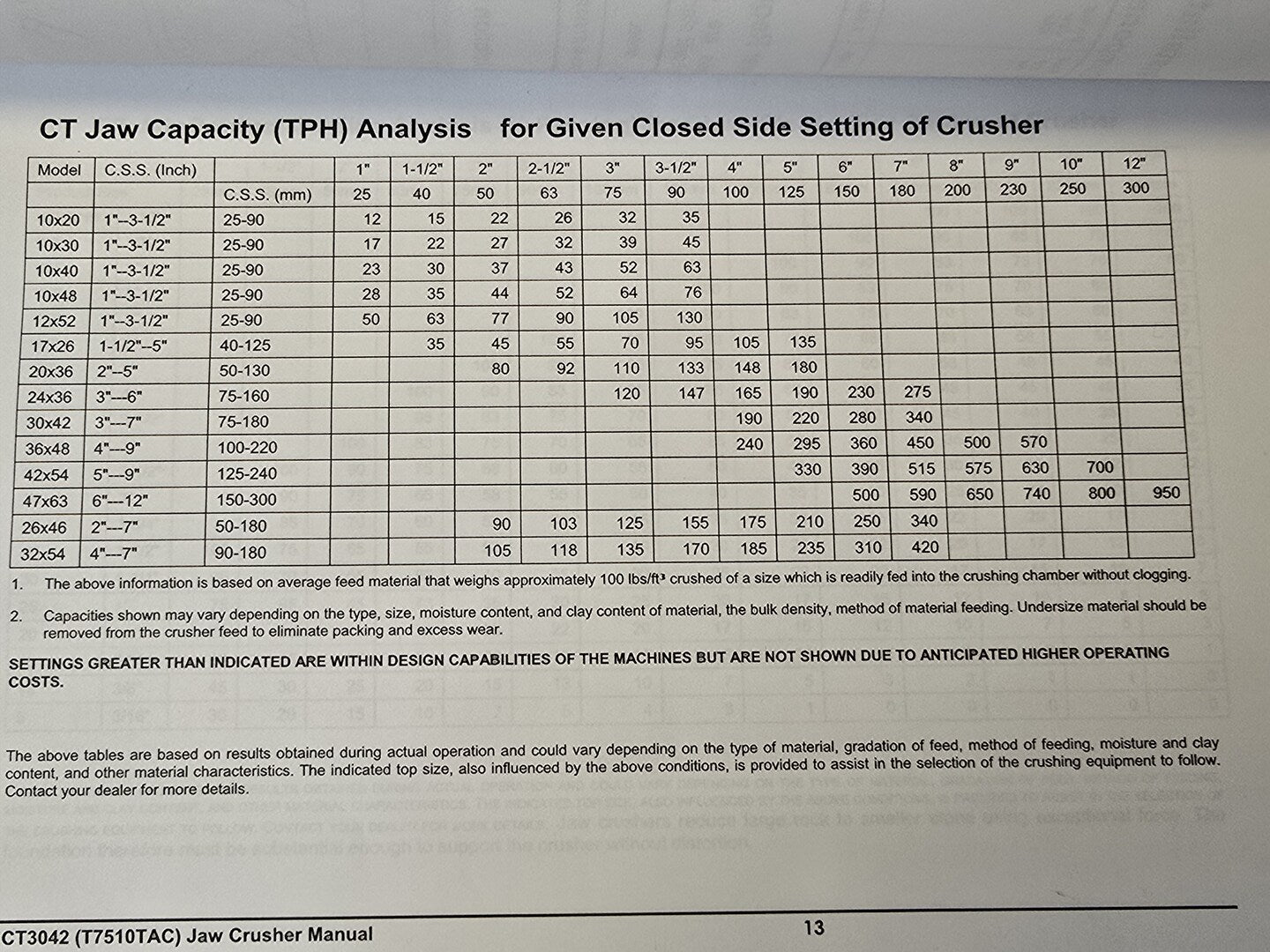

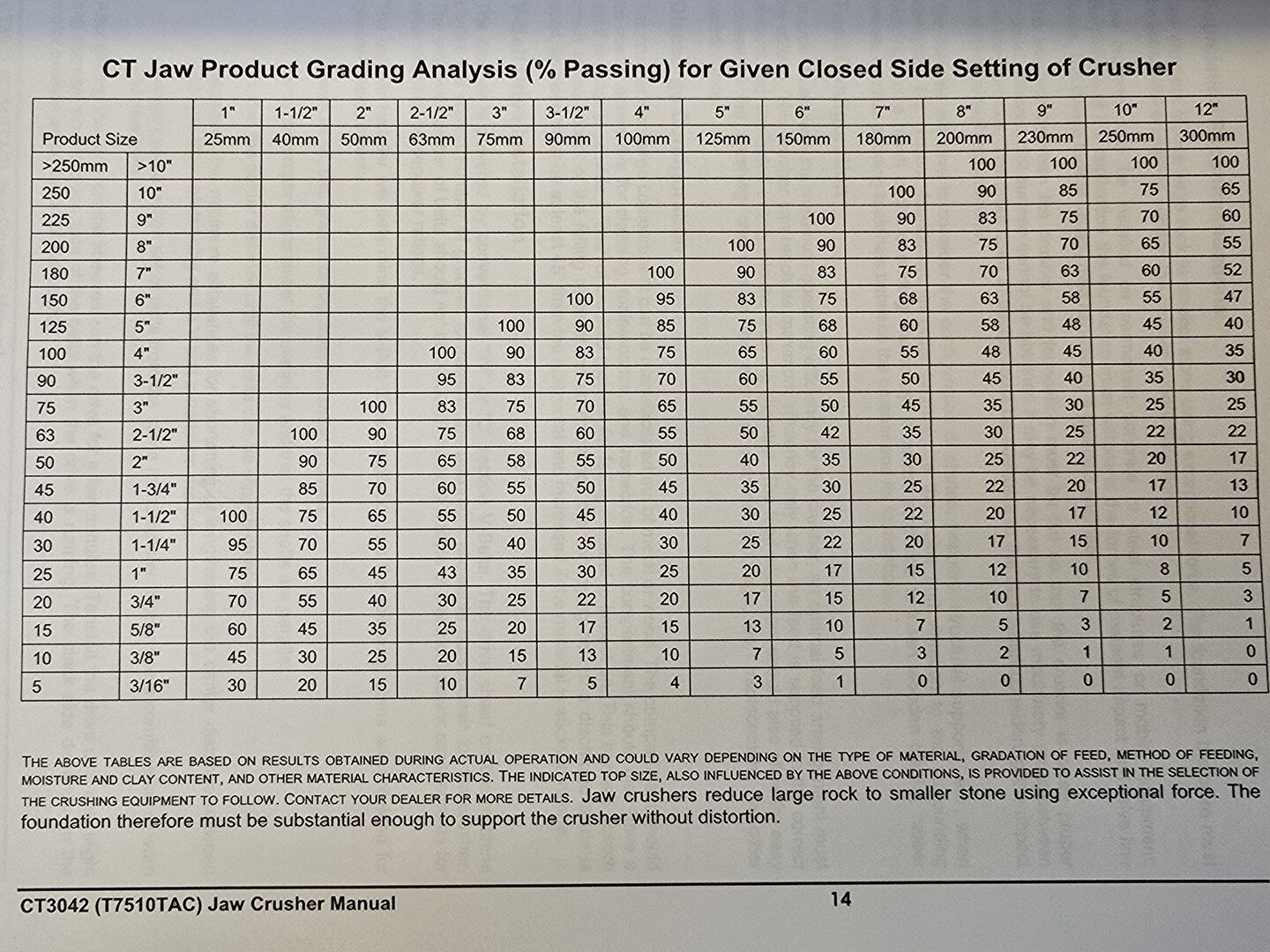

Open circuit max. capabilities:

  • 3": 150-200 tph
  • 3 1/2": 180-230 tph
  • 4": 200-260 tph
  • 5": 230-460 tph
  • 6": 300-400 tph
  • 7": 350-460 tph

Horsepower: 250 hp

Max. Speed: 250 rpm

Power: 110 kW

Weight: 54,905 lbs

Features of CT series:

  • Operates in the most demanding environments
  • Ideal for open pit and underground primary applications
  • Rugged, Robust, and Reliable
  • Capable of high reduction ratios in high production applications
  • Easy transport and installation
  • Hydraulic CSS adjustment
  • Easy to operate and maintain
