E-House Package w/ 770kVA Step-Up Transformer 540V to 4160Y/2402V & 950HP VFD
Lenmark Industries

E-House Package w/ 770kVA Step-Up Transformer 540V to 4160Y/2402V & 950HP VFD

SKU: 122890
Precio:
$205,340

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

eHouse Package w/ 770kVA Step-Up Transformer 540V Pri., 4160Y/2402V Sec., & ABB 710kW (950HP) Variable Frequency Drive (VFD)
Condition Used
Other Specifications

General Specifications:

  • Outside Dimensions (LxWxH): 264in. x 132in. x 132in.
  • Inside Dimensions (LxWxH): Pending

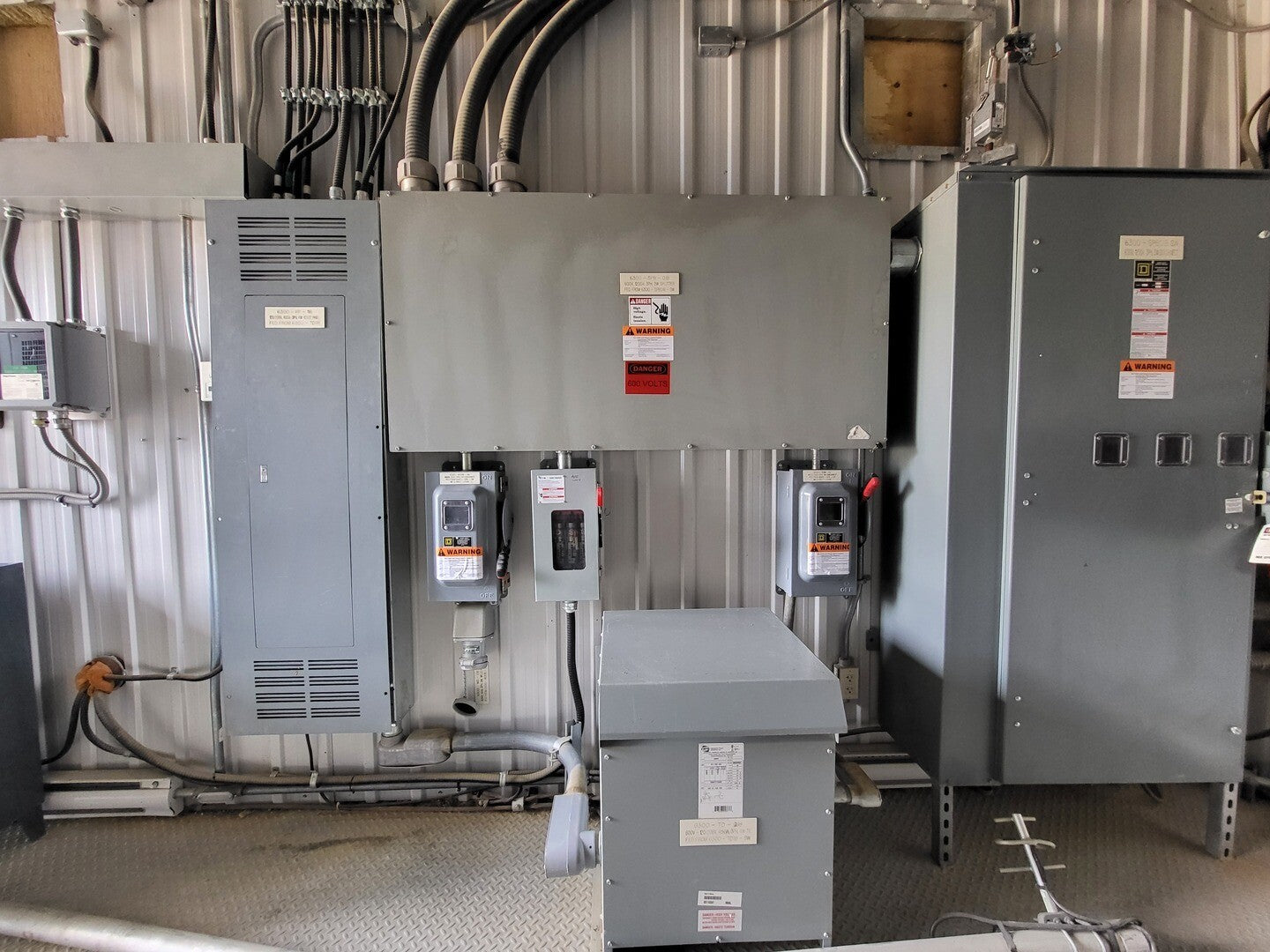

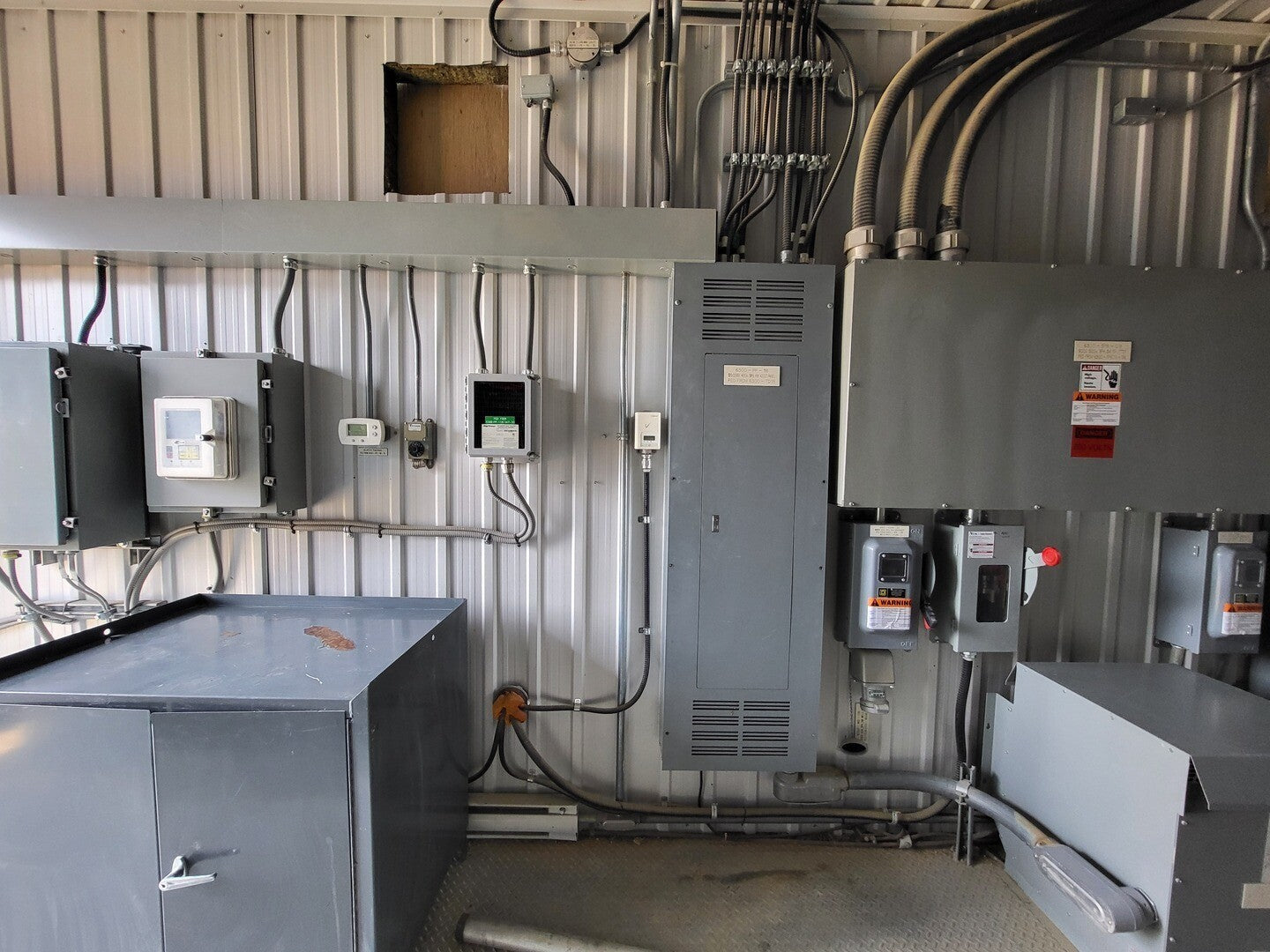

  • Includes:
  • 770kVA Step-Up Transformer 540V Pri., 4160Y/2402V Sec.
  • ABB 710kW (950HP) Variable Frequency Drive (VFD)
  • Main Disconnect
  • Low-Voltage Distribution
  • Fire Suppression System
  • HVAC System
  • Lighting

DELTA EVI Step-Up Transformer Specifications:

  • Model No.: E-CM3C0770 S005830-001
  • CAT No.: CM3C0770 S005830
  • Serial No.: MPK-0005-171093
  • kVA: 770kVA
  • Primary: 540V, 10kV BIL
  • Secondary: 4160Y/2402V, 30kV BIL
  • Phase: 3-Ph

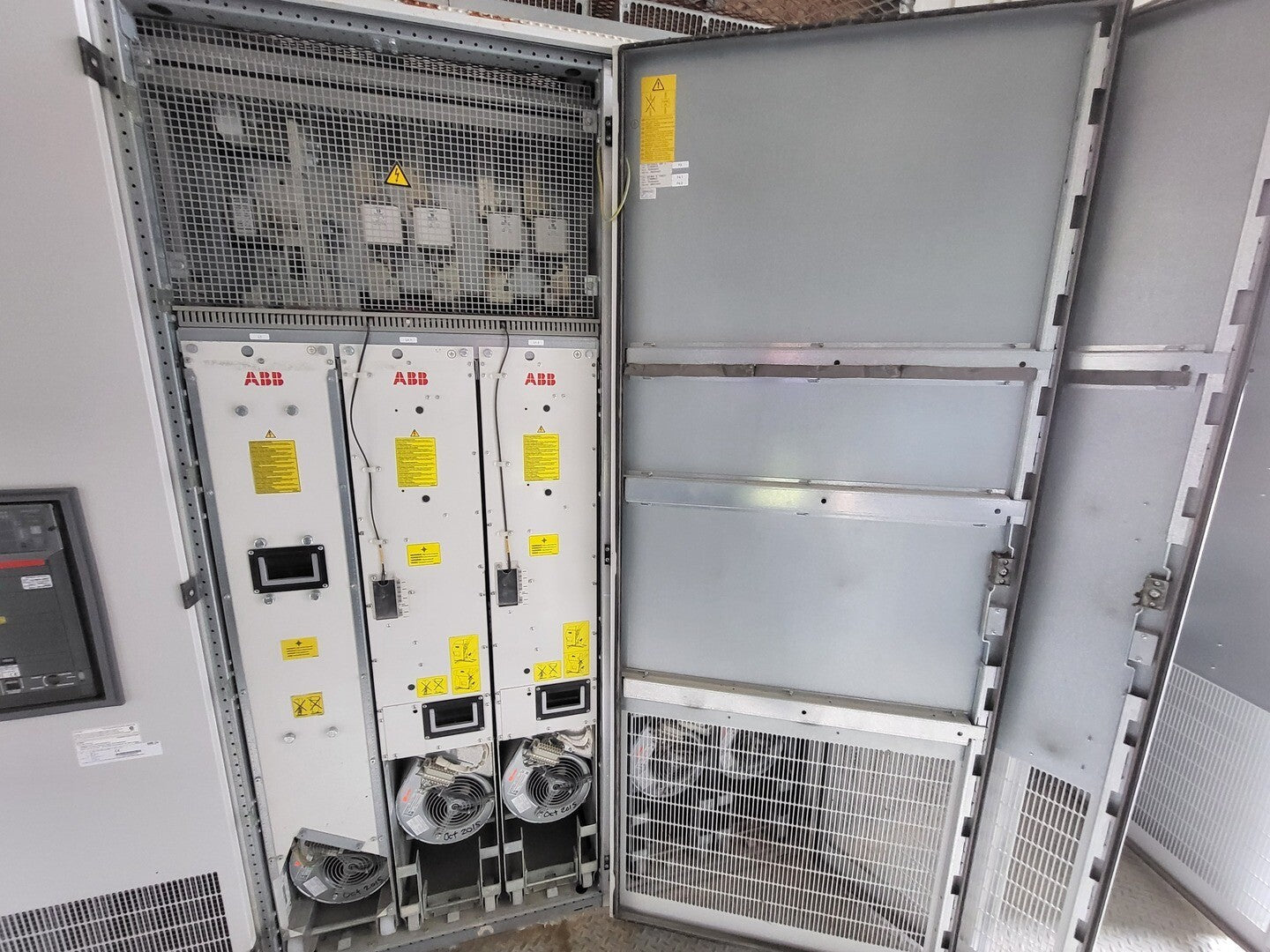

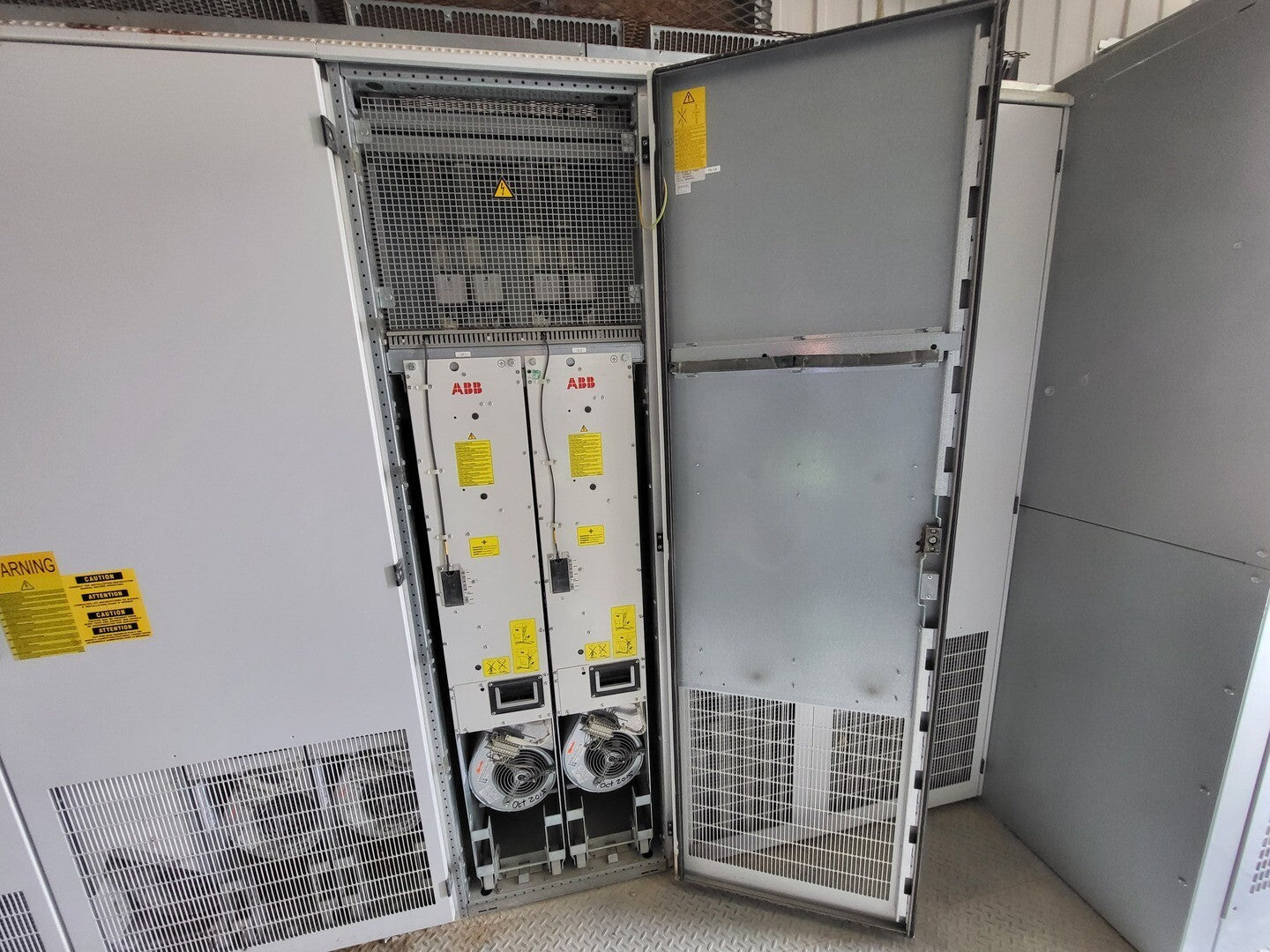

ABB Variable Frequency Drive (VFD)

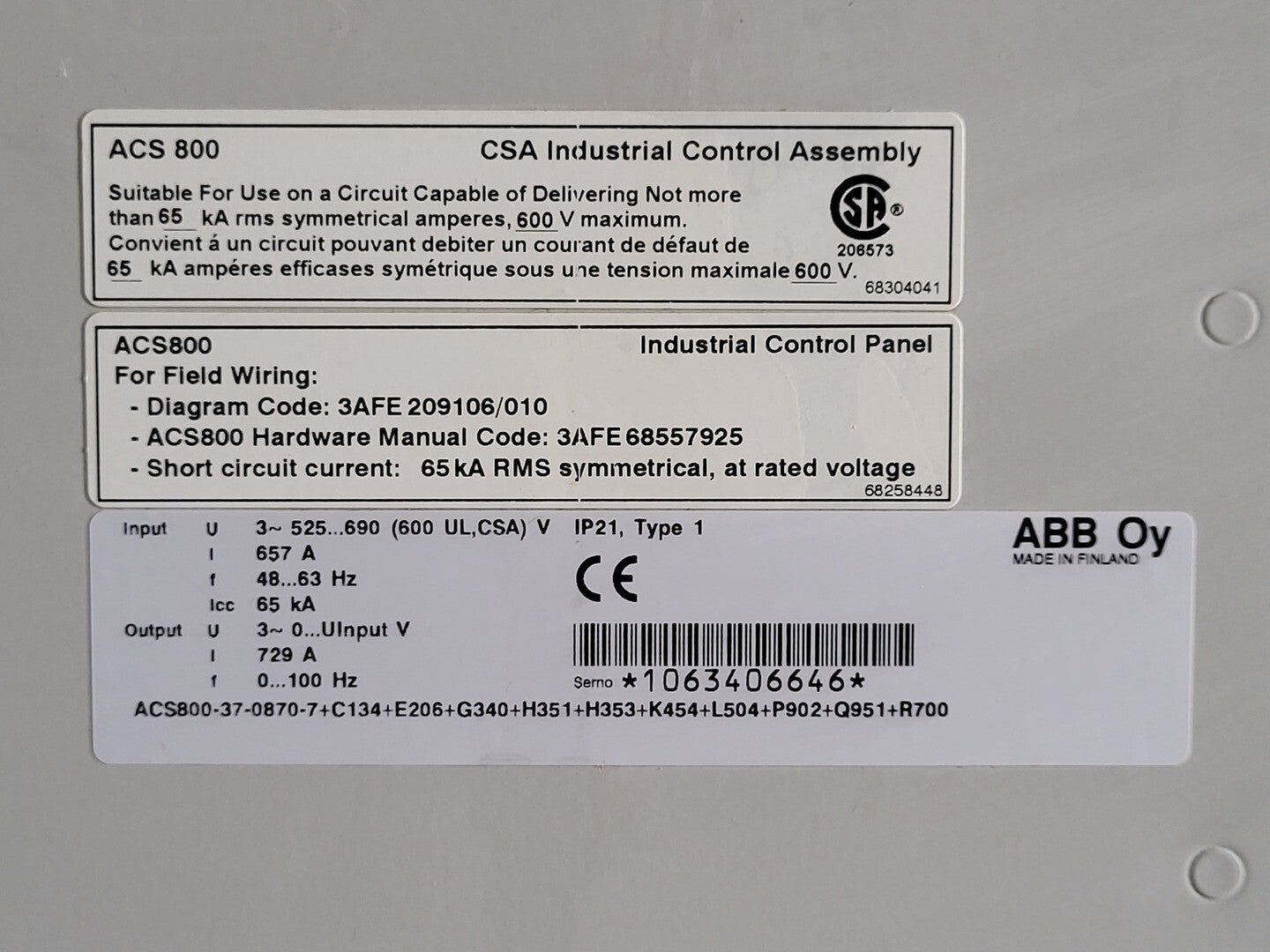

  • Base Model No.: ACS800-37-0870-7
  • Options: C134+E206+G340+H351+H353+K454+L504+P902+Q951+R700
  • Nominal Ratings:
  • Amps (1N): 657A
  • Amps (Cont. Max.): 729A
  • Amps (Max.): 1091A
  • Input:
  • U: 3-Ph, 525...690 (600 UL,CSA)V, IP21, Type 1
  • I: 657A
  • f: 48...63hz
  • Icc: 65kA
  • Output:
  • U: 3-Ph, 0...UInput V
  • I: 729A
  • f: 0...100hz
  • Normal Duty: 710kW (950HP), 729A
  • Light Duty: 710kW (950HP), 700A
  • Heavy Duty: 500kW (670HP), 545A
  • Heat Dissipation: 32kW
  • Air-Flow: 6400m3/h
  • Noise Level: 77dBA
