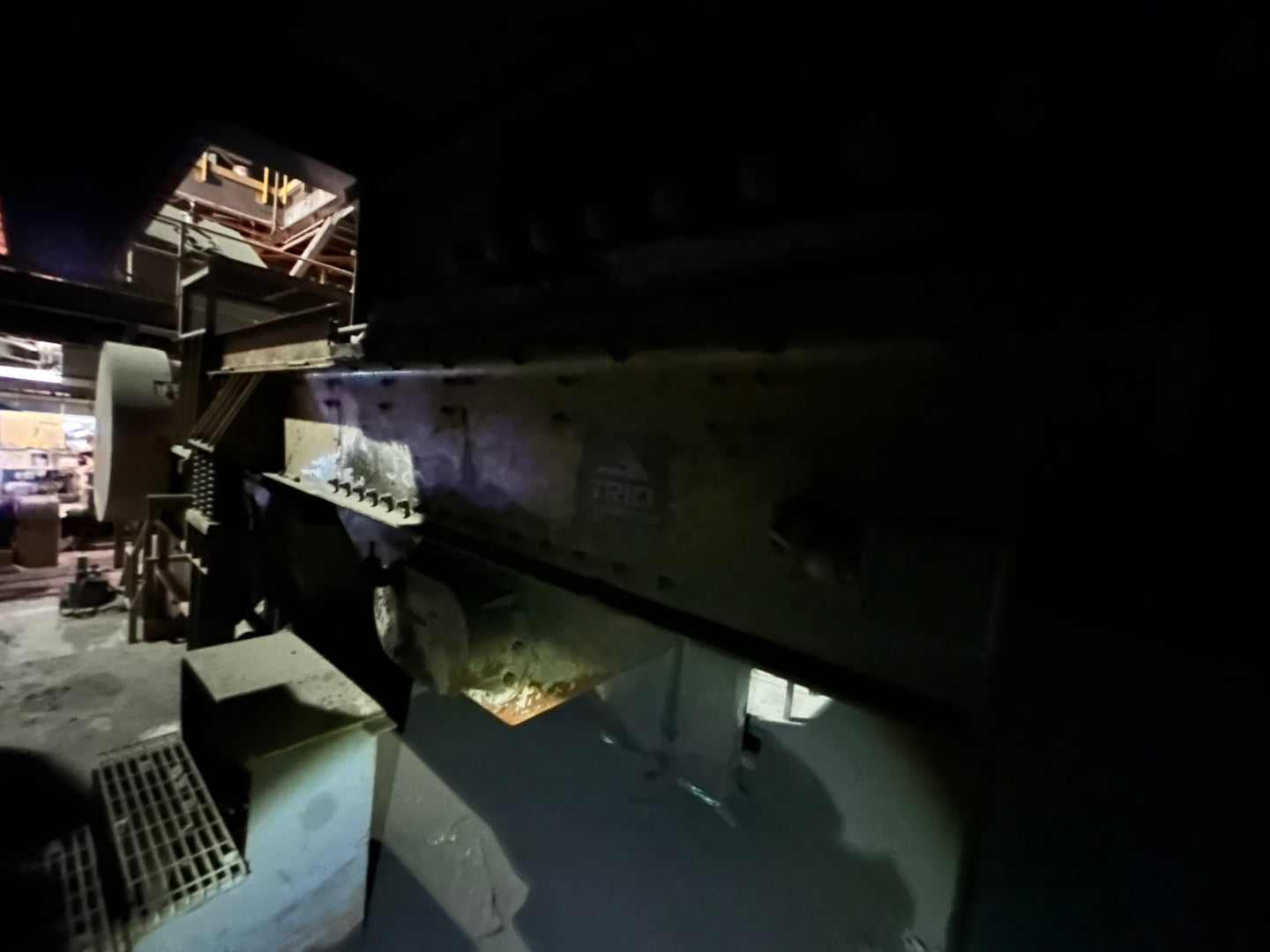

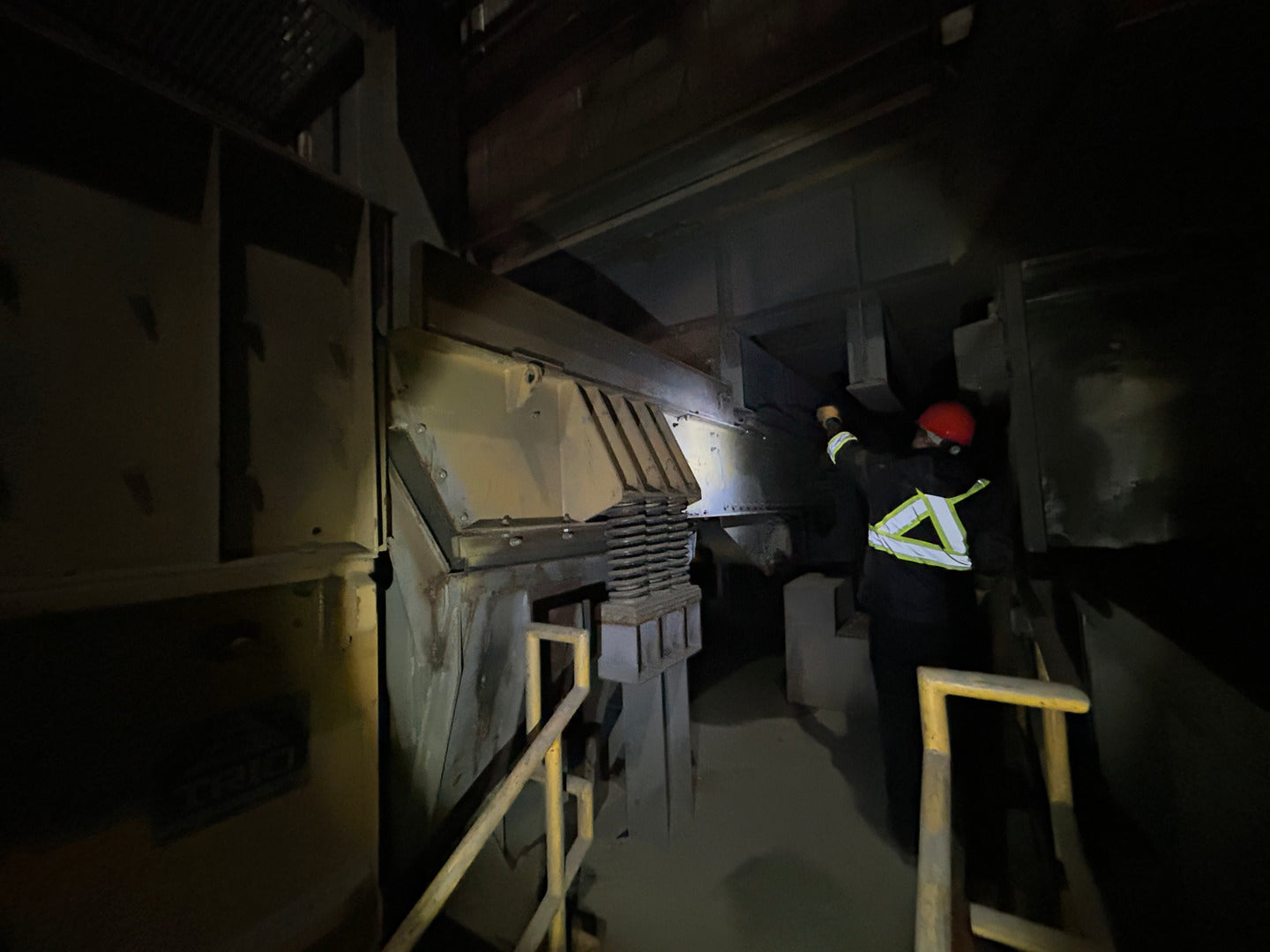

TRIO ENGINEERED PRODUCTS 46" x 20' Vibrating Grizzly Single Deck Feeder TF4620
TRIO ENGINEERED PRODUCTS

46" x 20' Vibrating Grizzly Single Deck Feeder TF4620

SKU: 123707
Precio:
$28,799

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

TRIO Vibrating Feeders are rugged, robust tools capable of absorbing the large surge loads from truck haulage equipment or wheel loaders and provide an even regulated flow of material to downstream processing. These feeders incorporate grizzly sections at the discharge end to remove undersize rock and ore before the primary crushing station. This style of feeder is ideally suited for mining, aggregate, recycling applications and as a standalone scalping or Rip Rap operation.
Specifications
Model TF4620
Year: 2009

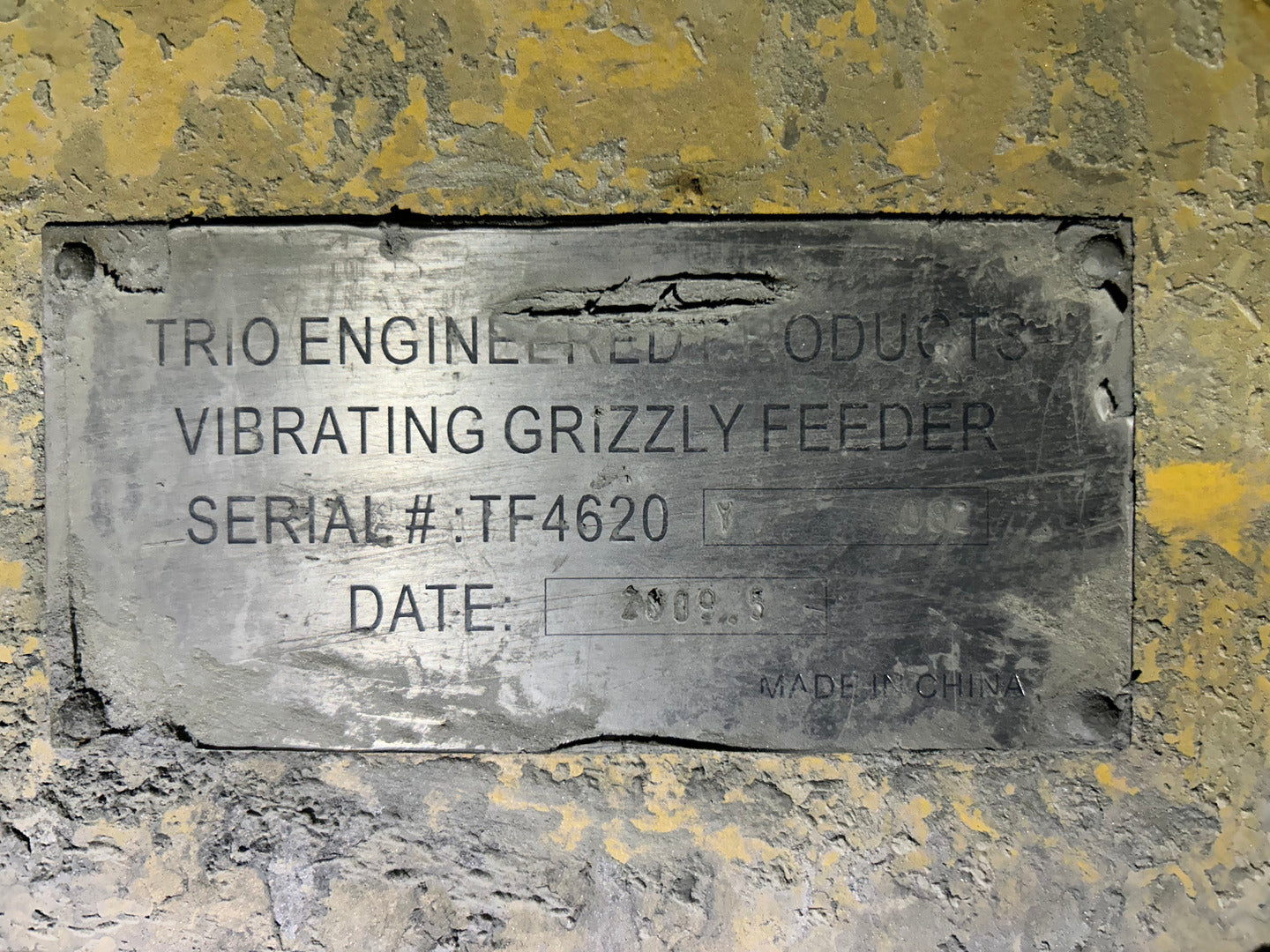

S/N: TF4620Y032
Condition Used
Other Specifications

Product PDF

Design Features & Benefits:

  • Honey-comb base frame construction --> Increased strength to handle large feed size
  • AR replaceable wear liners (bolted or welded) --> Easy replacement and protection of heavy wear areas

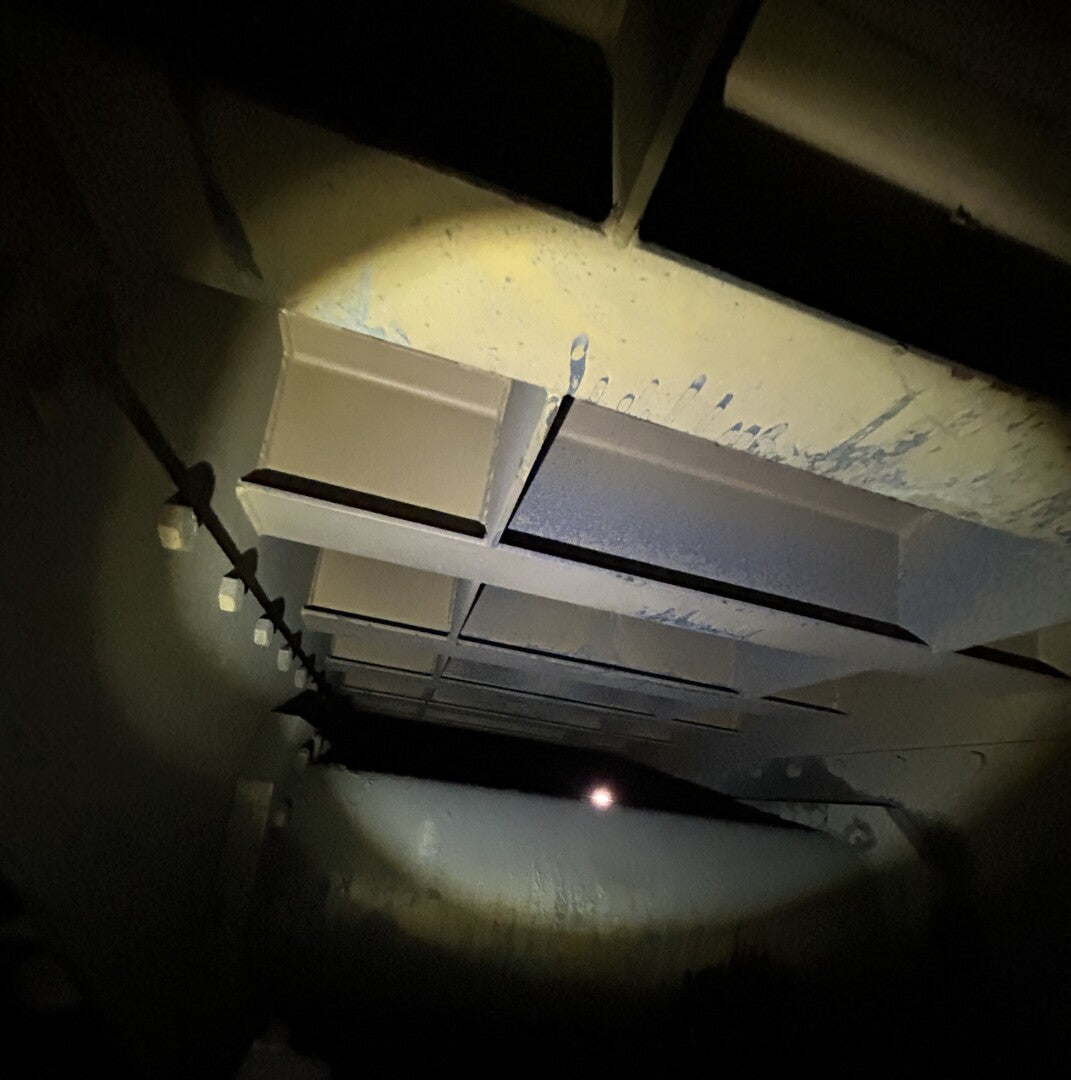

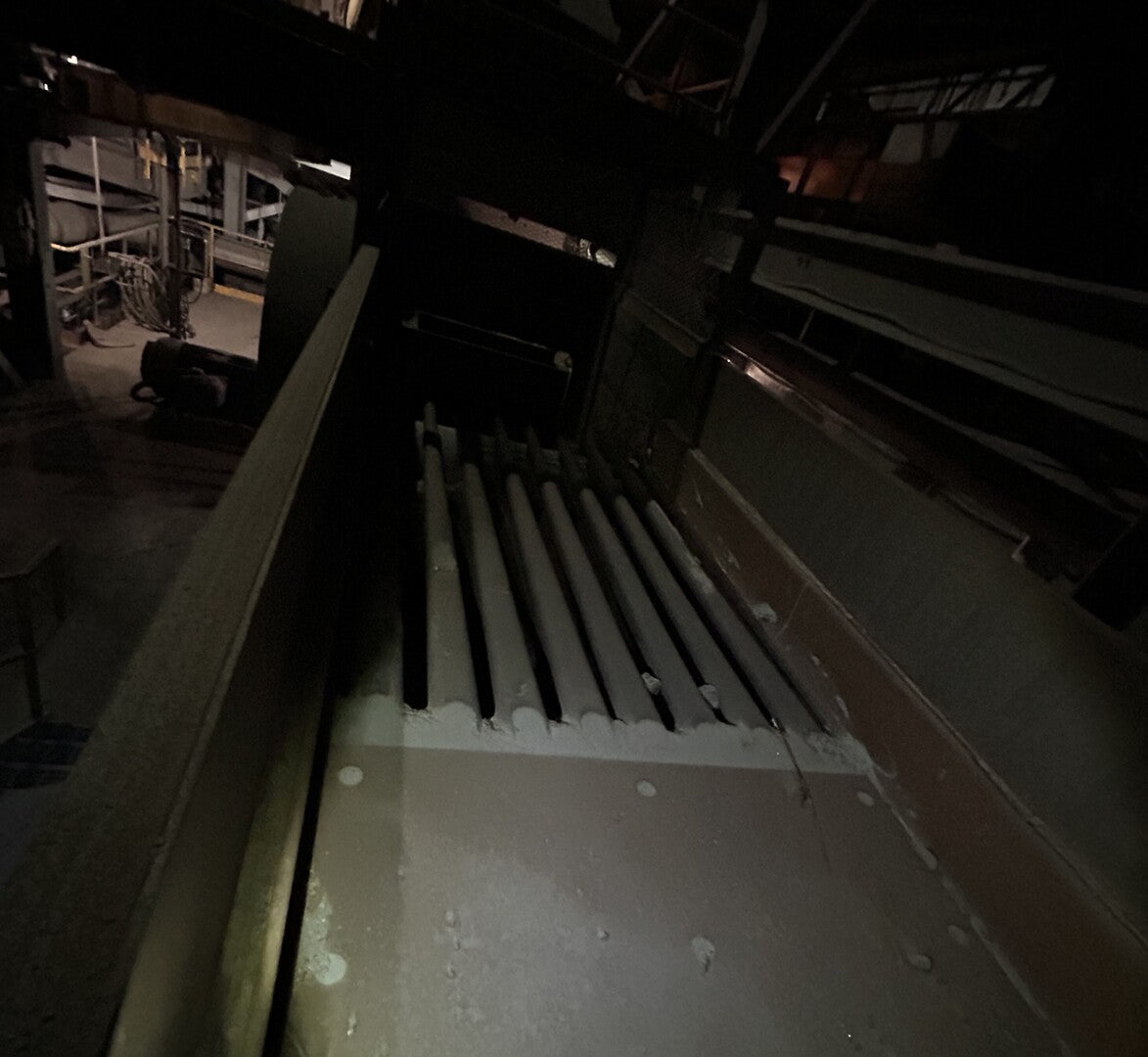

  • Adjustable grizzly bars --> Allows for different application requirements
  • Single and stepped grizzly sections --> Increased ability to remove fines
  • Adjustable stroke --> Application flexibility

Applications:

  • Primary feeder to crushers used in Mine, aggregate and recycle applications
  • Rip rap
  • Stationary, mobile, track

Max. feed size: 32"

Capacity: 370-535 tph

Size:

  • Length: 20 ft
  • Width: 46 in.
  • Weight: 14,300 lbs

Horsepower: 30 hp
