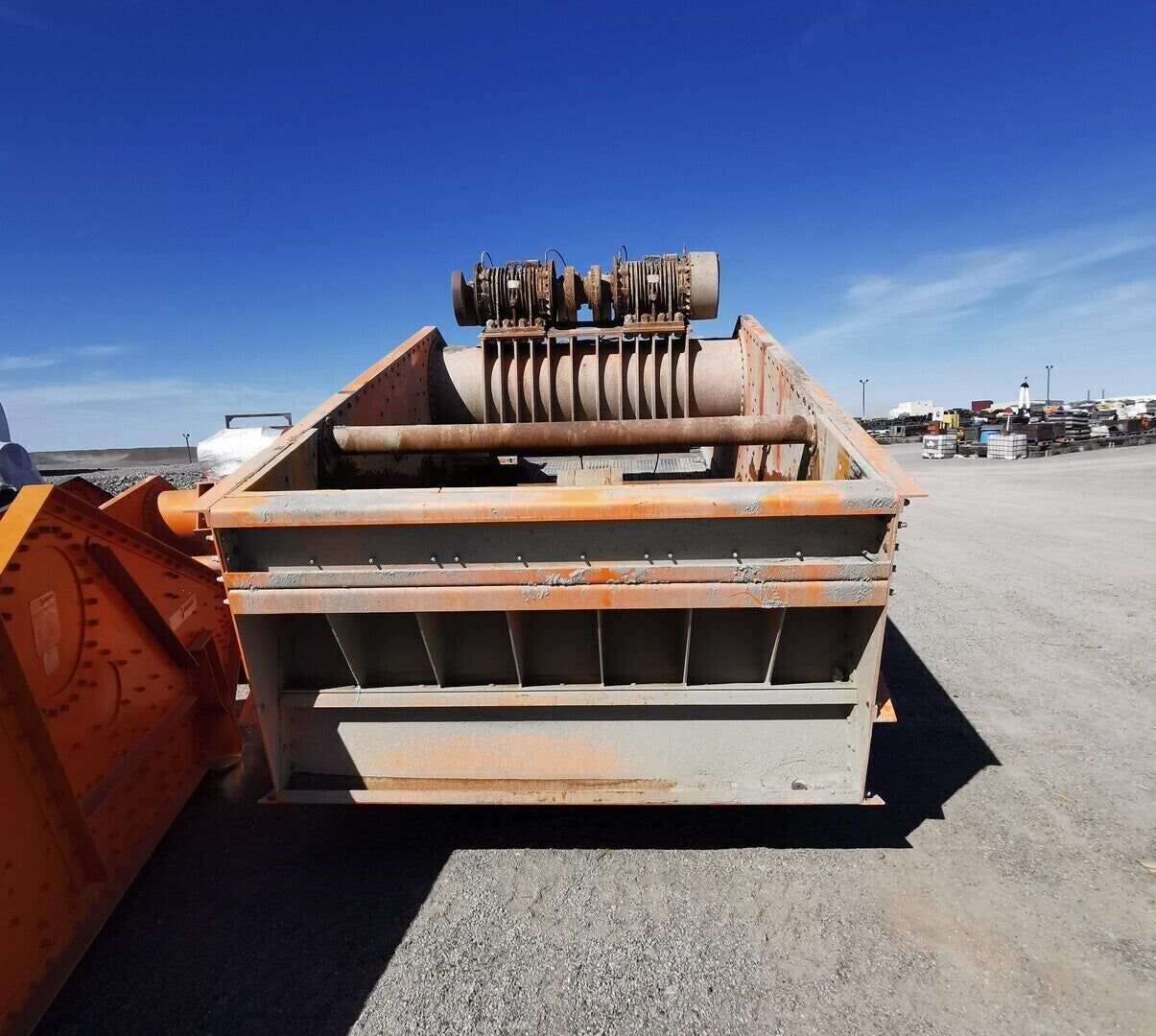

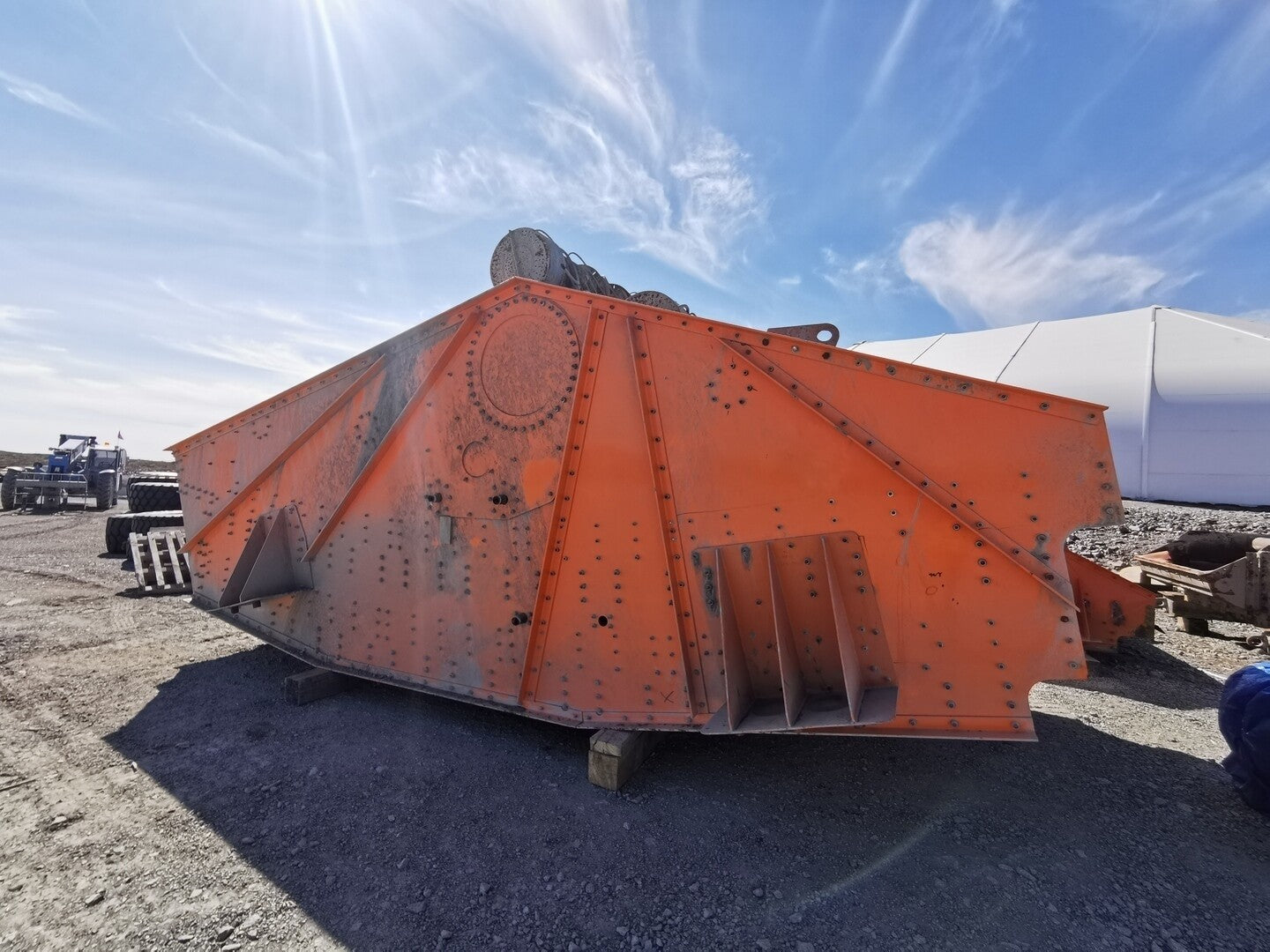

22ft. x 9ft. Double Deck Vibrating Banana Screen M2-67-27 w/ 4x11 kW Motors

SKU: 87588
Precio:
$72,438

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Vibramech banana, or multi-slope, screens enable higher throughputs than equivalent horizontal screens when used in most sizing applications. These screens generate high material travel velocities on the upper deck slopes, which minimize the bed depth generated at the feed end of the screens. This facilitates the passage of fines through the bed.
Specifications
Model M2-67-27
Condition Used
Other Specifications

Inclination: Multi-slope

Deck Width: 2745 mm // 108 in.

Deck Length: 6710 mm // 264 in.

Weight: 16,200 kg

Vibration Motors: 4 x 11 kW

Number of Decks: 2

Top Deck: 32mm Vibroplast

Top Deck Spray Pressure: 150m3/hr, 150kPa

Top Deck Cut-Off Size: 30mm

Bottom Deck: 1.4 x 8mm SWF Hiflow

Bottom Deck Spray Pressure: 150m3/hr, 150kPa

Bottom Deck Cut-Off Size: 1.5mm

Water Sprays: 4 x Spray Pipes w/ MFN 13 Nozzles

Isolators: Rubber Buffers

Max./Avg. Solids Oversize (t/h): 52/39

Max./Avg. Solids Middles (t/h): 247/206

Max./Avg. Solids Undersize (t/h): 81/79

Max./Avg. Solids Design Cap (t/h): 380/380

Max./Avg. Water Design Cap (t/h): 536/435

Overall Dimensions:

Length: 304 in.

Width: 117 in. (without fins)

Height: 144"
