OMNITECH SYSTEMS INC. Selexx/Mate 4 ft x 8 ft CNC Router
OMNITECH SYSTEMS INC.

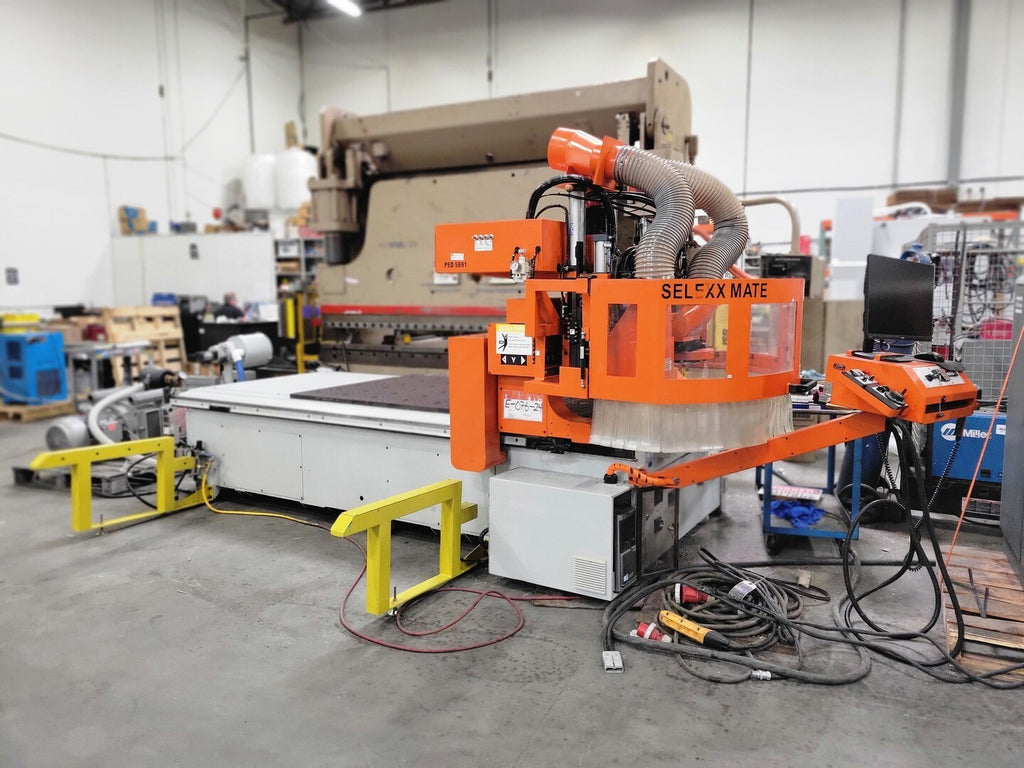

Selexx/Mate 4 ft x 8 ft CNC Router

SKU: 132598
Price:
$17,832

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications
Model Selexx/Mate
Year: 2009
S/N: FAANCST97320
Condition Used
General
Table Size 51.18" x 98.42"
Electrical
Voltage 240/480 volts
Other Specifications

Manufacturer PDF

Stroke:

  • X axis: 1720 mm // 5.643 ft
  • Y axis: 2630 mm // 8.628 ft
  • Z axis: 250 mm // 0.82 ft

Table size: 1300 x 2500 mm // 4.265 x 8.202 ft

Max feed speeds:

  • X, Y axis: 50 m/min // 164.04 ft/min
  • Z axis: 10 m/min // 32.2 ft/min

ATC head:

  • No. 1 of spindles: 1
  • Tool holder shank: HSK63F, Air cooled
  • Number of tools: 8
  • Speed: 1.000-24.000 rpm

Boring block:

  • No. 2 block (5x5): 4800 rpm

Tool diameter:

  • For router bit (O.D): Max 25 mm // 0.984 in.

Shank:

  • For boring: 10 mm // 0.394 in.

Power:

  • ATC head: 10 hp
  • Boring: 2 hp
  • Vacuum pump: 10 hp

Air pressure: 6 kg/cm2 // 85 lb/in.2

Nc controller: Fanuc

Alternate voltage: 575 volts

Dimensions:

  • Floor area: 4000 x 4400 mm // 13.123 x 14.435 ft
  • Height: 2450 mm // 8.038 ft
  • Weight: 2,450 kg // 5,397 lbs

Air consumption: 450 L/min // 15.9 cfm

Suction capacity for main spindle: 2965 m3/hr // 1745 cfm
