Description
| Condition | Used |
| Other Specifications |
|---|
|
** Generator NOT INCLUDED ** Switchgear Breakers can be sold separately. Call for availability

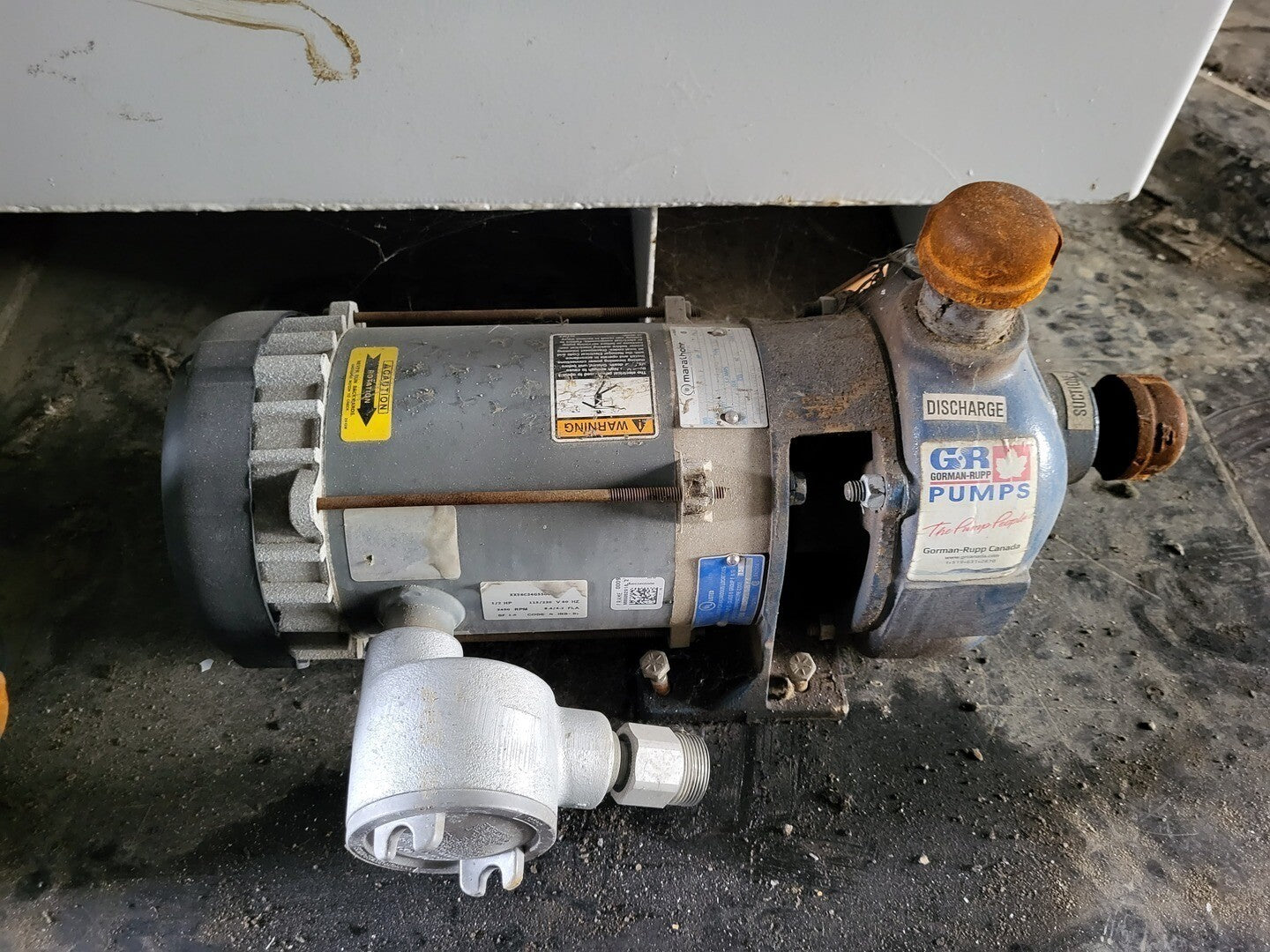

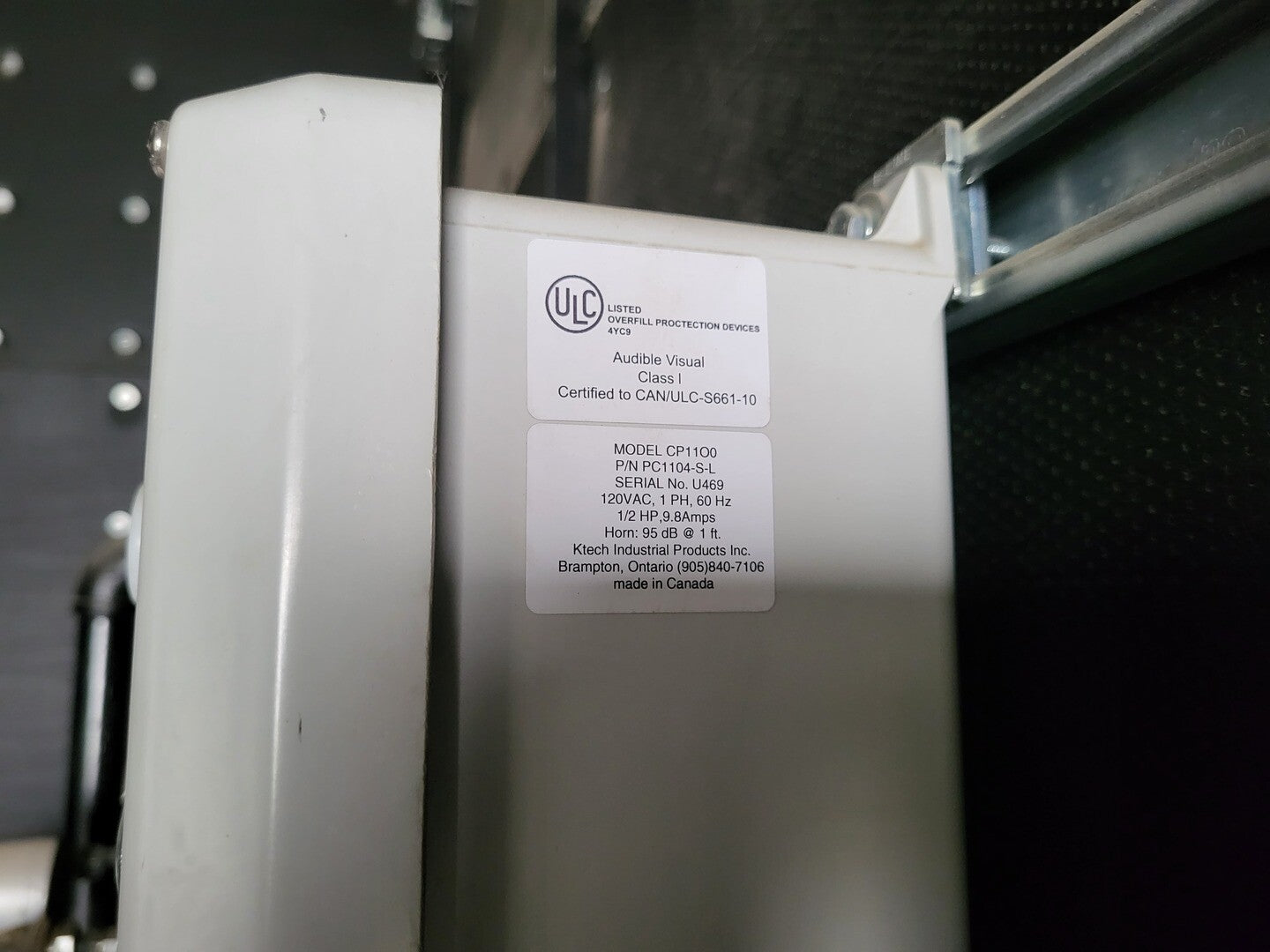

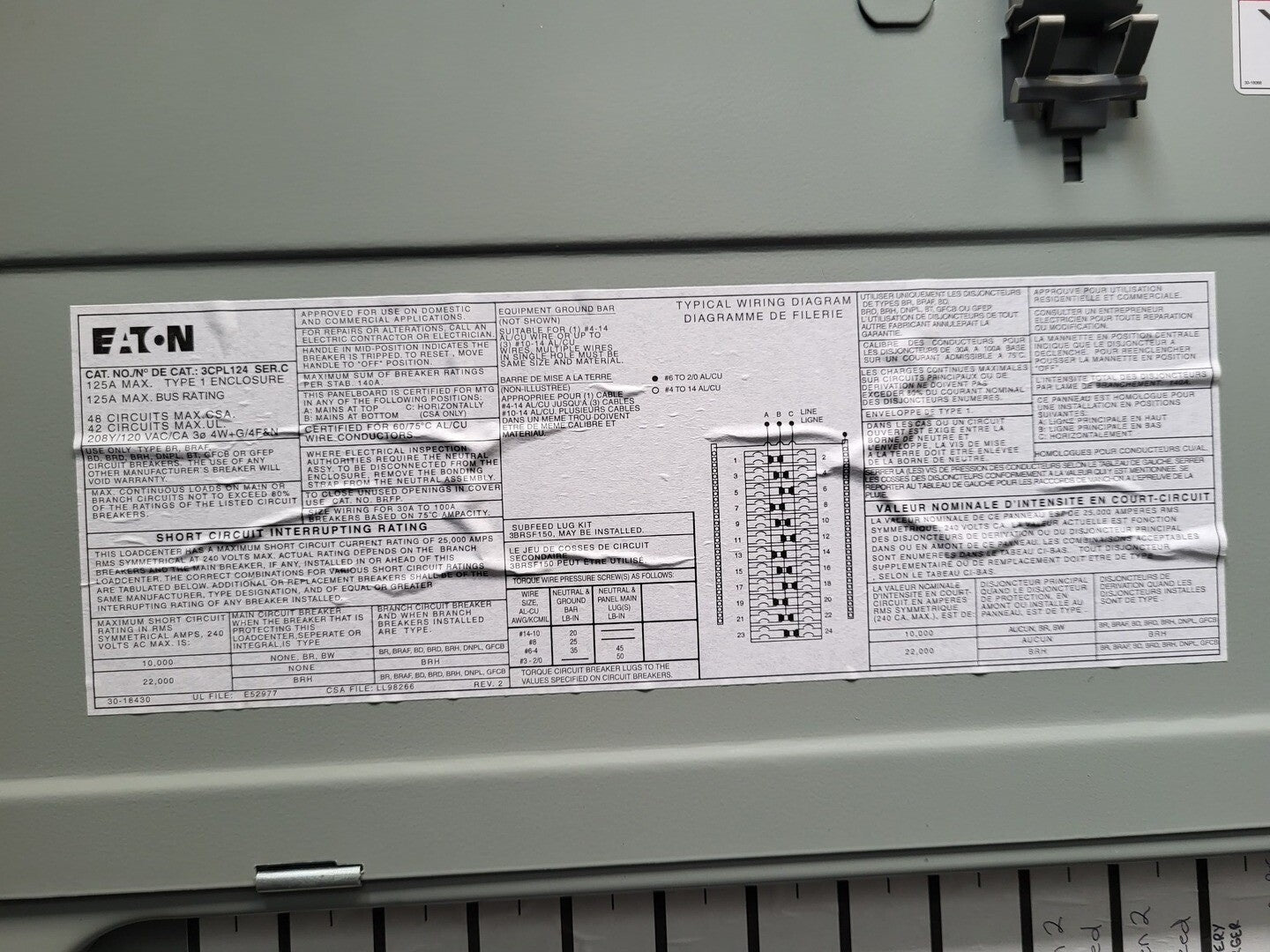

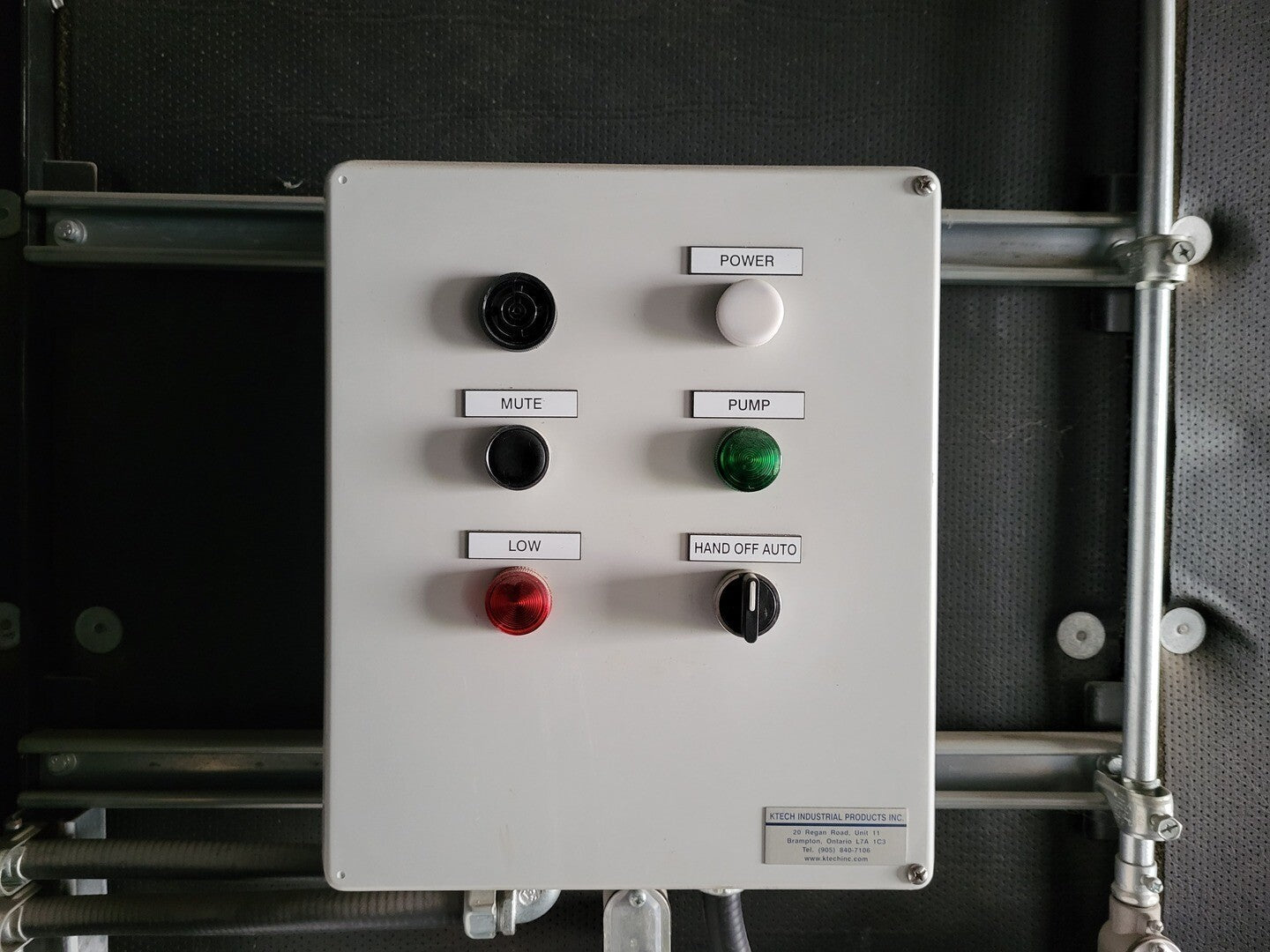

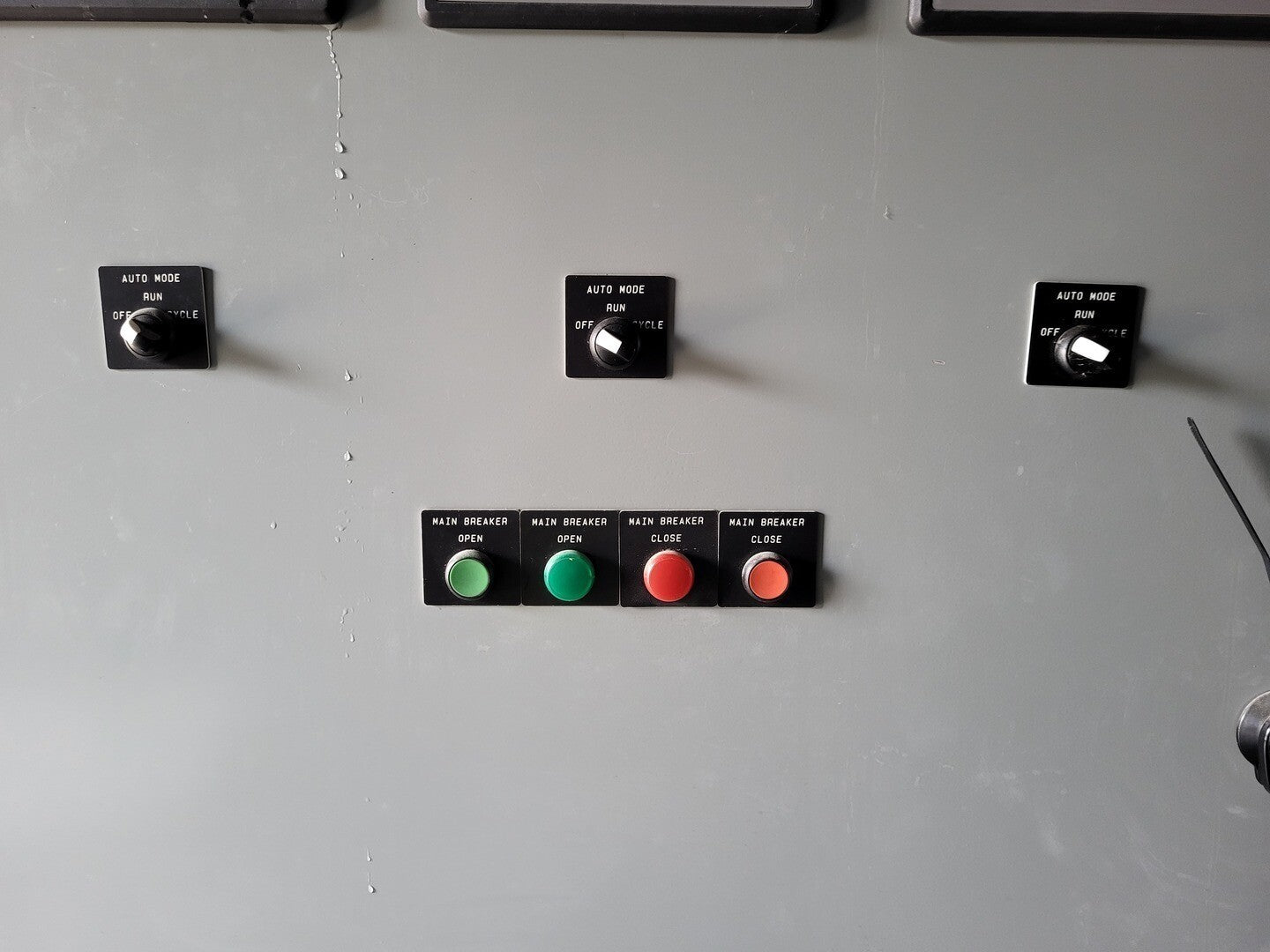

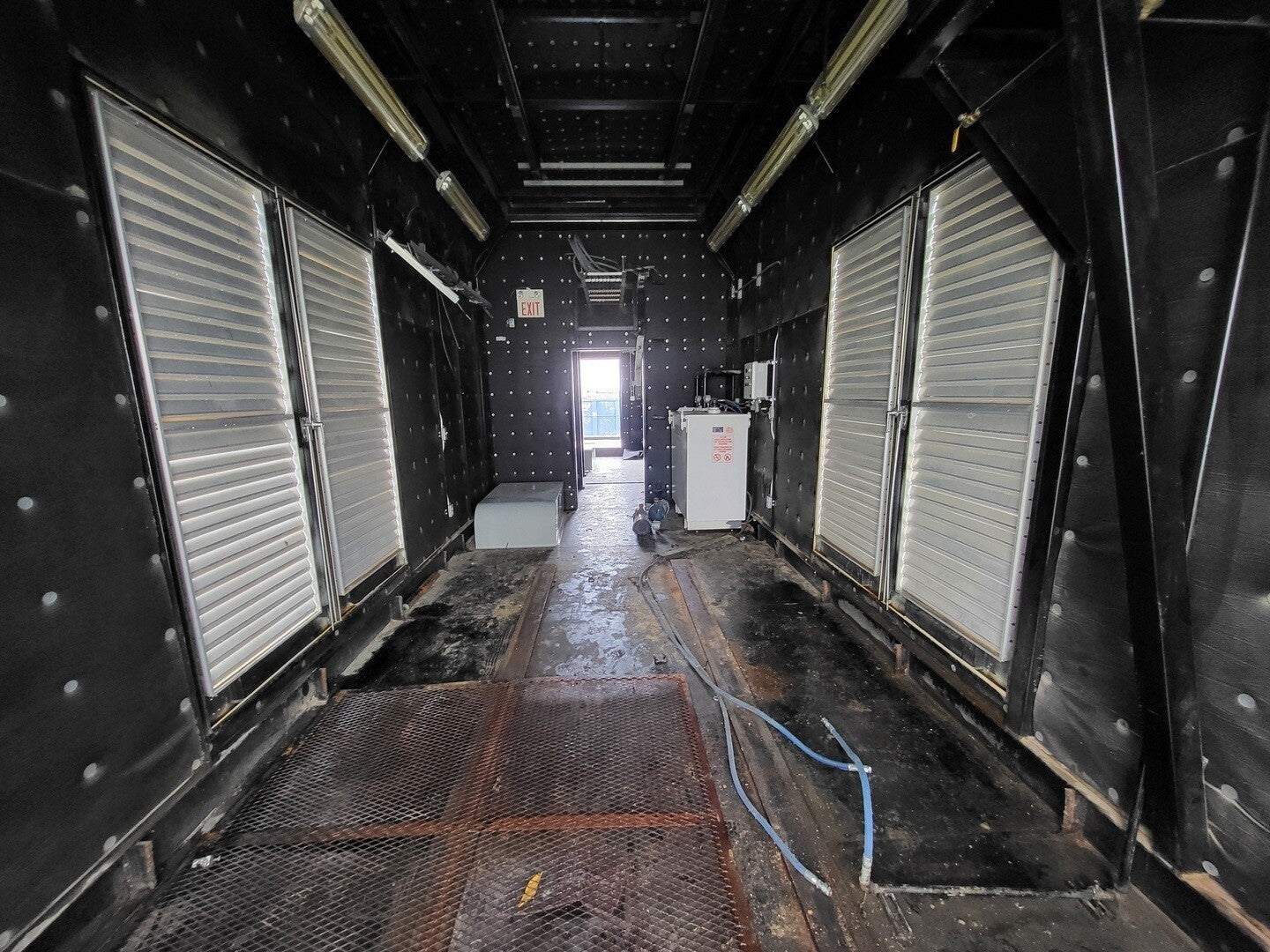

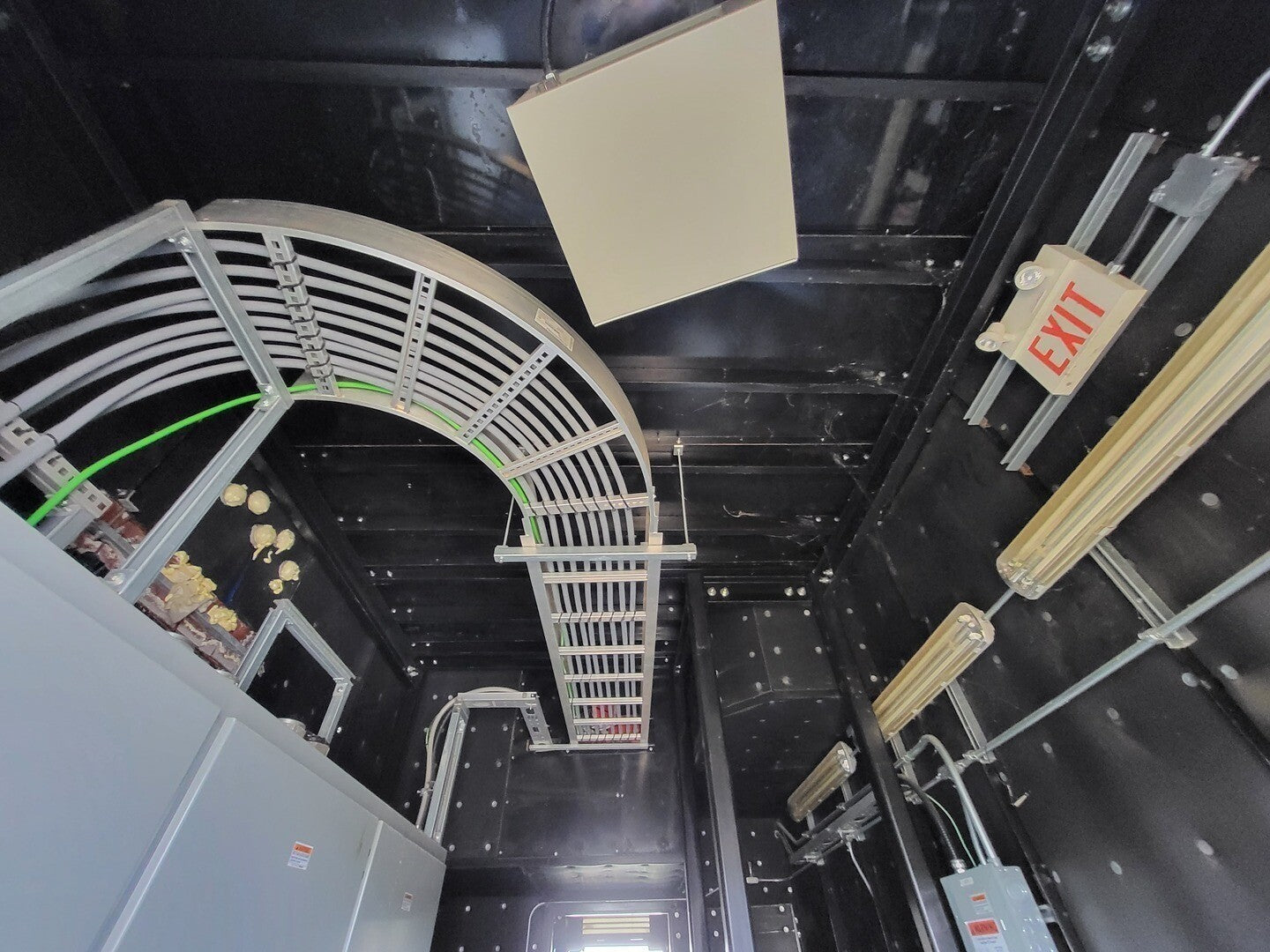

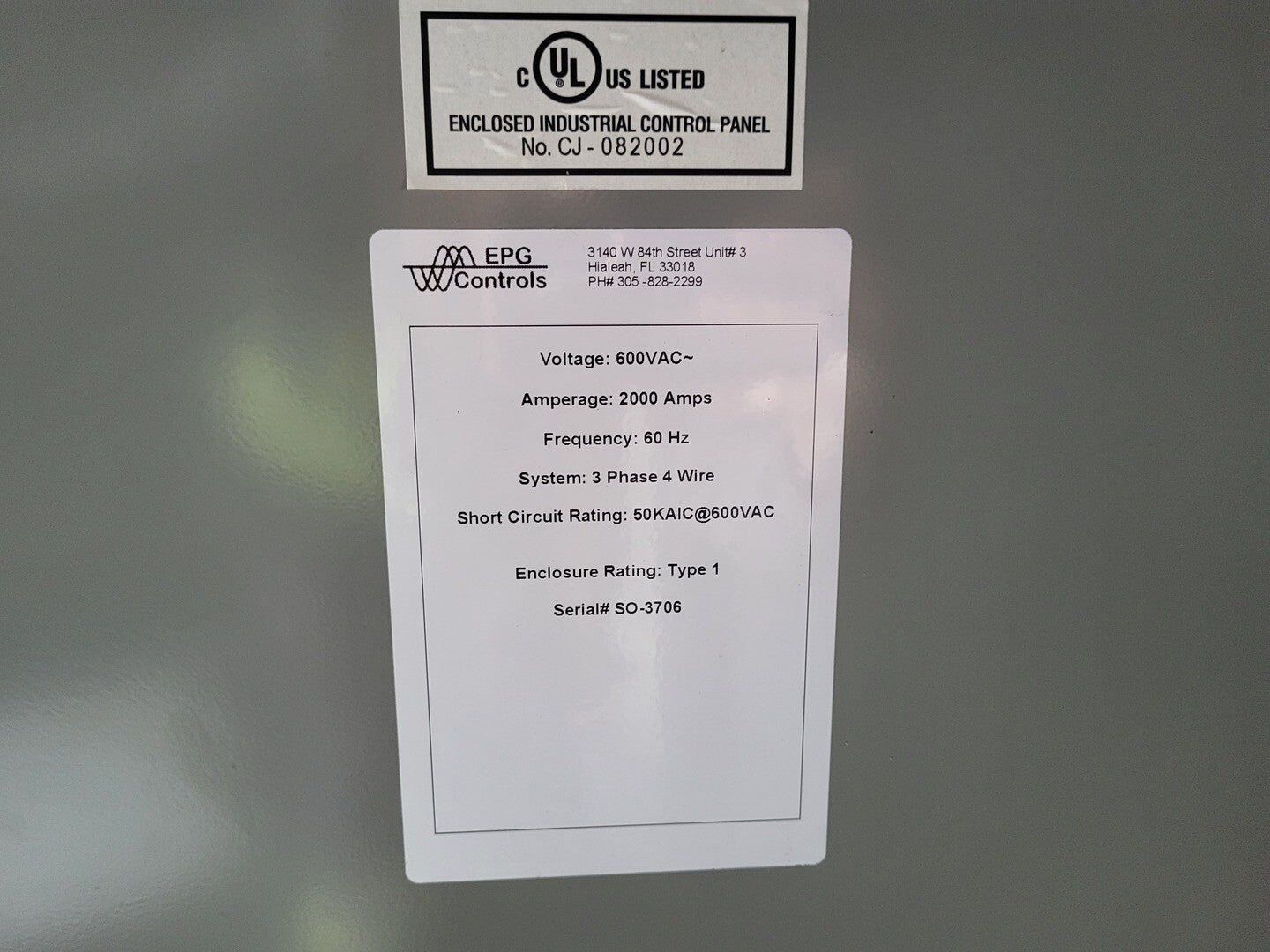

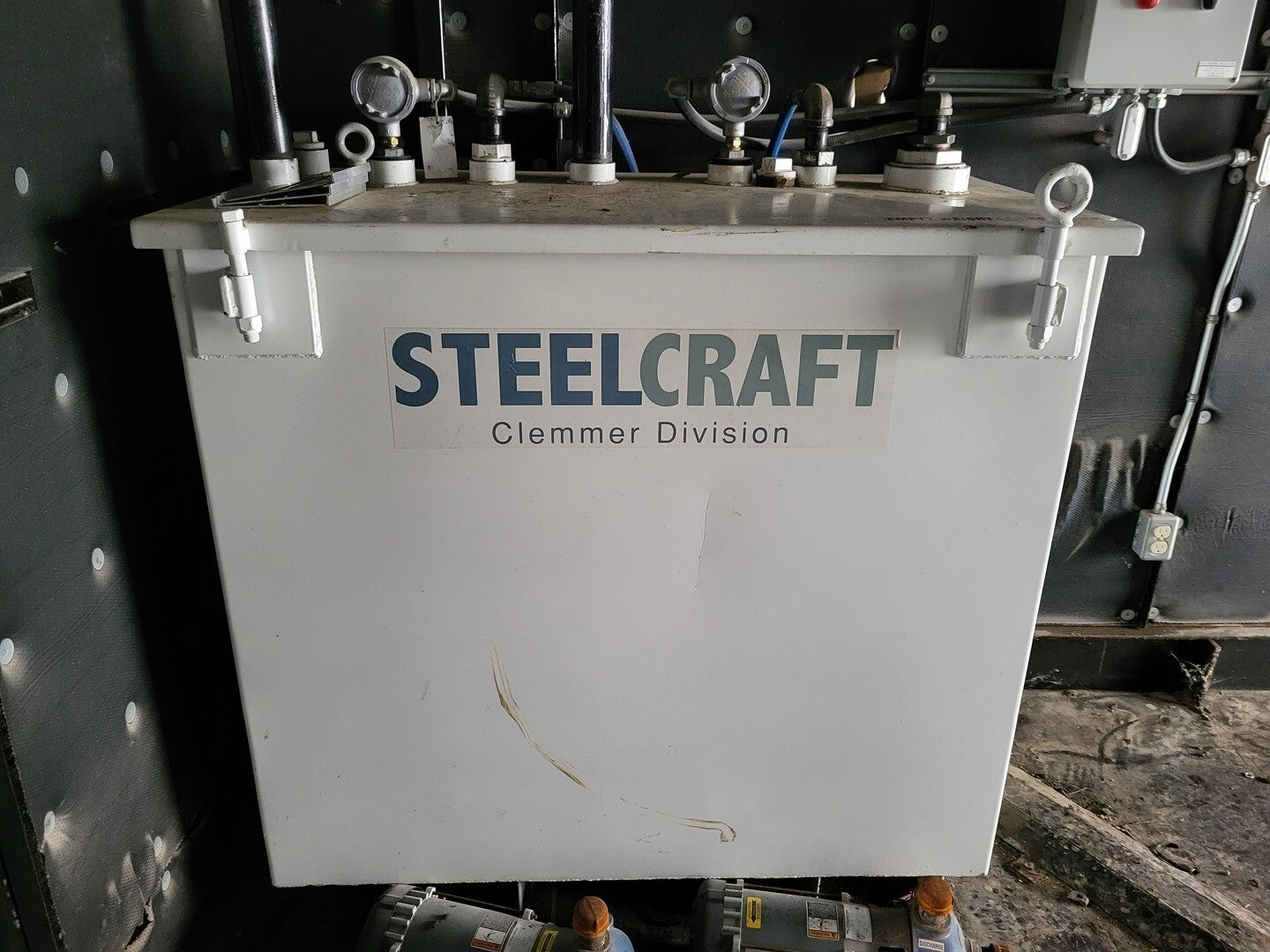

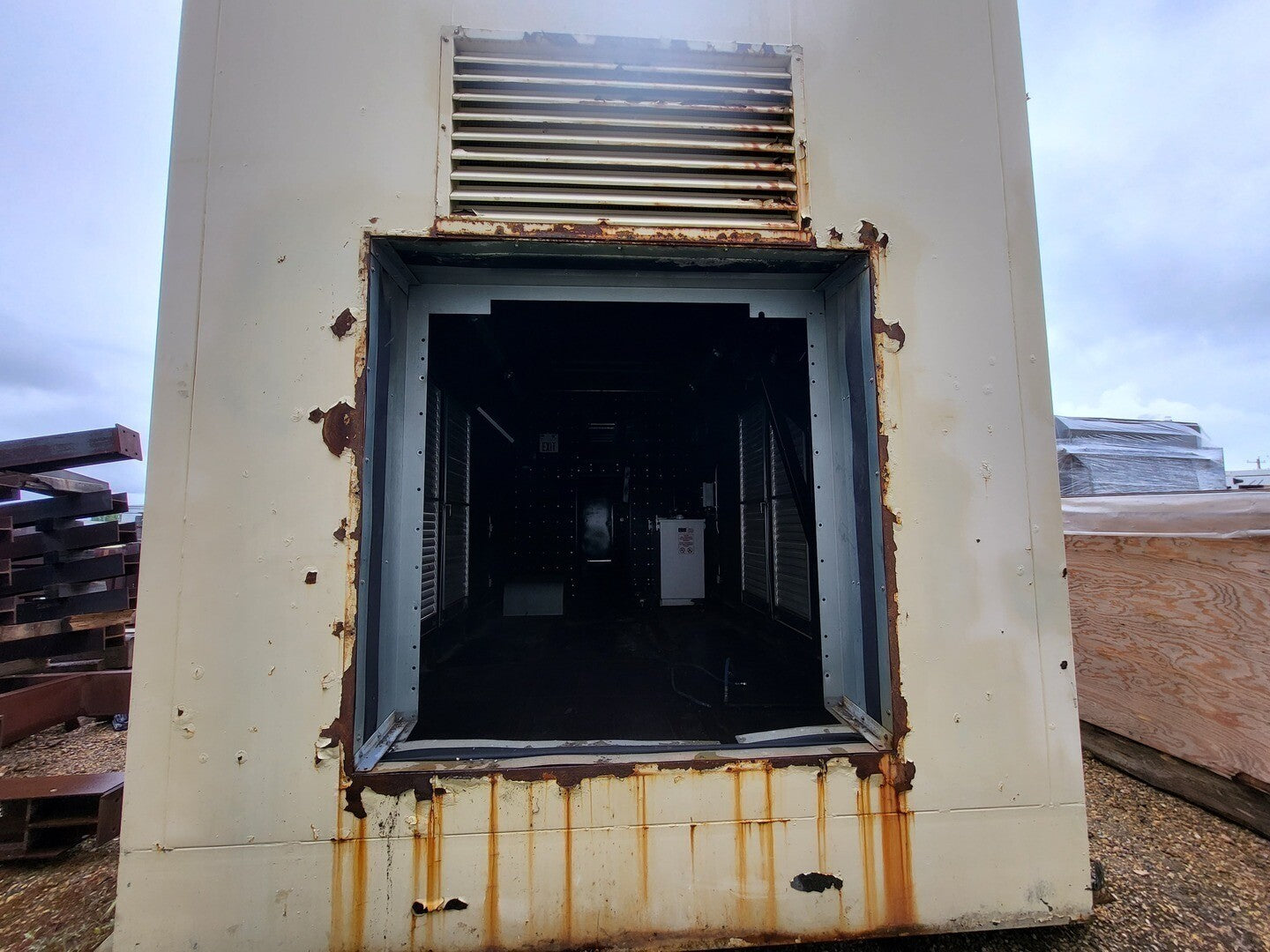

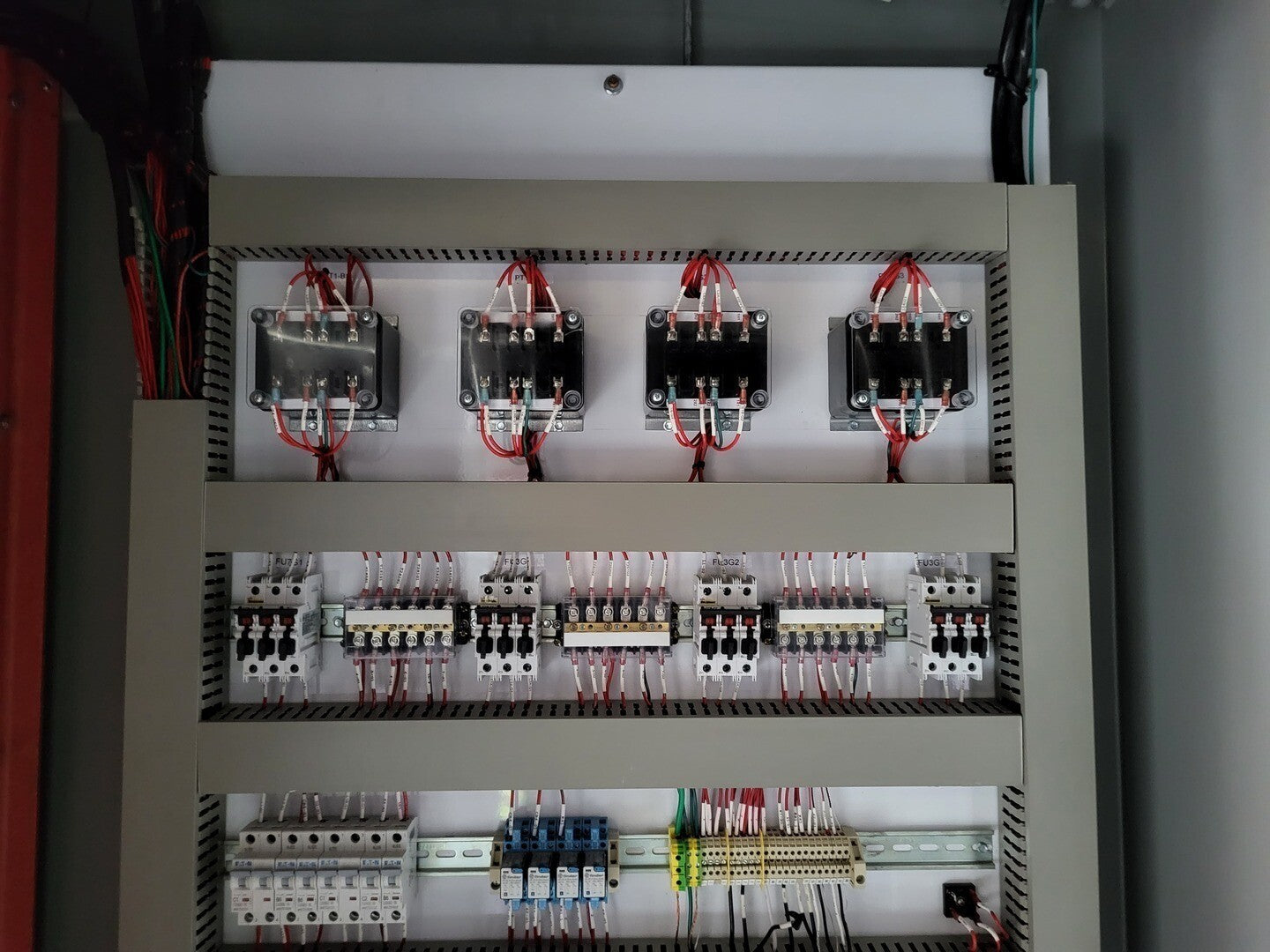

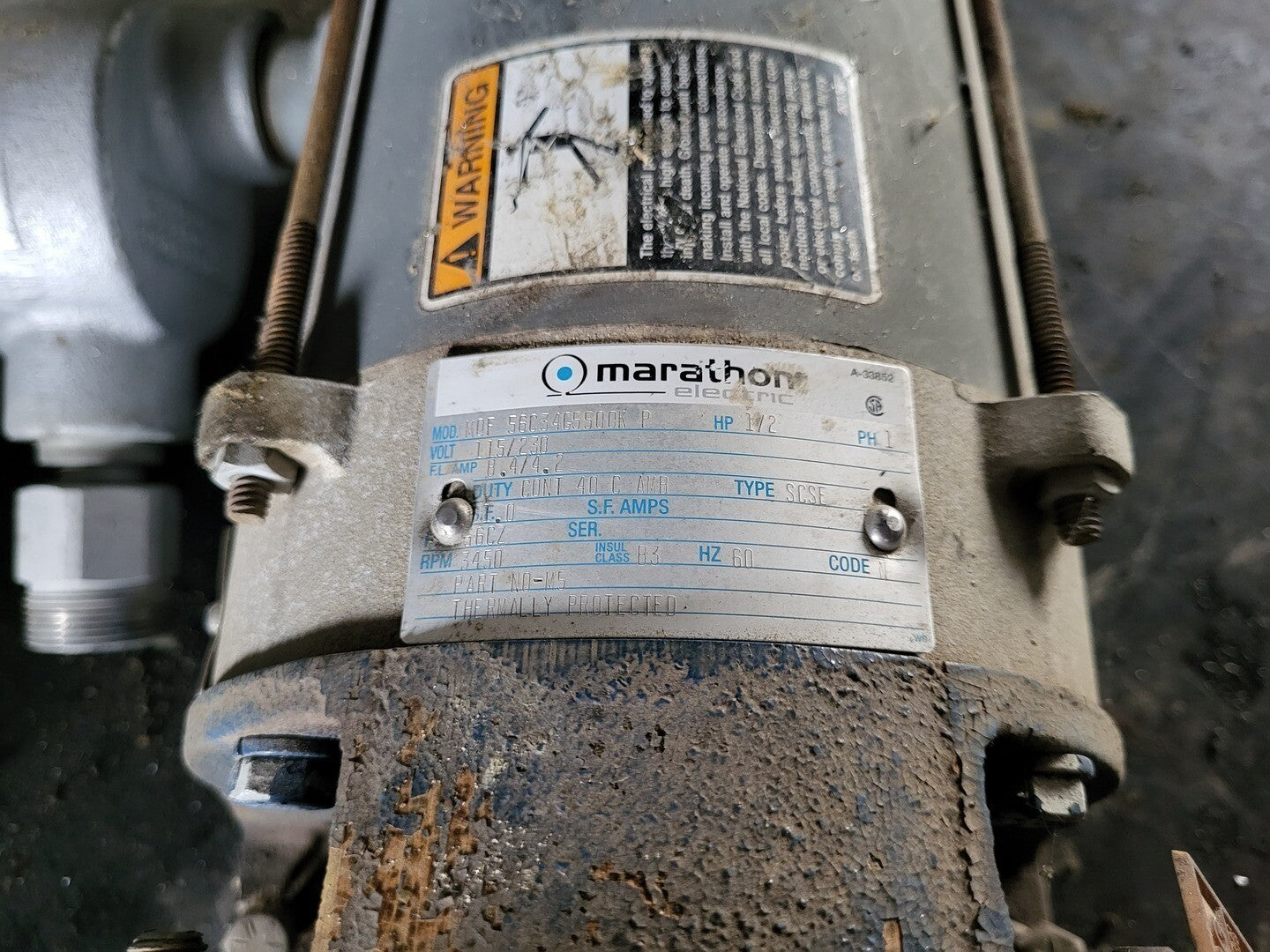

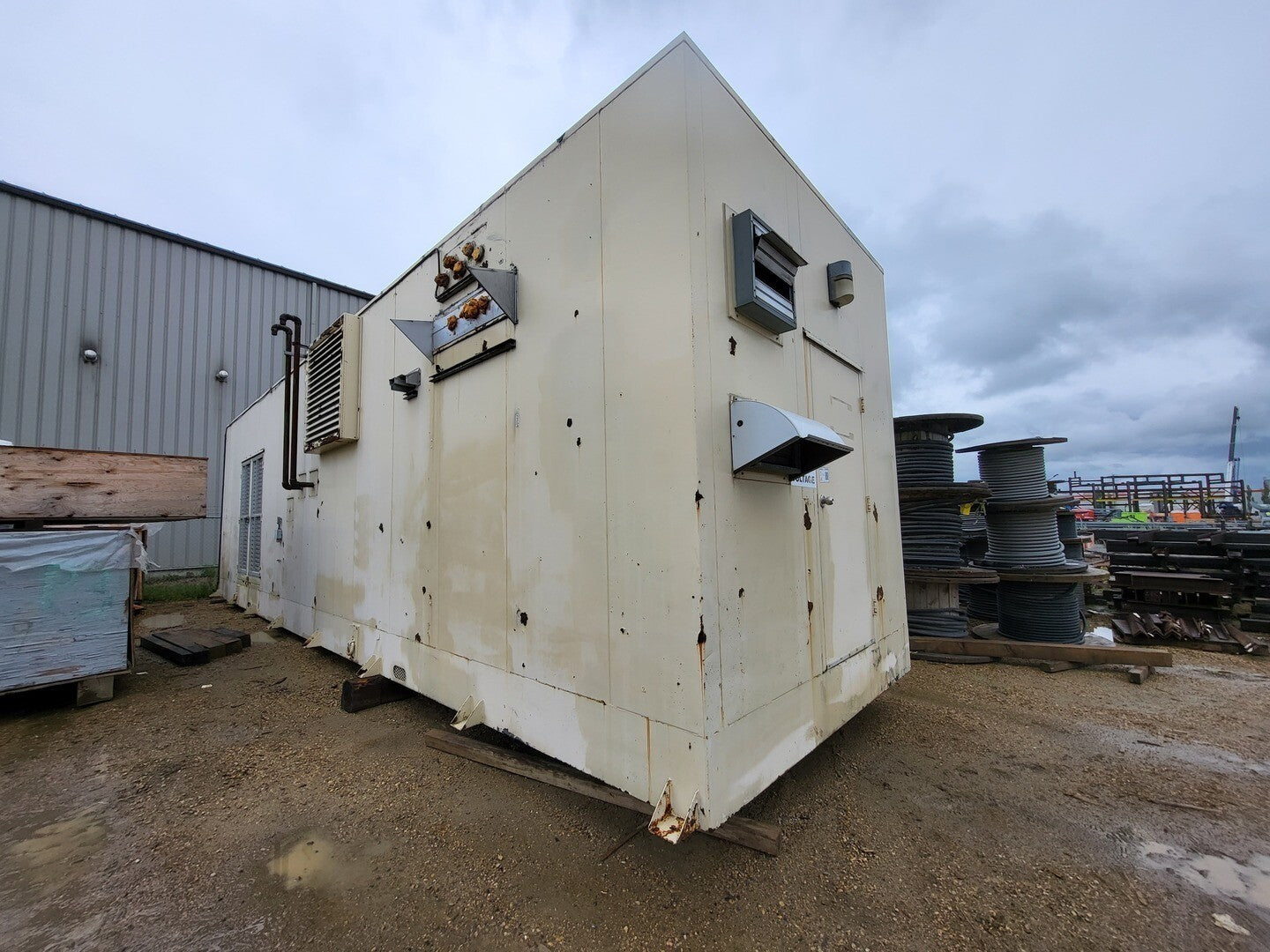

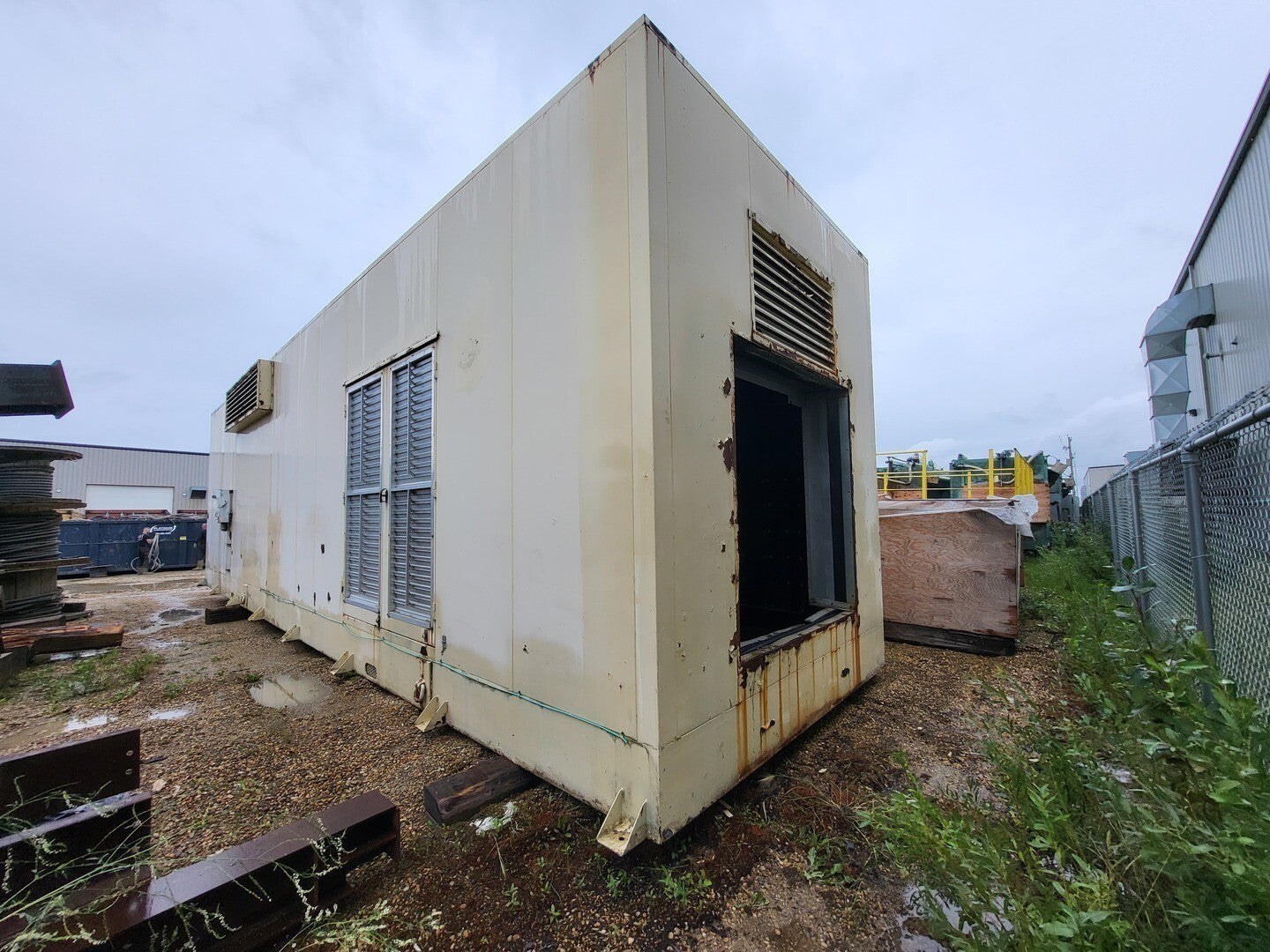

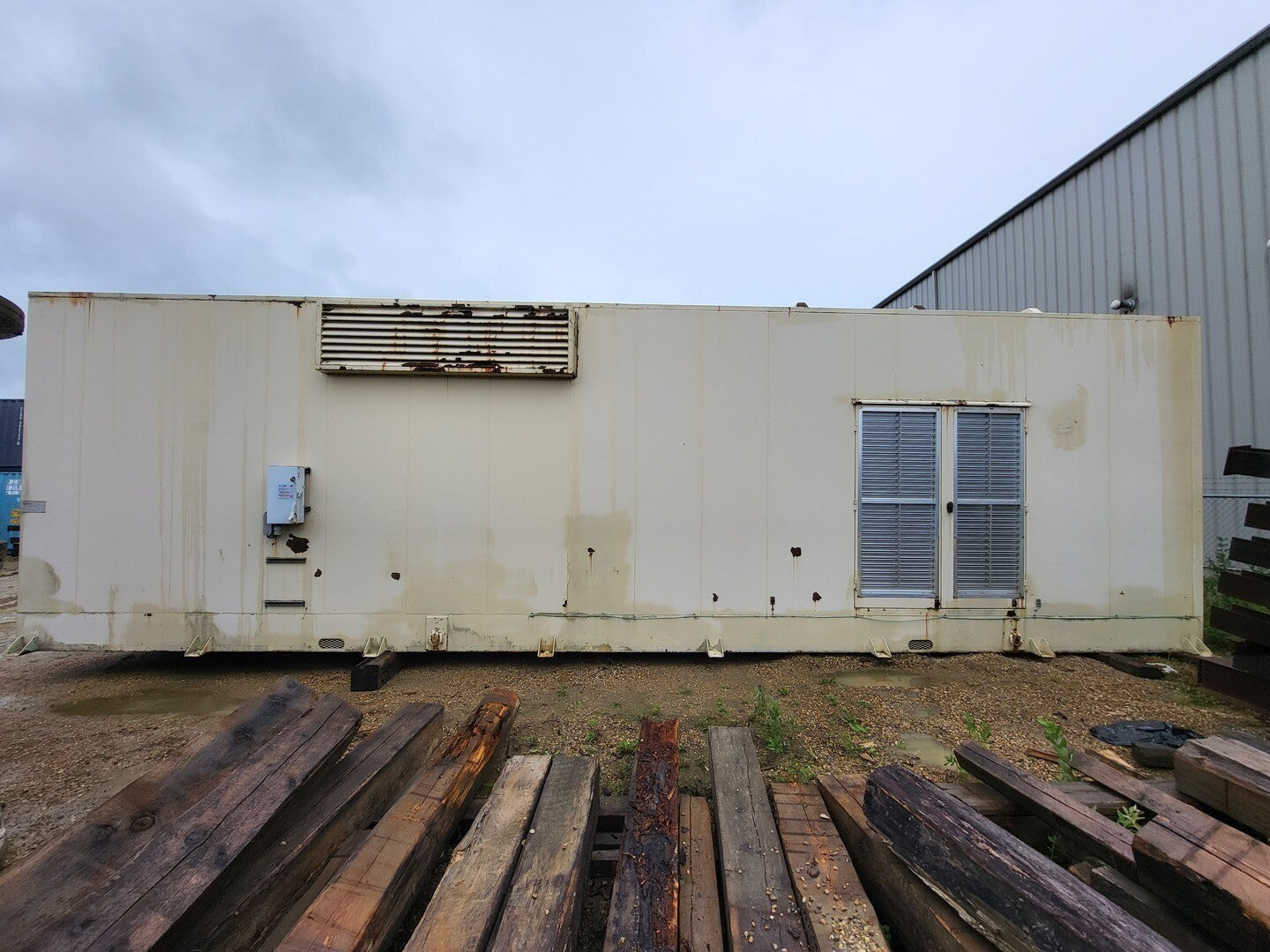

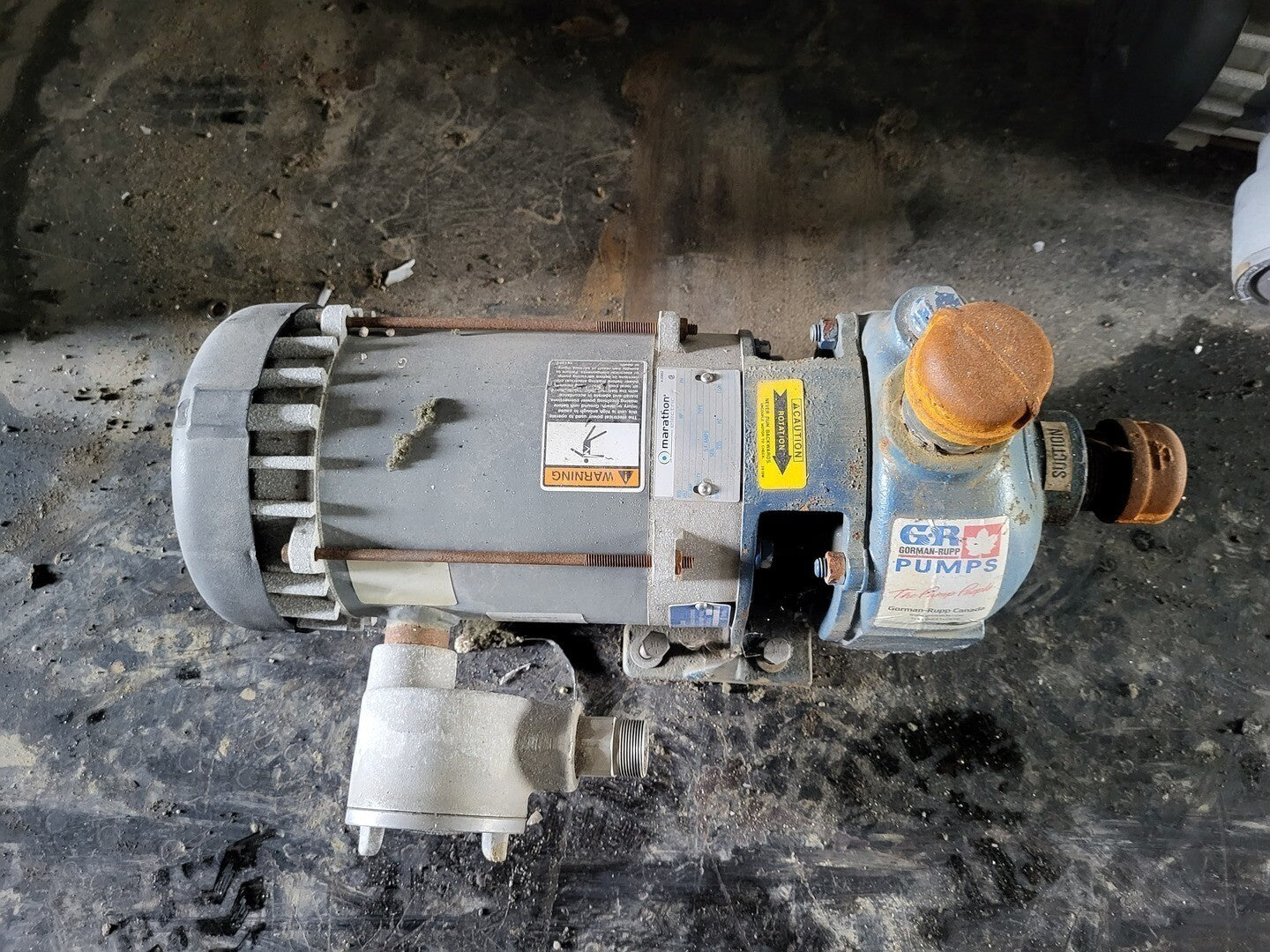

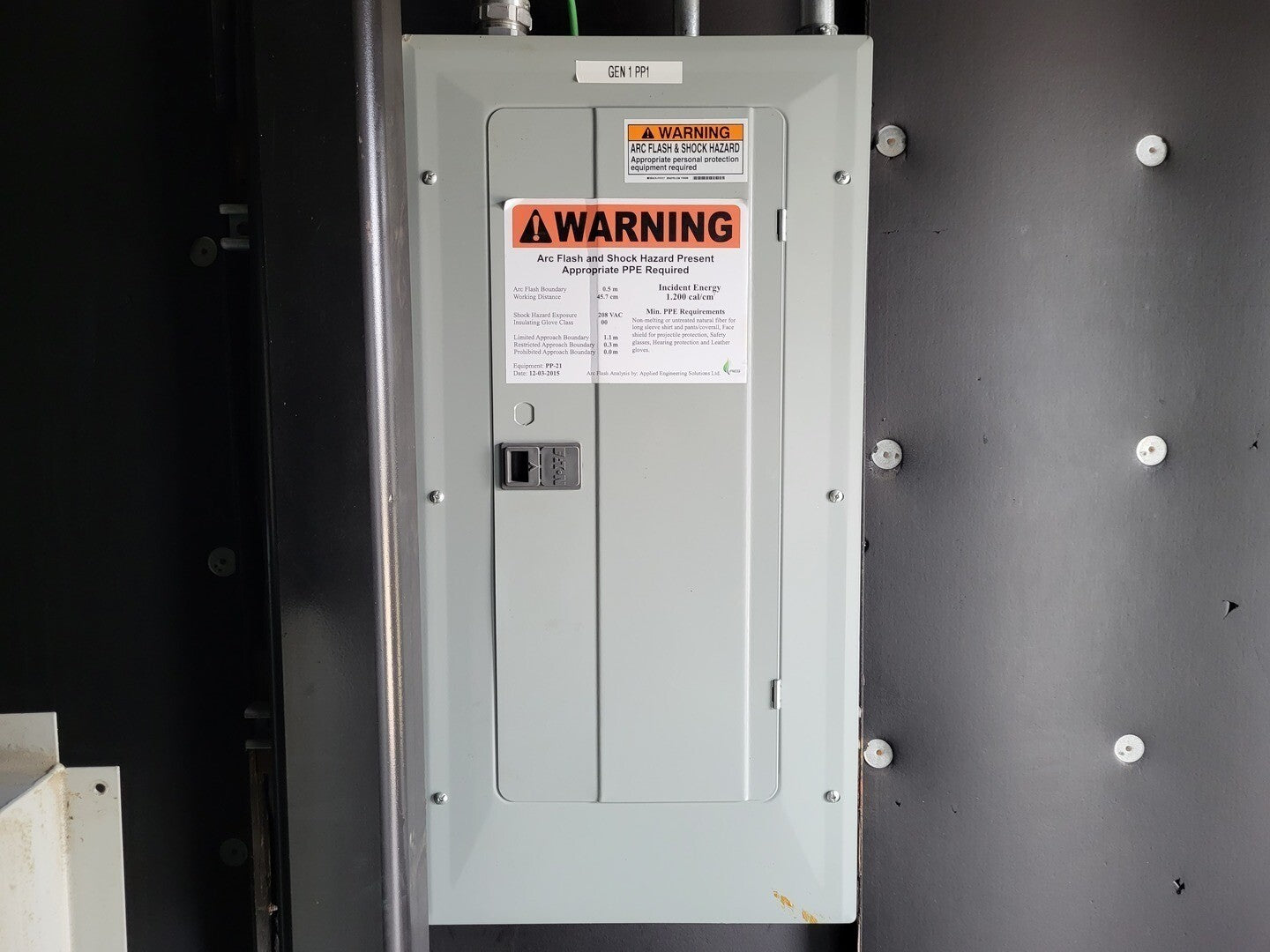

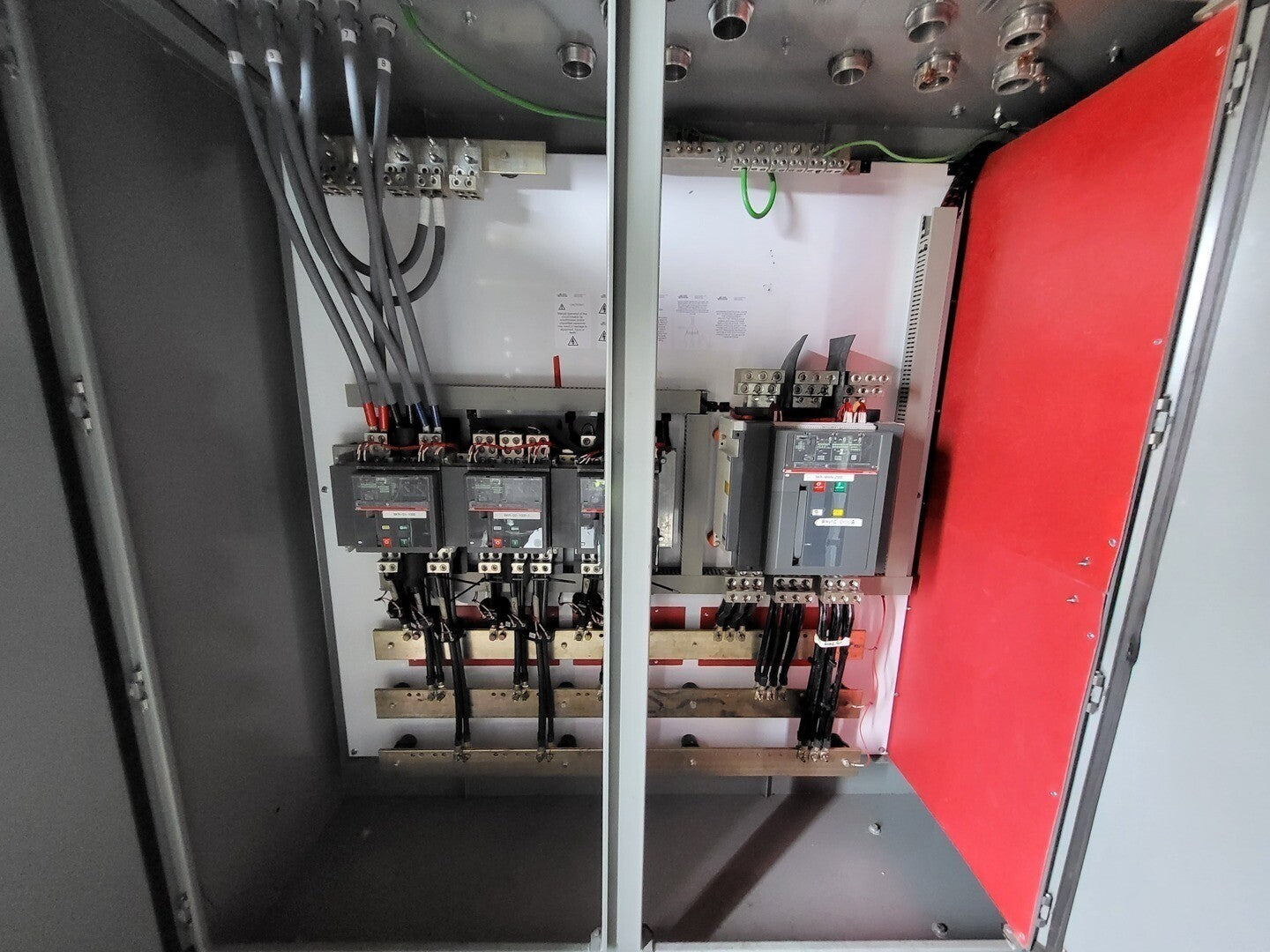

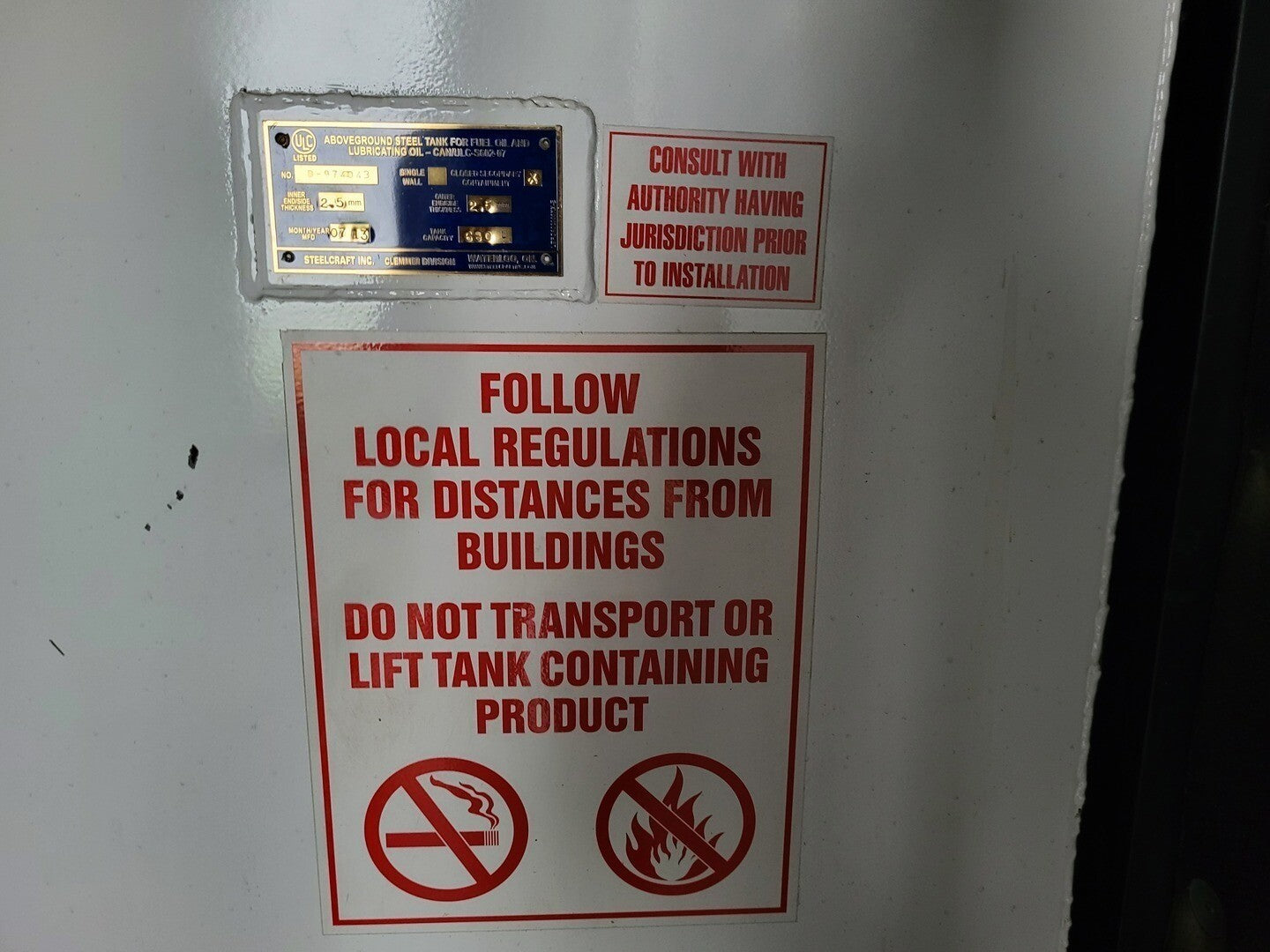

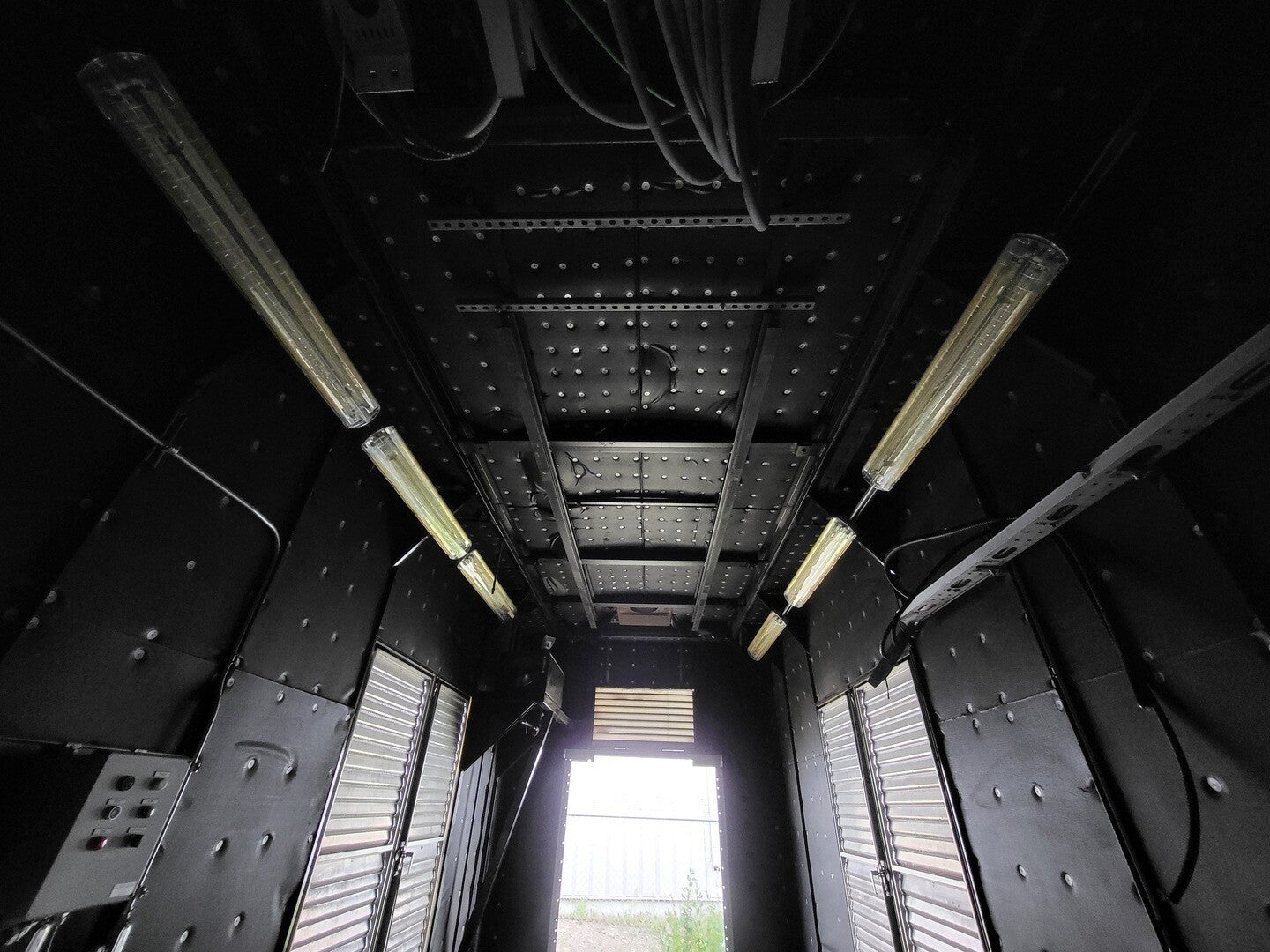

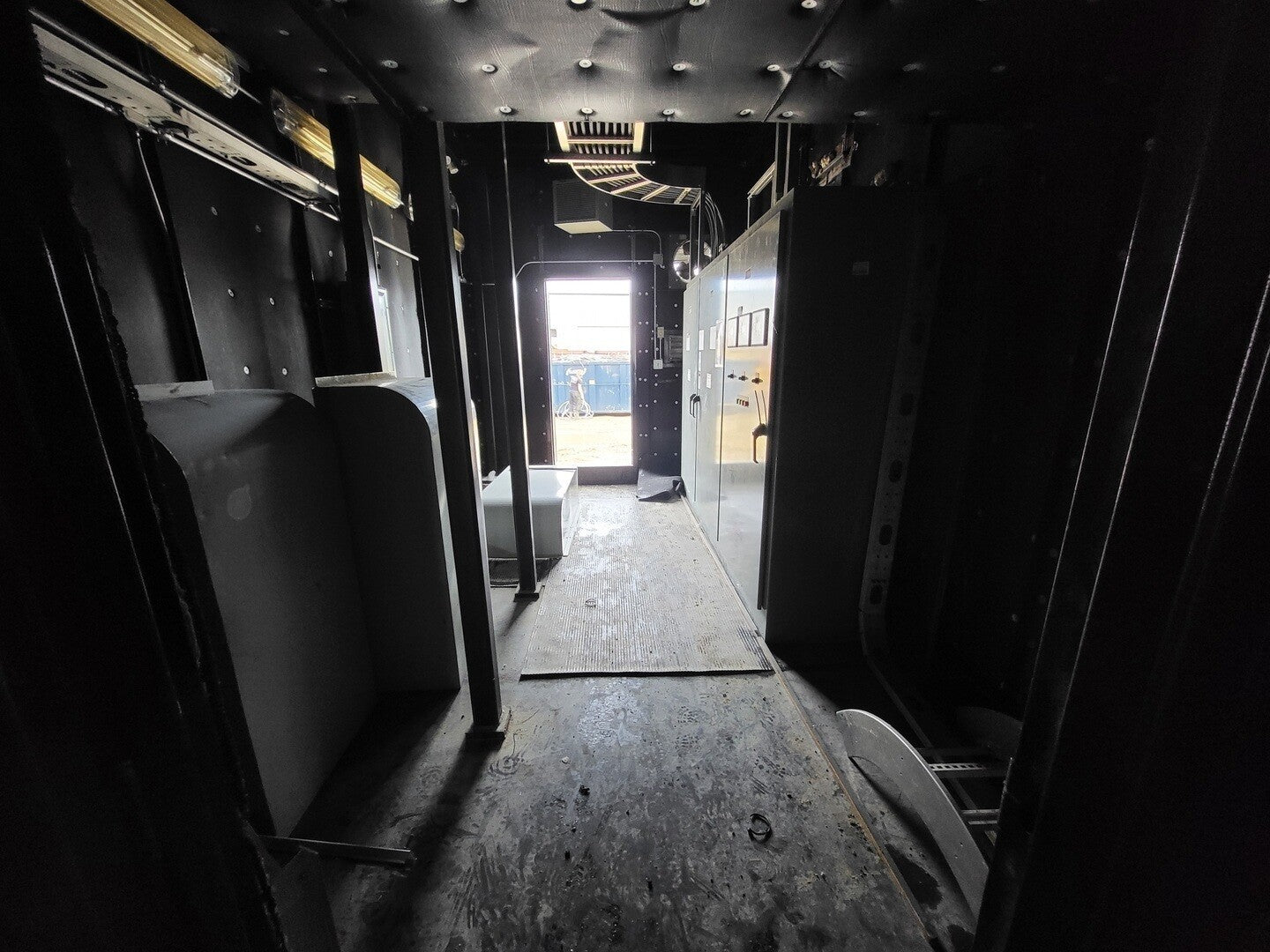

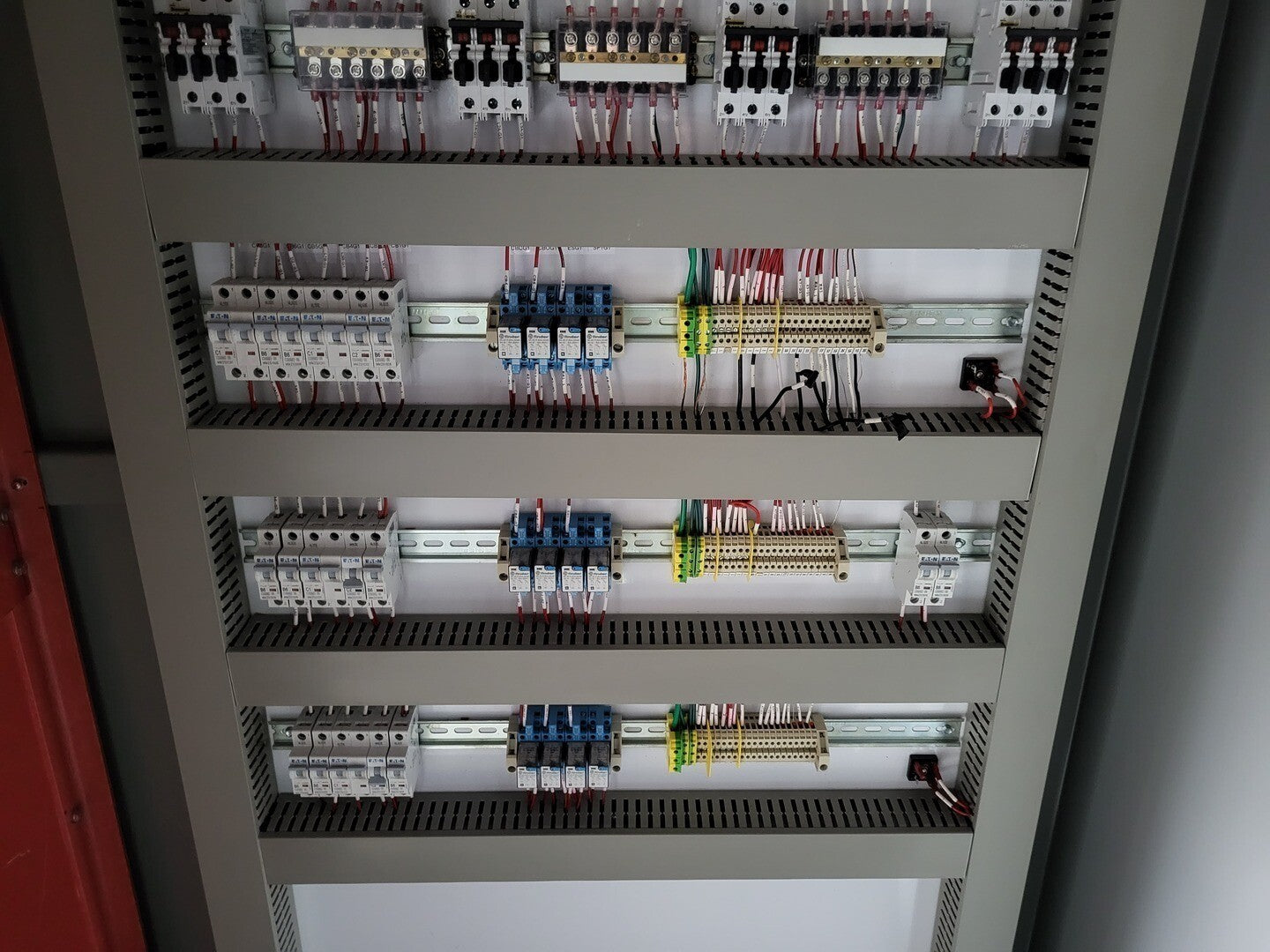

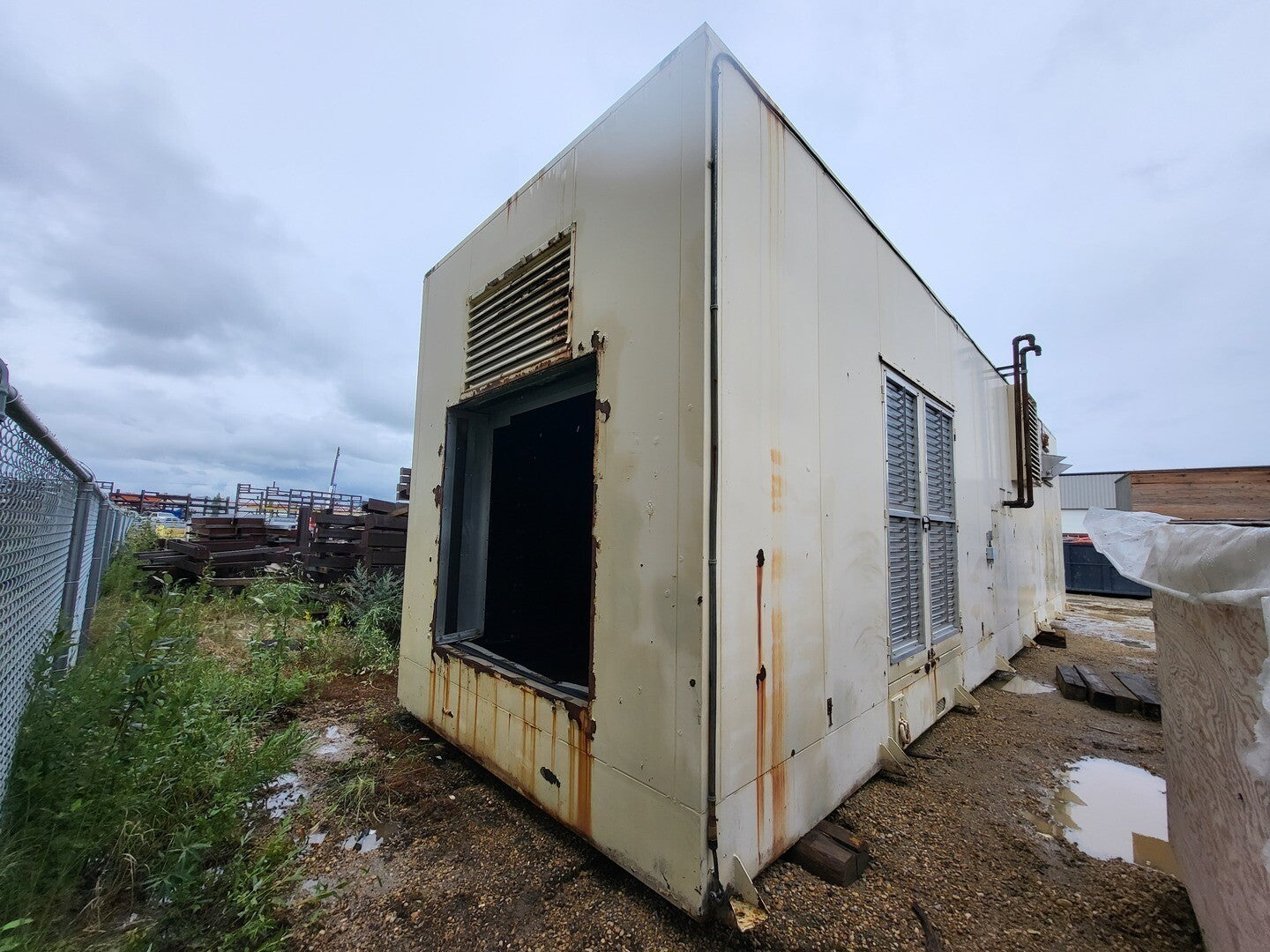

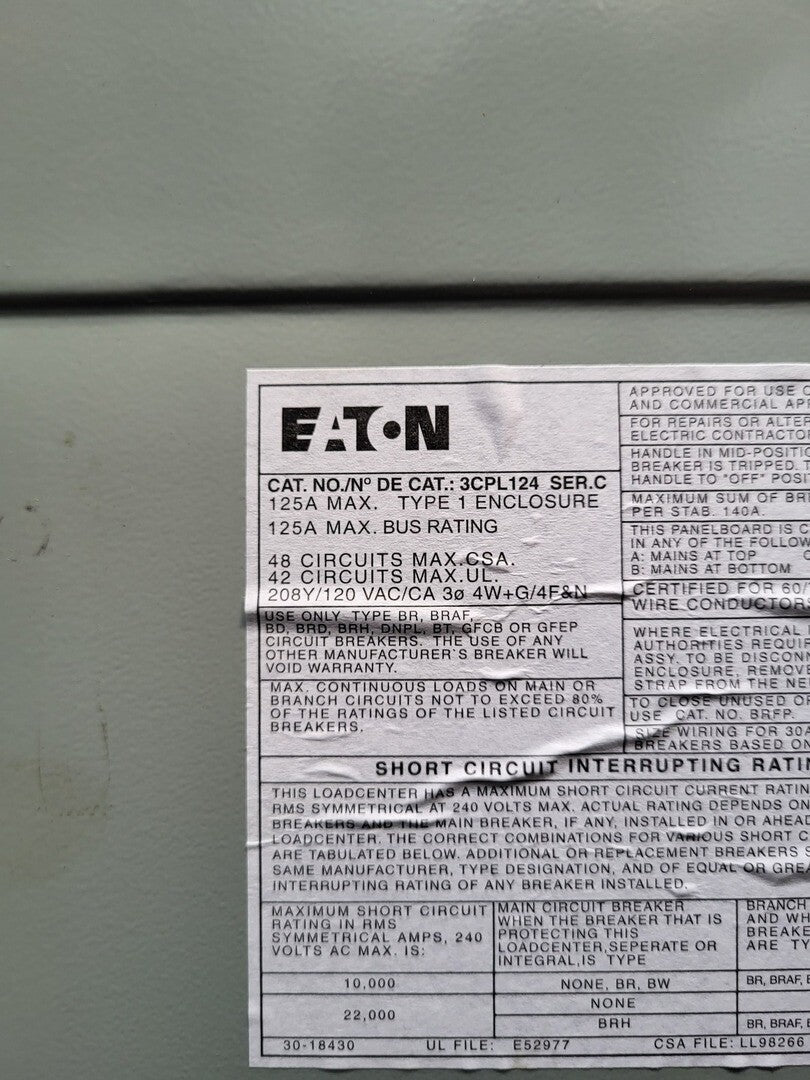

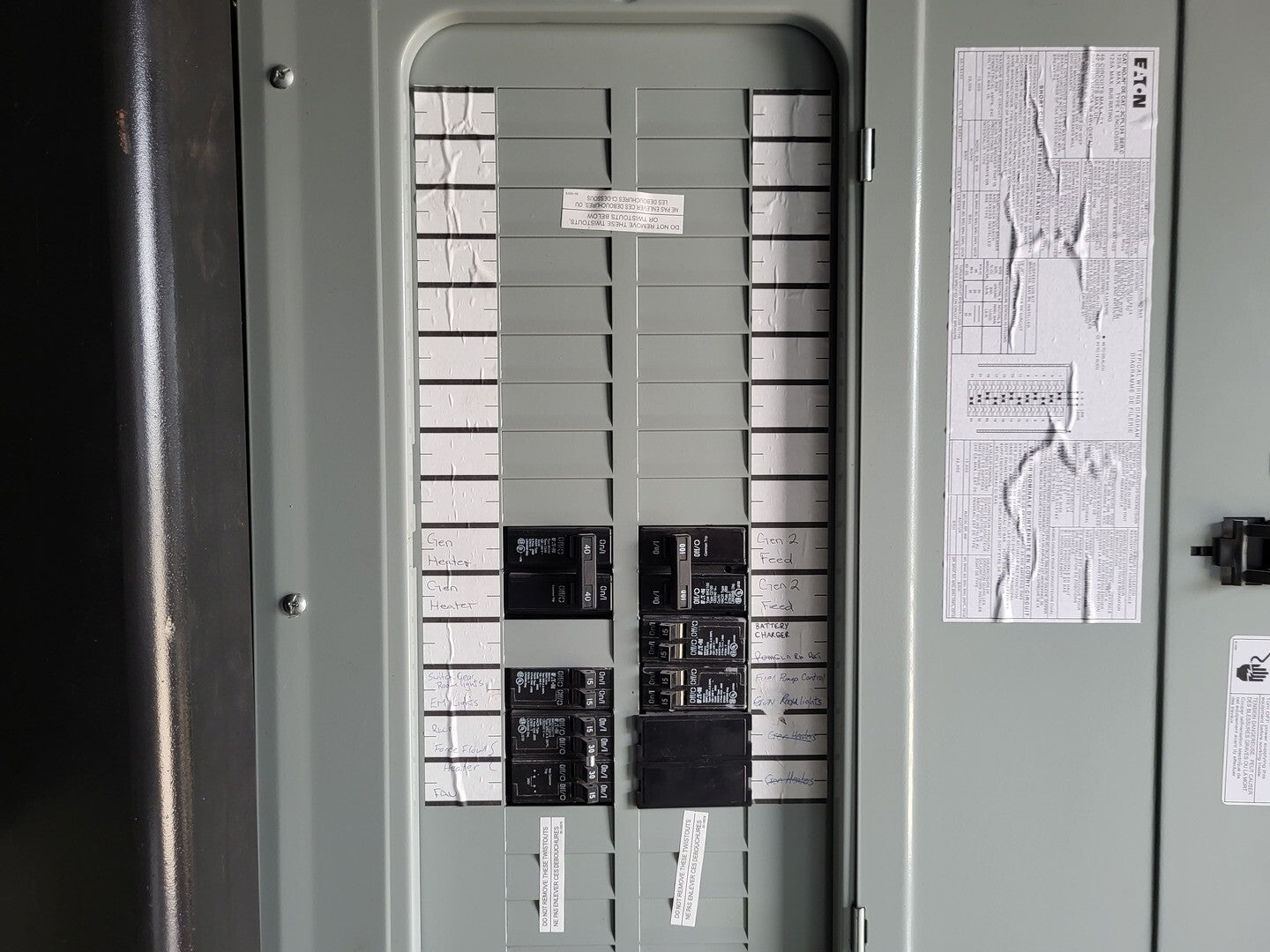

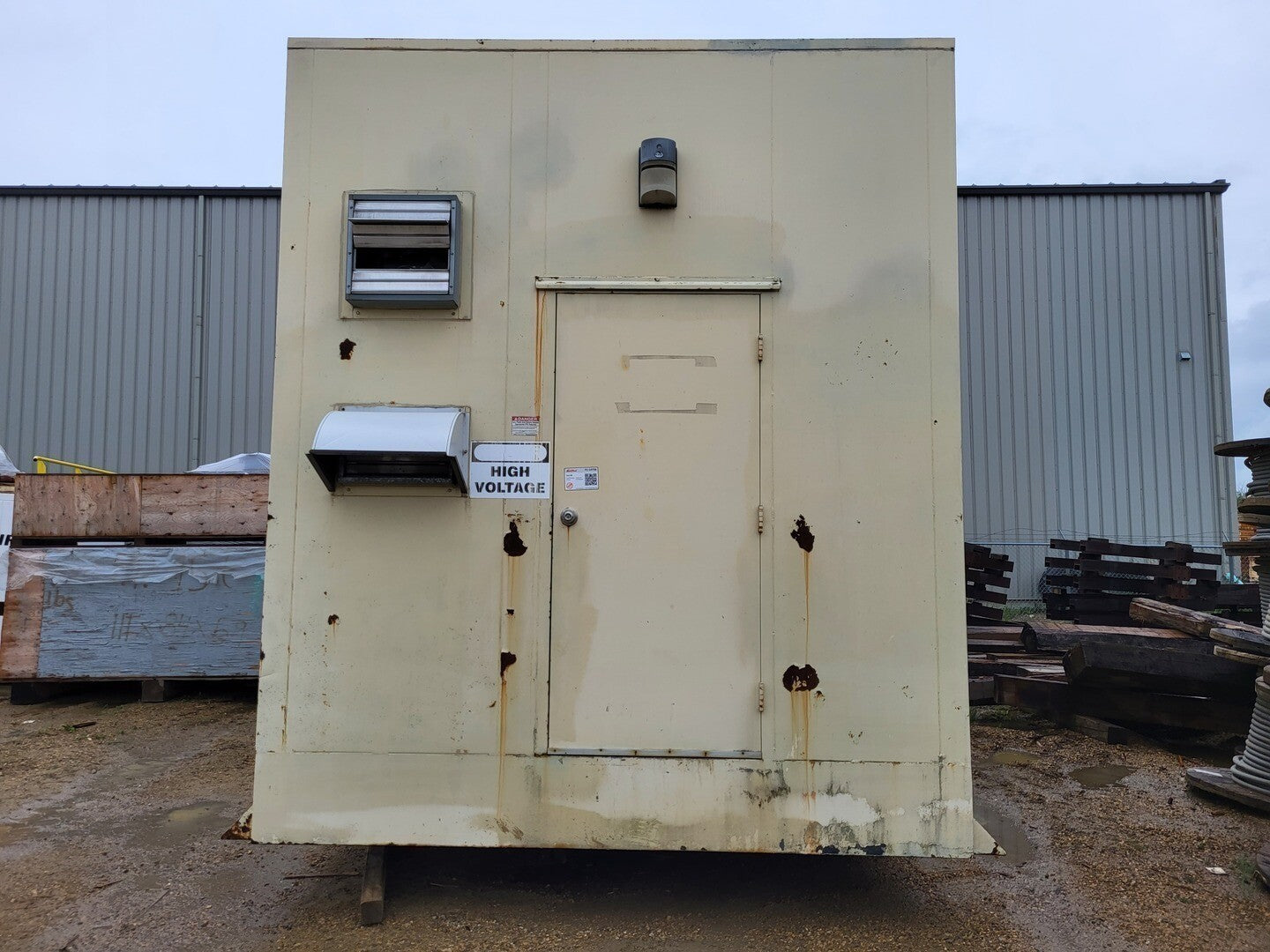

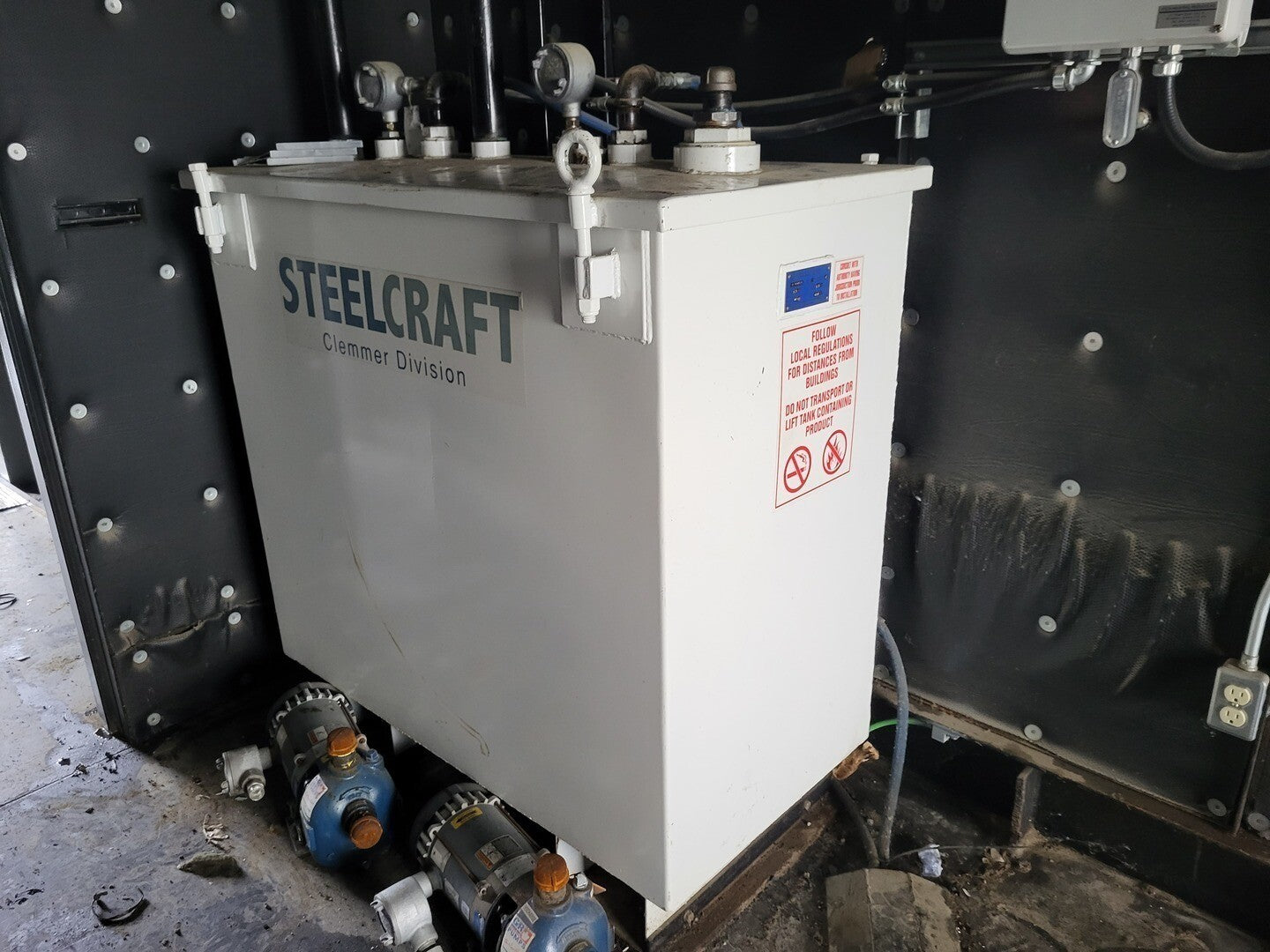

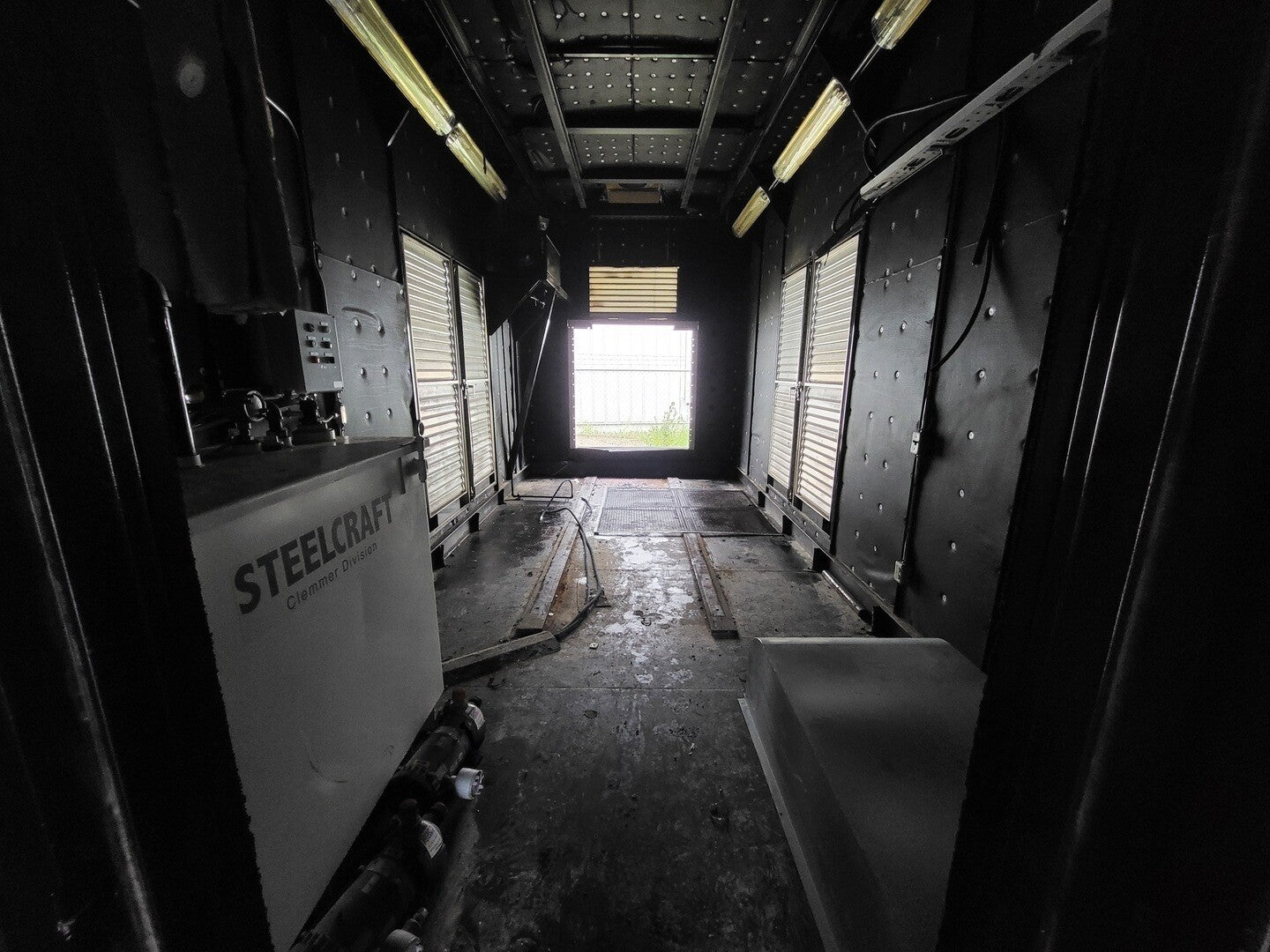

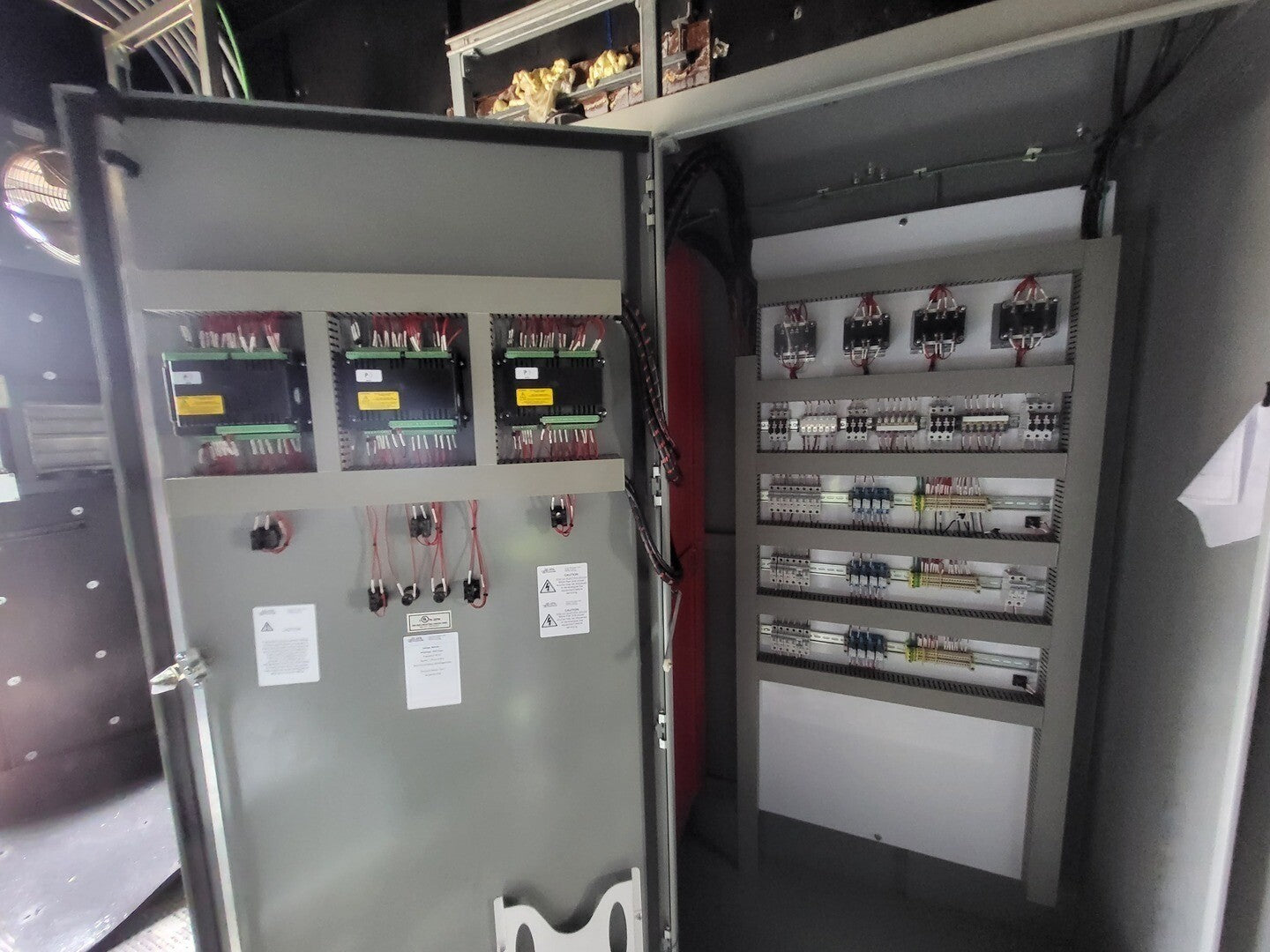

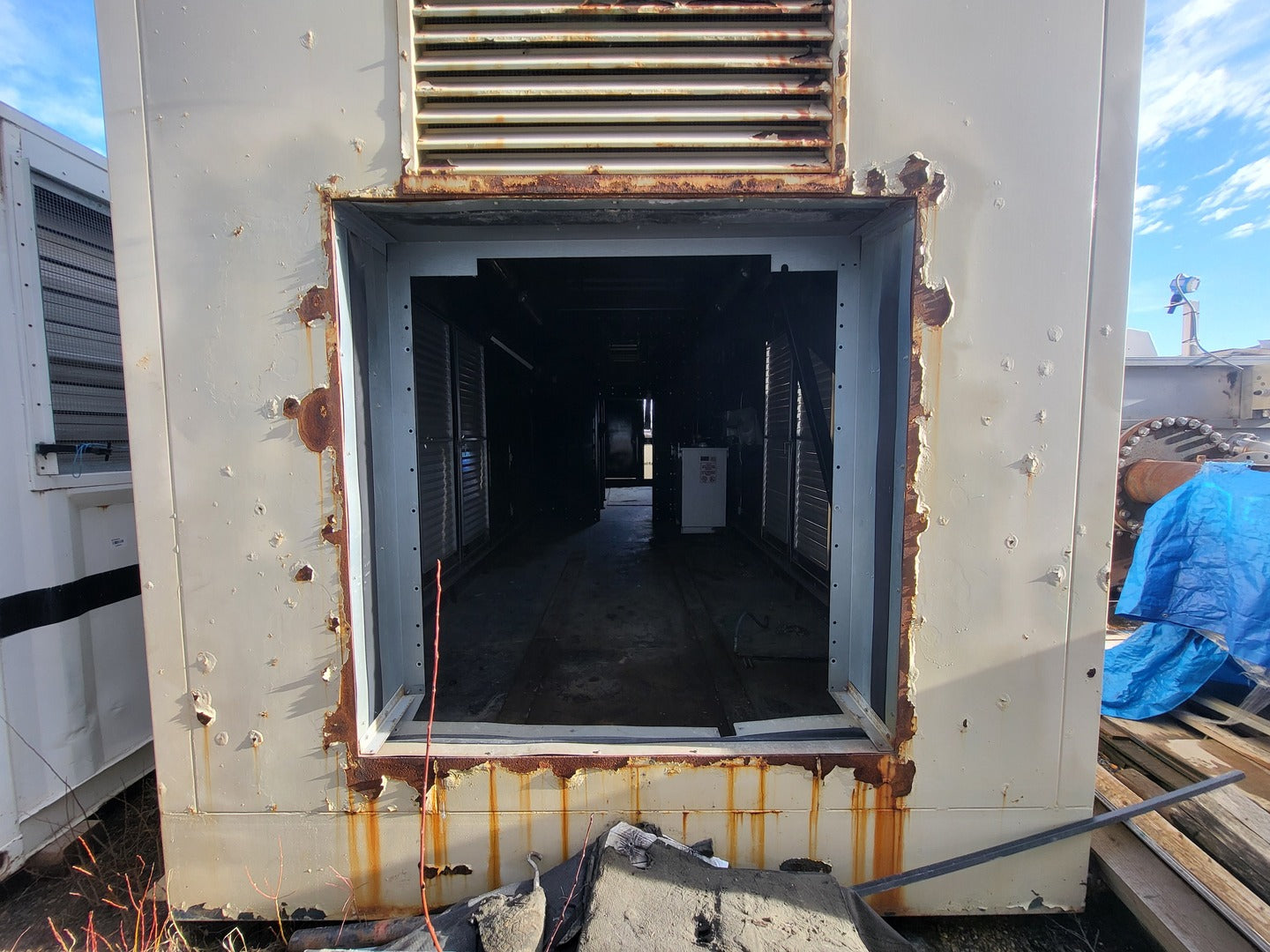

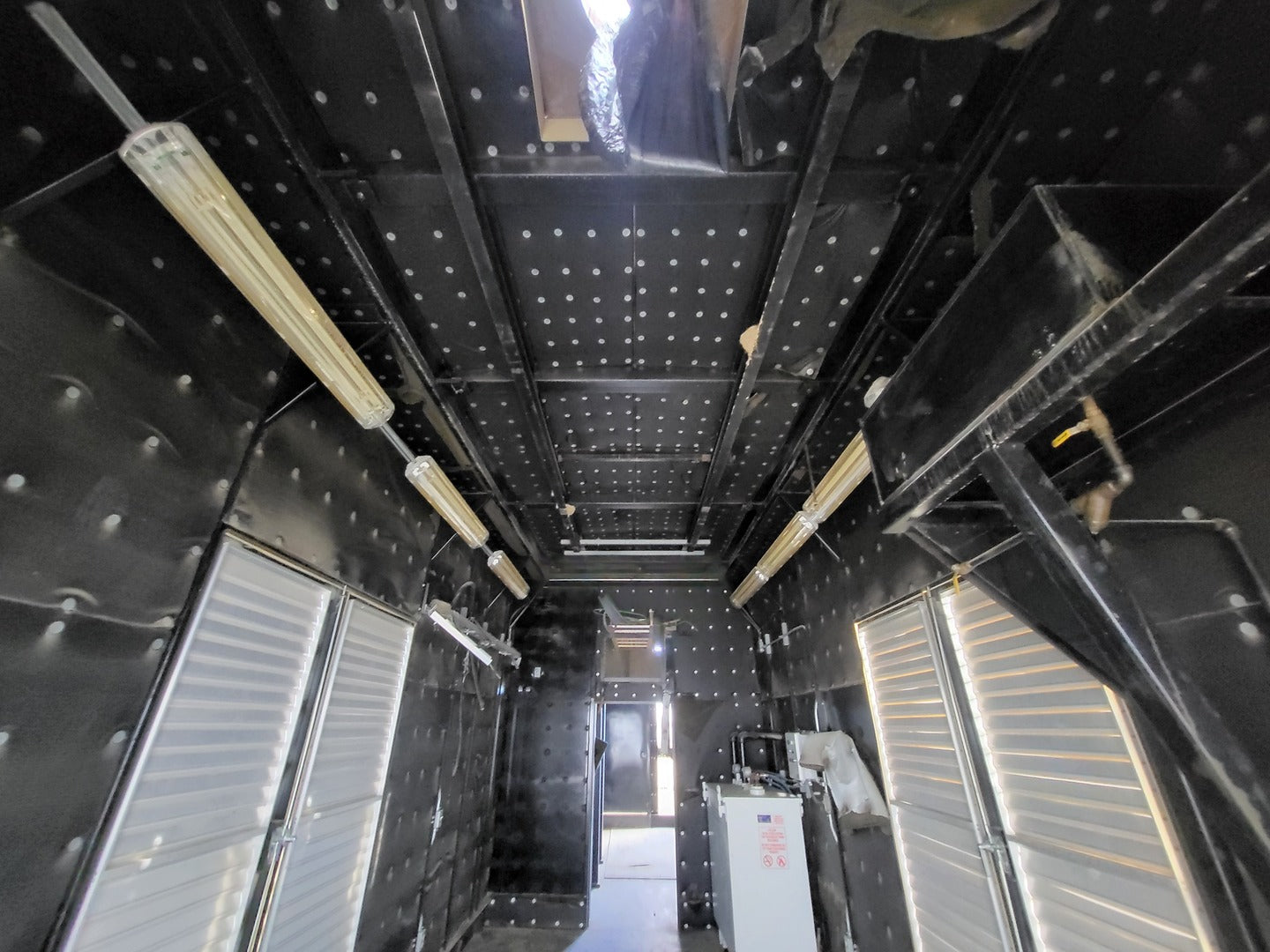

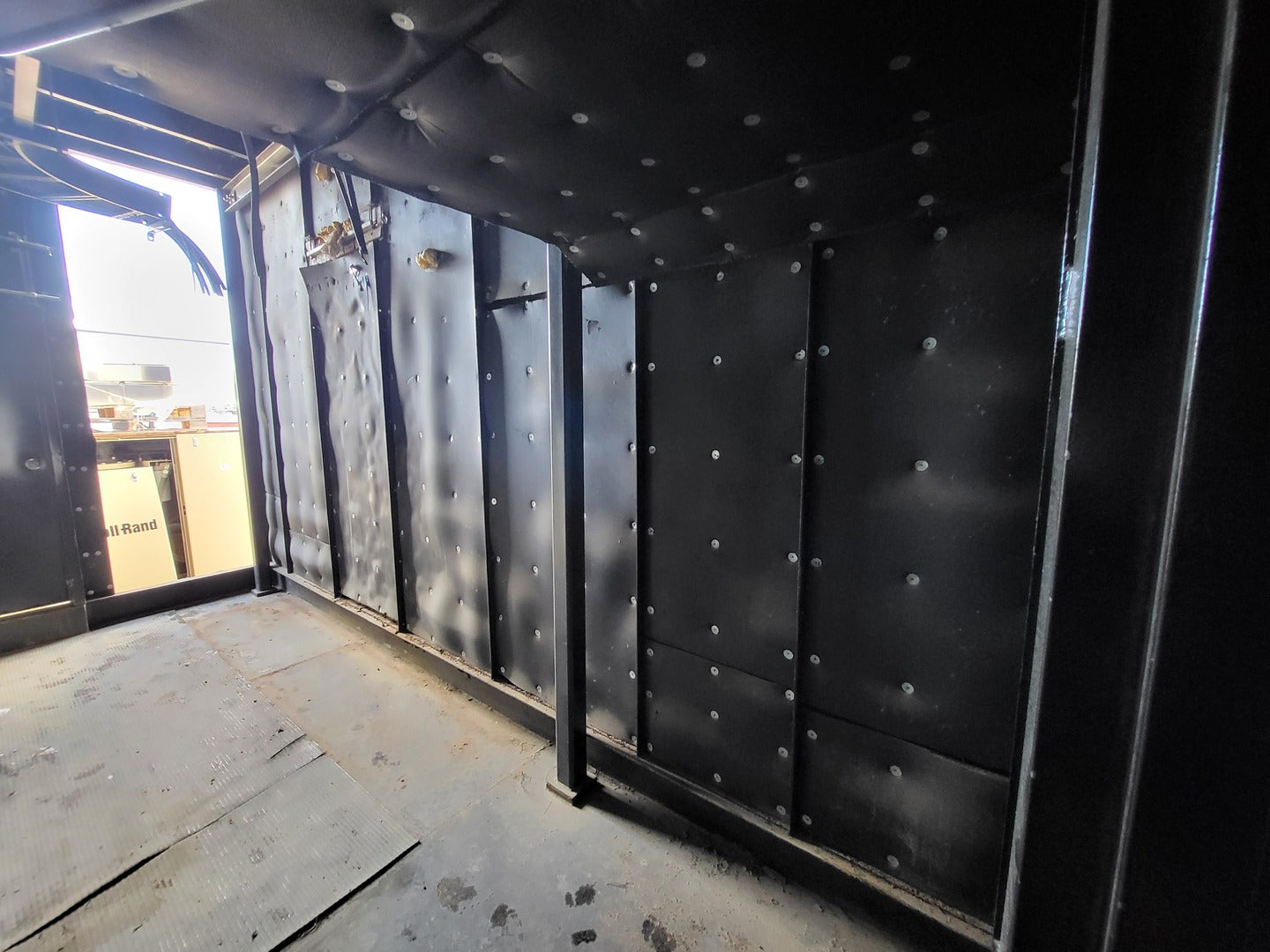

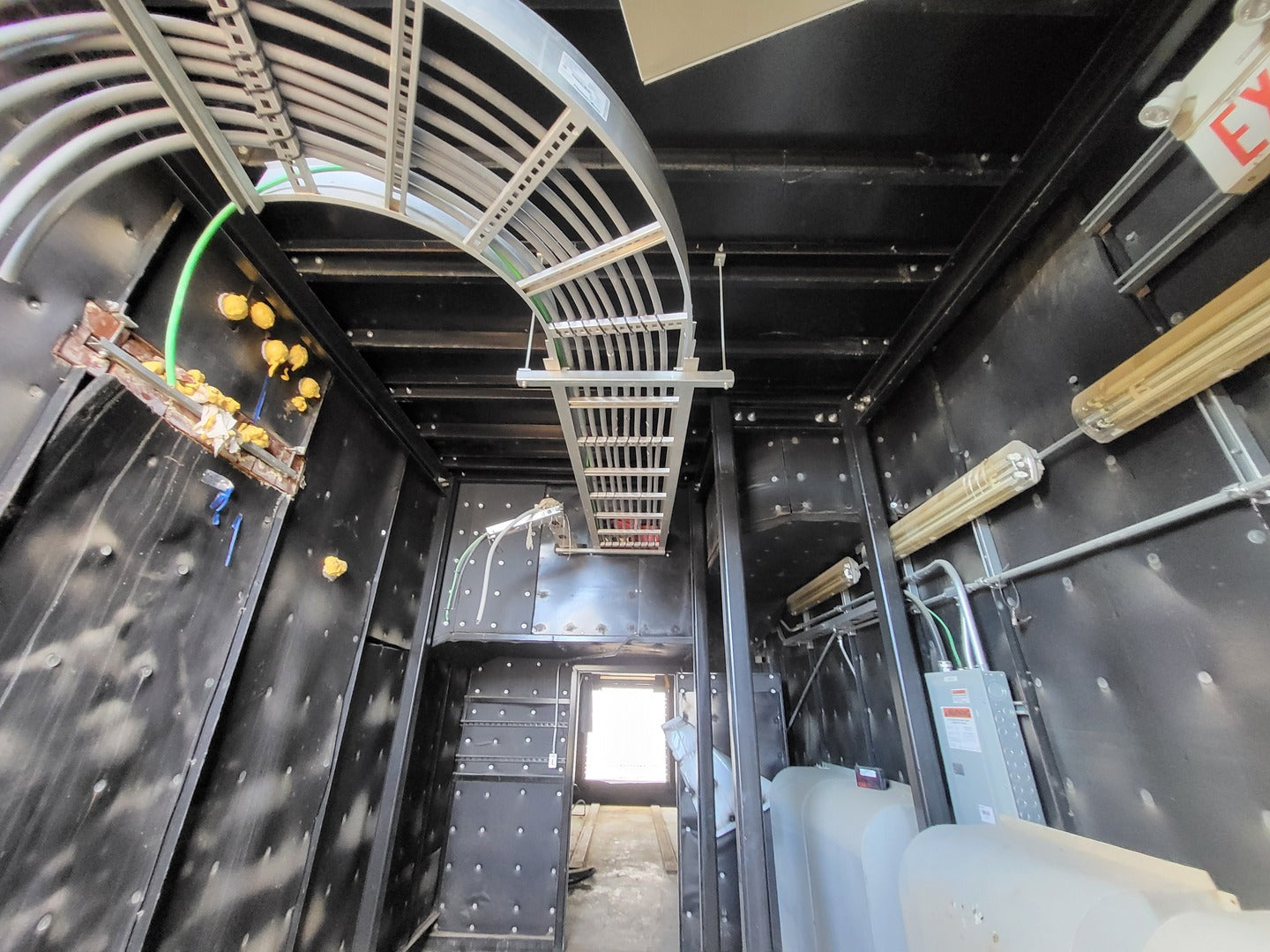

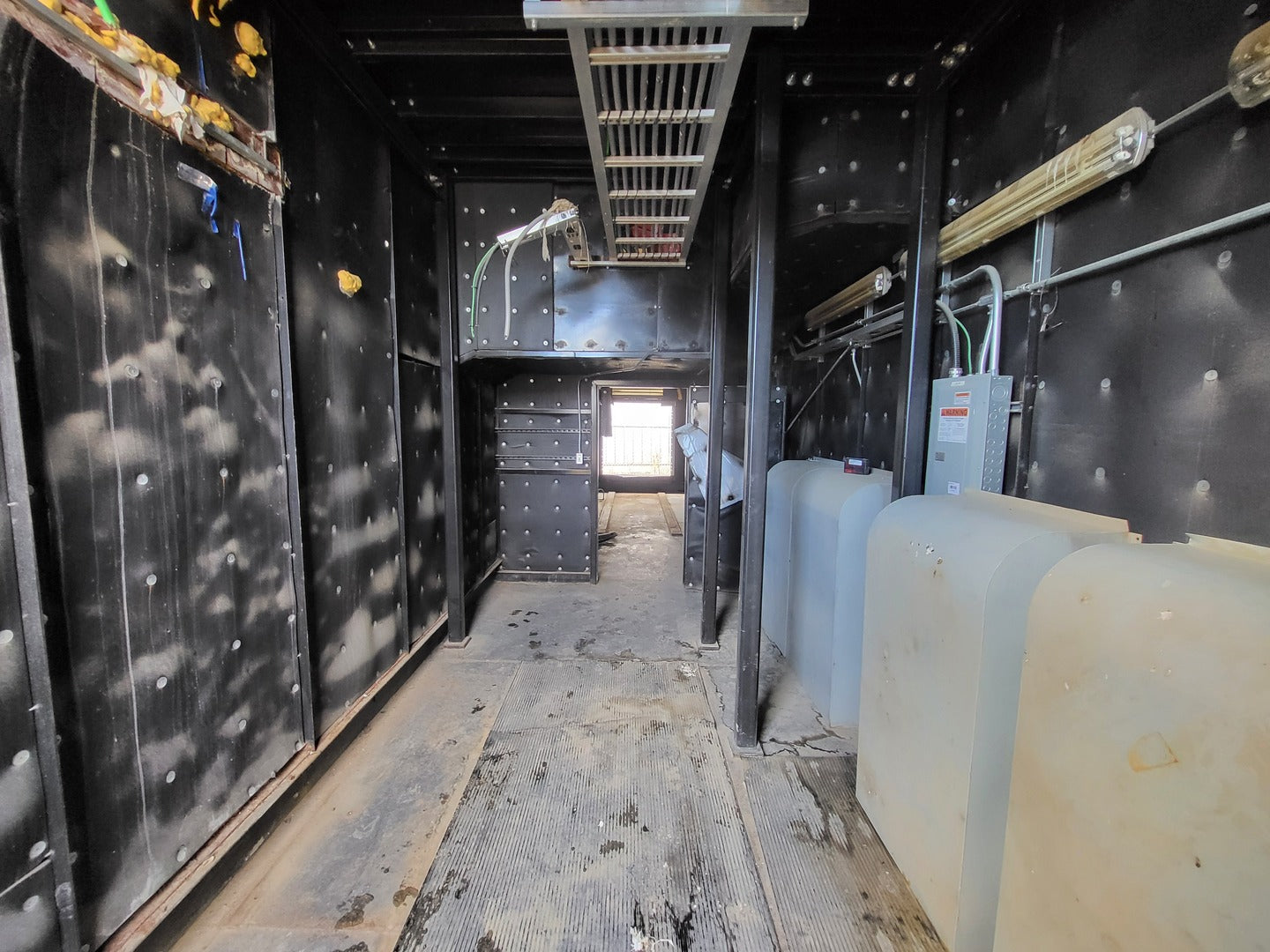

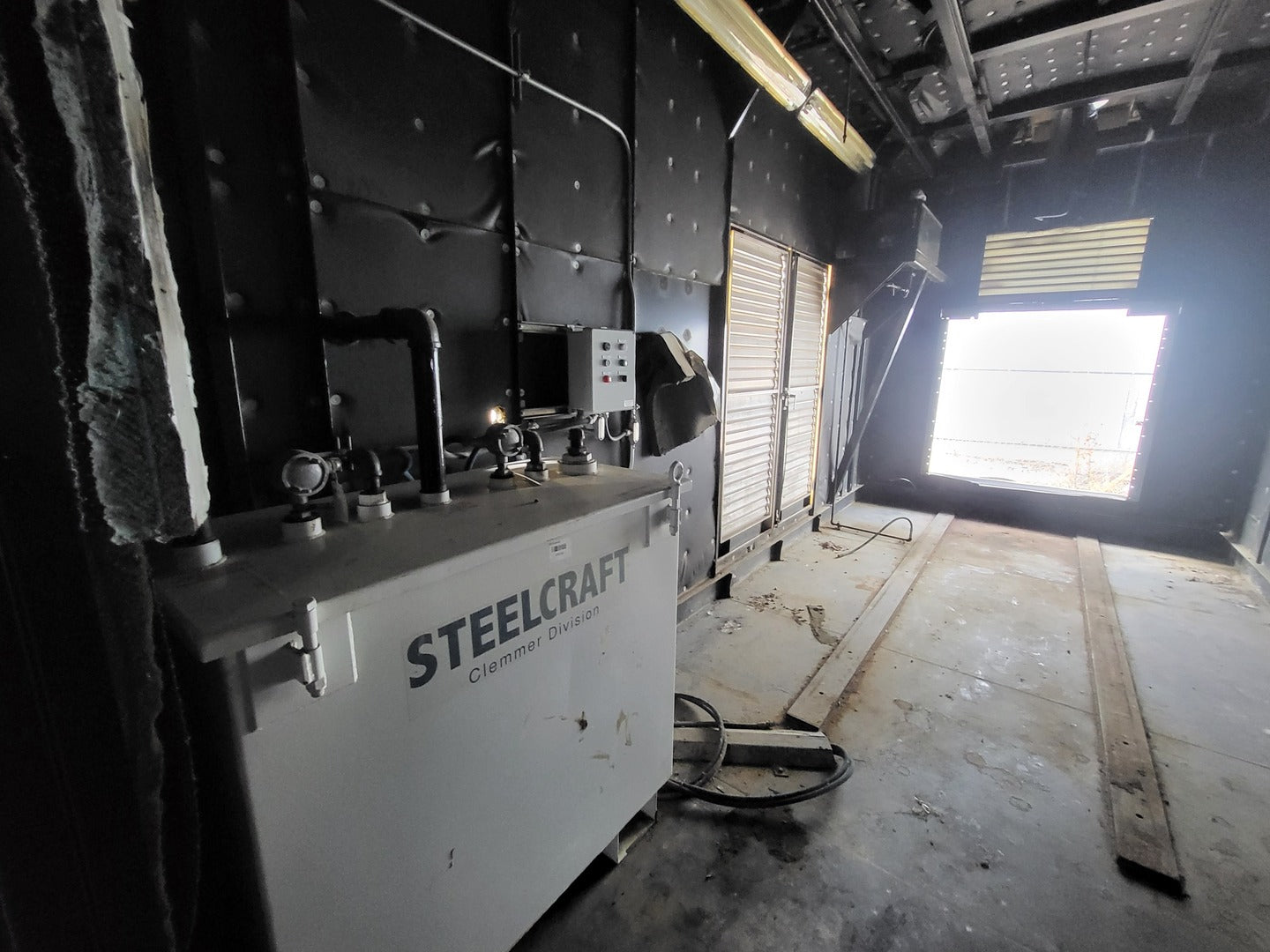

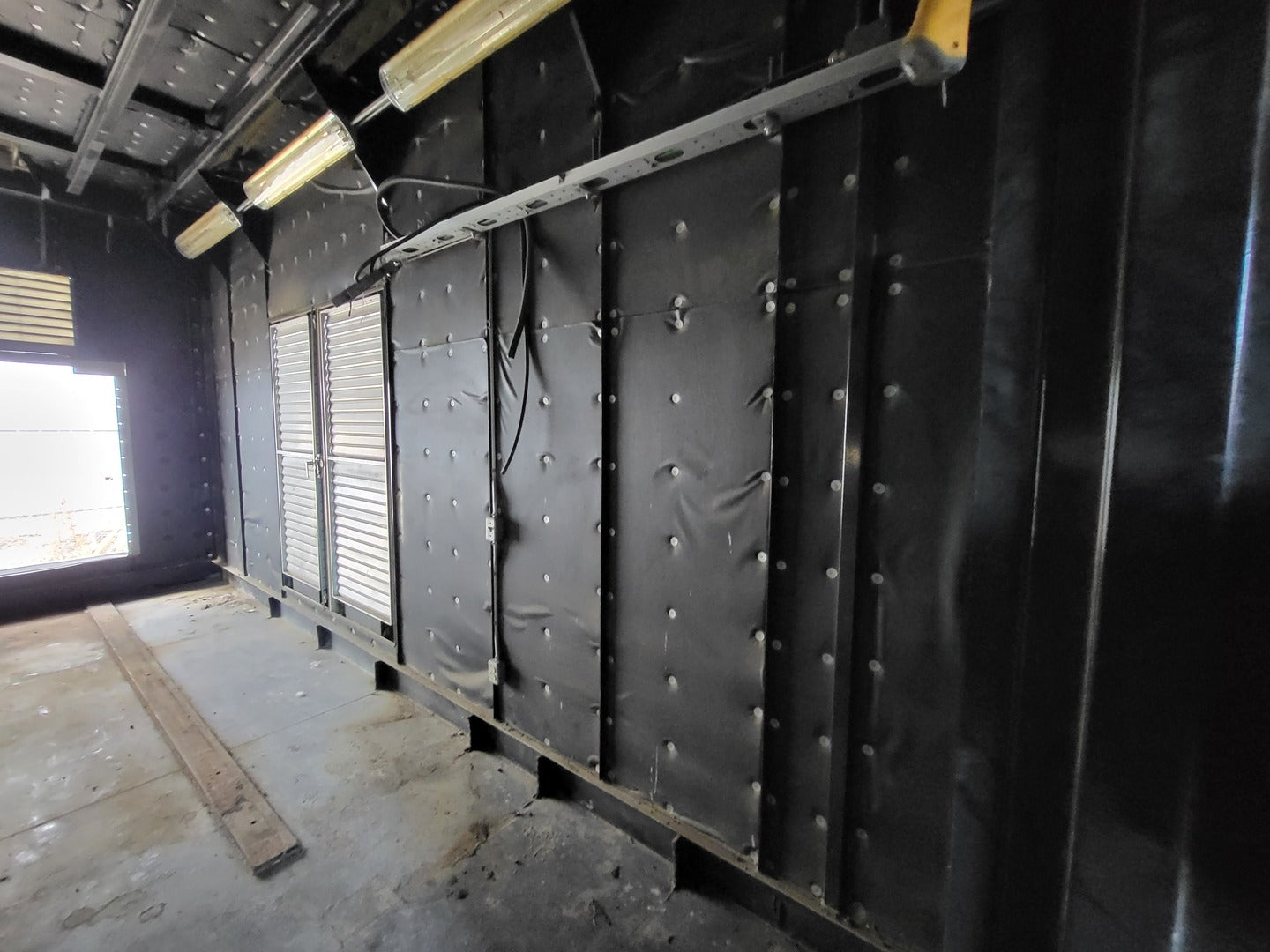

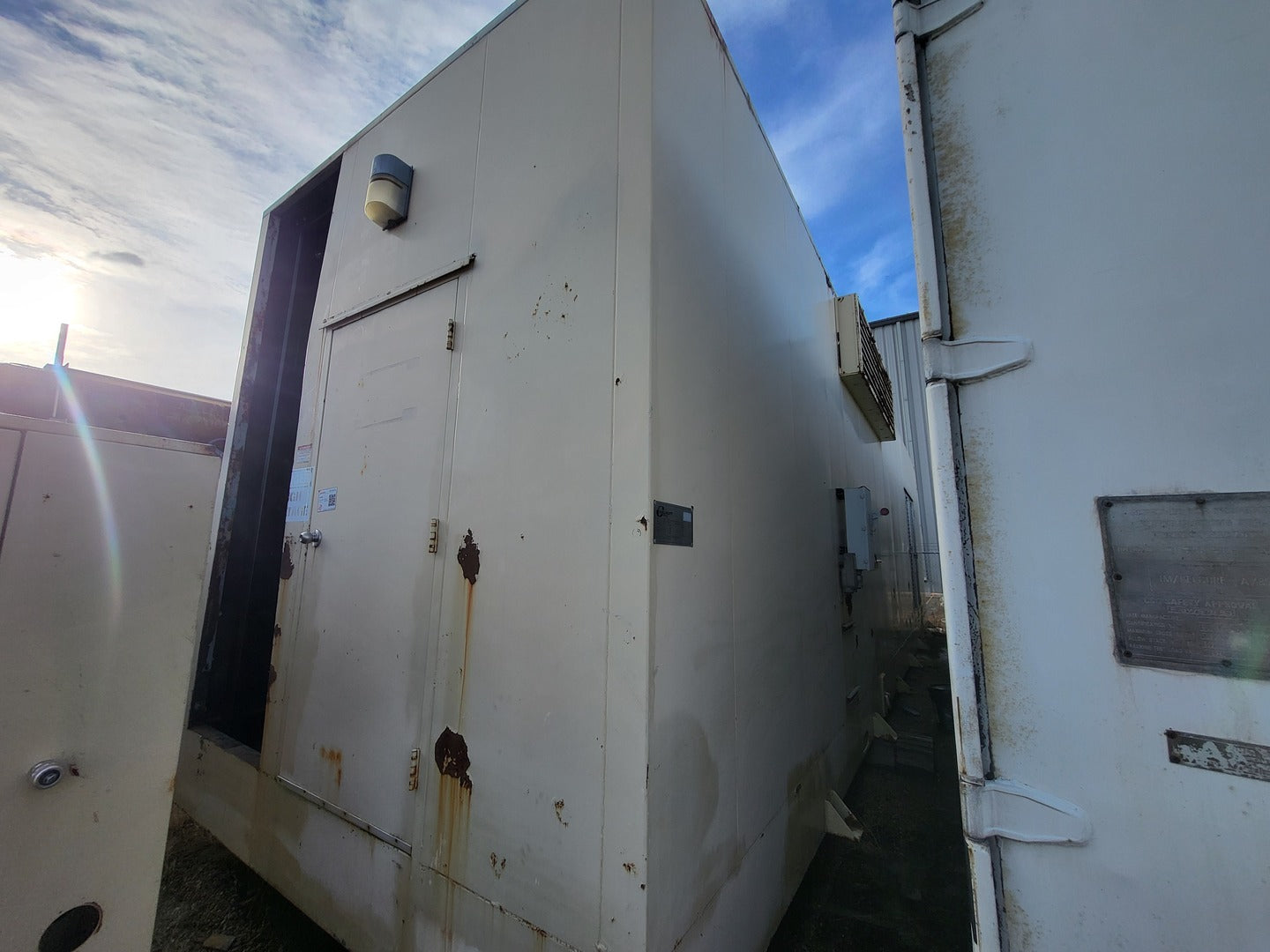

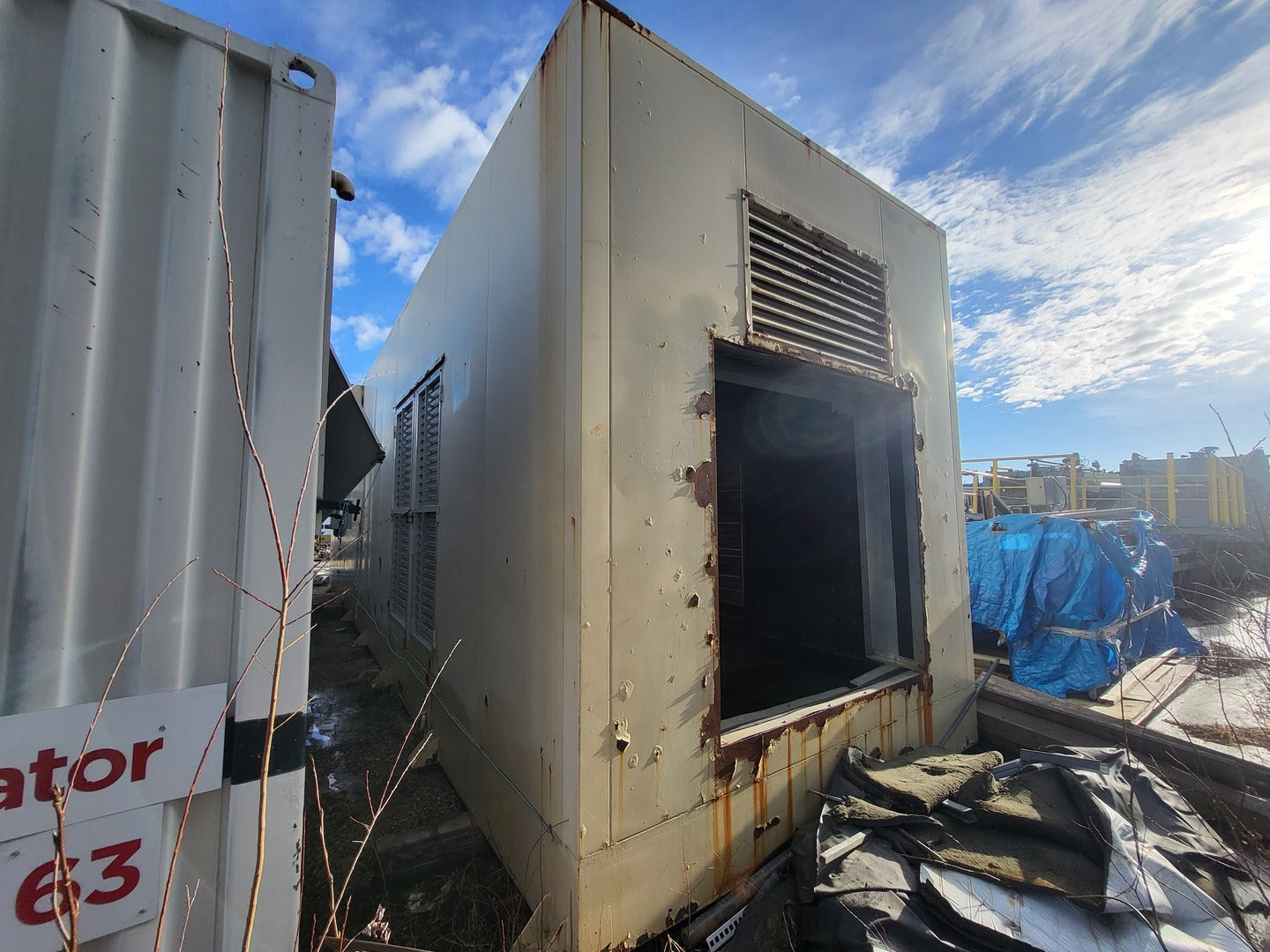

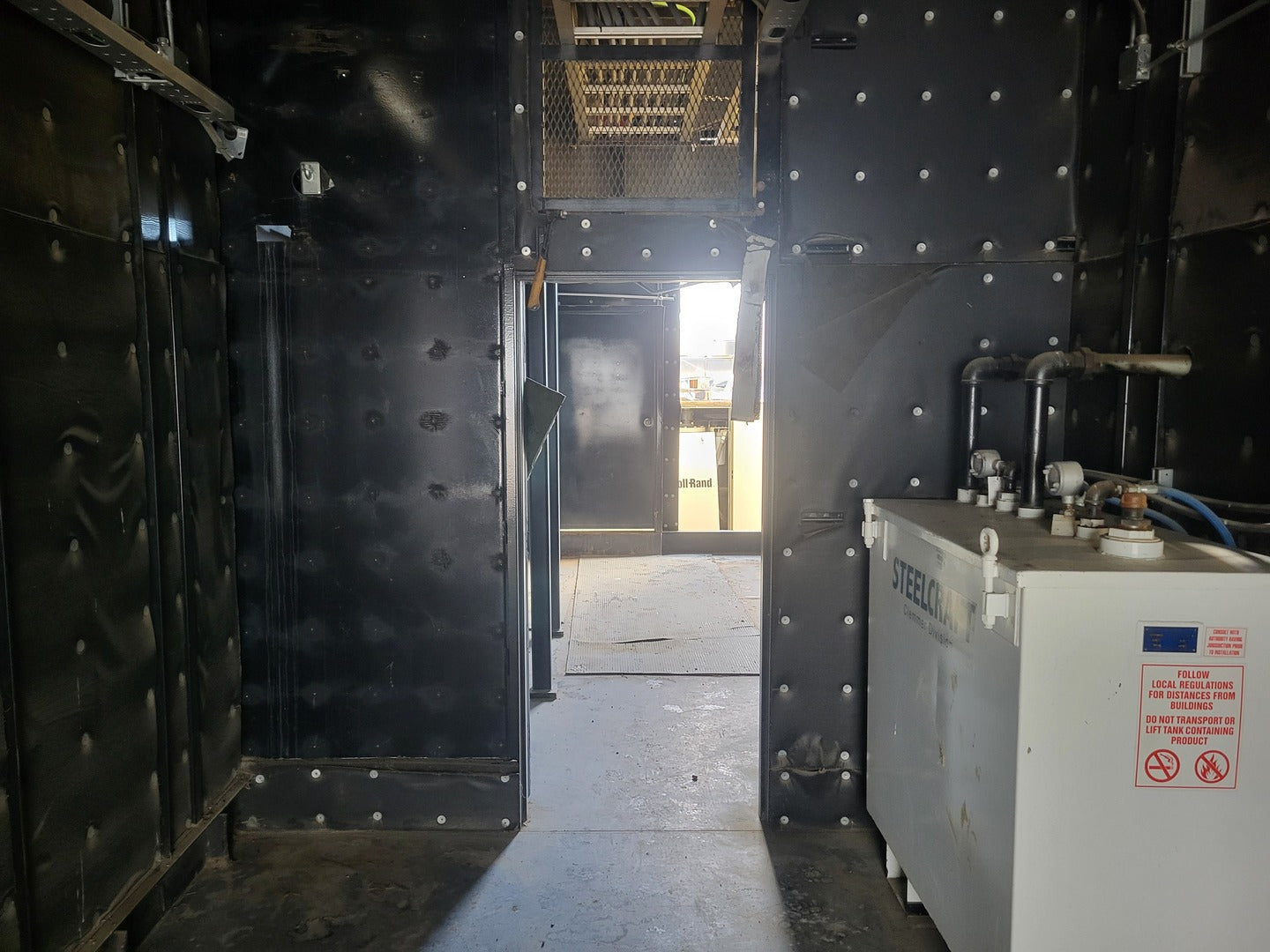

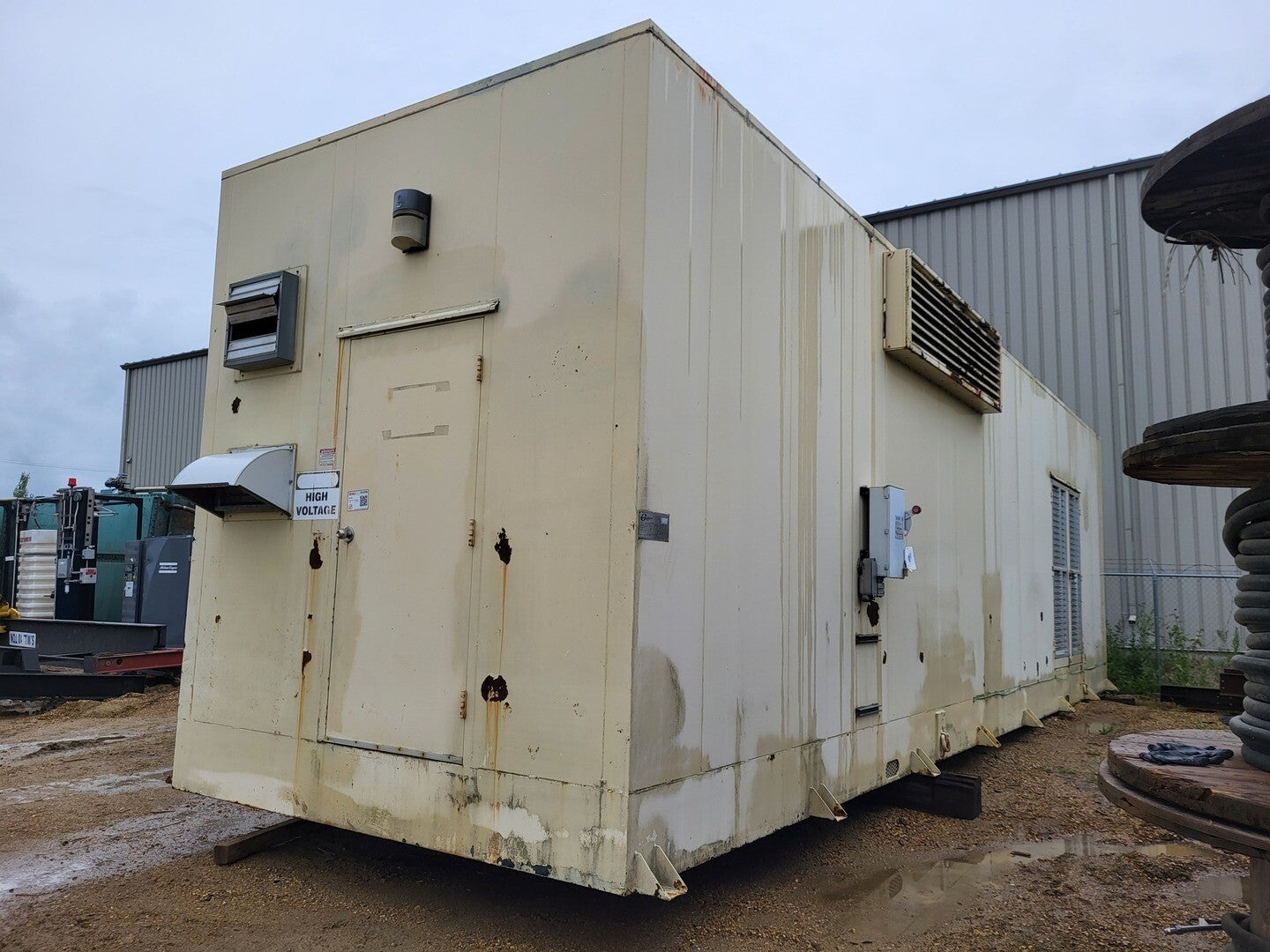

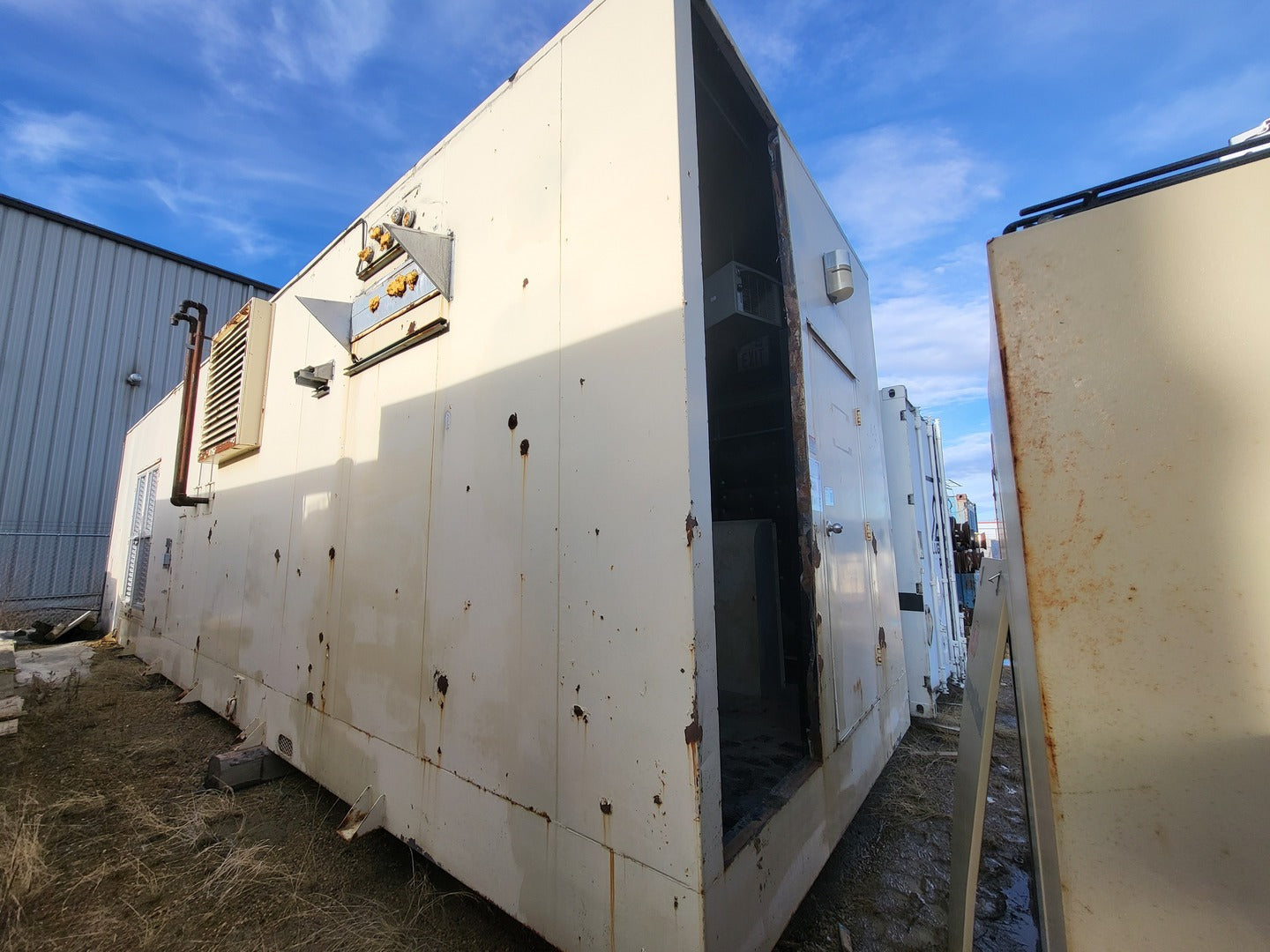

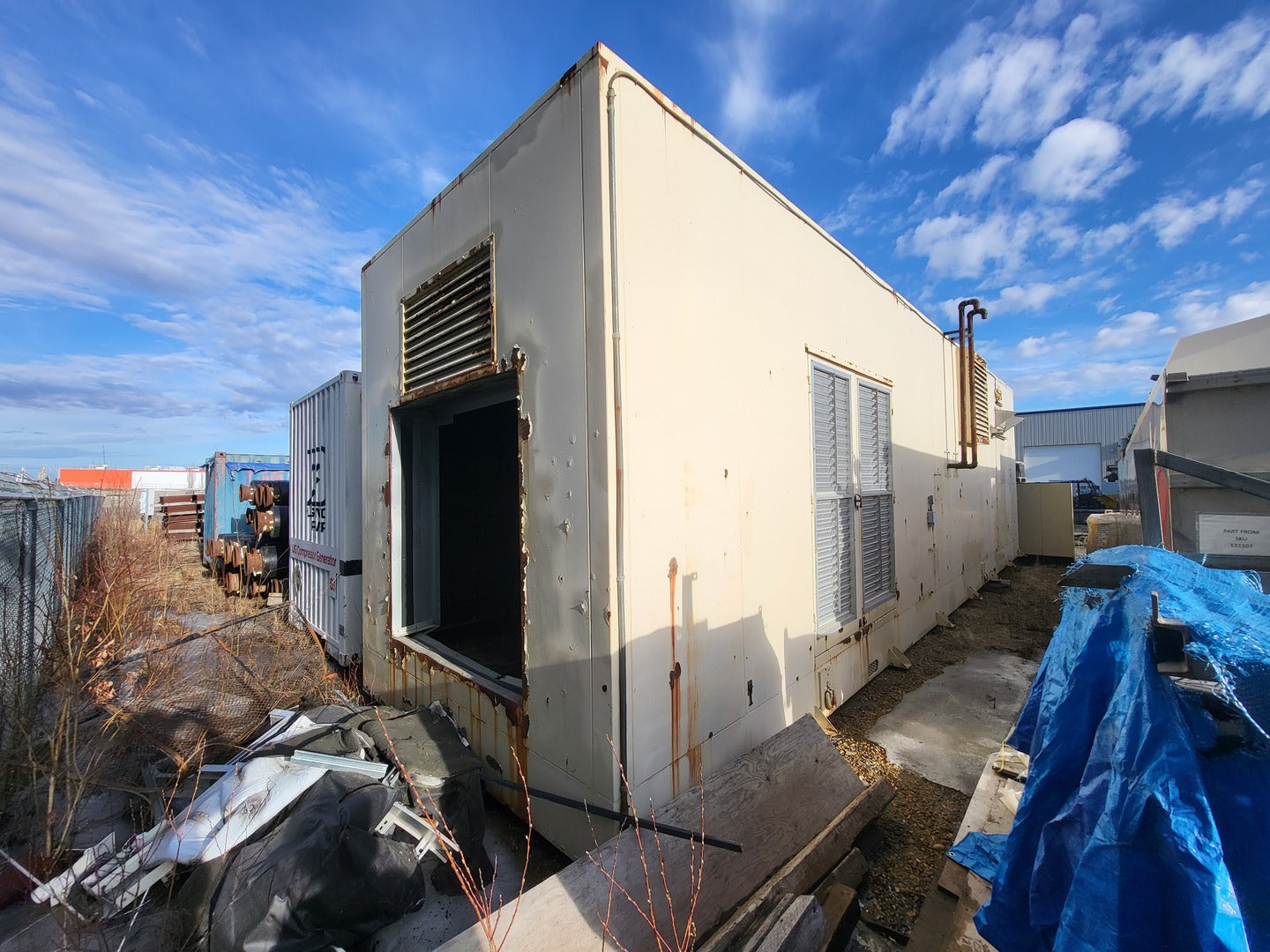

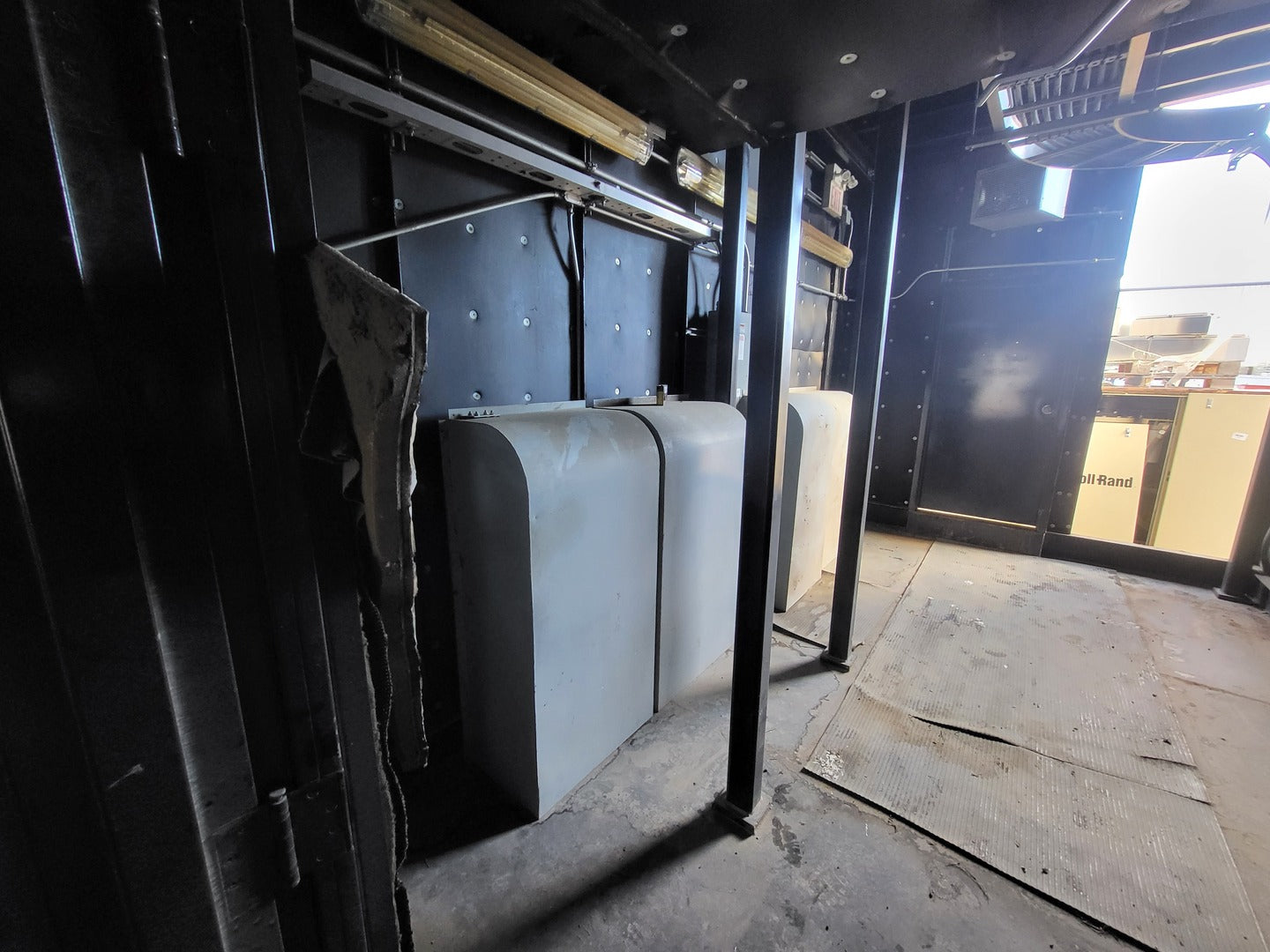

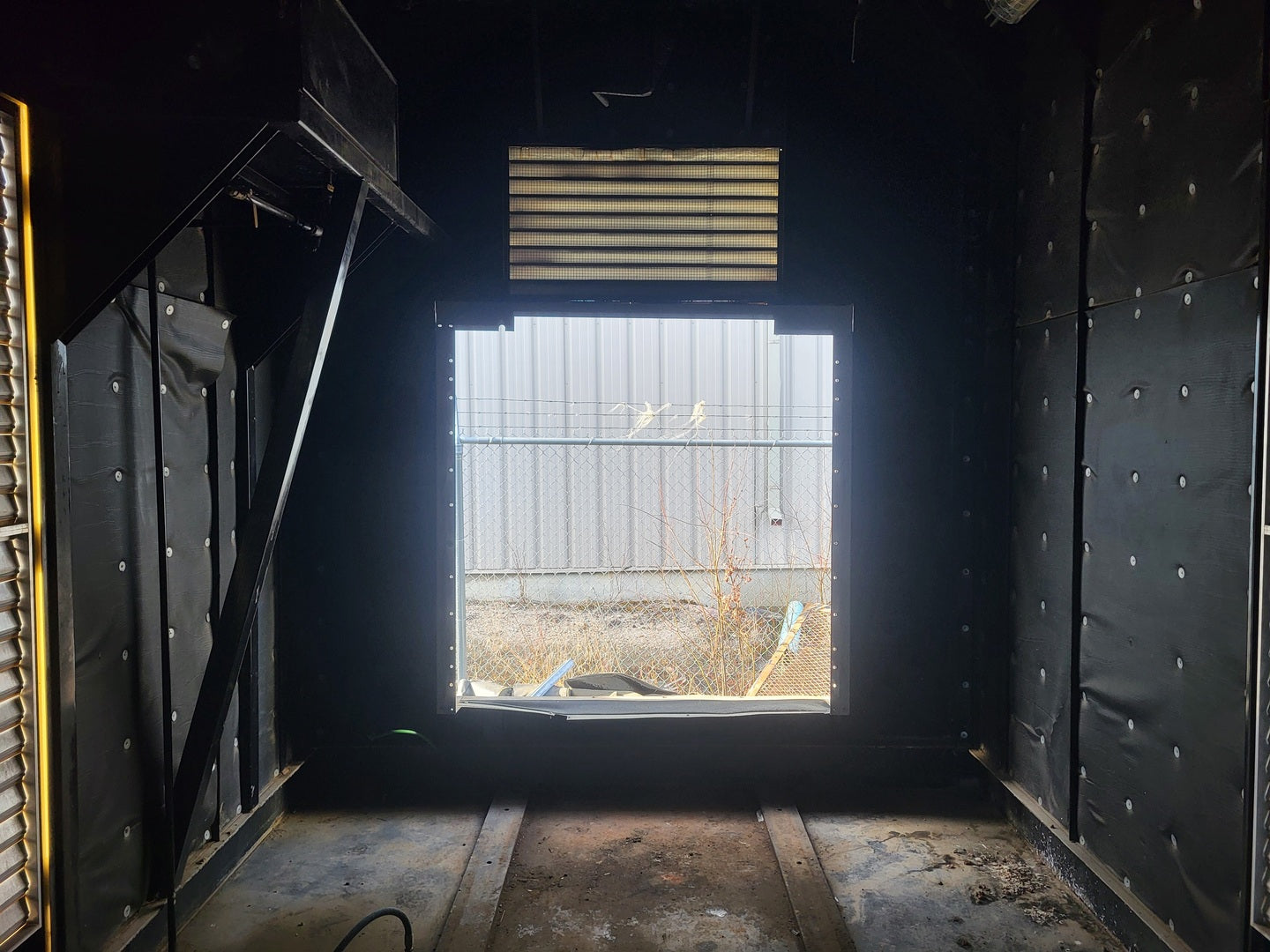

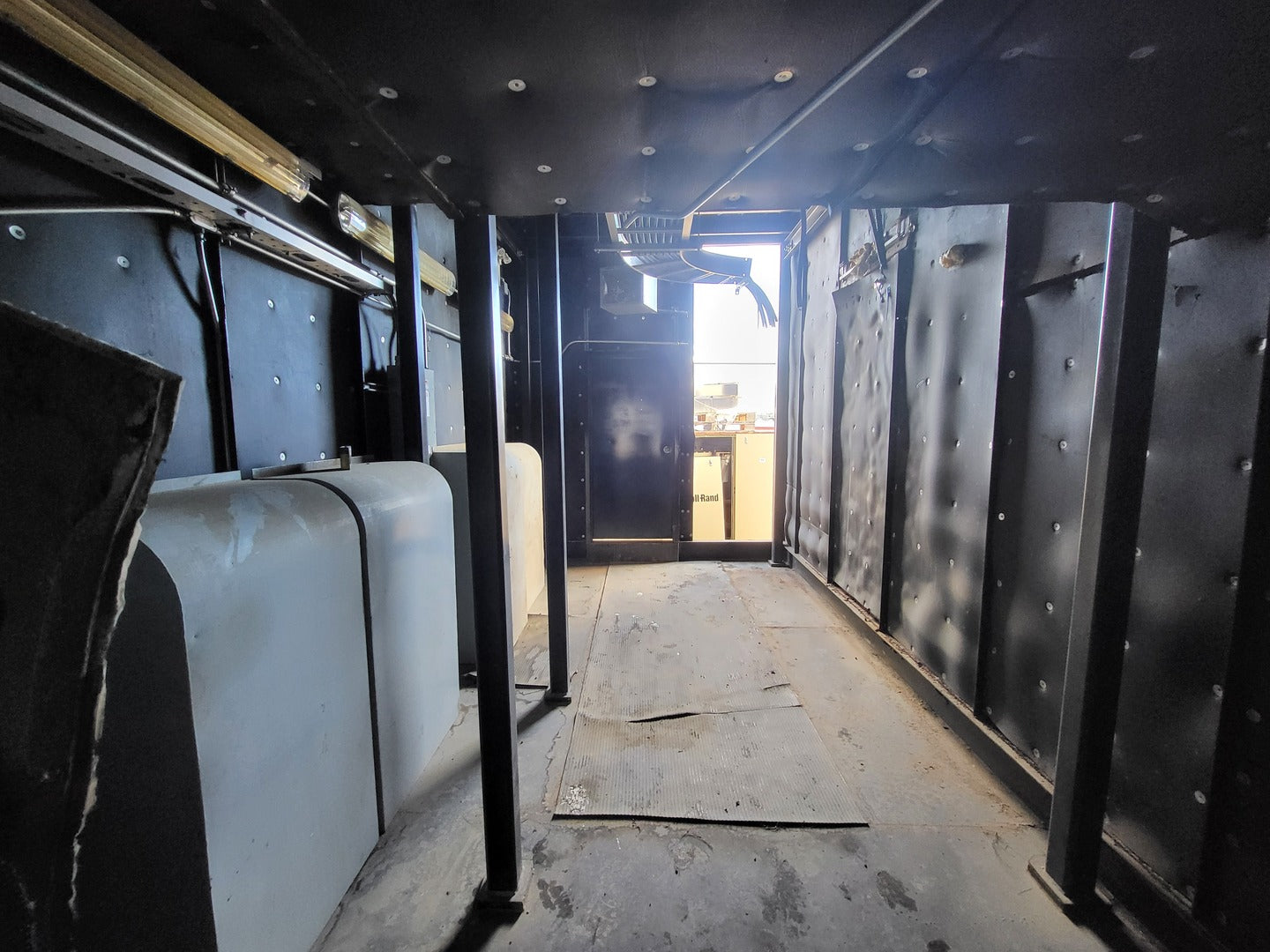

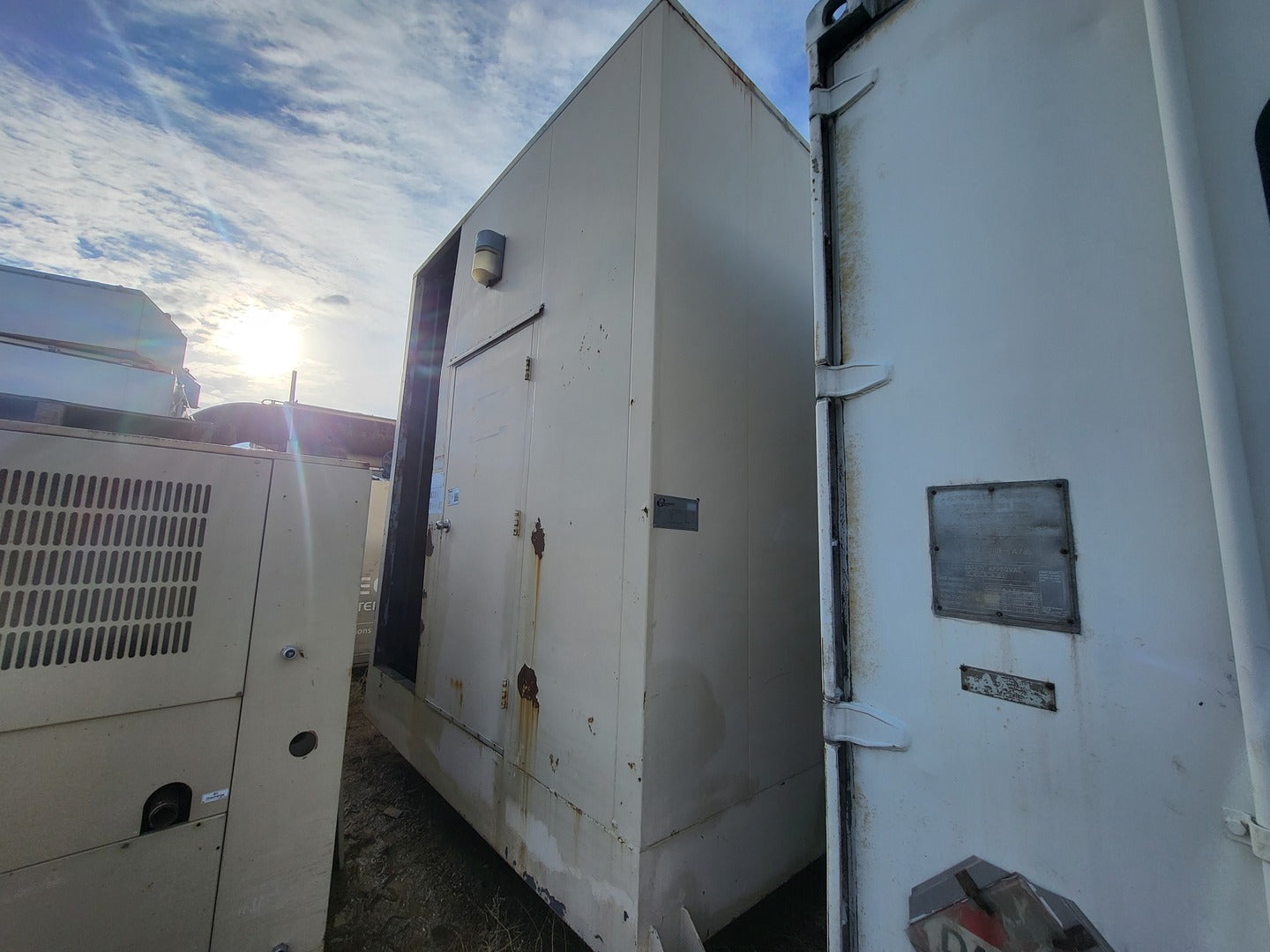

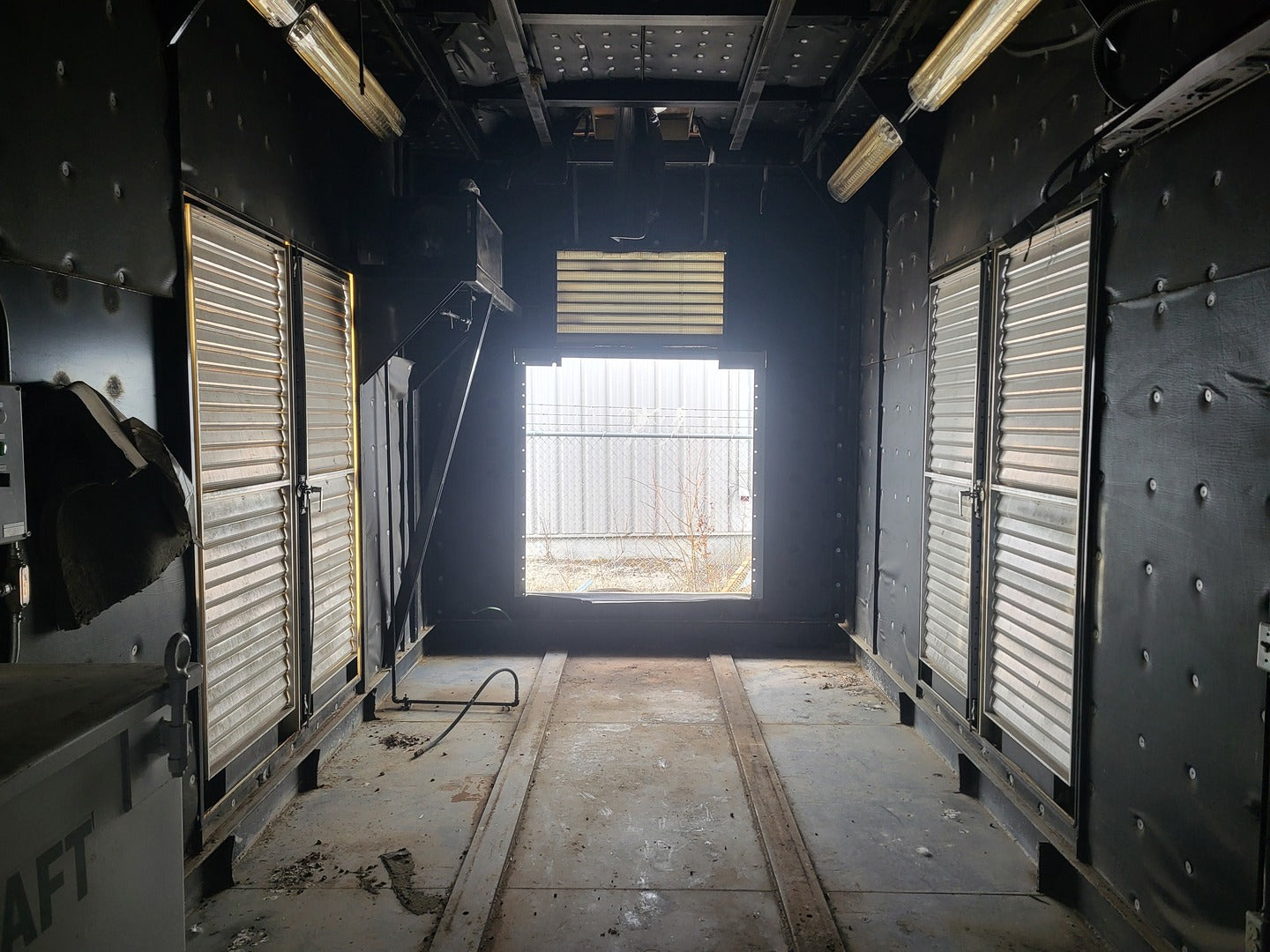

Building Dimensions: 10'W x 40'L x 13'H Approximate Weight: 70,000 lbs. Walls: Insulated Switchgear Main Breaker: 2000 A Additional Breakers: (3) at 1000 A each Control Panel Ratings Voltage: 600 VAC Amperage: 2000 A System: 3-phase, 4-wire Short Circuit Rating: 50 kAIC @ 600 VAC Enclosure Rating: Type 1 Eaton Breaker Panelboard Max. Amps: 125 A Enclosure: Type 1 Circuits: 48 circuits max. CSA / 42 circuits max. UL Steelcraft Aboveground Steel Tank Application: For fuel oil and lubricating oil - CAN/ULC-S602-07 Inner End/Side Thickness: 2.5 mm Outer End/Side Thickness: 2.5 mm Tank Capacity: 680 L Gorman-Rupp Pumps Qty: 2 Horsepower: 1/2 hp Electrical: 1-ph, 115/230 V, 8.4/4.2 FLA Pump Control Panel Horsepower: 1/2 hp Electrical: 1-ph, 120 VAC, 9.8 A Horn: 95 dB @ 1 ft. |
