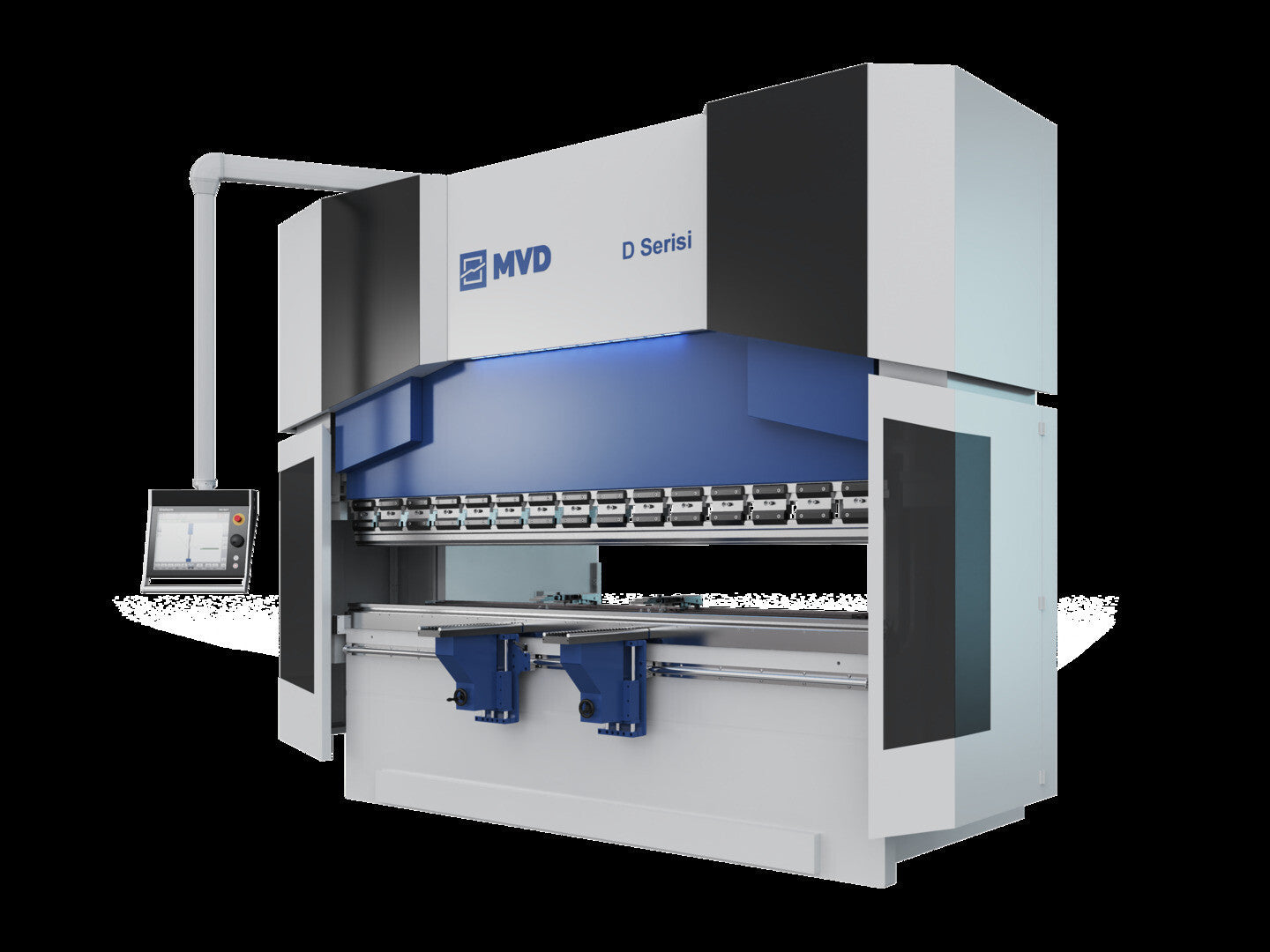

320 ton iBend Hydraulic Press Brake D-Series D320-3700

SKU: 29794
Price:
$179,790

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model D320-3700
Condition Used
General
Bed Length 3700 mm / 145.67 in.
Tons 320 ton
Brake Type Hydraulic
CNC Yes
Electrical
Voltage 600 volts
Phase 3-phase
Other Specifications
Throat: 510 mm
Daylight: 635 mm
Stroke: 410 mm
Distance between columns: 3200 mm

Features
  • Y1, Y2, X, R (4-Axes CNC)
  • ESA S 650 CNC Control Unit
  • MVD X-Axis Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm
  • 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide
  • European Style Quick clamp Promecam top tool holder E7

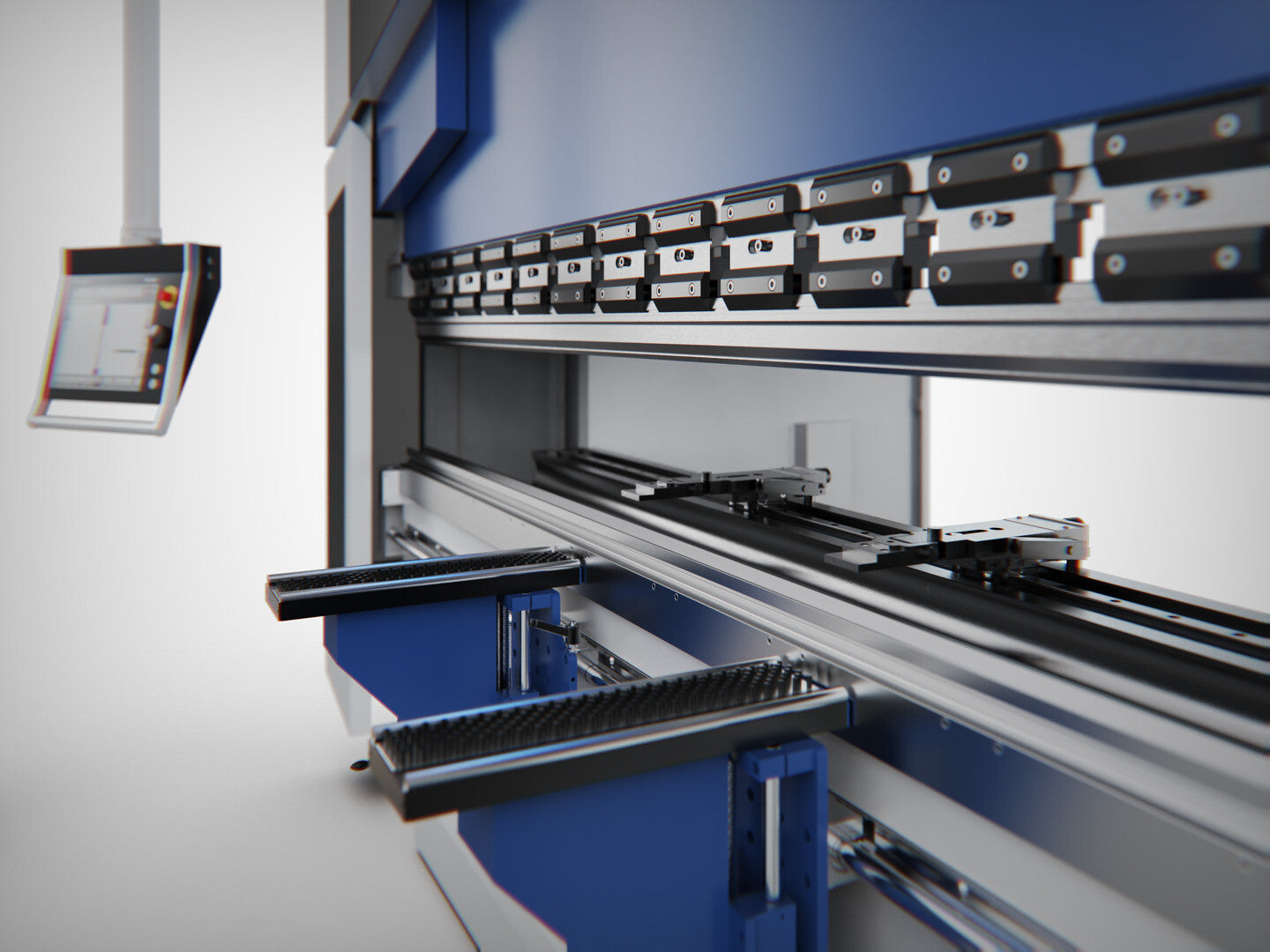

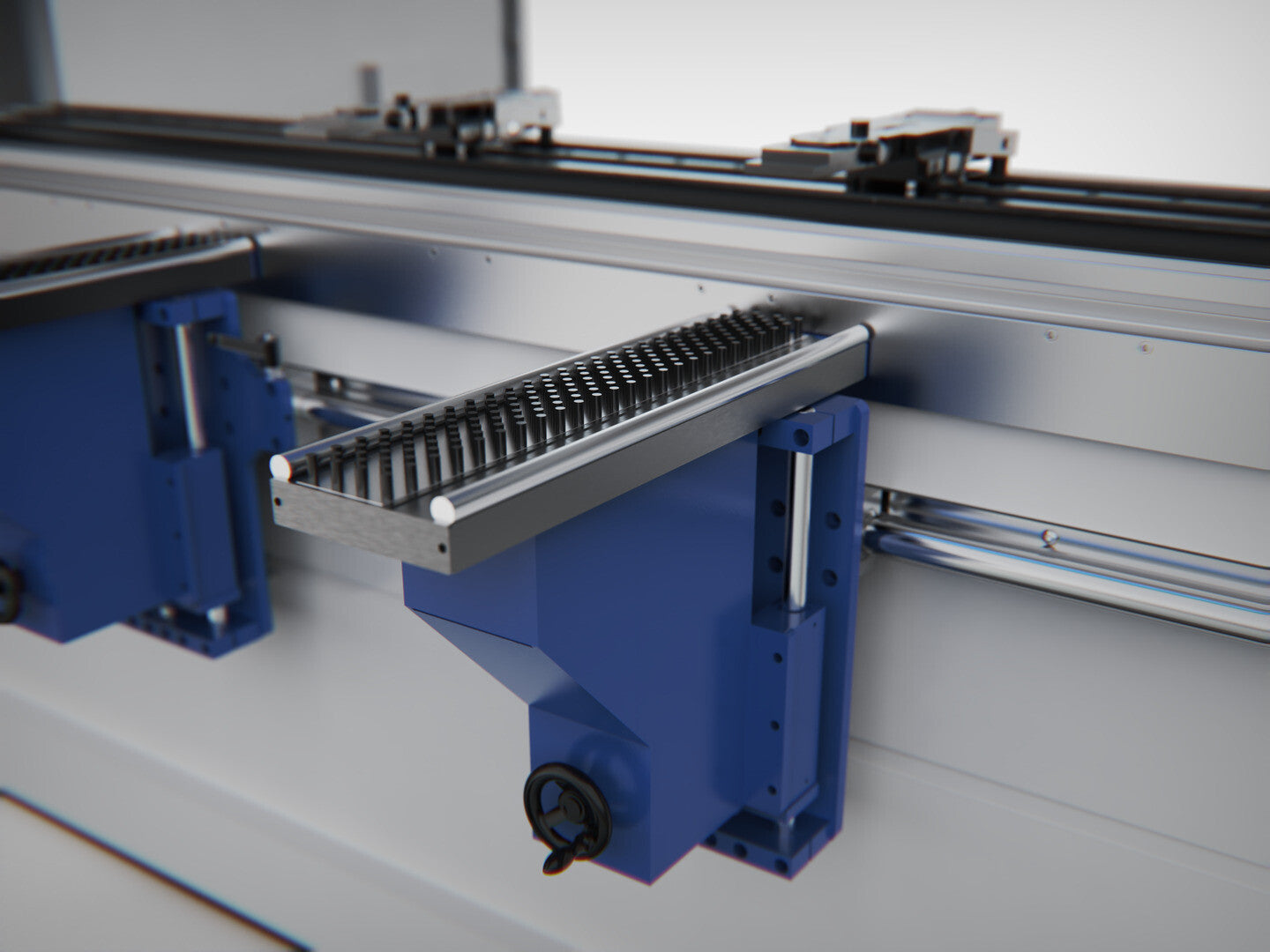

  • 2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment
  • MVD special narrow bottom plate (European Type)
  • Standard Punch ES 1260 (H: 67, 85°, R: 0.8)
  • Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
  • 2019 D-Series full cabin cover with aluminium controller arm
  • Double Pedal (Press Up&Down) - P3
  • Stronger Type 2 motorized crowning with WILA (Holland) wedges
  • Encoder - Linear Scales: GIVI
  • LED illumination on RAM
  • Electric components: Schneider 575V/ 60 Hz
  • Hydraulic: Hoerbiger (HAWE) Blok
  • Electric cabin: VDE
  • Pump: Eckerle
  • Driver: Mitsubishi / LS Electric
  • iBend - Back Gauge MVD (X1+X2+R1+R2+Z1+Z2 ATFL) - SERVO Motorised

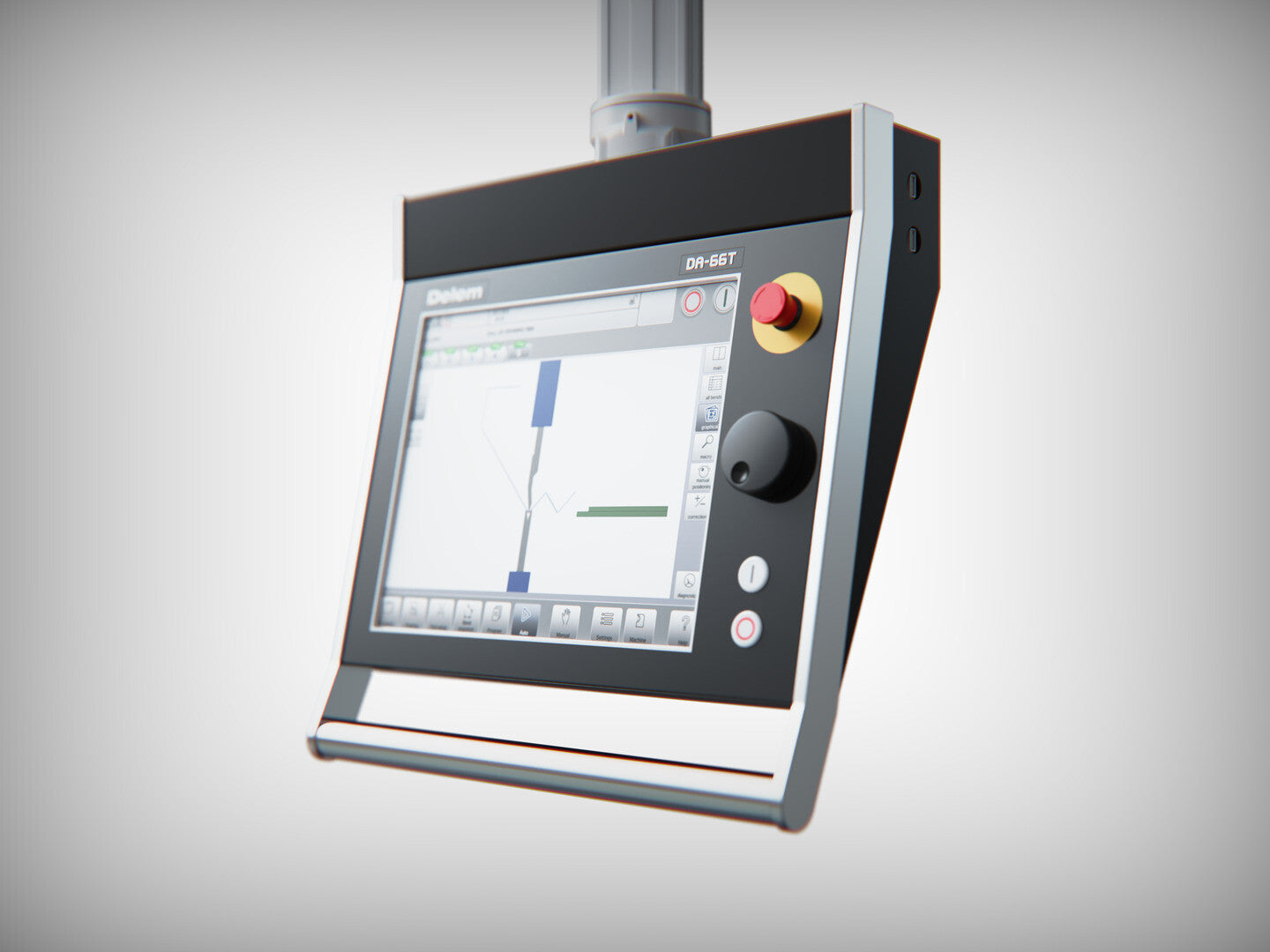

  • Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D
  • Wila Hydraulic Punch NSCL-II-HC/UPB - PREMIUM - Max. load 250 t/m
  • Wila Hydraulic Die NSCR-II-HC (PREMIUM) *Motorised crowning included*

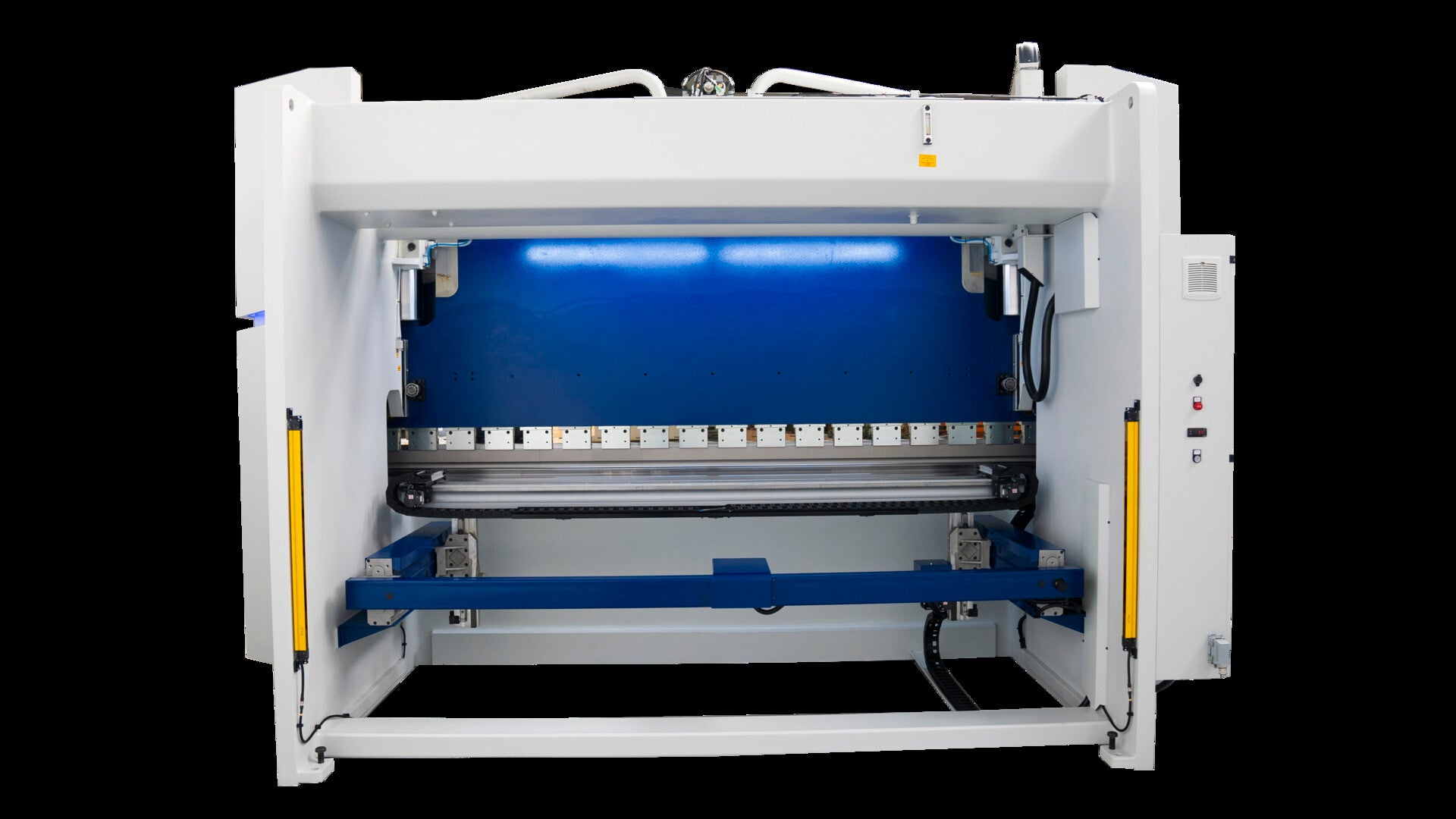

  • CE Conformity: AKAS II front safety lasers+PLC+rear light beams
  • non-CE MSD front safety lasers + rear light beams
