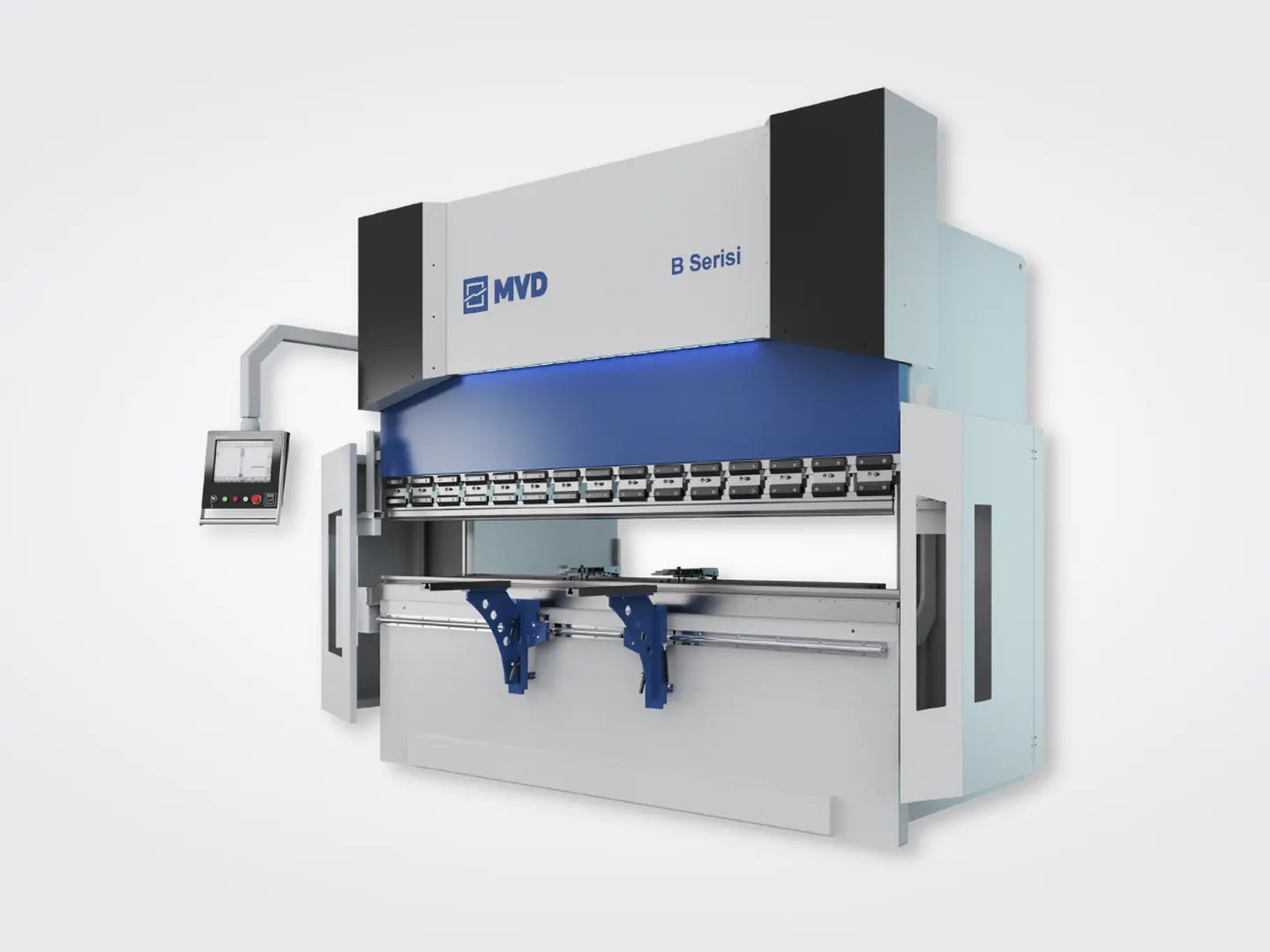

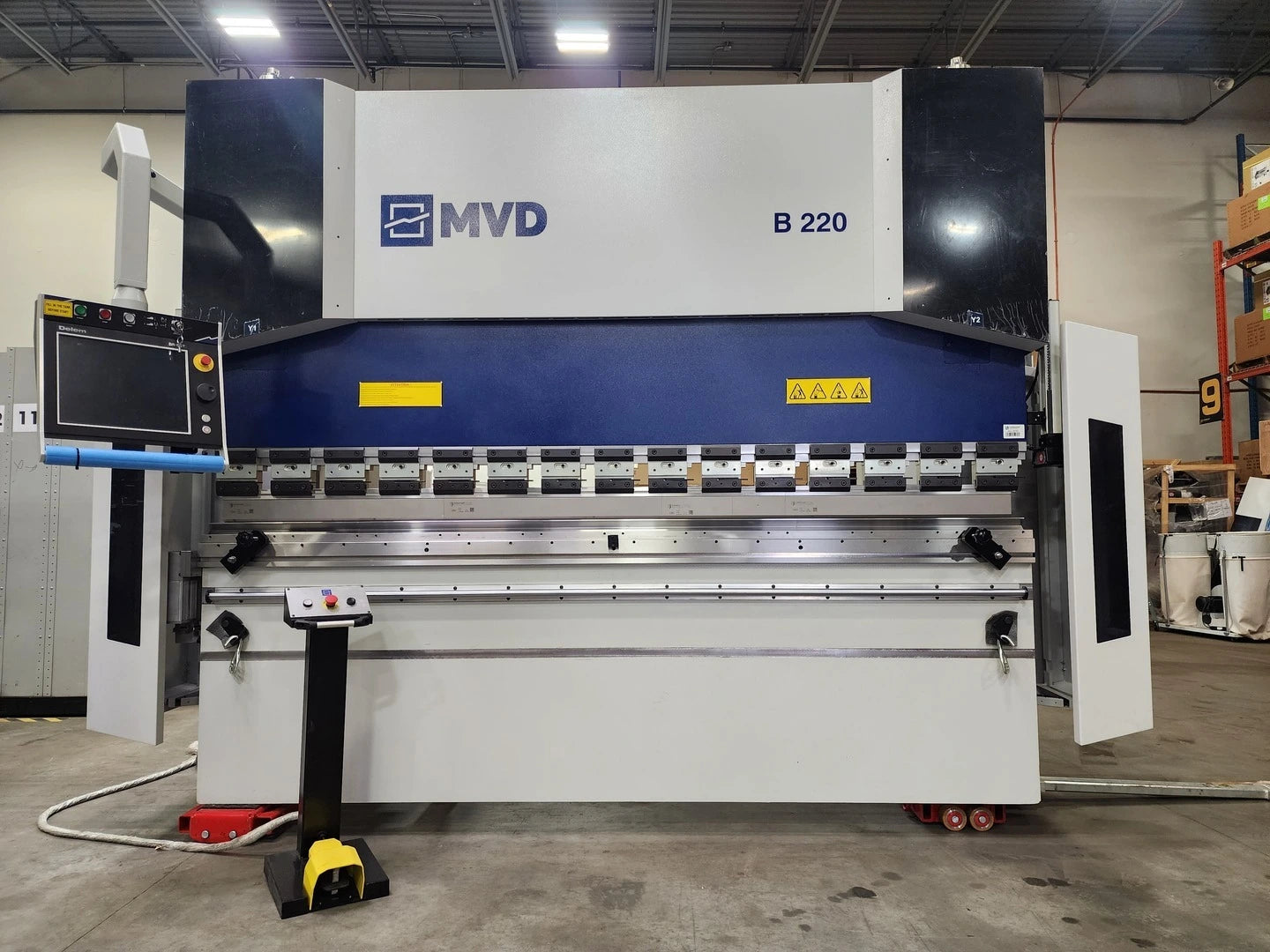

MVD 220 ton iBend Hydraulic Press Brake B-Series B220-3100
MVD

220 ton iBend Hydraulic Press Brake B-Series B220-3100

SKU: 29792
Price:
$102,143

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

Specifications

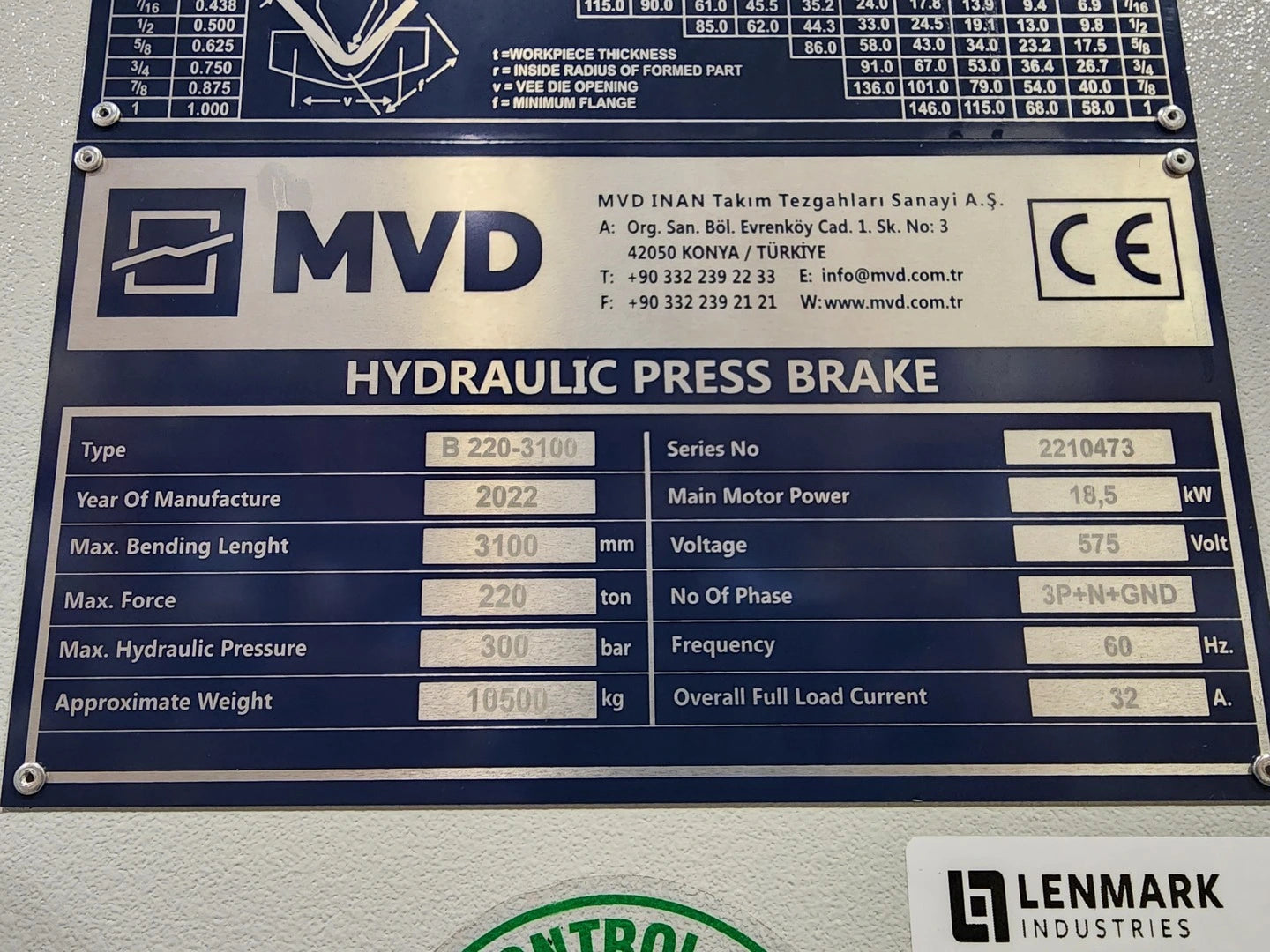

Model B220-3100
Condition New
General
Bed Length 3100 mm / 122 in.
Tons 220 ton
Brake Type Hydraulic
CNC Yes
Electrical
Voltage 600 volts
Phase 3-phase
Other Specifications
Throat: 410 mm
Daylight: 465 mm
Stroke: 260 mm
Distance between columns: 2600 mm
Table Height: 955 mm

Standard Features
  • Y1, Y2, X (3-Axes CNC)
  • 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide

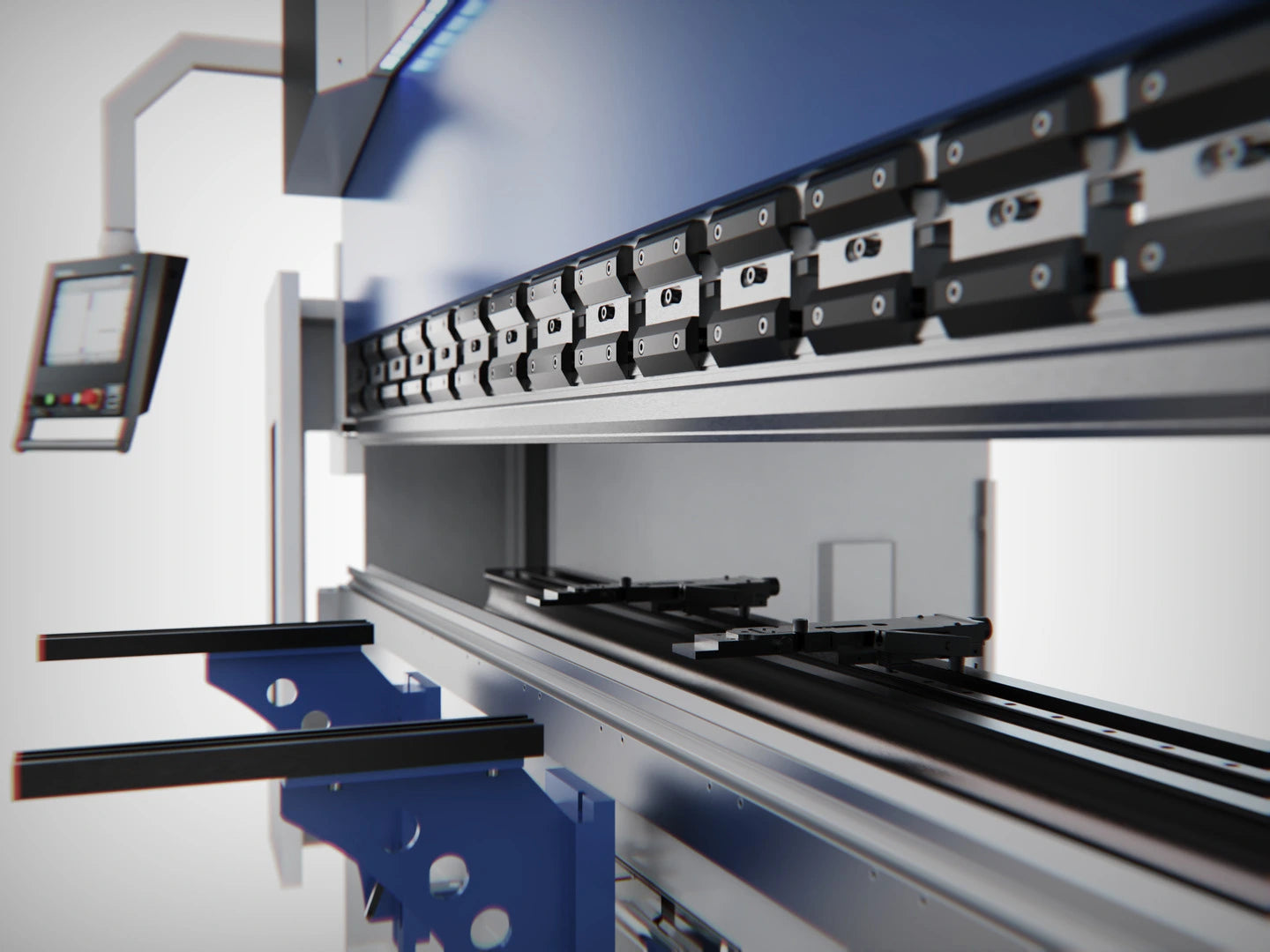

  • American&European Style Quick clamp Promecam top tool holder E20
  • 2x pieces Standard sliding front support arms
  • MVD special narrow bottom plate (European Type)
  • Standard Punch ES 1281 (H: 104, 85°, R: 0.8)
  • Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
  • 2019 B-Series open cabin cover

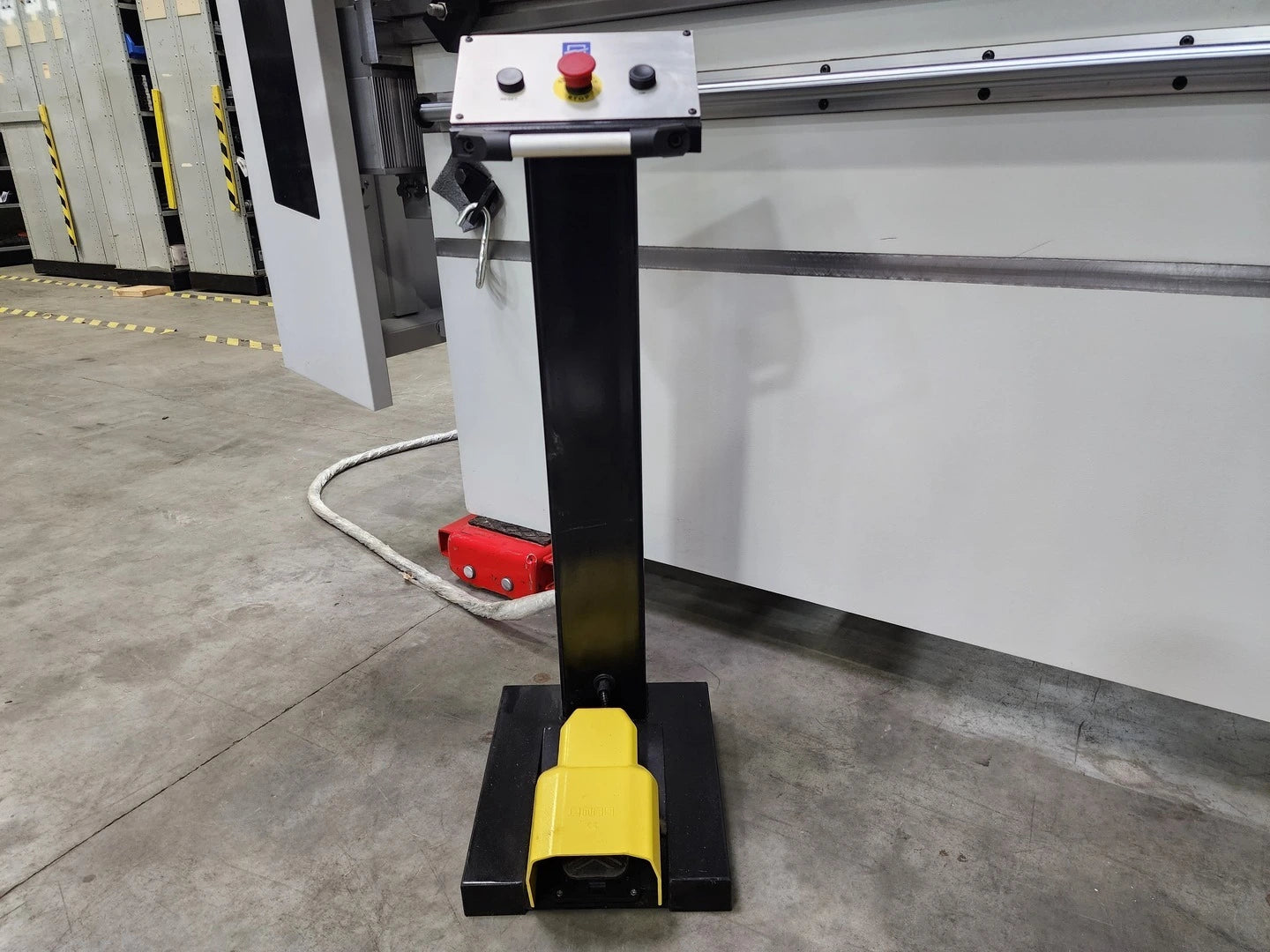

  • Single Pedal (Press) - P2
  • Encoder - Linear Scales: GIVI

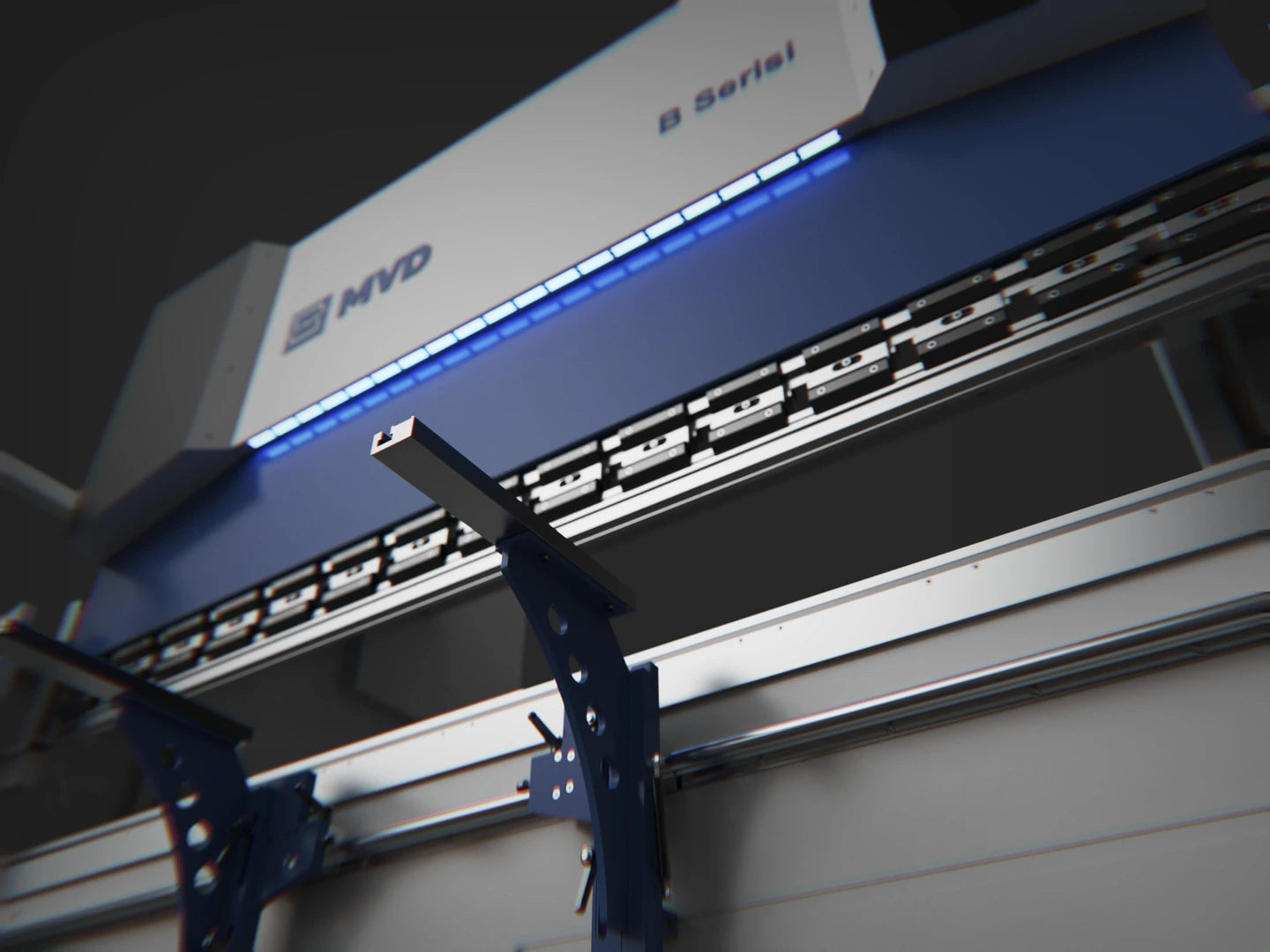

  • LED illumination on RAM
  • Electric components: Schneider 575V/ 60 Hz
  • Hydraulic: Hoerbiger (HAWE) Blok

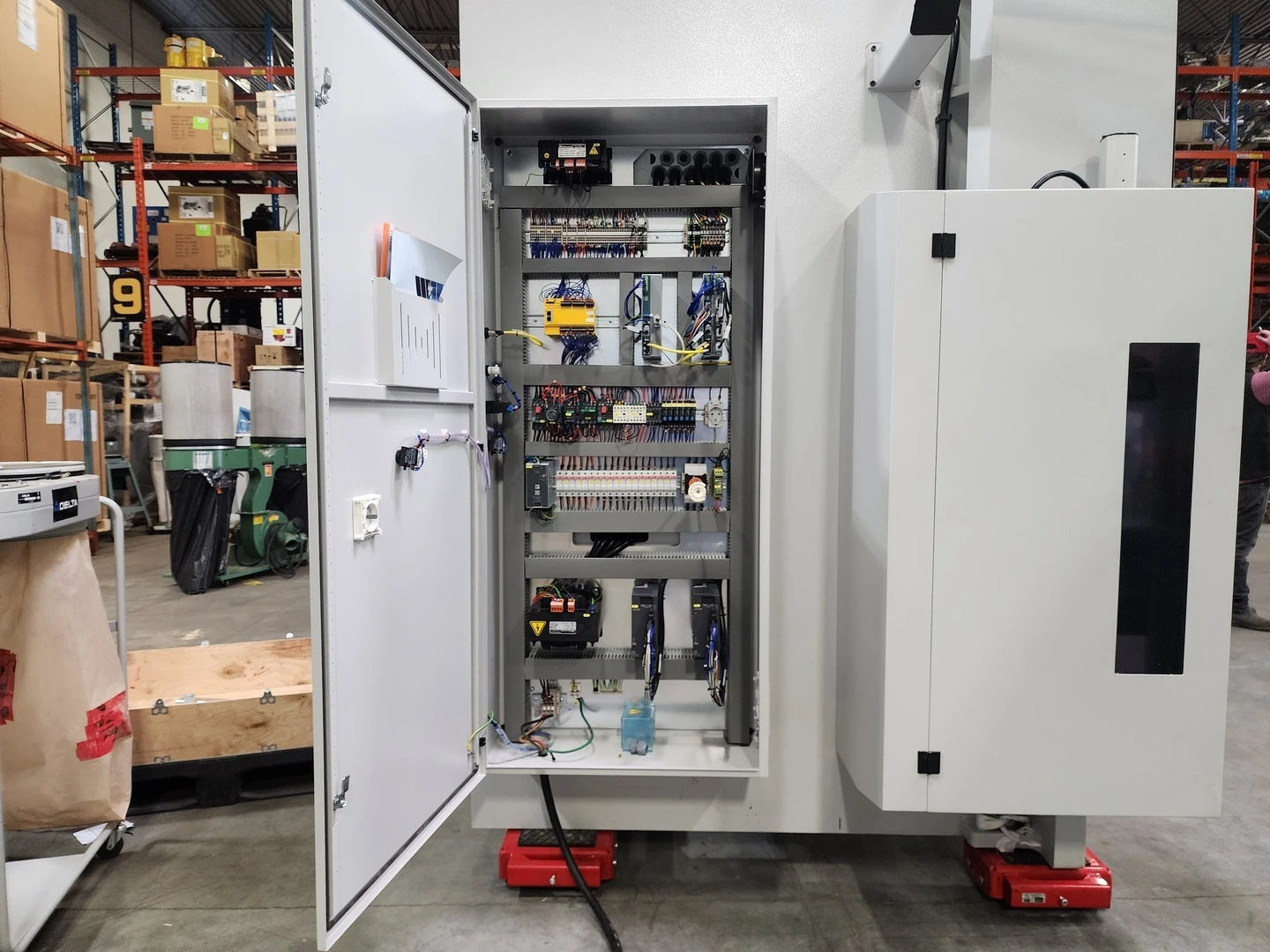

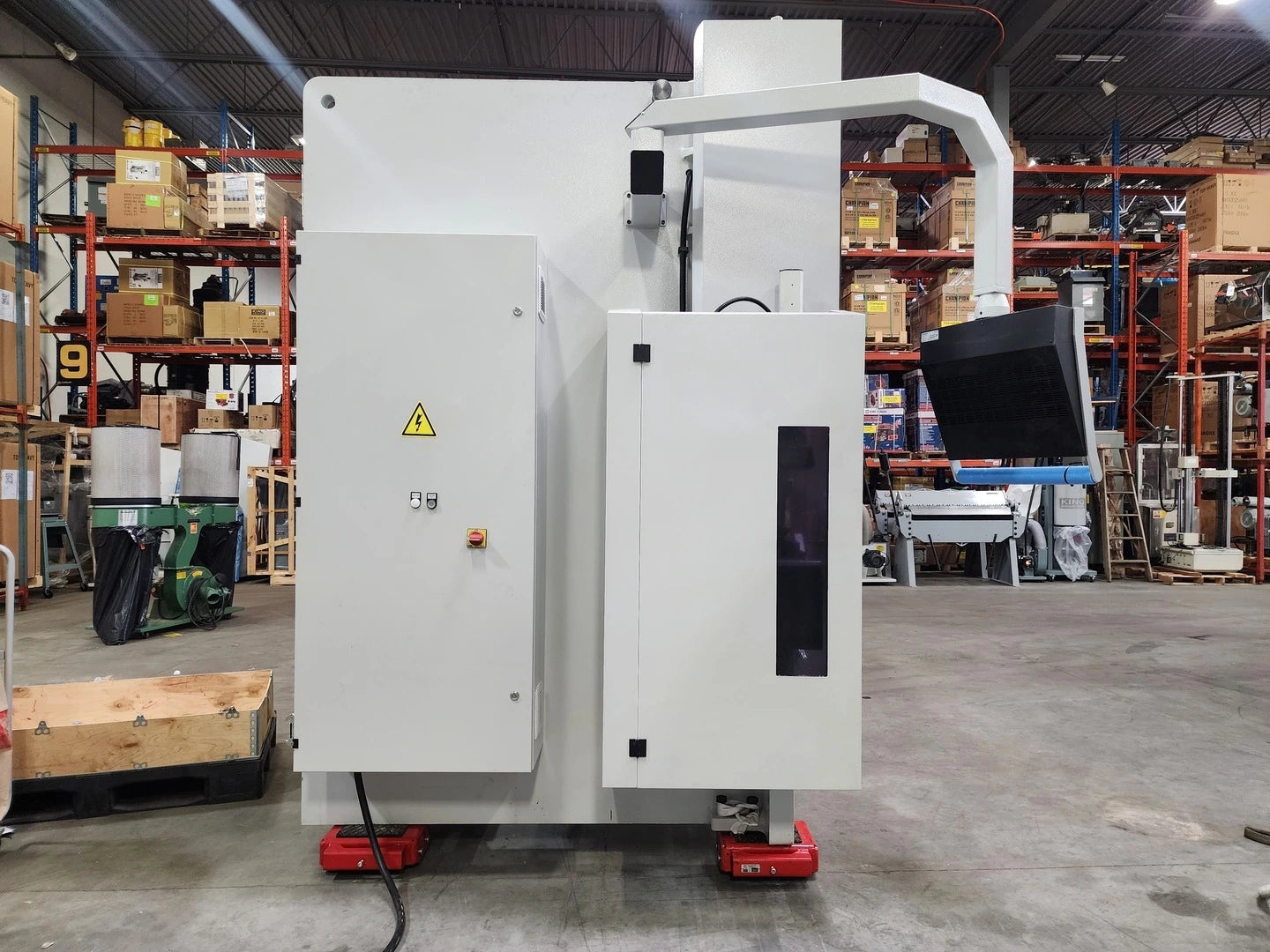

  • Electric cabin: VDE
  • Pump: Eckerle
  • Driver: Mitsubishi / LS Electric

Additional

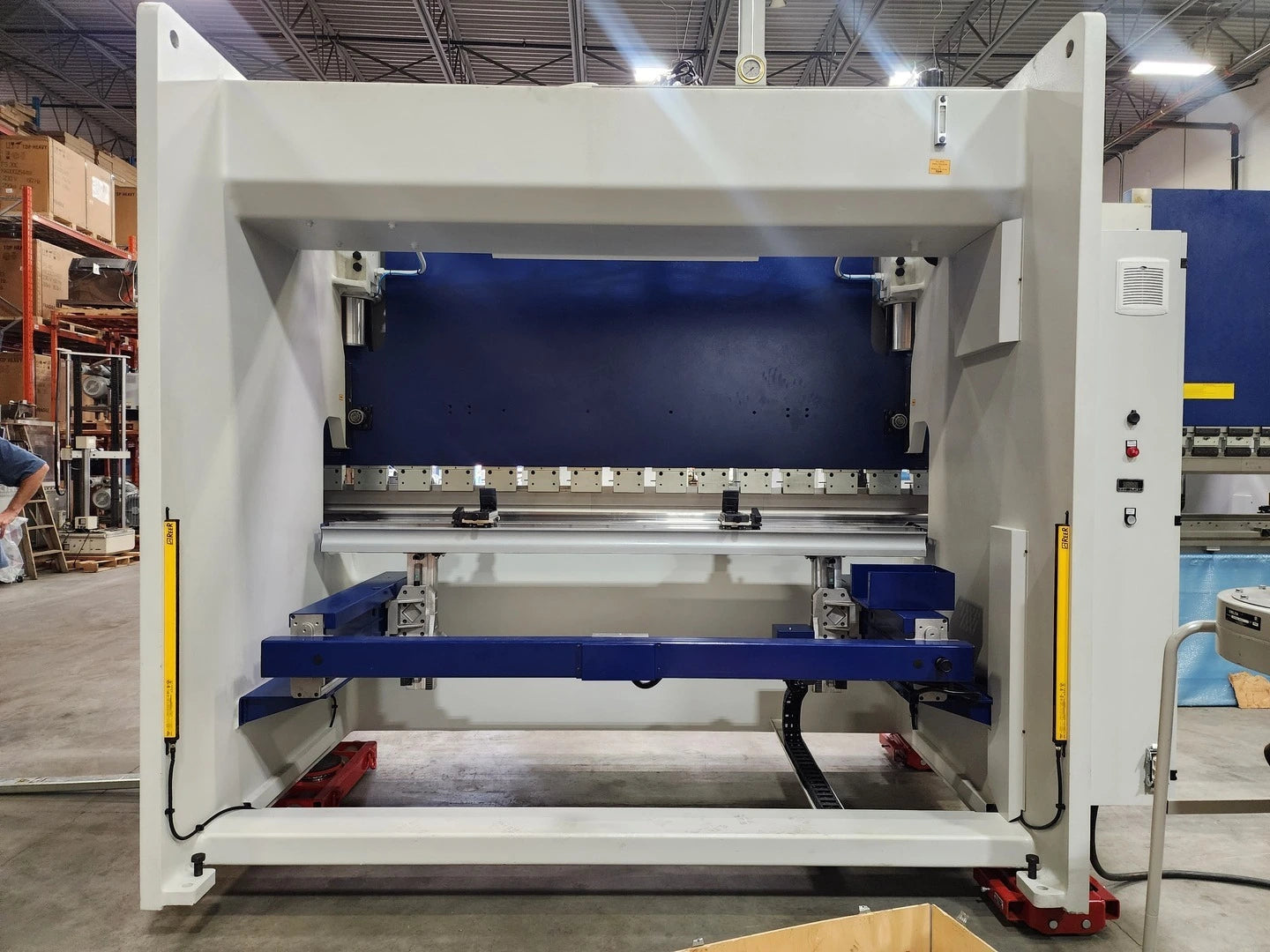

  • iBend - Back Gauge MVD (X+R) - SERVO Motorised
  • CNC Controlled Type#1 Crowning (by Wila wedges and G.E.C motor)

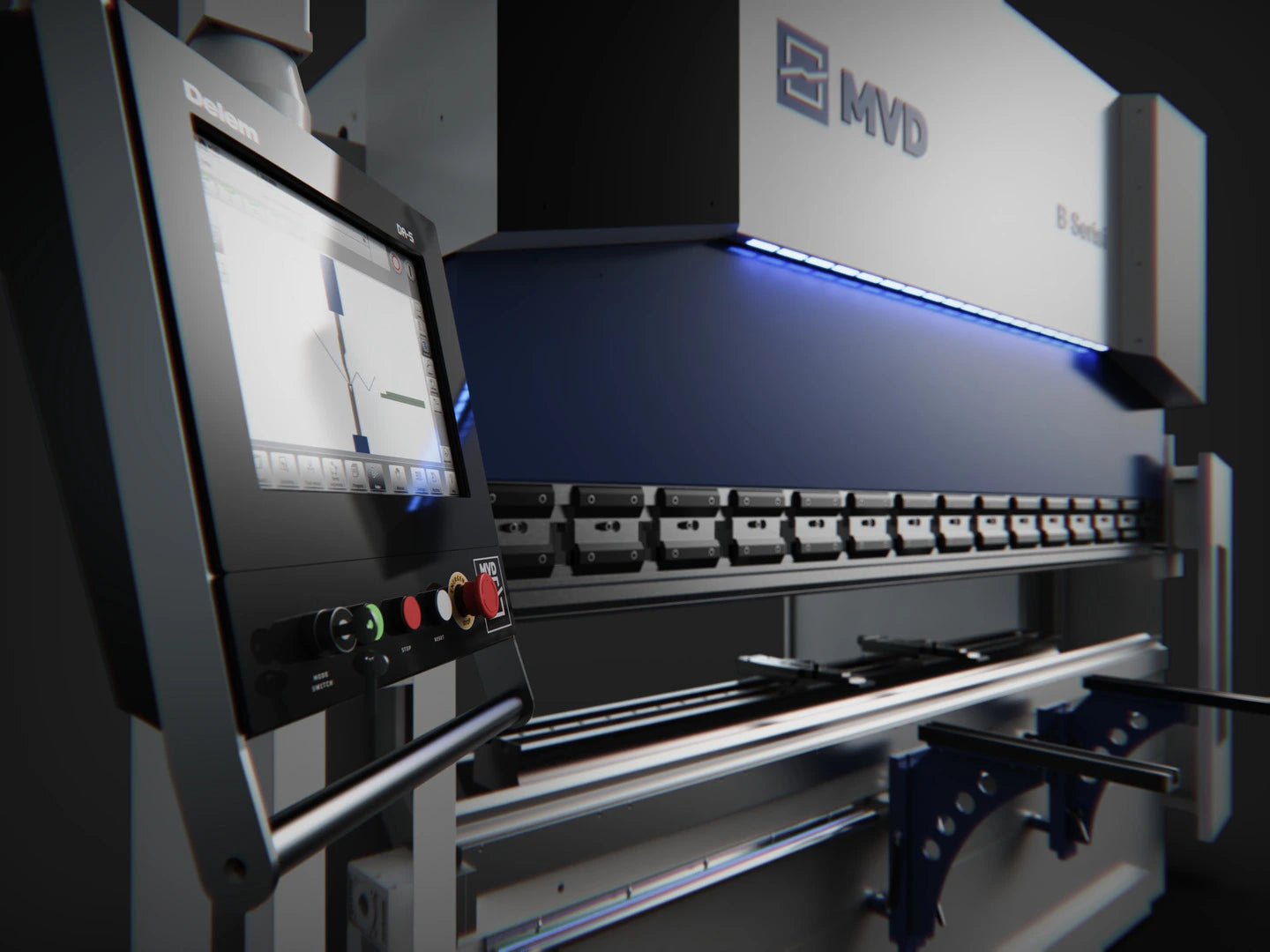

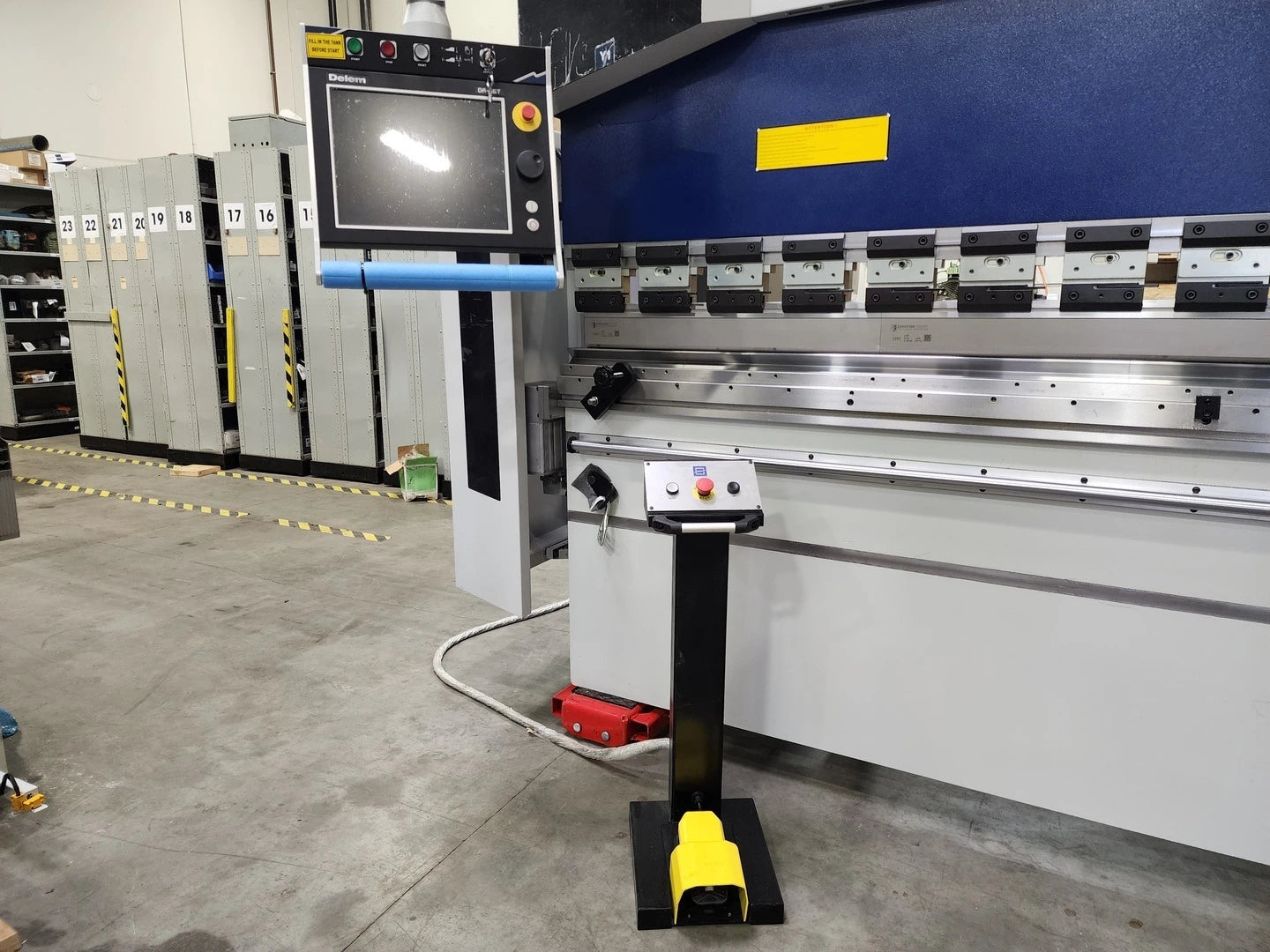

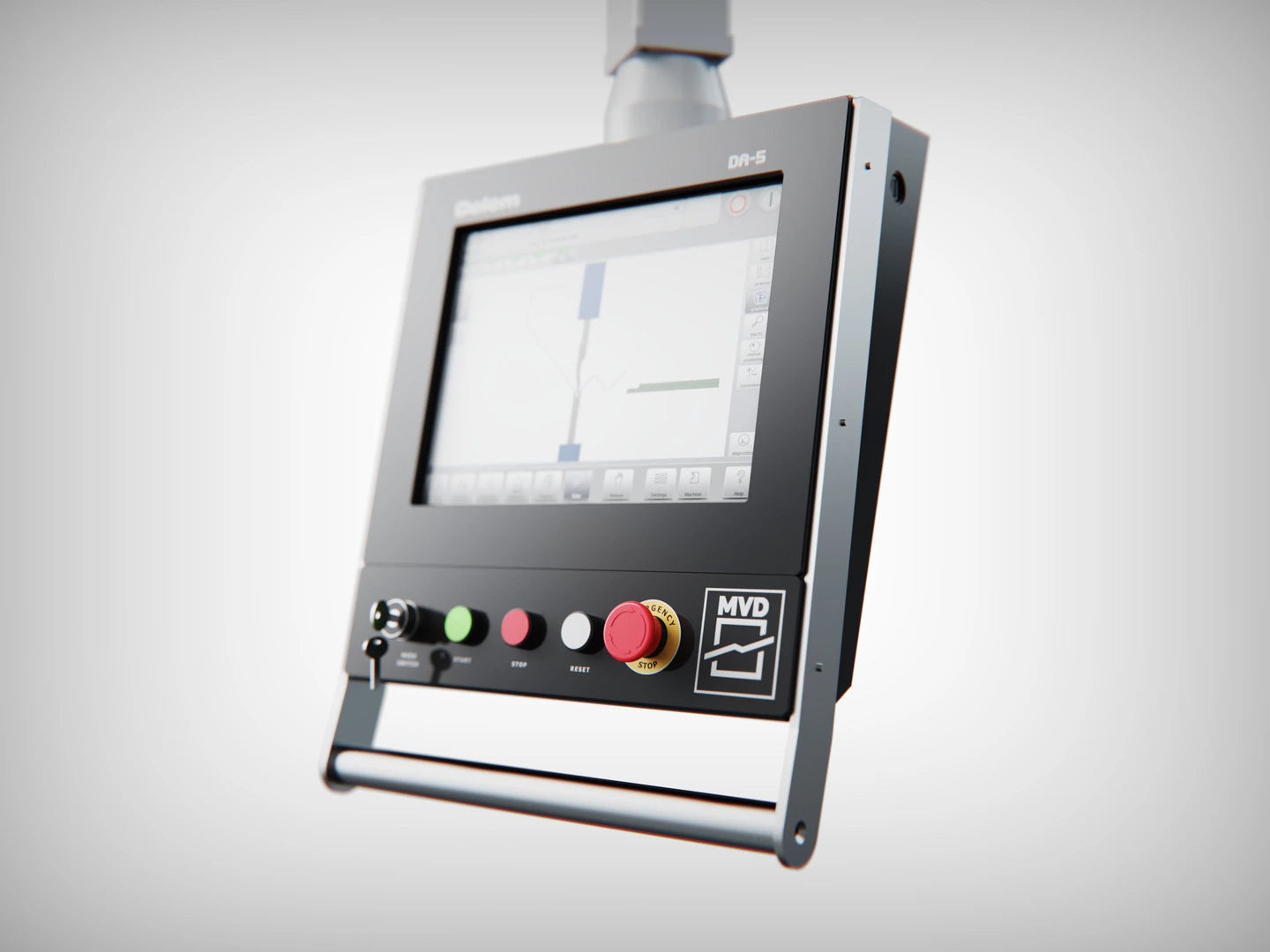

  • Delem DA-66T, 17" Touch Screen, 2D Graphical, (3-8 Axes) with Profile-T-Lite - T2D Offline programming software
  • 150mm Large bottom table with 13,1mm American groove + IW: 70mm EU Die holder
  • MSD front safety lasers + rear light beams


iBend Hydraulic Press Brake, Hydraulic Press Brake, B-Series B220-3100, MVD Press Brake, 220 ton Press Brake, Hydraulic Brake Machine, CNC Press Brake, Heavy Duty Press Brake, Industrial Press Brake, Metalworking Press Brake
