MVD 40 ton iBend Hydraulic Press Brake A-Series A40-1250
MVD

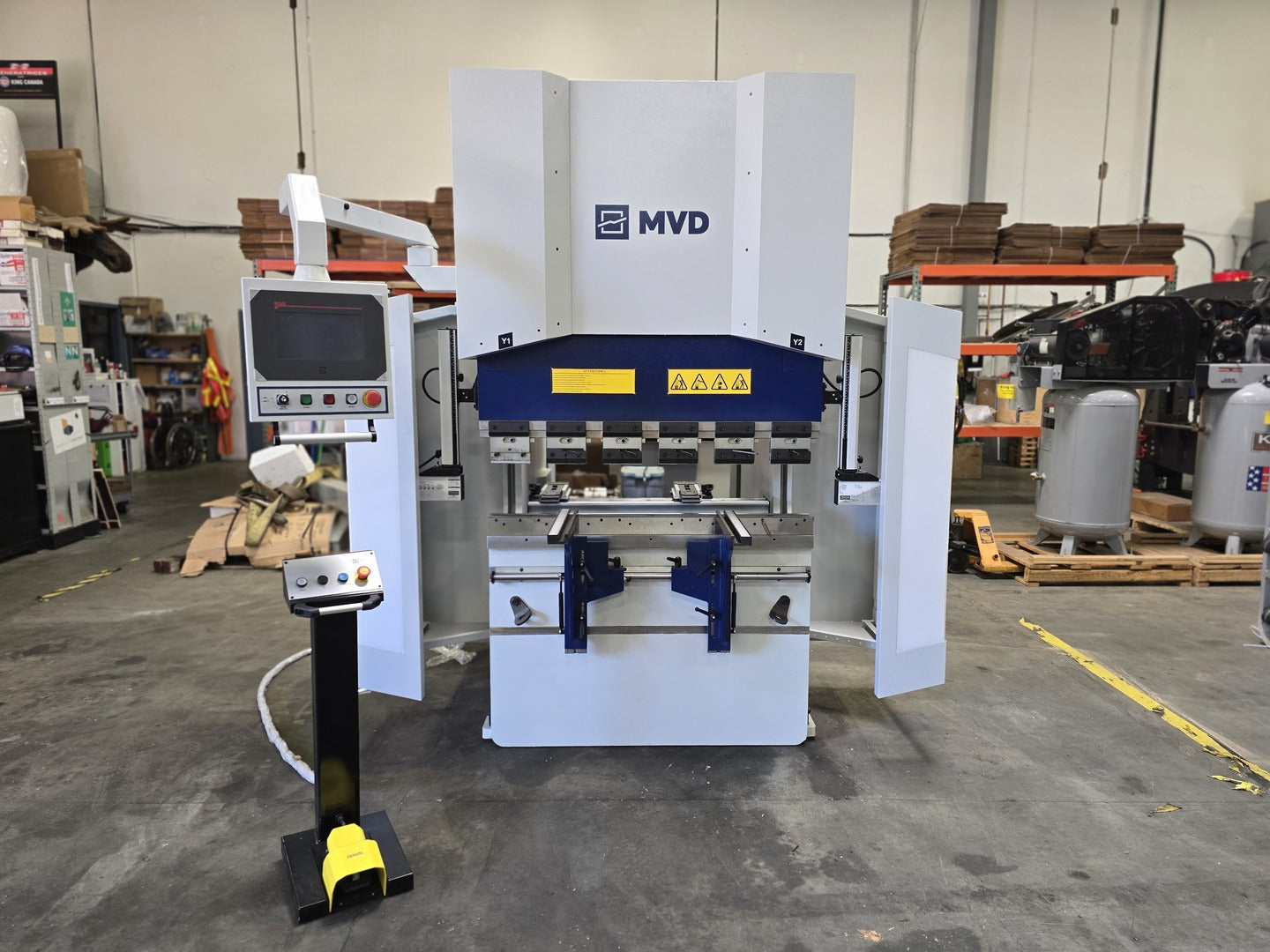

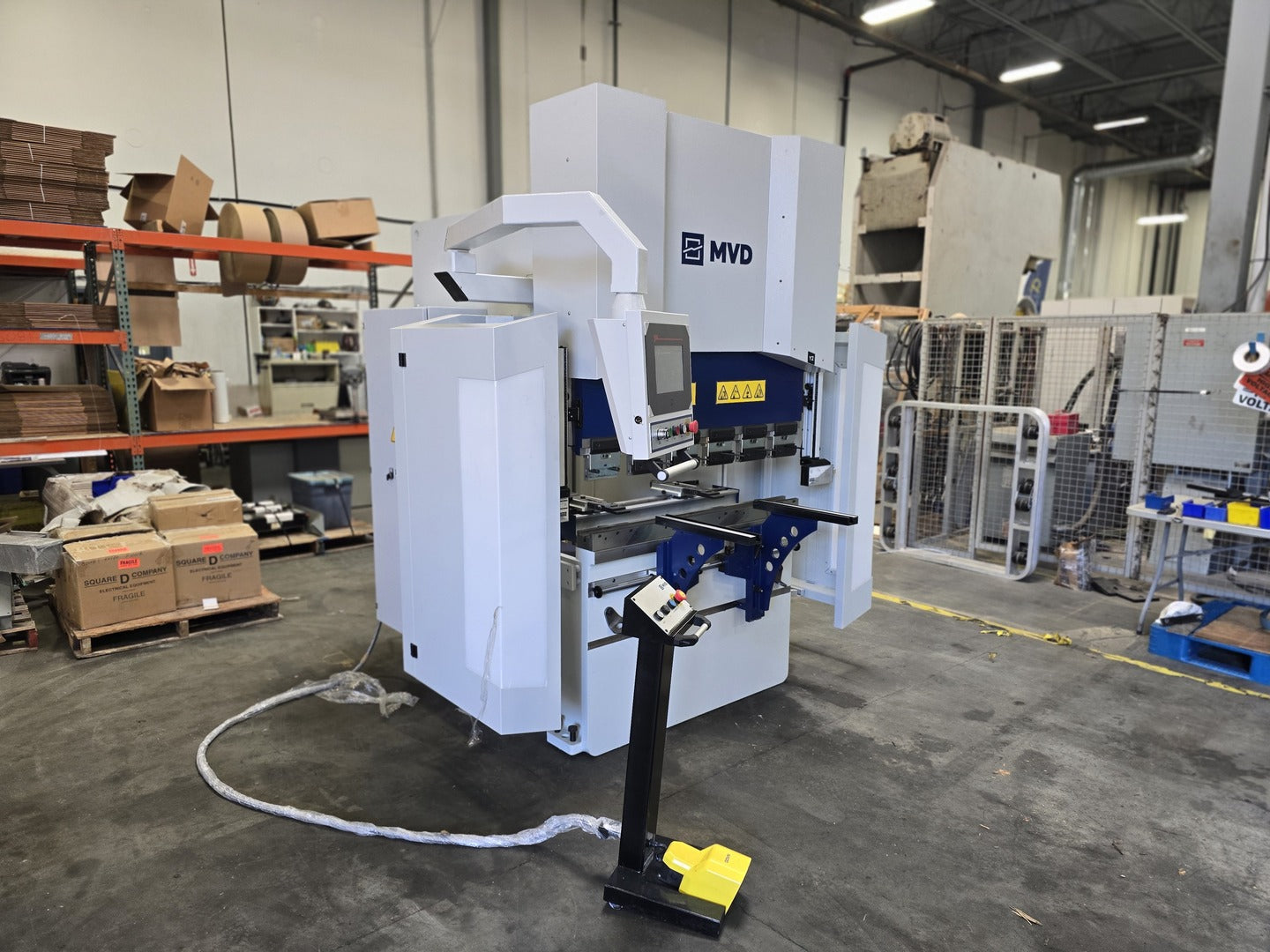

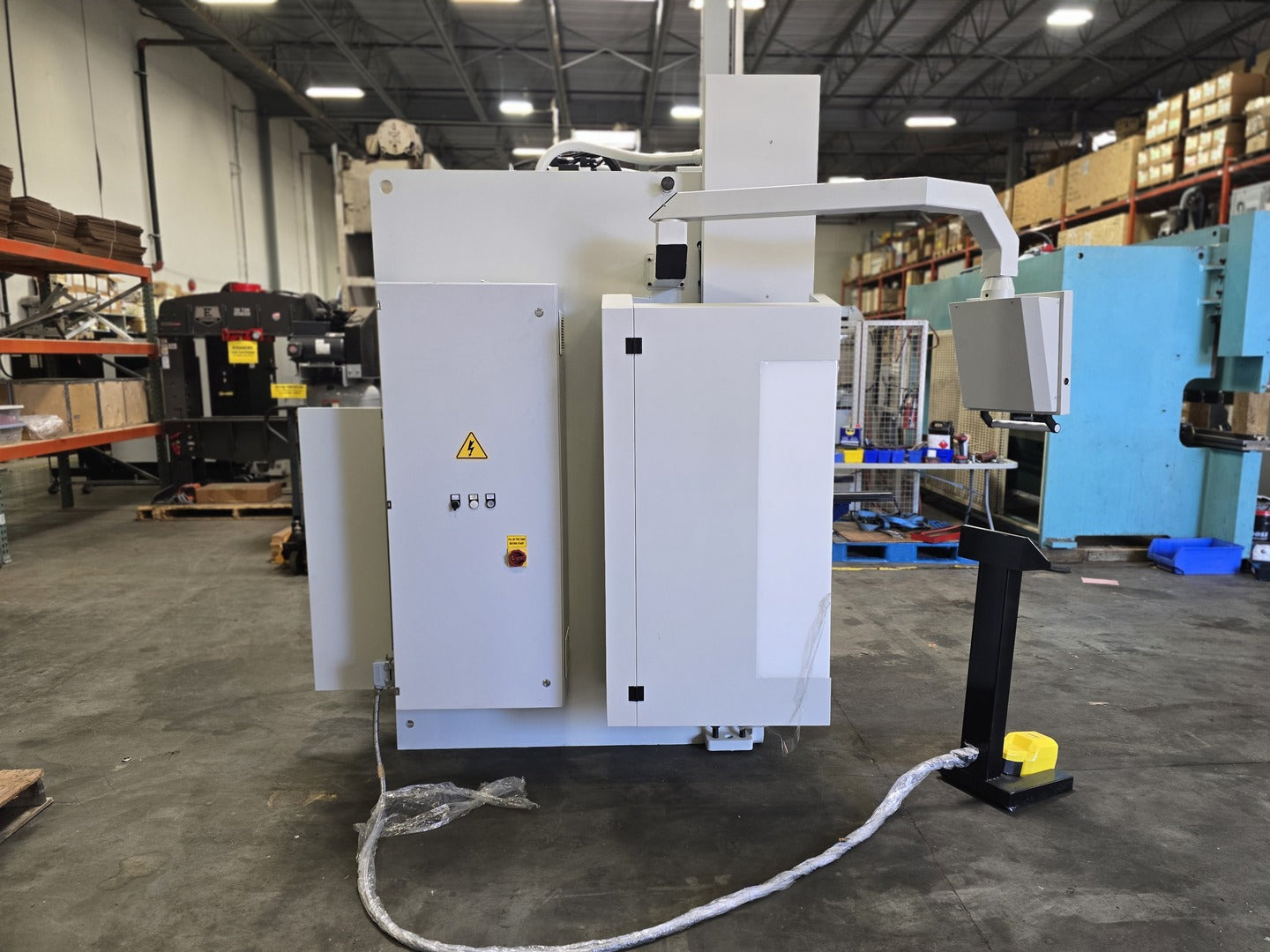

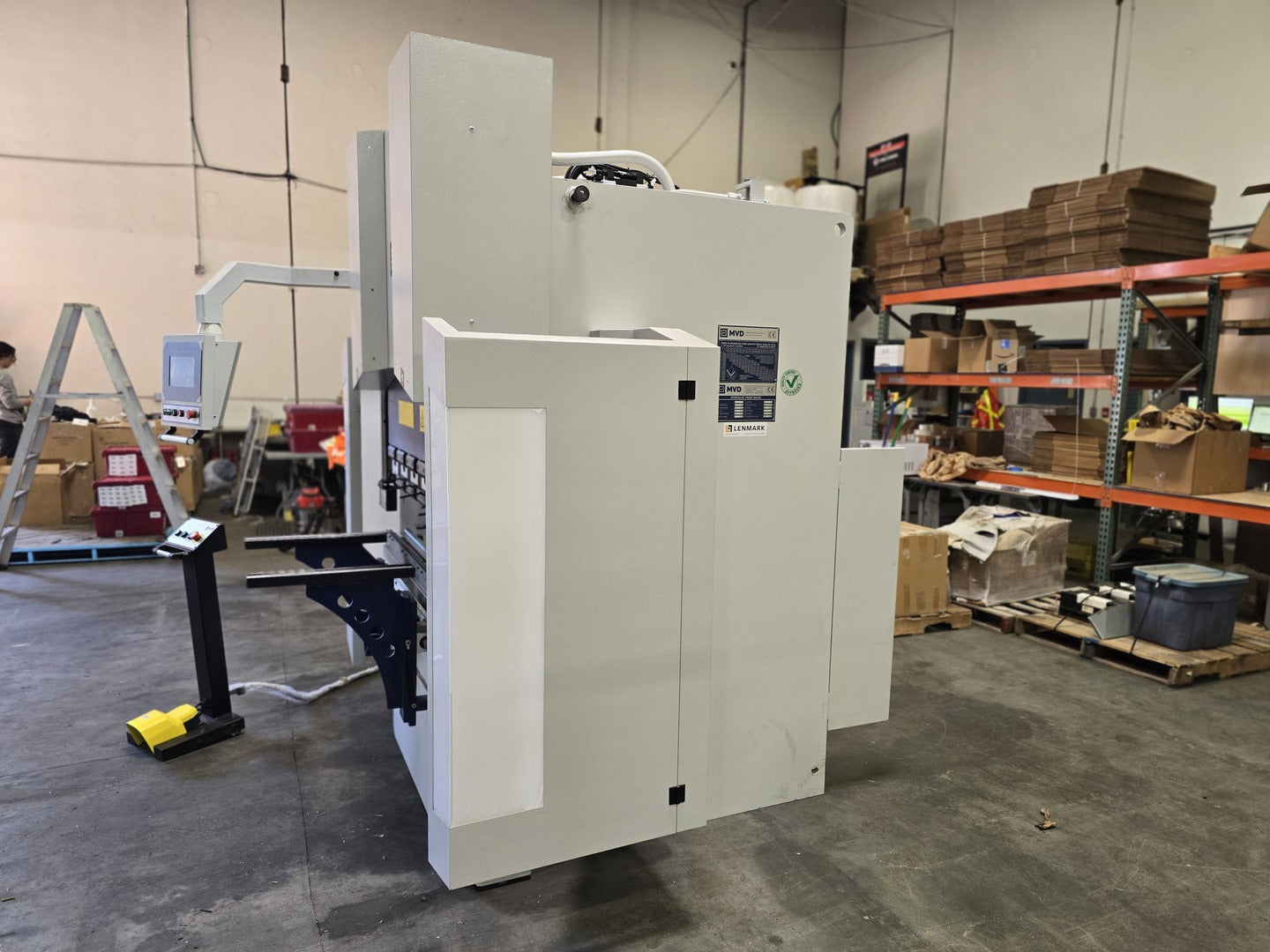

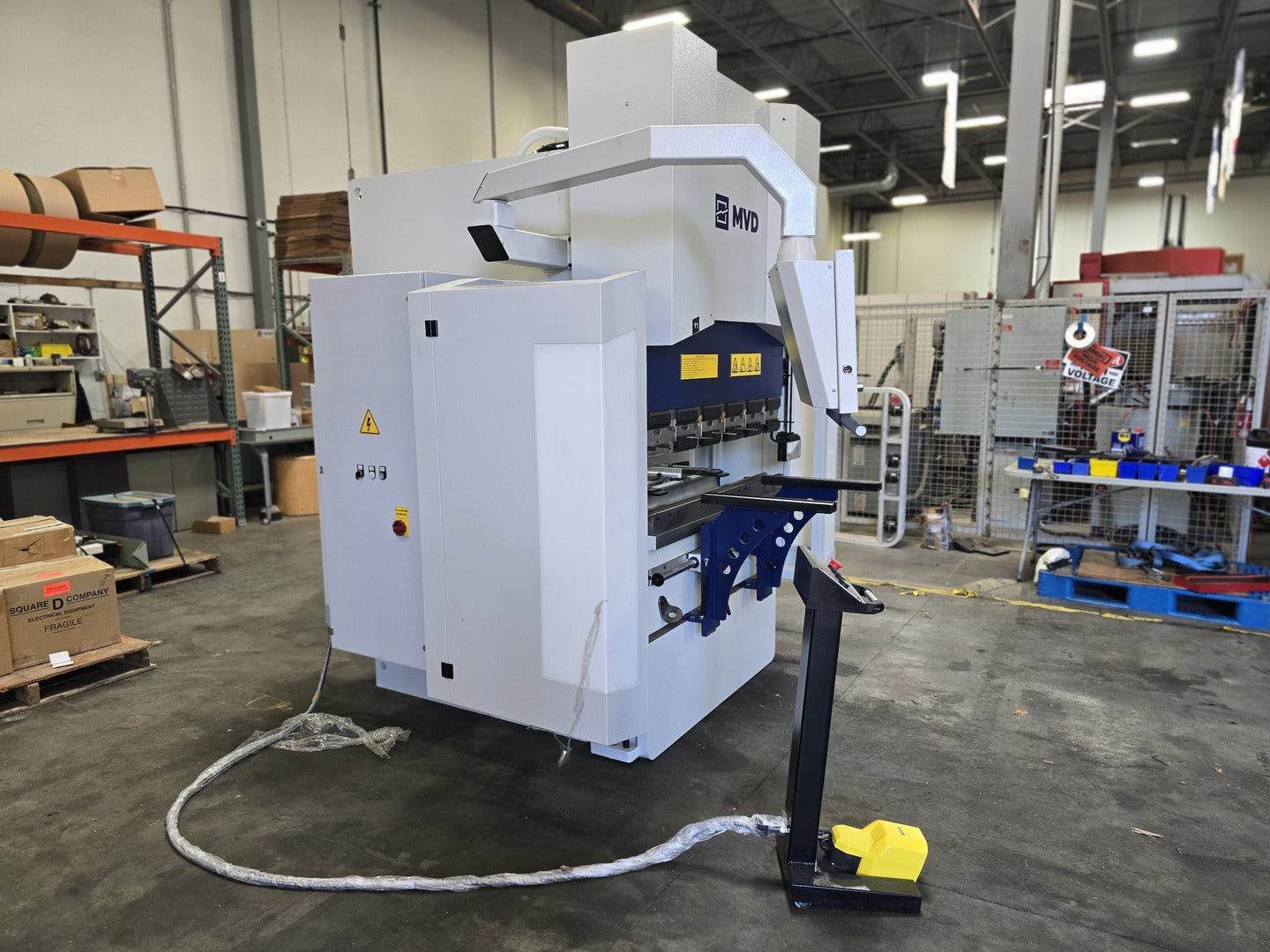

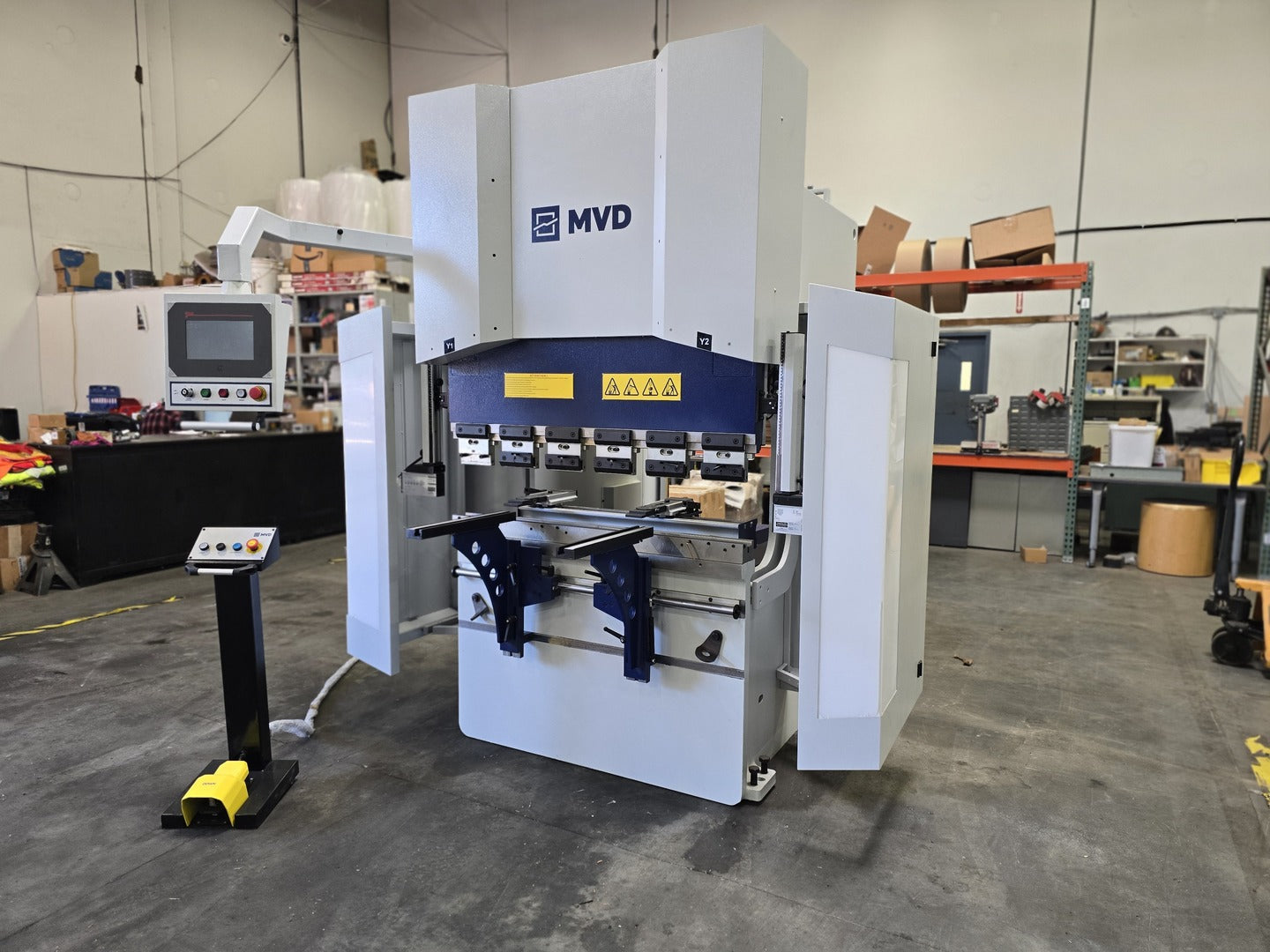

40 ton iBend Hydraulic Press Brake A-Series A40-1250

SKU: 29790
Save $1,391
Price:
$41,788 $43,179

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Description

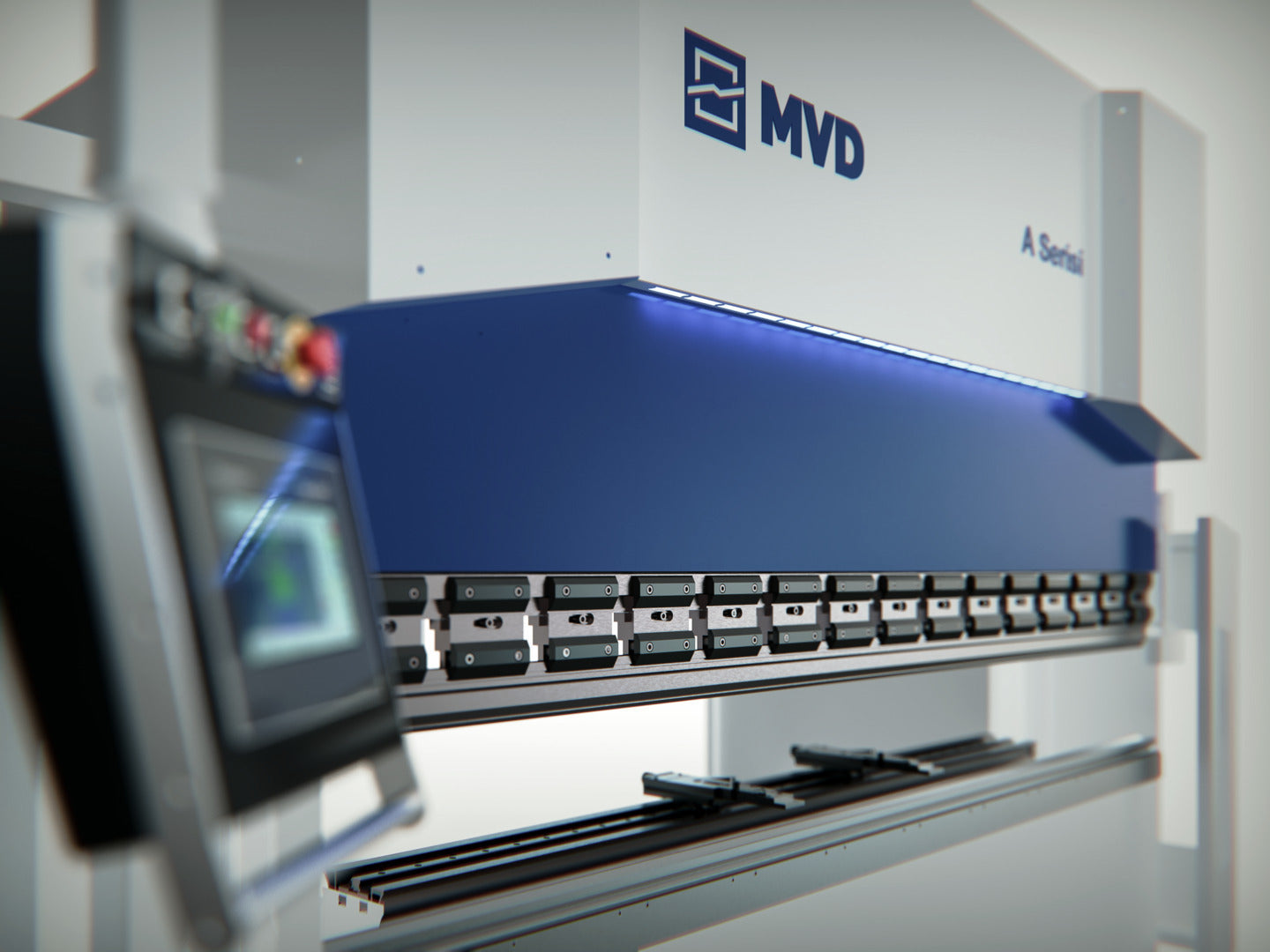

A Series Maximum machine performance and high bending accuracy provided by synchronized Hydraulic Cylinders, CNC-controlled, assembly in ideal conditions made the original Germany hydraulic block, Proportional Valves, high quality linear scales.
Specifications
Model A40-1250
Condition New
General
Bed Length 1250 mm / 4.1 ft.
Tons 40 ton
Brake Type Hydraulic
CNC Yes
Electrical
Voltage 575 volts
Phase 3-phase
Other Specifications

Distance between columns: 1100 mm / 43.31 in.

Stroke: 210 mm / 8.27 in.

Daylight: 415 mm / 16.34 in.

Throat: 410 mm / 16.14 in.

Table Height: 885 mm / 34.84 in.

Standard Features

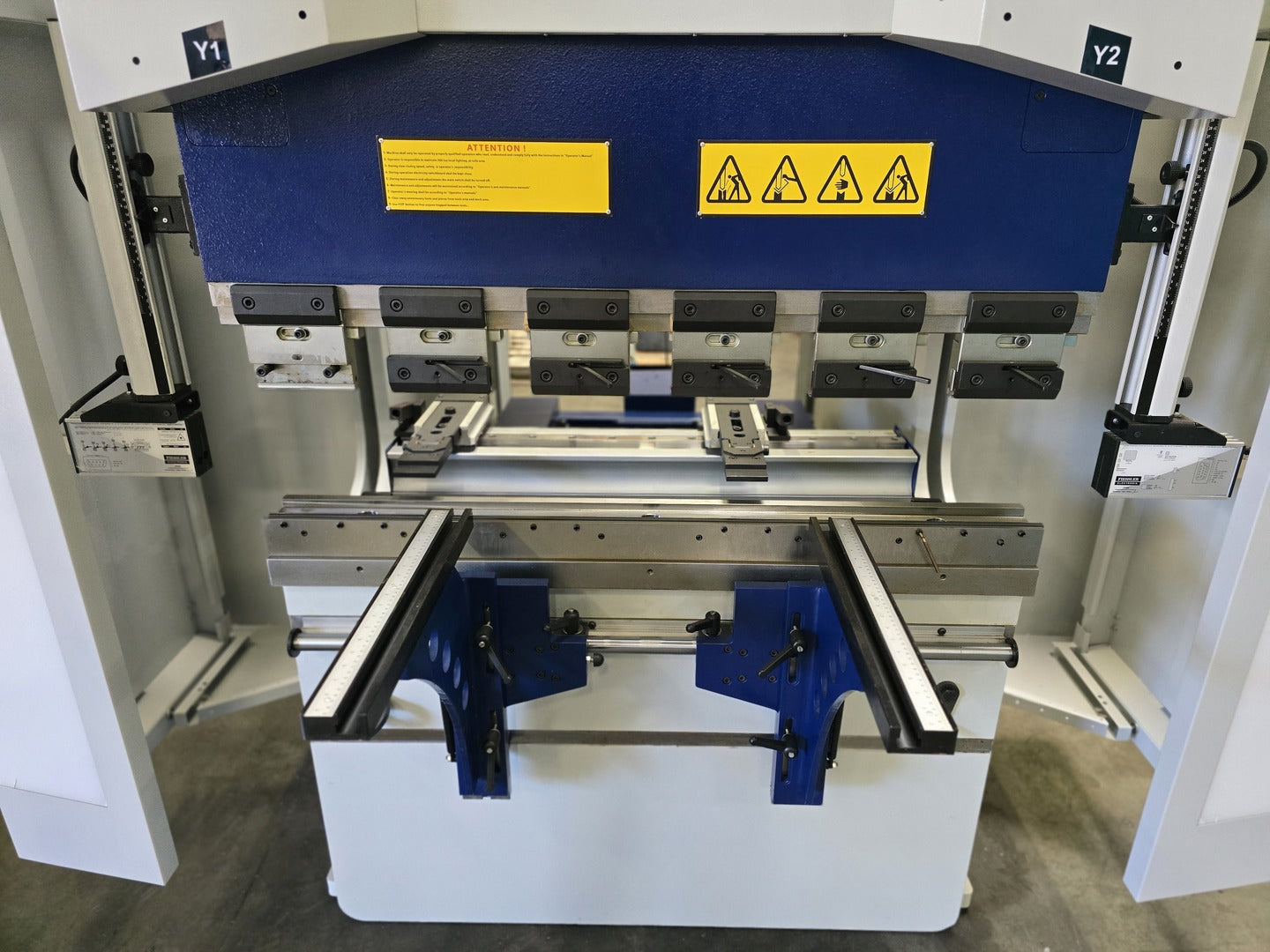

  • Y1, Y2, X+R (4 axis with X = 750 mm and R = 250 mm)

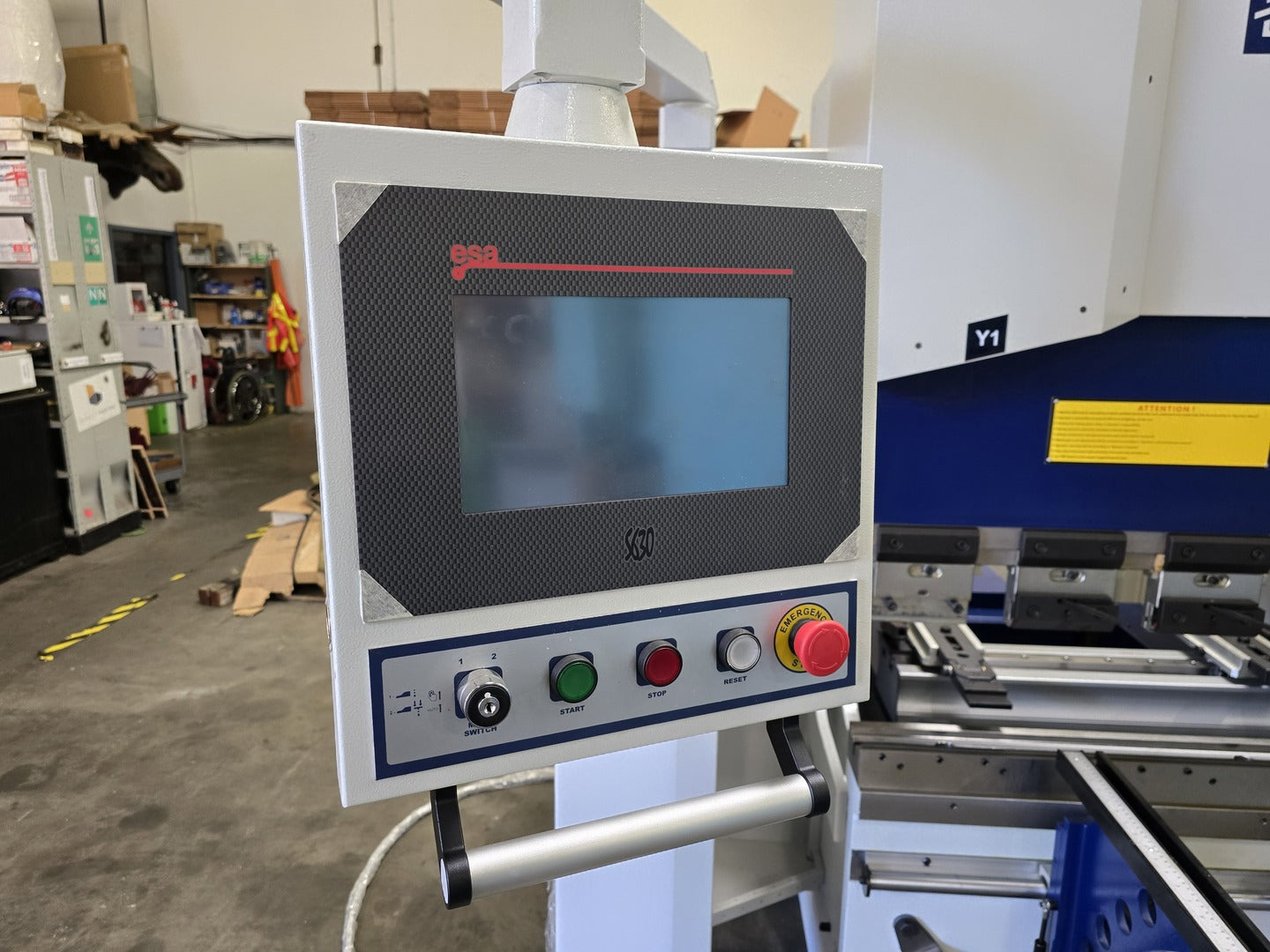

  • CNC unit: Esa S630 (10") Touch screen 2D Graphical (3-4 Axes)

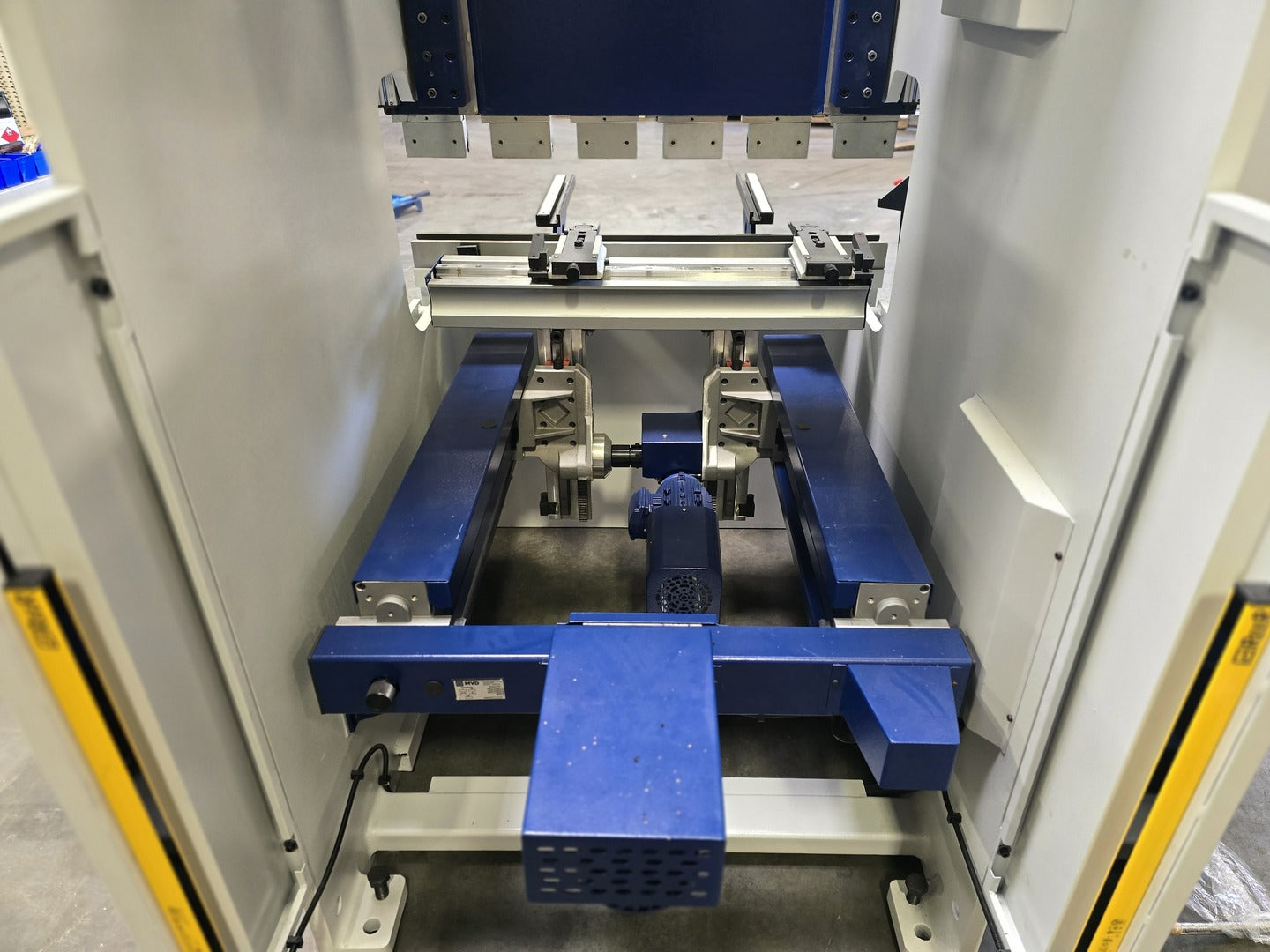

  • MVD motorised backgauge with ball screws, linear guided, AC Motor and inverter
  • Magnetic Linear Scales (Turkiye)
  • 2 Pcs backgauge fingers, manually movable along linear guide, precisely adjusted
  • Side safety doors and cylinder covers

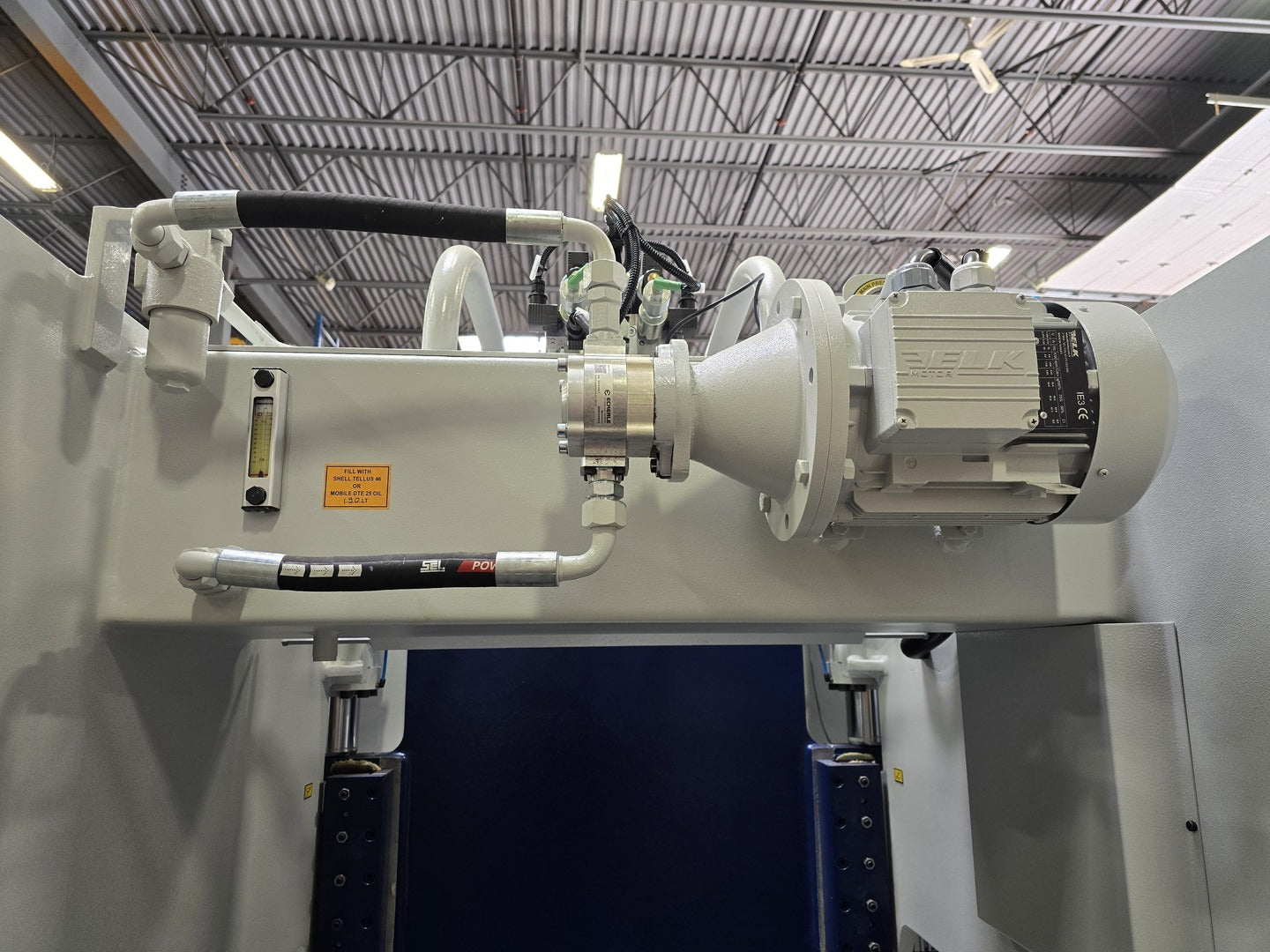

  • HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
  • Eckerle (Germany) oil pump, internal gear type

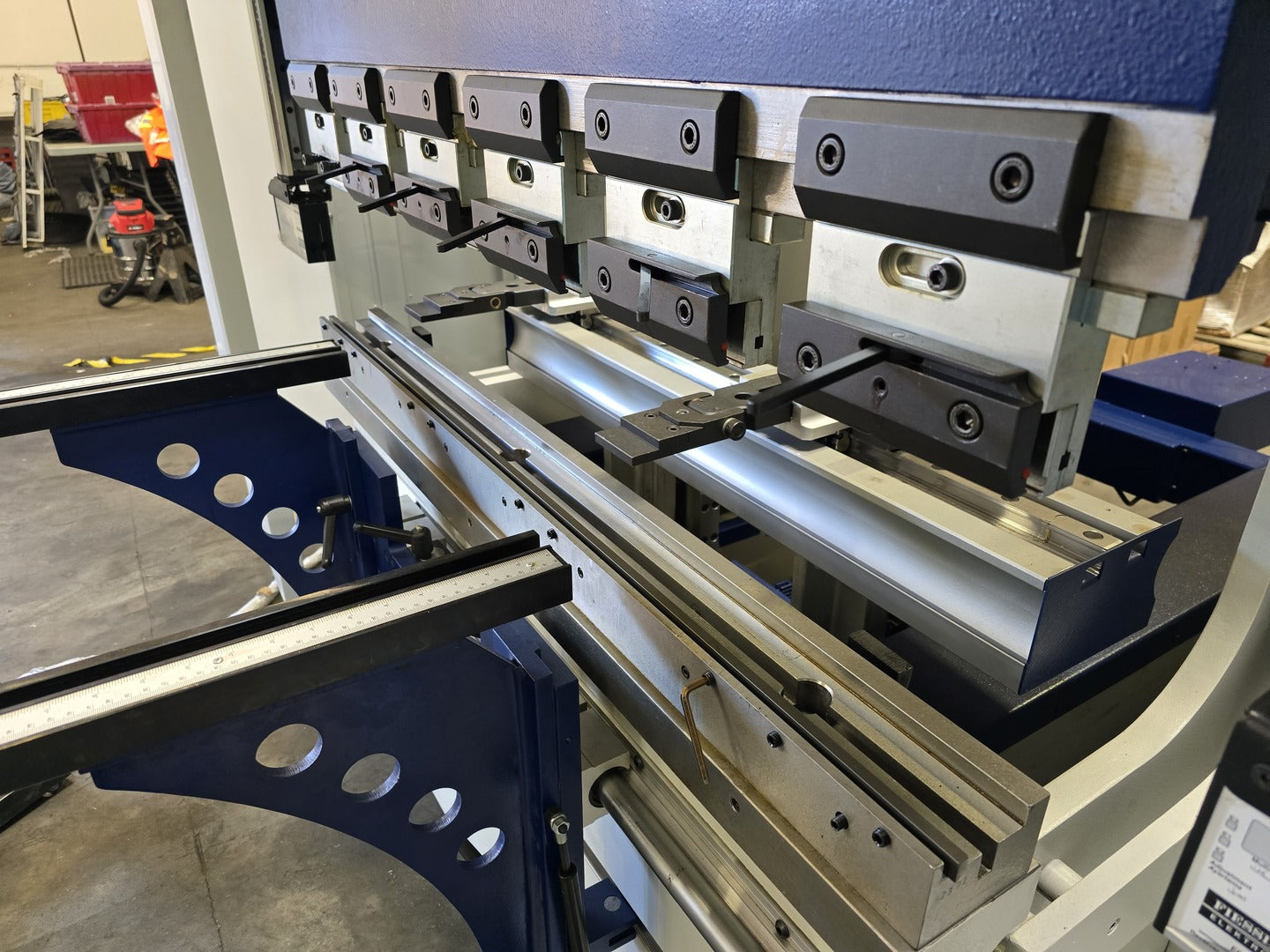

  • Promecam European type "manual clamping" system
  • Narrow Bottom table. IW = 60 mm (+10 mm spacer)
  • Top Tool: Eurostamp 1260, H:67, 85o, R:0.8
  • Bottom Die: Eurostamp 2067, 4 way V=16-22-35-50 mm, 85o, H:60

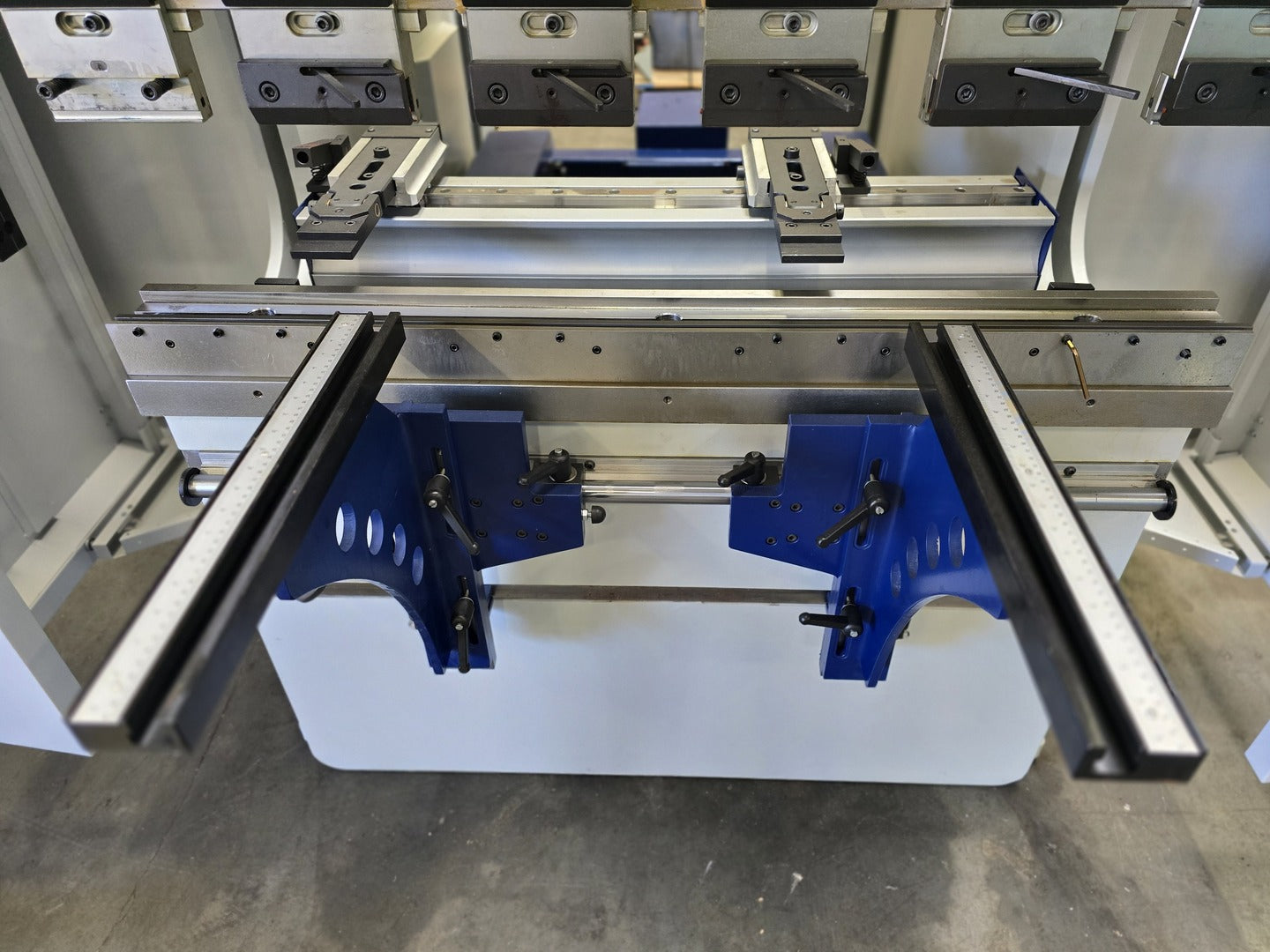

  • 2 Pcs sliding front supports
