Throat: 410 mm
Daylight: 515 mm
Stroke: 310 mm
Distance between columns: 3200 mm
Table Height: 955 mm
Standard Features
- Y1, Y2, X, R (4-Axes CNC)
- MVD X+R Axes Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm
- 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide

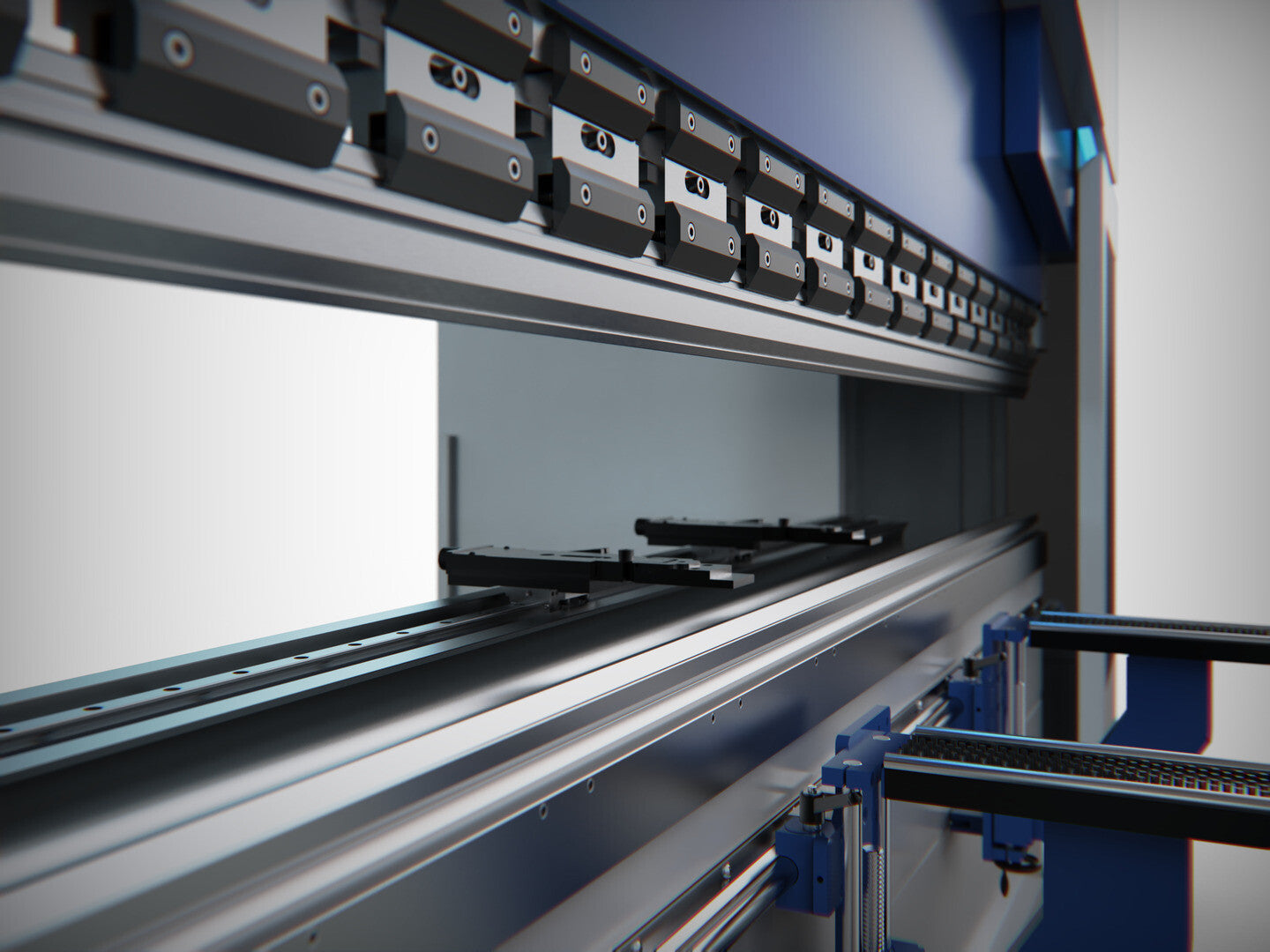

- American&European Style Quick clamp Promecam top tool holder E20
- 2x pieces Stronger sliding front support arms with hand-wheel C-Type vertical adjustment
- MVD special narrow bottom plate (European Type)
- Standard Punch ES 1281 (H: 104, 85°, R: 0.8)
- Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60)
- 2019 C-Series full cabin cover with aluminium controller arm
- Double Pedal (Press Up&Down) - P3
- Stronger Type 2 manual crowning with WILA (Holland) wedges, adjustable by handle and gauge
- Encoder - Linear Scales: GIVI
- LED illumination on RAM
- Electric components: Schneider 575V/ 60 Hz
- Hydraulic: Hoerbiger (HAWE) Blok
- Electric cabin: VDE
- Pump: Eckerle
- Driver: Mitsubishi / LS Electric
- CNC Controlled Type#1 Crowning (by Wila wedges and FramoMorat motor)
Additional

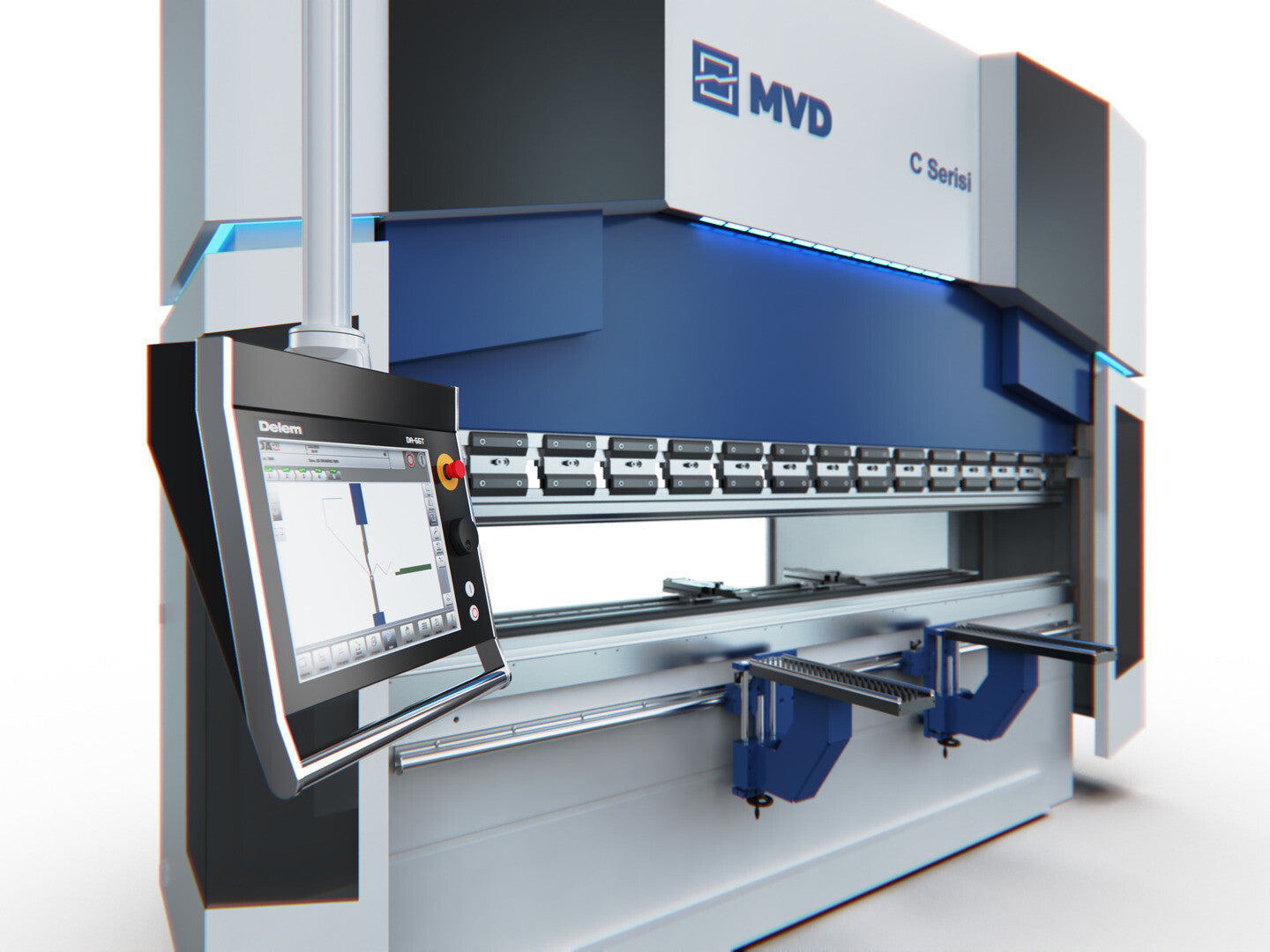

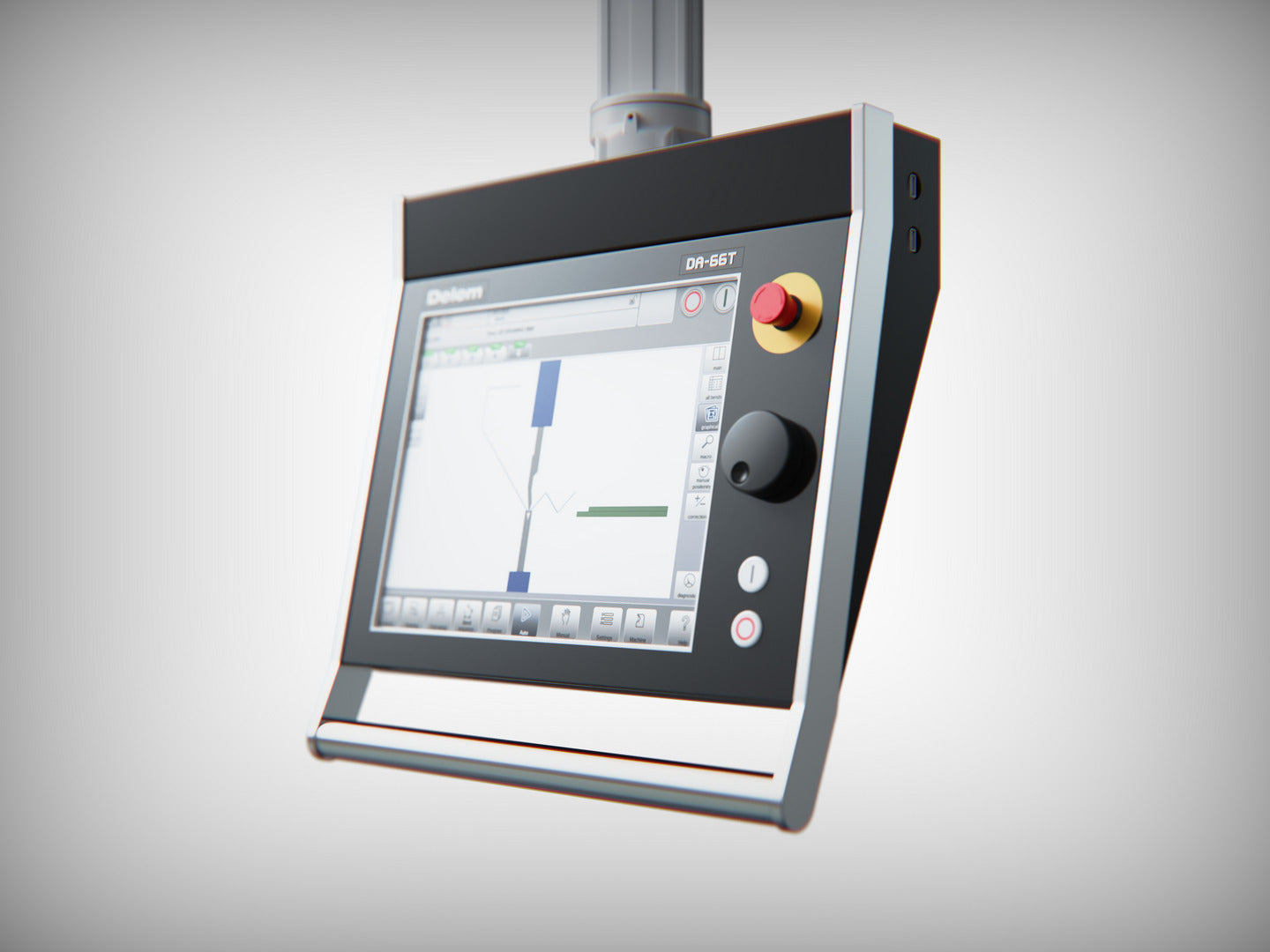

- Delem DA-66T, 17" Touch Screen, 2D Graphical, (3-8 Axes) with Profile-T-Lite - T2D Offline programming software
- 250mm Large bottom table for multi Vee die+IW: 70mm EU Die holder
- MSD front safety lasers + rear light beams
|
