Description

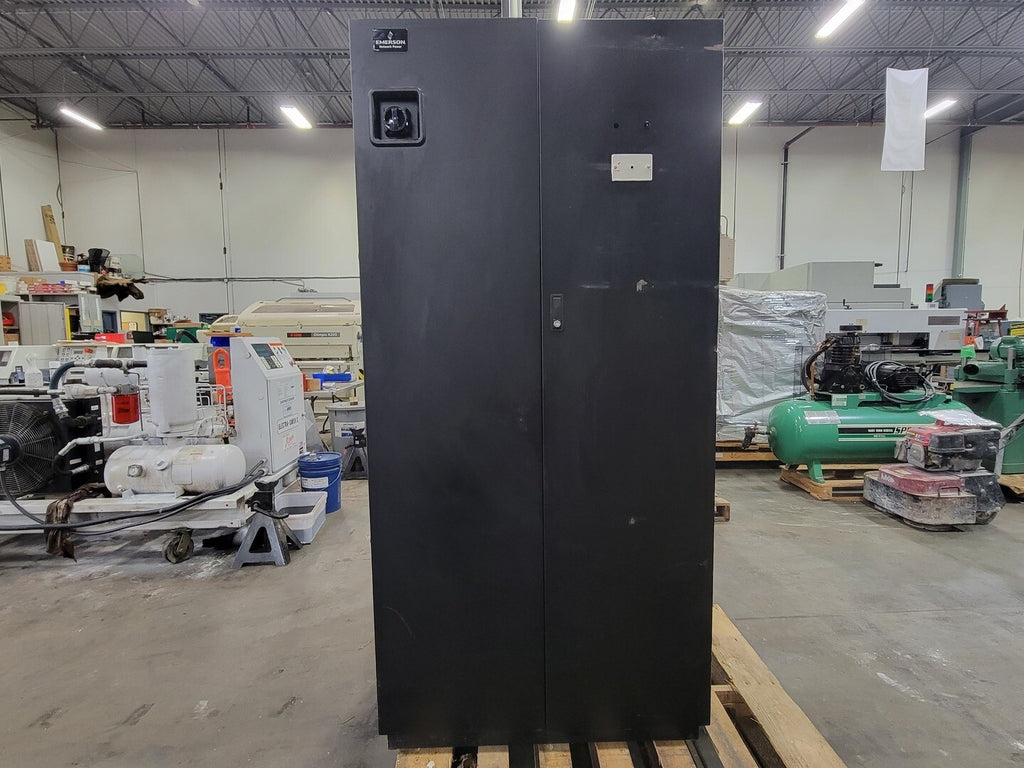

Liebert XDP is a system-matched pumping unit, designed to support to Liebert XDO, Liebert XDV, Liebert XDH, and Liebert XD CoolFrame spot/zone cooling units. It is the isolating interface between the building chilled water system and the pumped refrigerant circuit. In conjunction with the Liebert XD Cooling Modules, the Liebert XDP system can cool more than 30kW per rack.
| Specifications | |
|---|---|
| Model | XDP160RC-0 |
| S/N: | 0515C76734 |
| Condition | Used | Electrical |
| Voltage | 208 volts |
| Amps | 4 amps |
| BTU | 552,000 BTU/hr |
| Other Specifications |
|---|
|
Nominal Capacity @ 60 Hz: 160 kW / 46 Ton
Nominal Capacity @ 50 Hz: 140 kW / 40 Ton
Refrigerant: R134a
Max Design Pressure: 90 psig
Input Amp: 4 Amp

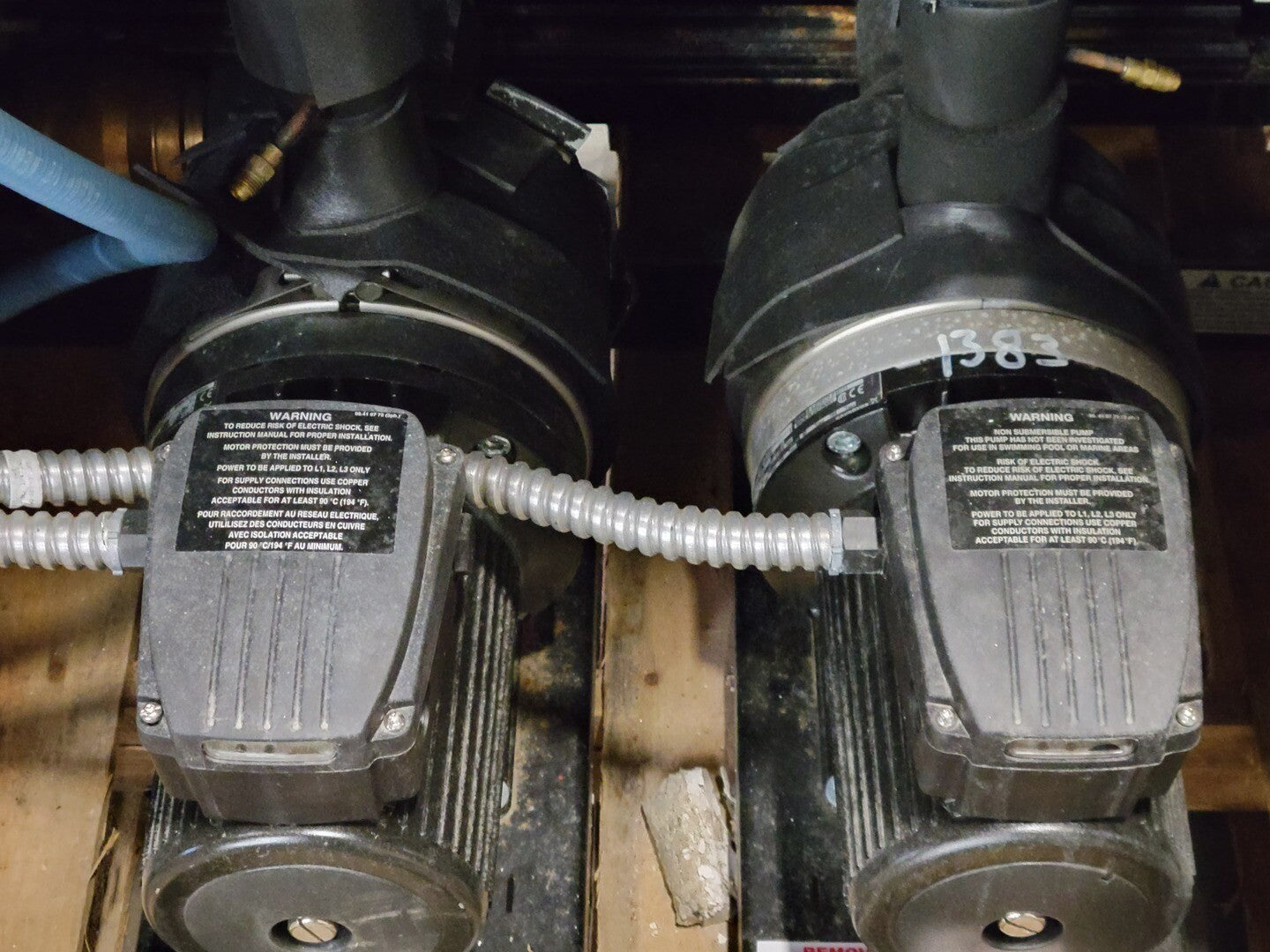

No of Pumps: 2
Pump Watts: 1050 W
Input Voltage:
208 V, 3 ph, 60 Hz
460 V 3 h 60 Hz
380/415 V, 3 ph, 50 Hz
Full load amps:
2.1 A @ 460 V, 3 ph, 60 Hz
2.3 A @ 380/420 V, 3 ph, 50 Hz
|
