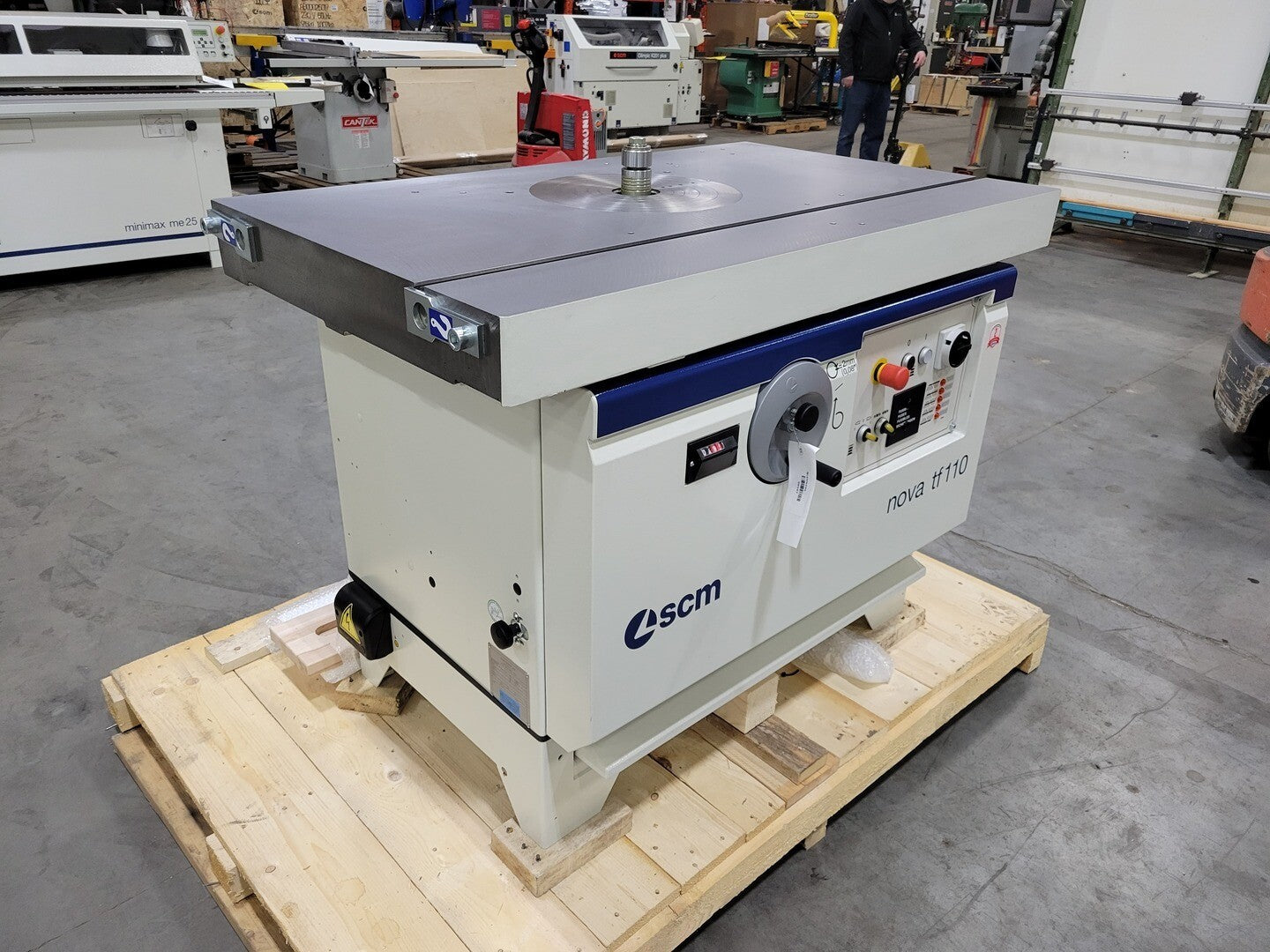

nova tf 110 Spindle Moulder w/ Fixed Spindle

Name: nova tf 110 Spindle Moulder w/ Fixed Spindle
Brand: SCM
SKU: 90107
Price: 12755.0 CAD
Availability: InStock

SKU: 90107

Save $2,145 CAD

604-449-1880

Other Specifications

Horsepower: 10 hp

Worktable dimension (with carriage as optional device): 1200 x 730 mm

Spindle moulder shaft tilting: N/A

Spindle moulder shaft height C.E. diam. 30-35 (40-50): 140 (180) mm

Spindle moulder shaft height NO C.E. diam. 30-35 (40-50): 180 (180) mm

Spindle base projection from worktable: 5 mm

Spindle base projection from worktable with interchangeable spindle: 33 mm

Max. tool diameter retractable under worktable (45^o): 320 x 85 mm

External diameter of exhaust outlet (spindle moulder hood): 120 mm

External diameter of exhaust outlet on base: 120 mm

Standard Equipment and Options

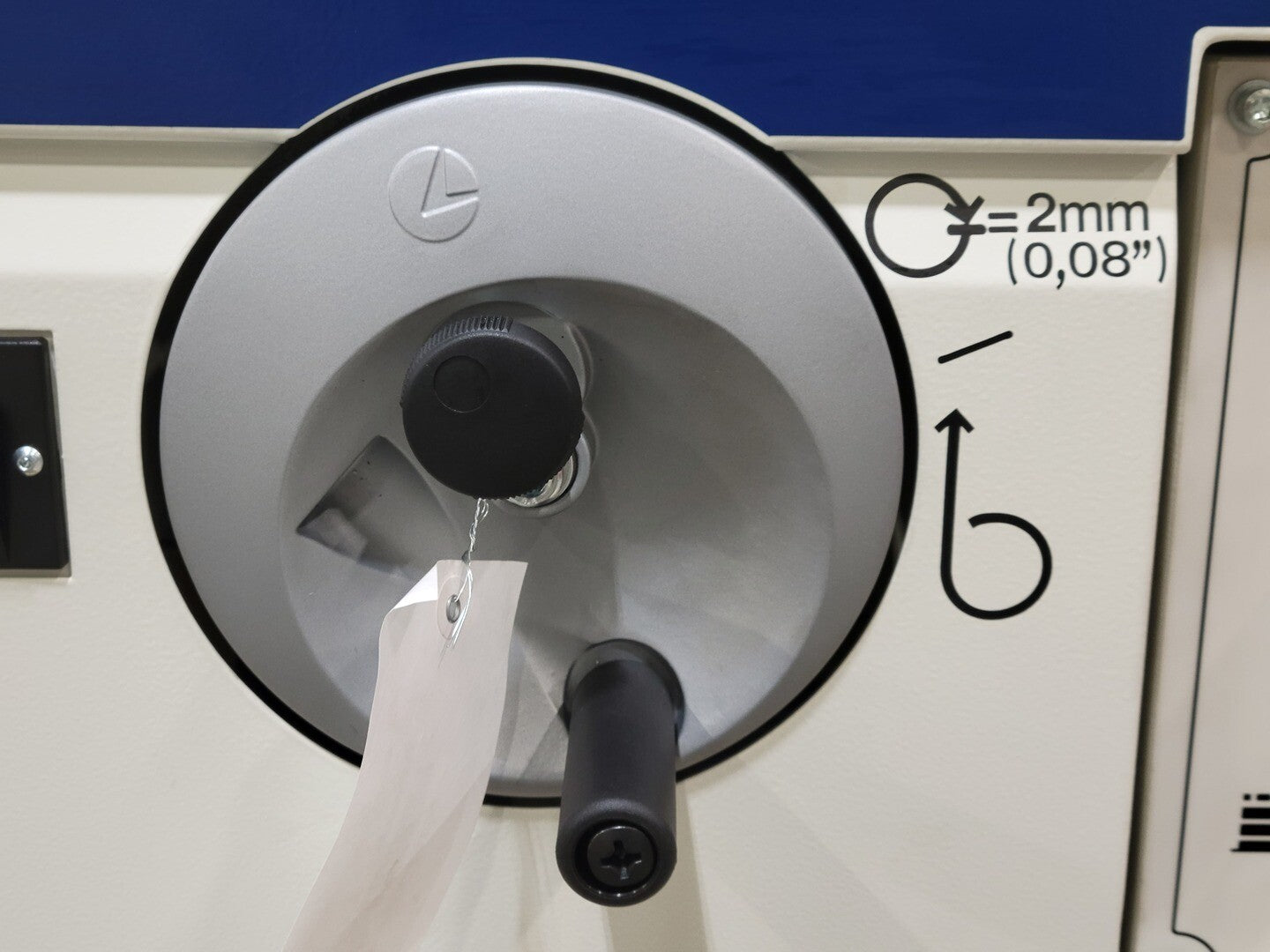

Manual tool-holder shaft lifting, complete with mechanical readout of working height
Fixed spindle moulder (version with electrical protections) with exhaust hood (310 mm max. tool diameter)
Adjustable fence with wooden tables (CE and Usa/Canada version) complete with exhaust hood and connecting wooden table (250 mm max. tool diameter)
Worktable with "T" slot complete with rest (USA/Canada version)

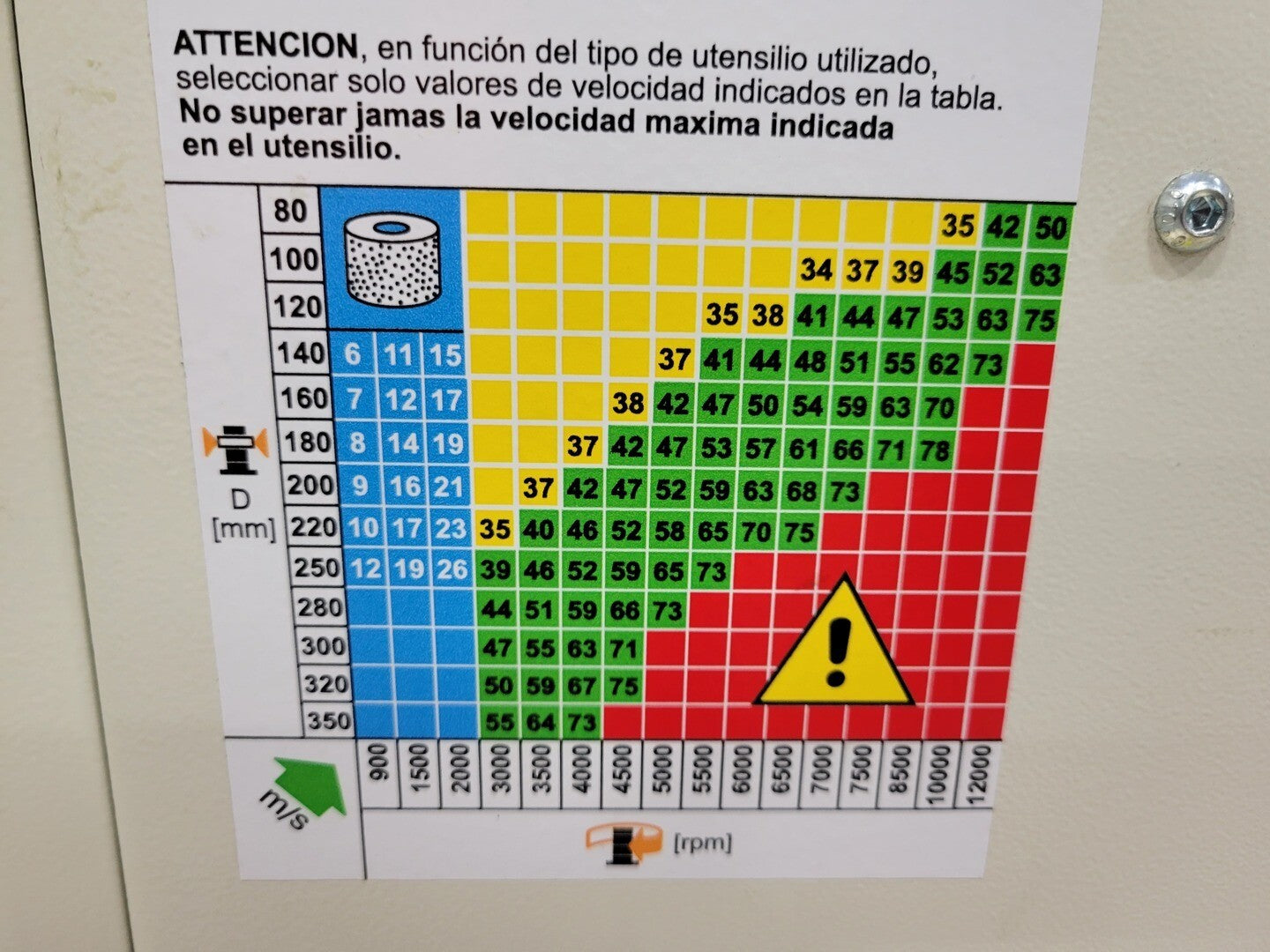

3000/4500/6000/7000/10000 rpm spindle speeds
Electrical presetting for feeder (CE version)
Electric speed display dial
Reverse spindle rotation electrical interlocking for reverse operation
