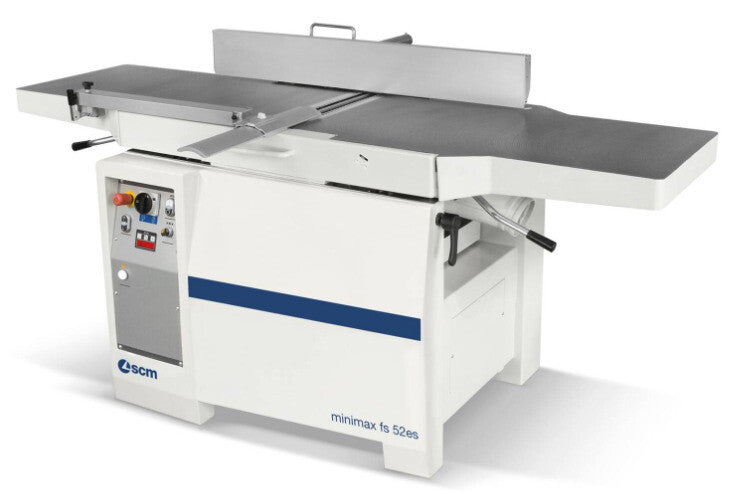

minimax fs 52es Surfacing-Thicknessing Planer w/ "Xylent" Cutterblock

SKU: 90139
Price:
$26,920 CAD

Shipping calculated at checkout

Stock:
Available
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model minimax fs 52es
Made In ITALY
Condition New
General
Horsepower 4.8 hp
Max. Workpiece Width 520 mm / 20.47 "
Max. Workpiece Thickness 240 mm / 9.45 "
Type Xylent
Electrical
Voltage 220 volts
Phase Single-phase
Other Specifications

** Combination machine of Planer, Jointer

"Xylent" spiralknife cutterblock with 3 series of knives

Complete With:

  • no. 84 plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
  • no. 1 dynamometric key for the correct and safe use of the locking
  • no. 2 inserts for the dynamometric key

Max. stock removal: 5 mm

Surfacing total length: 2250 mm

Thicknessing table dimensions: 520 x 850 mm

Feed speed on thicknesser: 5 / 8 / 12 / 18 m/min

Min. / Max. working height on thicknesser: 3 / 240 mm

Min. working length on thicknesser: 220 mm

Exhaust outlet diameter: 120 mm

Additional Features

  • Self-braking motor
  • Start/stop pushbuttons on operator position
  • Xylent maintenance kit
  • Bridge planer protection (standard for CE version)
  • Additional overturning fence for processing of thin workpieces
  • Powered vertical movement of thicknessing table with digital display
  • Wheels for machine movement
  • Triple wall
  • Machine language: English


Jointer, Planer
