Description
| Specifications | |
|---|---|

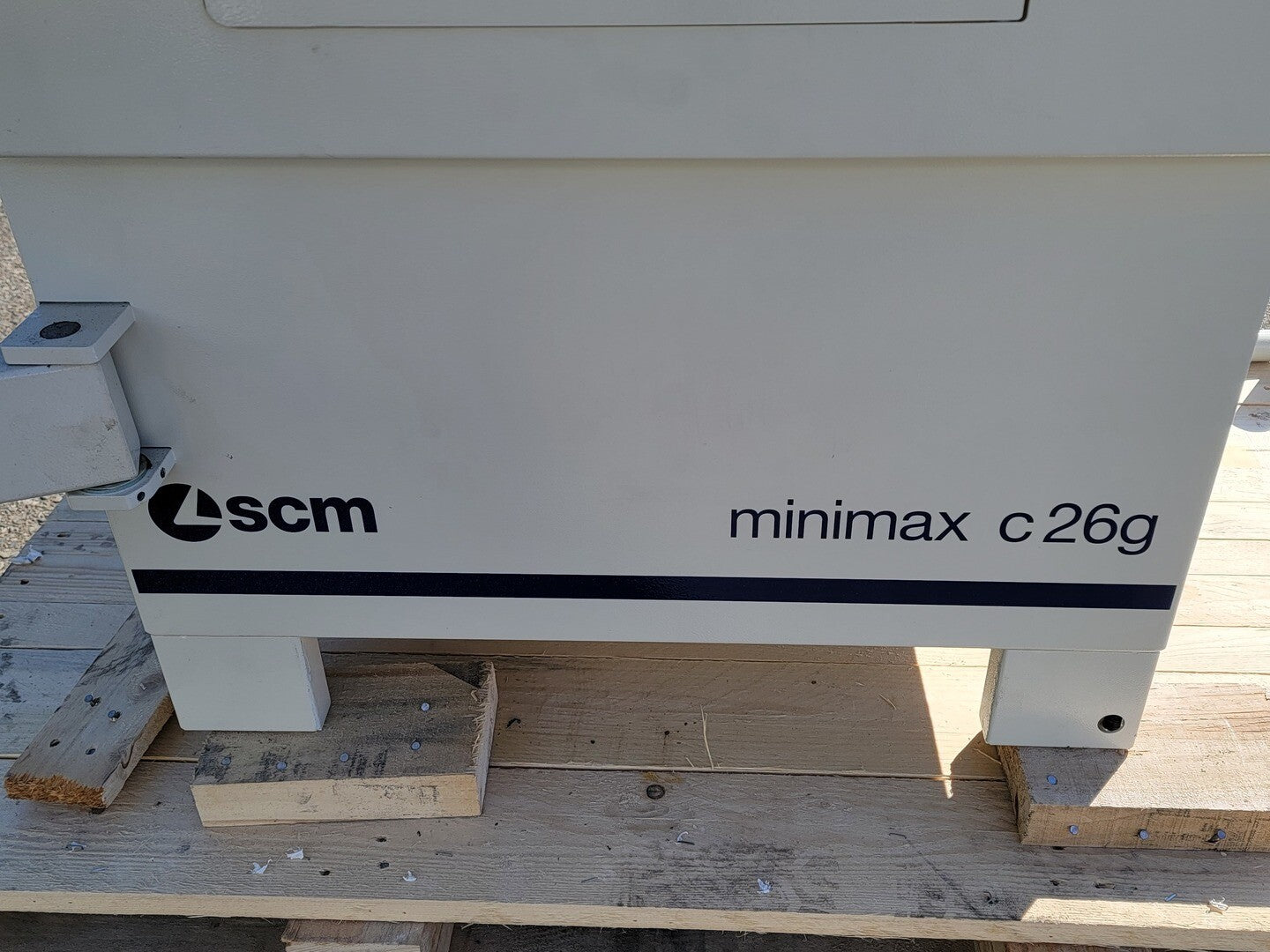

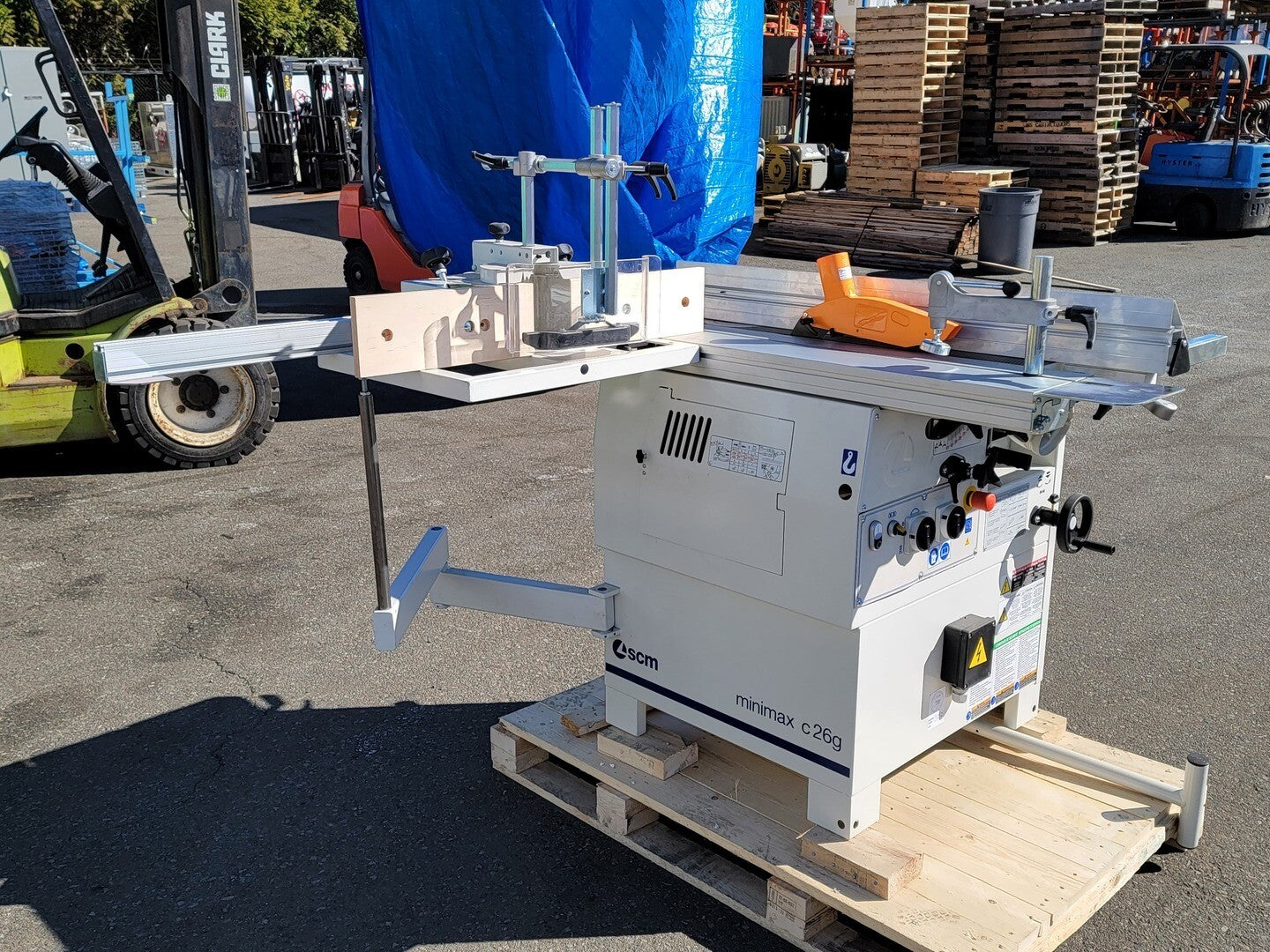

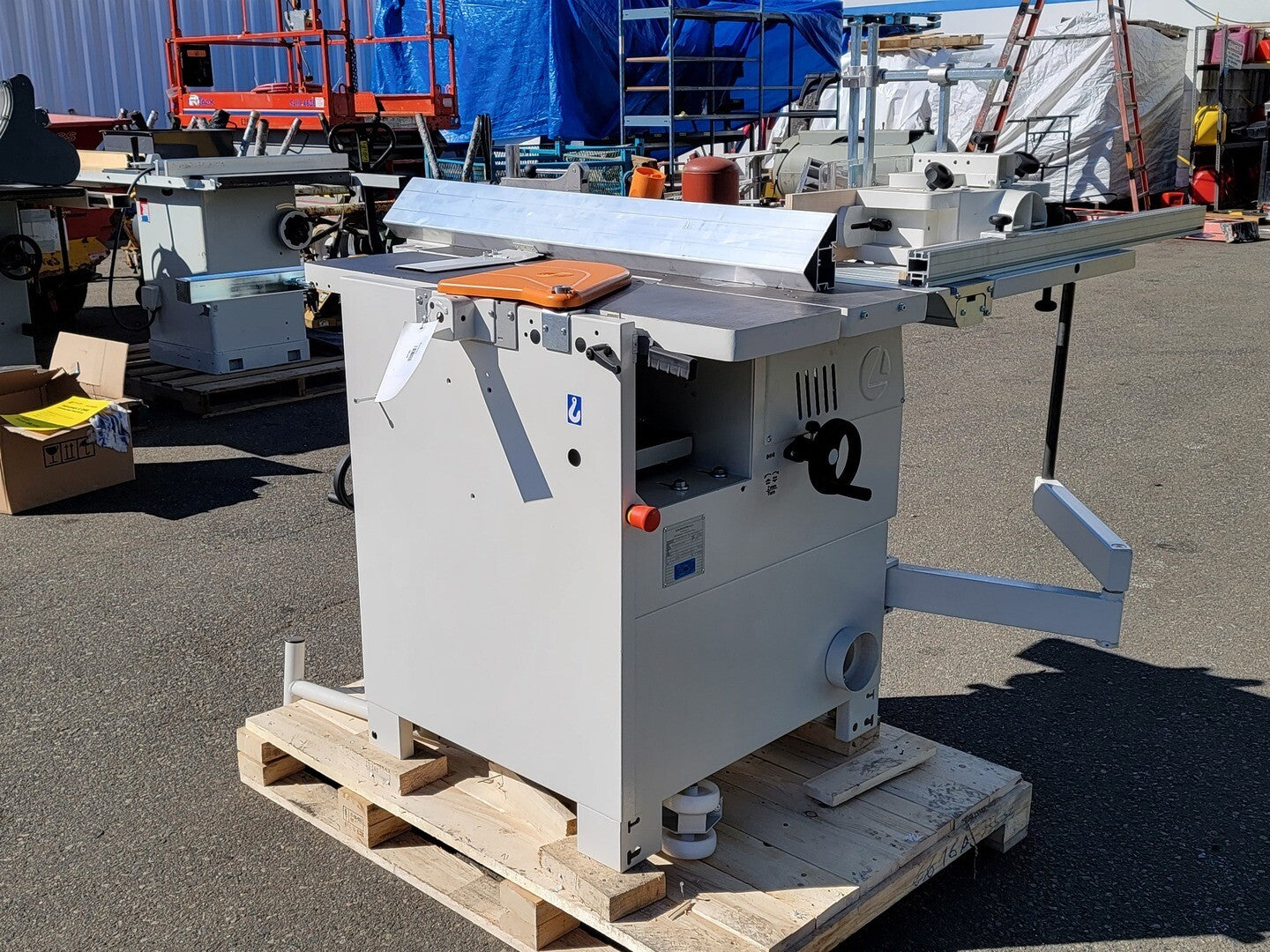

| Model | minimax c 26g |
| Made In | ITALY |
| Condition | New | General |
| Horsepower | 3 hp |
| Blade Diameter | 250 mm |
| Voltage | 230 volts |
| Phase | Single-phase |
| Saw Type | Sliding Saw |
| CNC | No |
| Other Specifications |
|---|
|

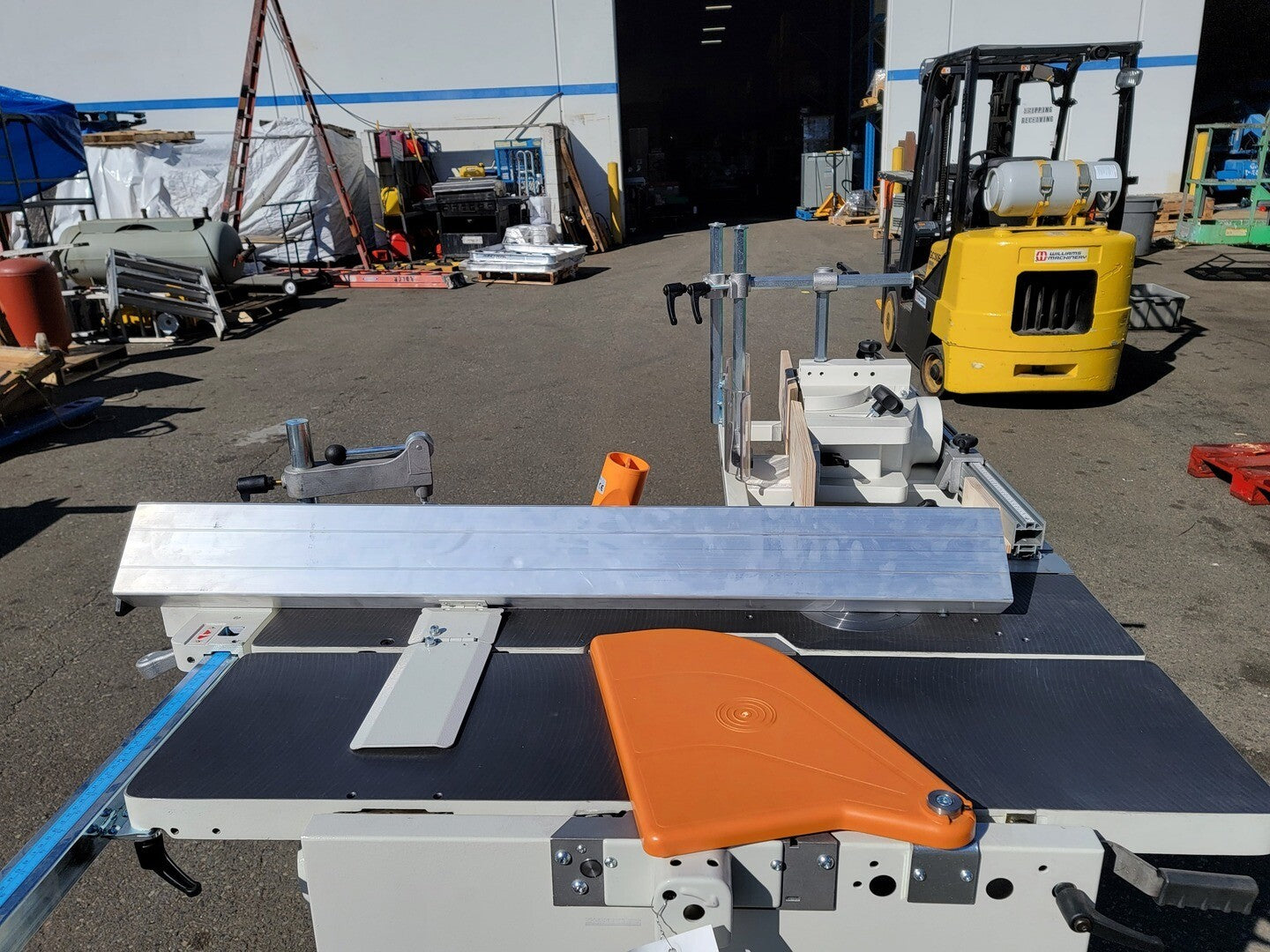

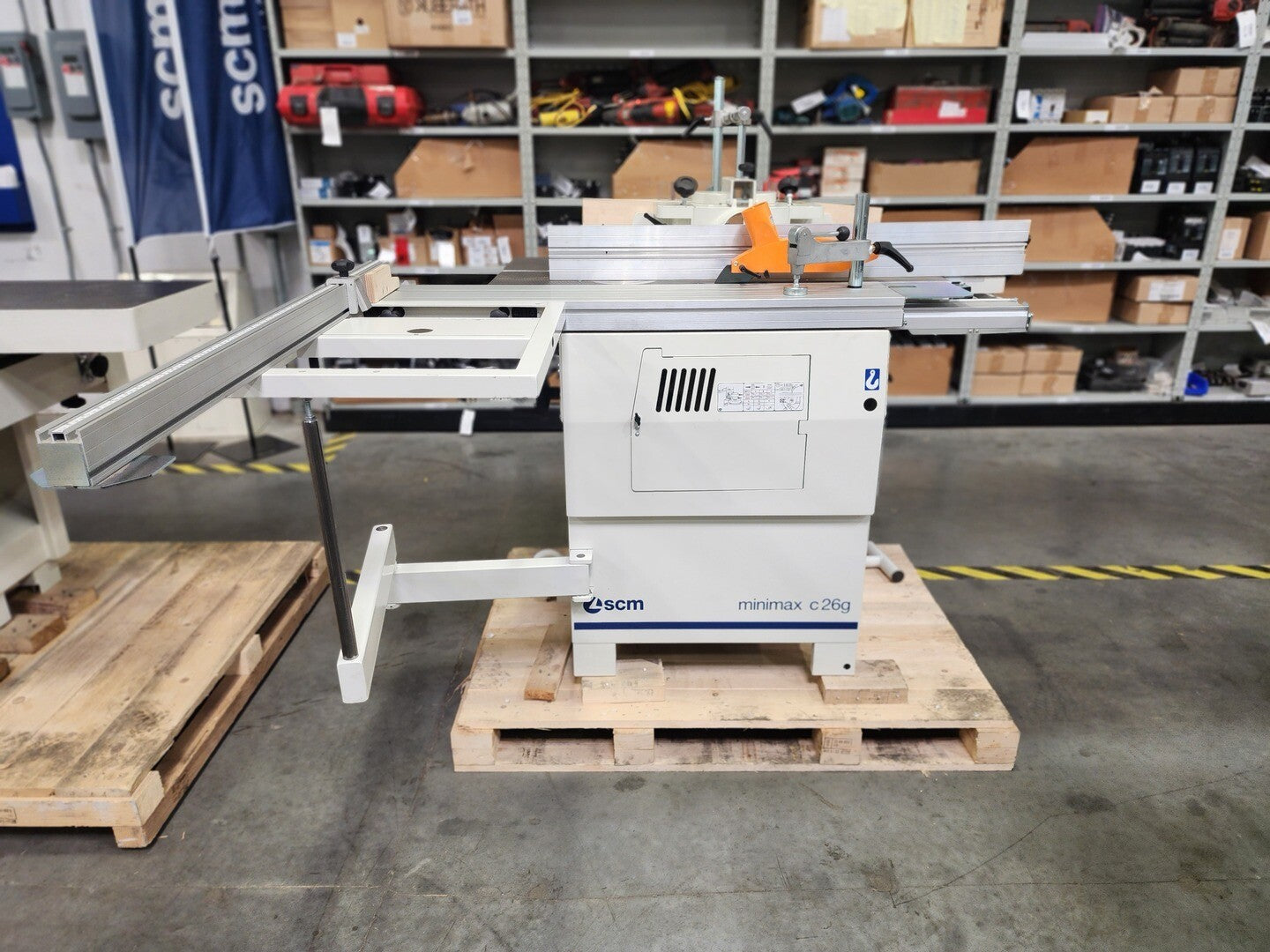

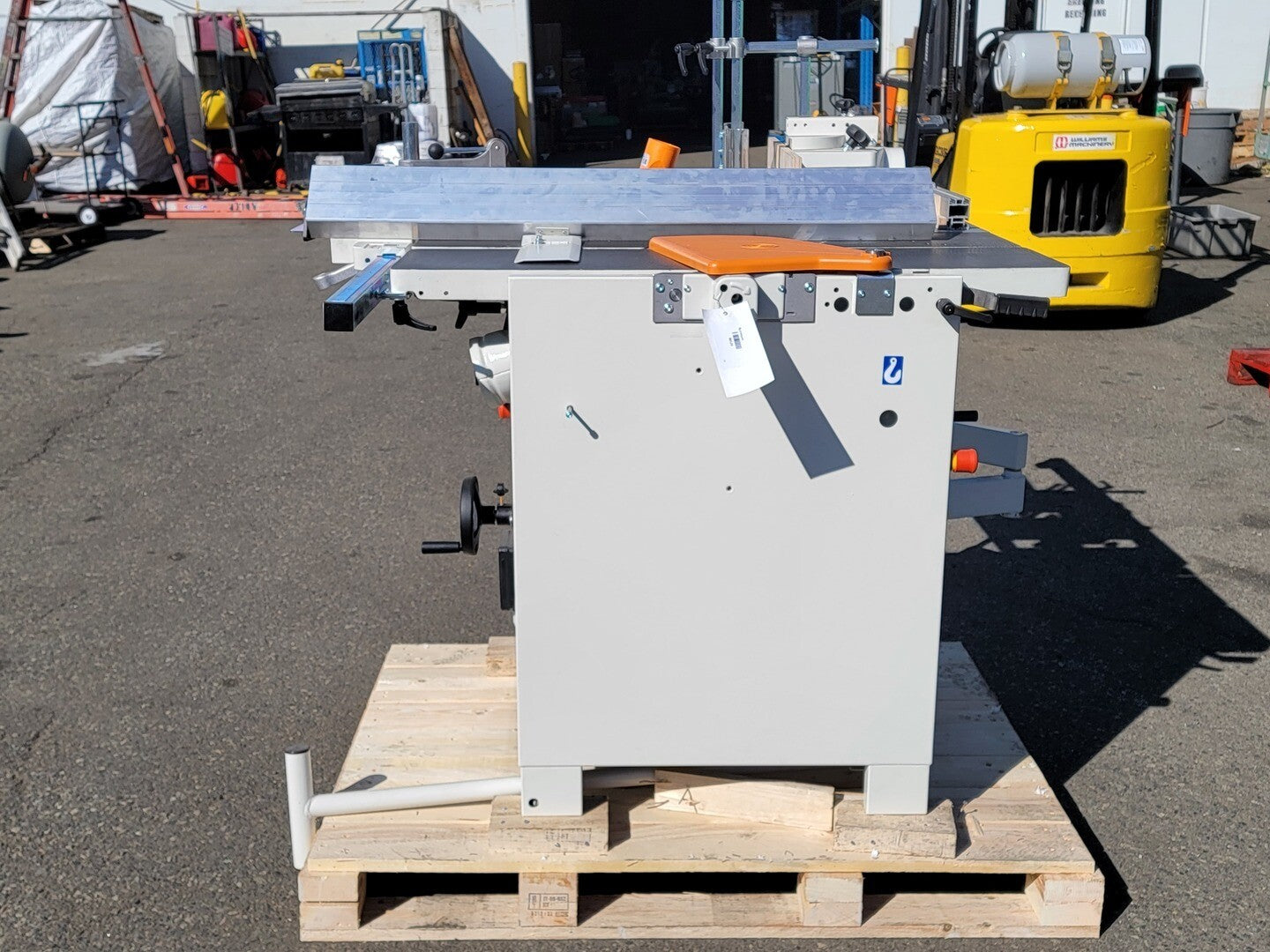

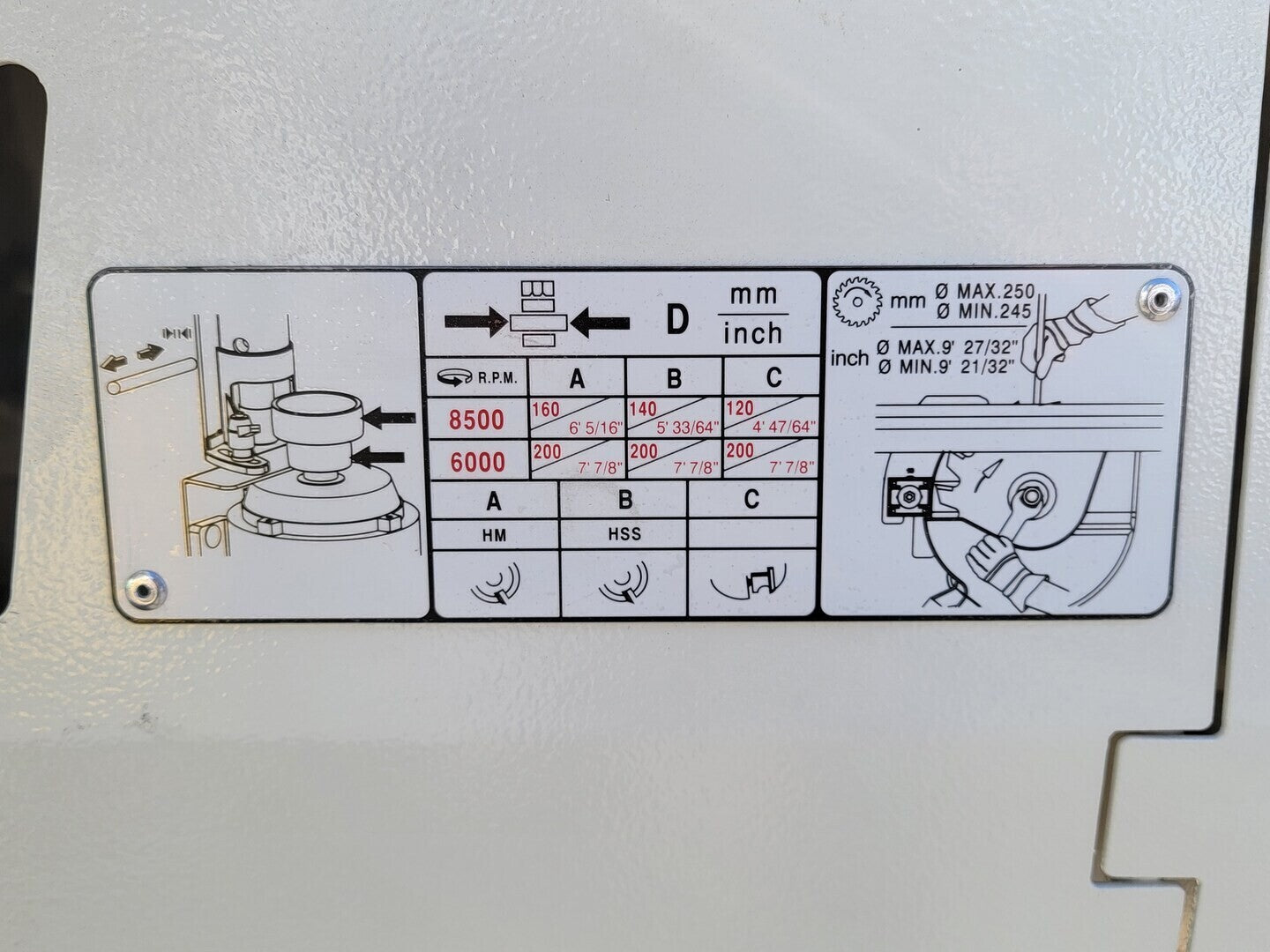

** Combination machine of Planer, Jointer, Saw, Router Planer "Tersa" cutterblock" 62 mm diameter with 3 knives with rapid locking system Max. Stock Removal: 3 mm Surfacing Tables Total Length: 1040 mm Thicknessing Table Dimensions: 260 x 450 mm Feed Speed on Thicknesser (m/min): 6 Min./Max. Working Height on Thicknesser: 3/200 mm Circular Saw Cast Iron Saw-Spindle Moulder Worktable Dimensions: 1024 x 224 mm Blades Tilting: 90o / 45o Max. Saw Blade Projection from Table at 90o / 45o: 75 / 60 mm Max. Squaring Stroke: 1200 mm Cutting Width on Parallel Fence: 500 mm Spindle Moulder Available with the Following Spindle Diameters: 30, 1-1/4" Max. Useful Spindle Length: 75 mm Spindle Moulder Speeds @ 50 Hz: 5000 / 7500 rpm Max. Tool Diameter when Profiling: 160 mm Max. Diameter of Tool Lowered Under the Table at 90o: 145 mm Squaring Frame Complete with:
Additional Features
|
