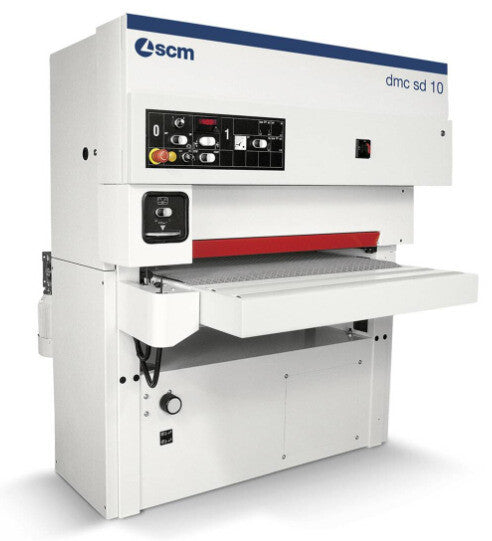

dmc sd 10 composition CS 95 Automatic Single Head Wide Belt Sanders

SKU: 90136
Save $2,750 CAD
Price:
$24,950 CAD $27,700 CAD

Shipping calculated at checkout

Stock:
In stock
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications
Model dmc sd 10
Made In ITALY
Condition New
General
Horsepower 15 hp
Max. Workpiece Width 37.4 "
Max. Workpiece Thickness 6.7 "
Type Belt
Electrical
Voltage 600 volts
Phase 3-phase
Other Specifications

Number of Heads: 1

Min. Working Thickness: 4 mm

Sanding Belt Width: 970 mm

Sanding Belt Length: 1525 mm

Feed Belt Motor Power: 0.3 / 0.55 kW (0.4 / 0.7 hp)

Feed Belt Speed: 4.5 - 9 m/min

dmc sd 10 composition CS 95

SINGLE COMBINED UNIT "CS" equipped with:

'CR/120' roller, 120 mm diameter:

  • 85 SH rubber coated roller
  • manual adjustment of working height

'TRP/I' flat stiff pad made of an extractable bar with felt contact insert density D=0.68:

  • manual adjustment of working height
  • glued graphite cloth

"TSP/I" Semi-stiff flat pad

For the sanding of veneered panels

The pad is made of an extractable bar with rubber contact insert + felt density D=0.68

Additional Features

  • Automatic start-delta-start on main motor
  • 2 infeed support rollers and two outfeed support rollers
  • Electronic positioning for working table
  • Electronic readout in "inches"
  • Pallet + nylon
  • English machine plate
